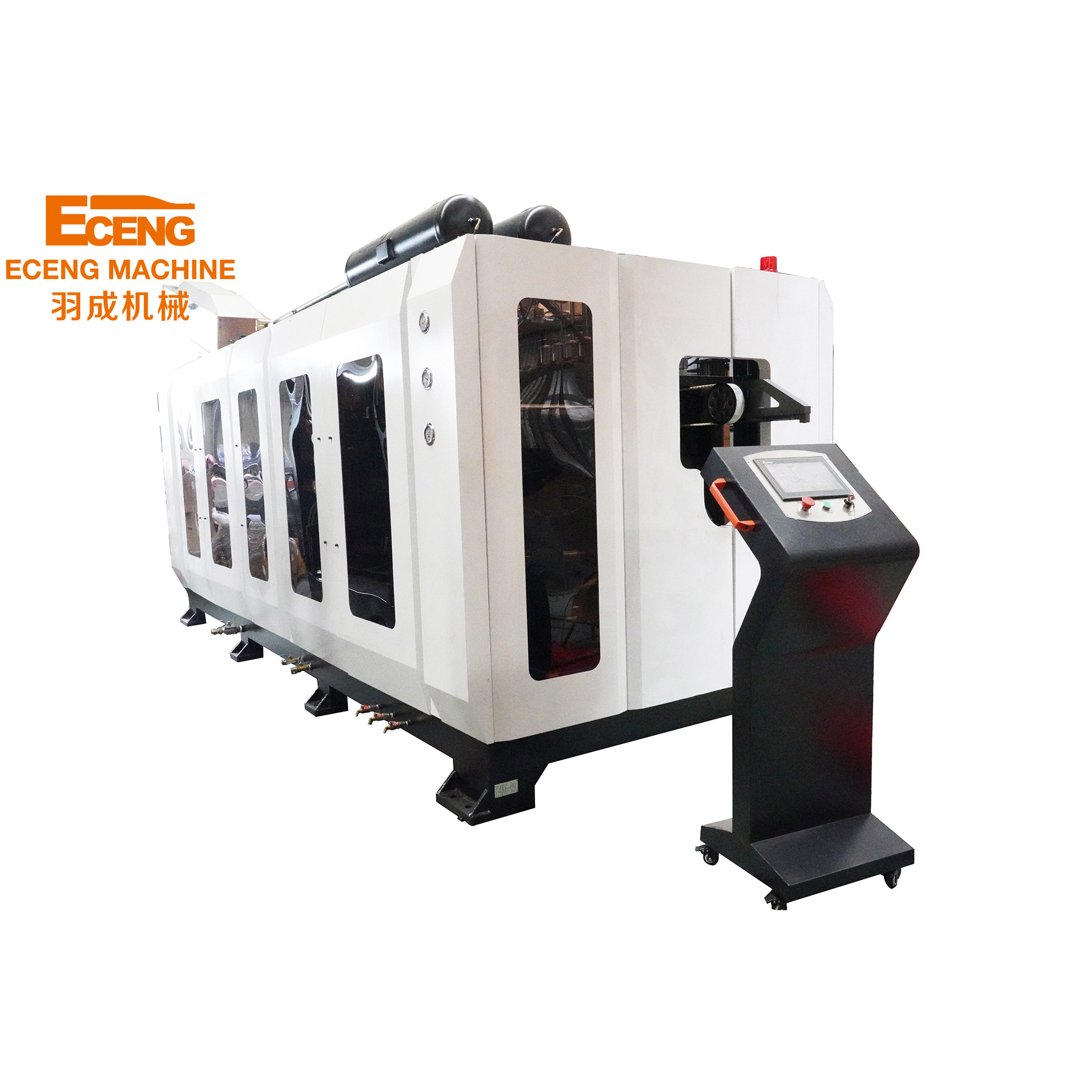

10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric

10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric

  • High Light

    10000bph Automatic Blow Molding Machine

    ,

    Eceng k6 water bottle blowing machine

    ,

    10000bph water bottle blowing machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Condition
    New
  • Blow Moulding Type
    Stretch Blow Moulding
  • Warranty
    1 Year, One Year For Free
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE SGS ISO
  • Model Number
    K6
  • Minimum Order Quantity
    1set
  • Price
    $35,000.00/Sets >=1 Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    8 Set/Sets per Month

10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric

500ml plastic water bottle/juice beverage bottle blowing machine
Eceng k6 fully-electric 6cavity plastic bottle pet pure water bottle blowing machine stretch blow moulding machine

10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 0


10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 1
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 3
specification
             Model                                                                             K6






Bottle type specification
Cavity
6

Max.volume
200ml-2000ml

Bottle mouth maximum overall diameter
25-29mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
10000BPH

Bottle type volume
600ML

Bottle type weight
13.5g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 5
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 7
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

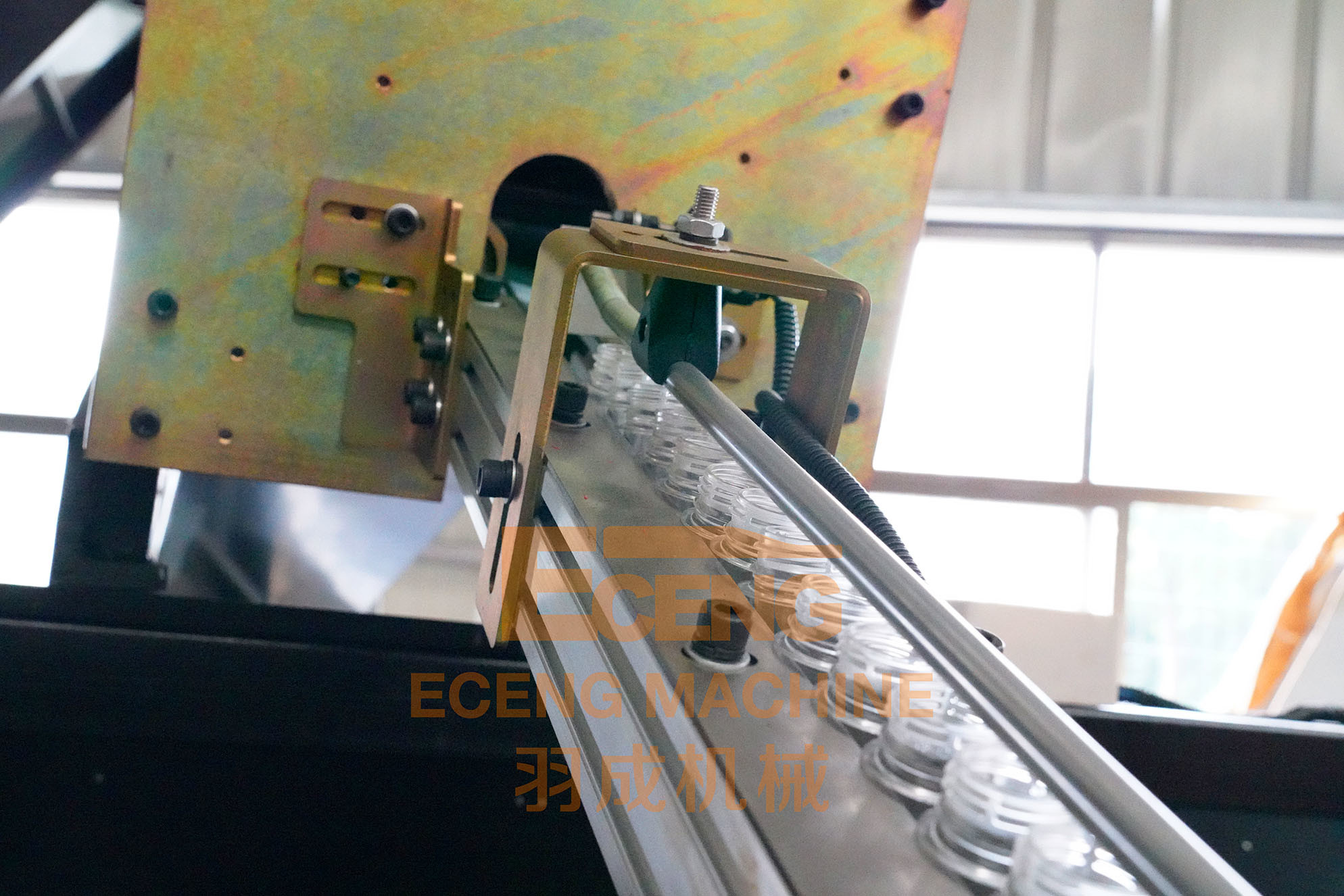

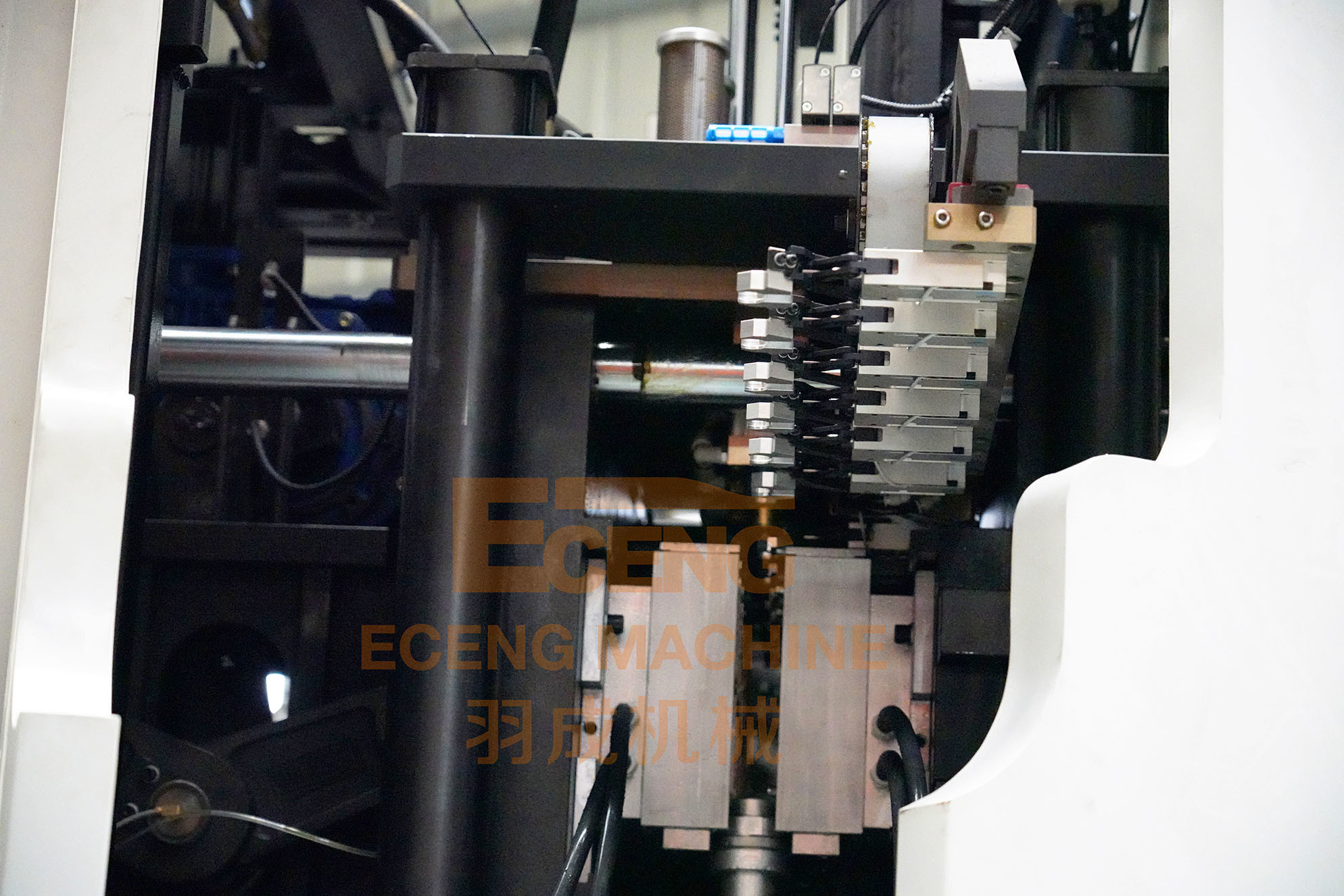

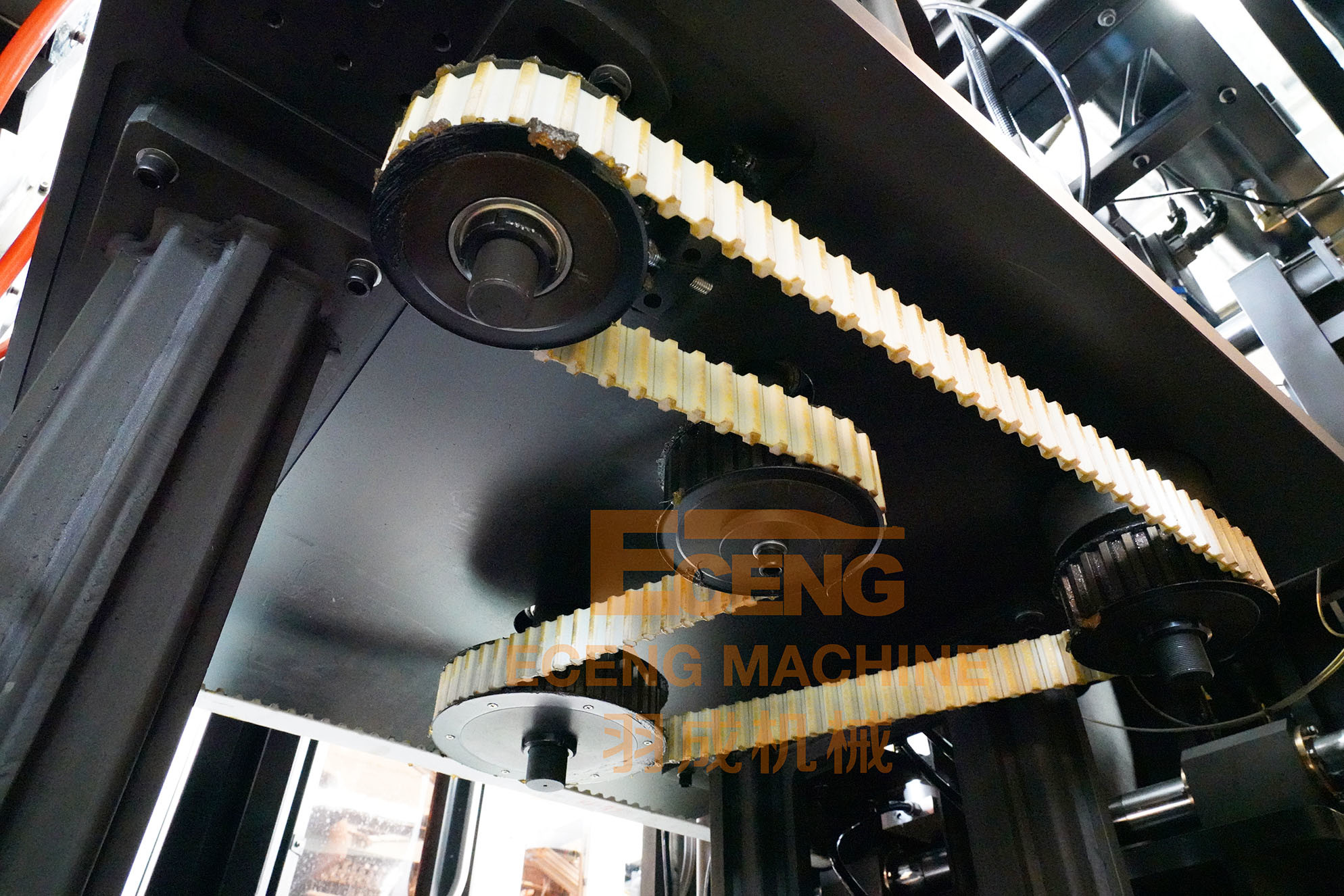

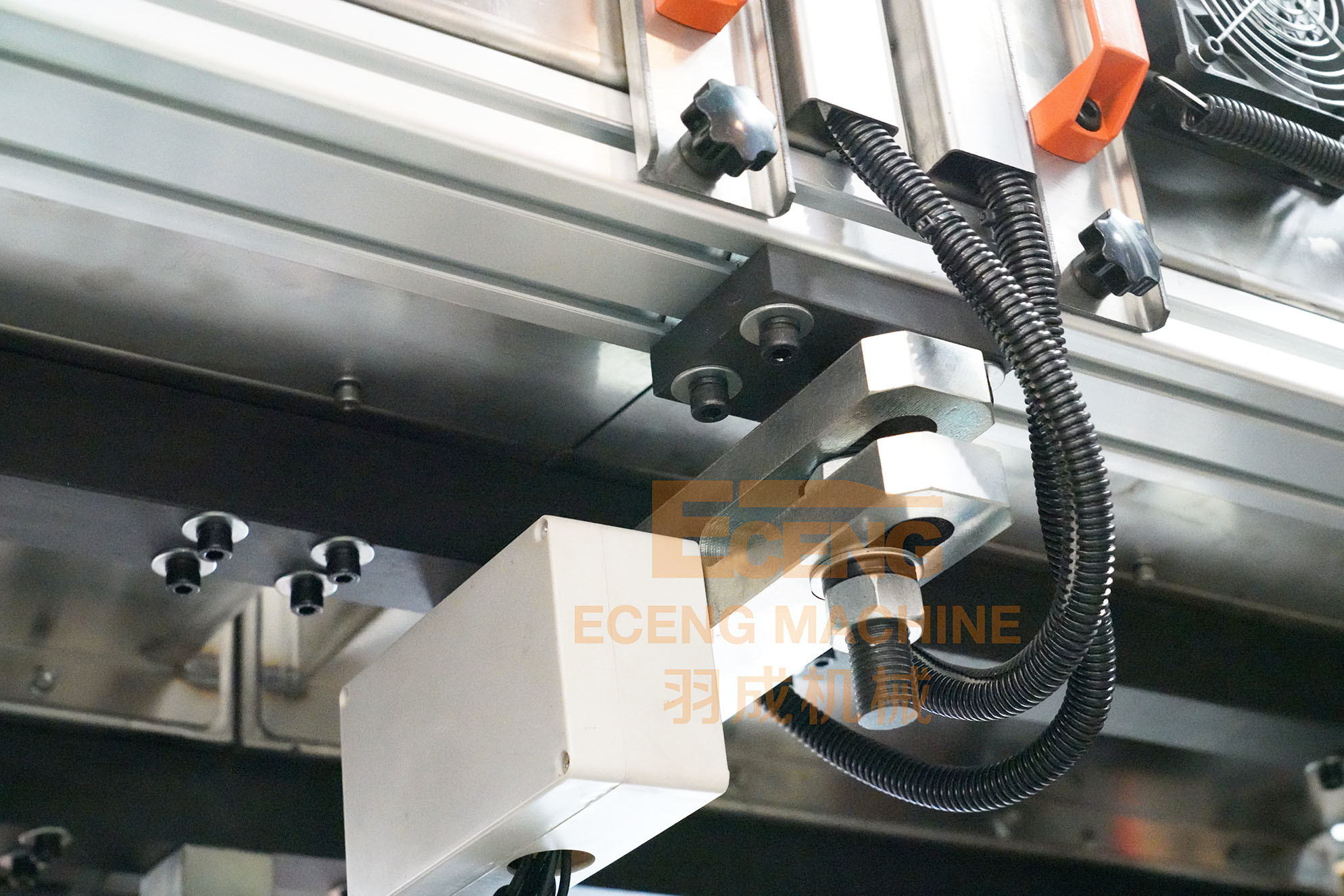

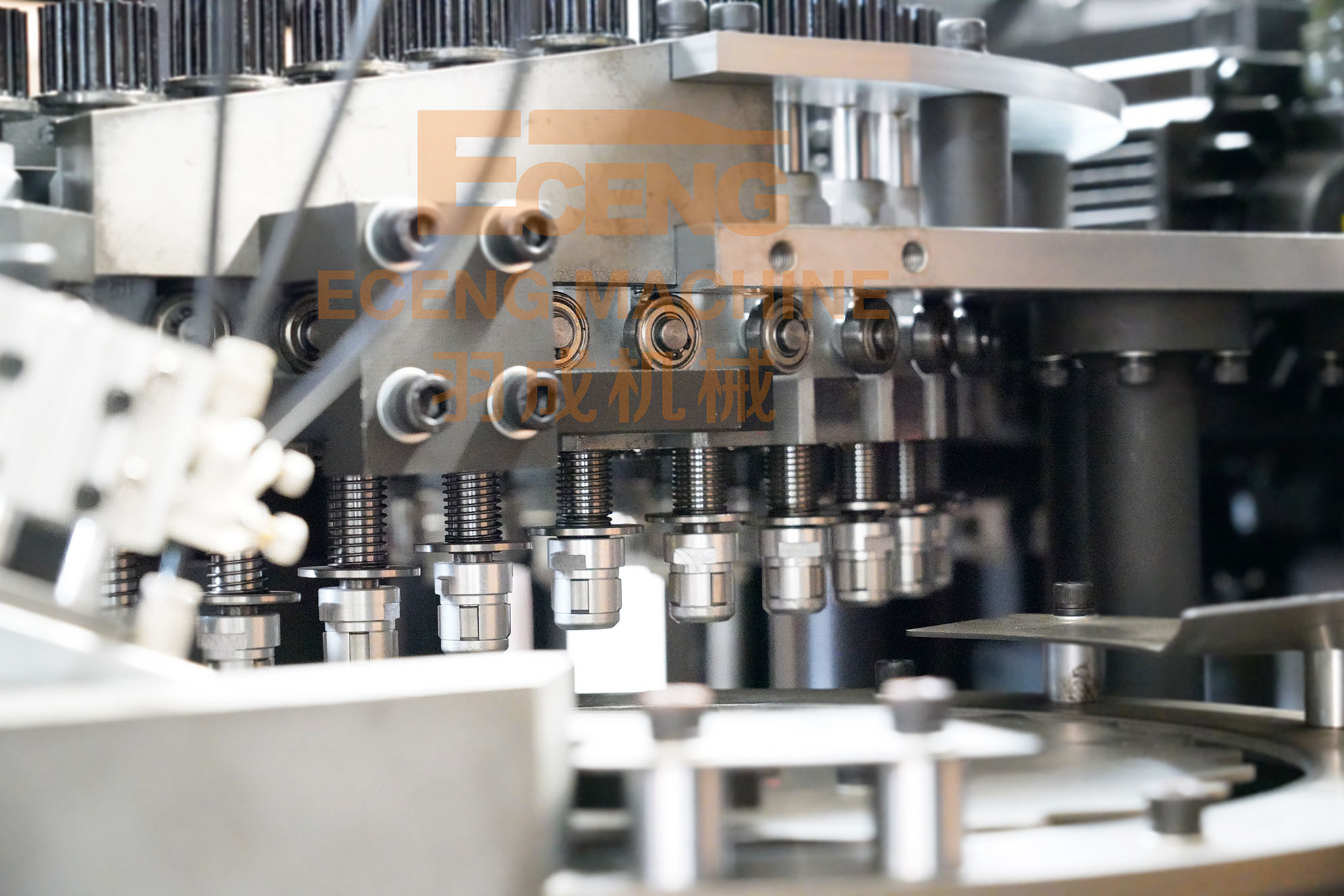

Detailed Images
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 9
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 11
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 13
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 15
Packing&Shipping
10000bph Eceng K6 Water Bottle Automatic Blow Molding Machine Fully Electric 17
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
