Place of Origin: | Jiangsu, China |
Brand Name: | Eceng |
Certification: | CE ISO |
Model Number: | K6 |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | standard export wooden case or according to your requirements |
Delivery Time: | 45days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500 Set/Sets per Year |
Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
---|---|---|---|
Voltage: | 380V,50HZ | High Pressure Valve Brand: | SMC |
Rotary Cylinder Brand: | SMC | PLC Brand: | DELTA |
Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
Highlight: | 2000ml Stretch Blow Moulding Machine,9000BPH plastic bottle maker machine,2000ml plastic bottle maker machine |

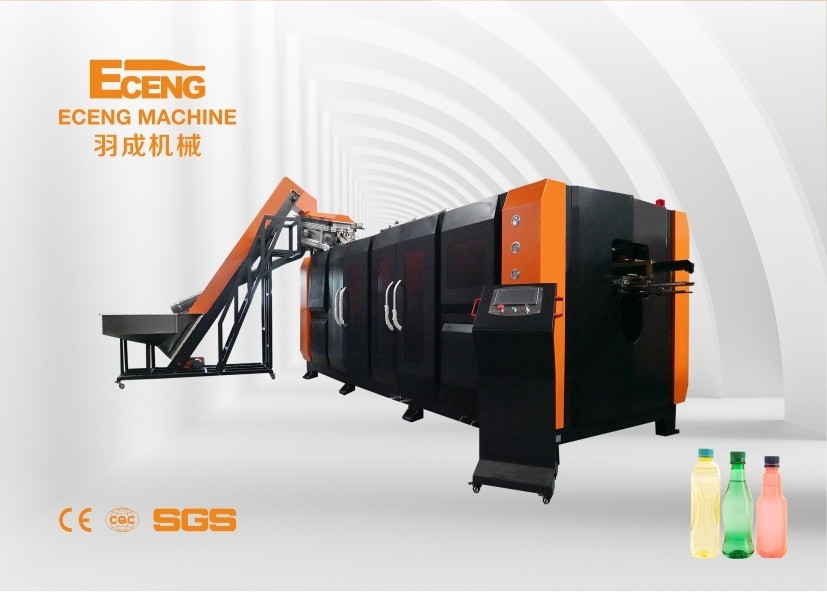

2000ml Stretch Blow Moulding Machine 9000BPH Plastic Bottle Maker
Automatic cheap price small plastic pet drink water juice bottle jar can maker stretch blow blowing mold moulding making
Model Eceng K6 | ||
Bottle type specification
| Cavity | 6 |
Max.volume | 200ml-2000ml | |
Bottle mouth maximum overall diameter | 25-29mm NECK | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Capacity specification
| Theory output | 12000-14000BPH |
Bottle type volume | 600ML | |
Bottle type weight | 13.5g | |
Bottle type | Round | |
Power specification | Light tube quantity | 32pcs |
Light tube power | 1.25KW | |
Maximum heating power | 40KW | |
All electric machine installation | 49KW | |
Actual consumption | 30%--60% | |
Air pressure specification
| Work pressure | 5-6kg/cm2 |
Blow bottle pressure | 25-45kg/cm2 | |
Higher -pressure gas consumption | 8000Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10℃ | |
Consumption | 8000kcal/hr | |
Forzen water flow | 120L/min | |
Machine specification | Machine size | 5.5x1.8x1.9 |
Machine weight | 6.1ton |
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

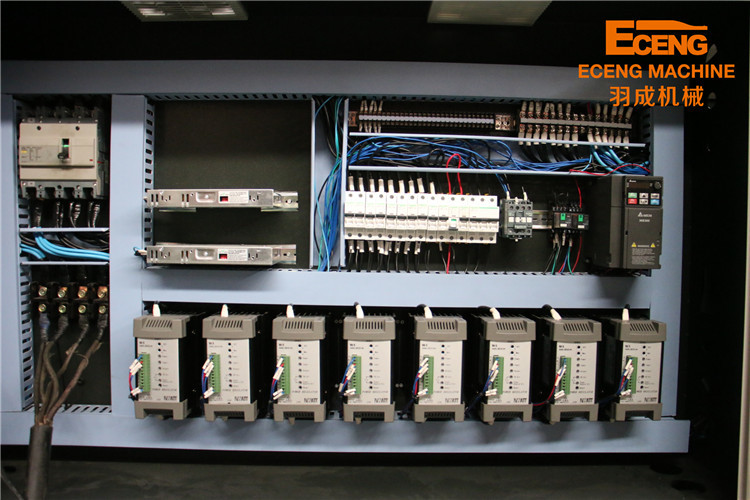

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
