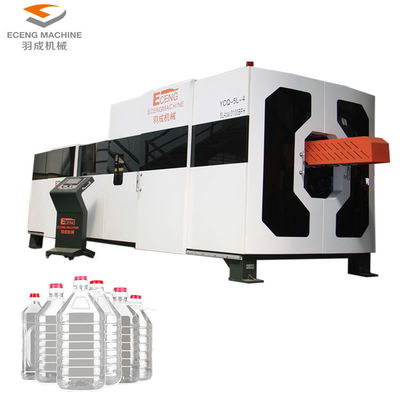

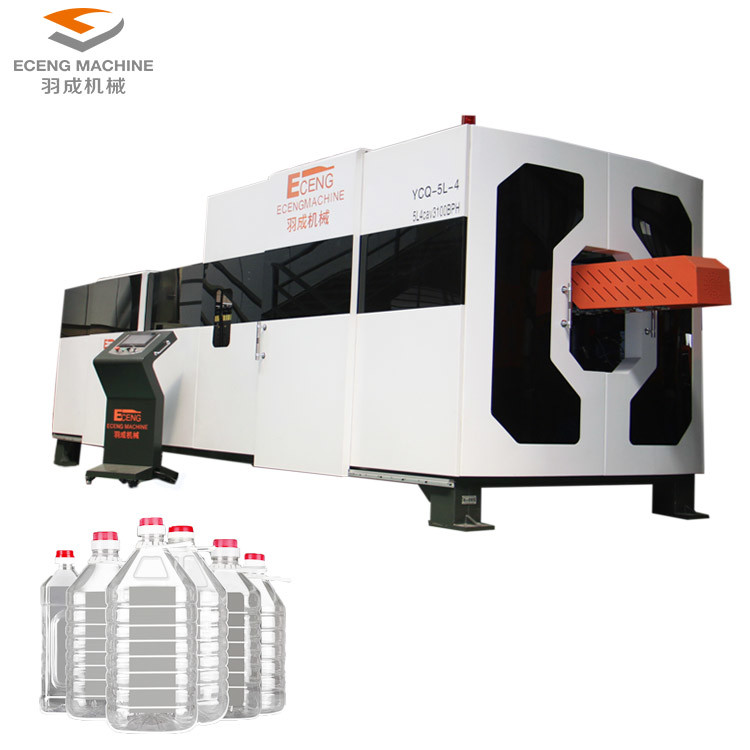

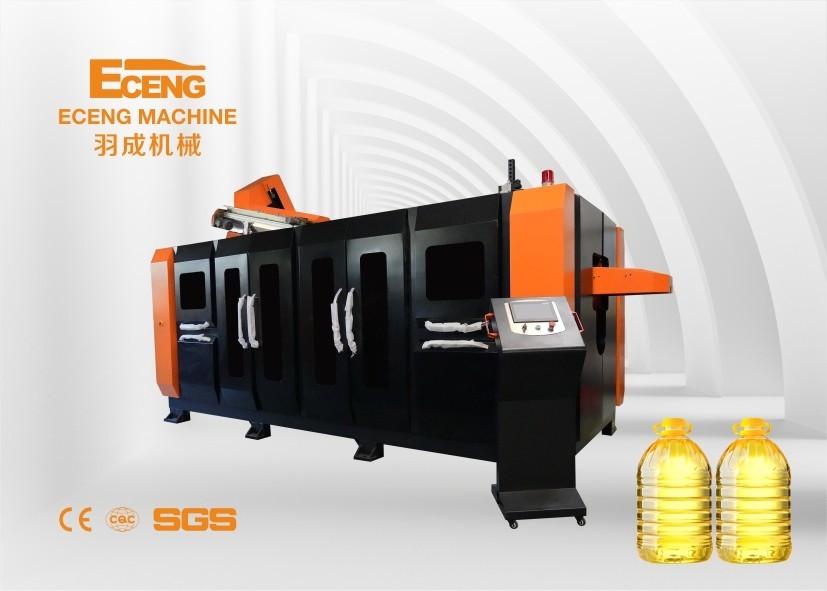

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity

  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
  • Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity
Product Details:
Place of Origin: China
Brand Name: Eceng
Certification: CE ISO
Model Number: 5L4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden package or film package for blowing machine for 5l pet bottle
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month 6
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 5000 Ml
Blow Moulding Type: Stretch Blow Moulding Voltage: According To Customer's Request
Weight (KG): 6000 KG Automation: Automatic
Warranty Of Core Components: 1 Year Heating Method: Electric Cycle Heating
Service: Full Technical Training Style: Plastic Bottle Machine
High Light:

Stretch Blow 5 Liter Blow Moulding Machine

,

5 Liter Blow Moulding Machine 4 cavity

,

Stretch Blow 4 cavity pet blowing machine

High quality automatic bottle blowing machine supplier 5 liter 4 cavity high speed plastic bottle blowing machine
Product Description



Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 0

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 2

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 4

pet blowing machine for 5l Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

pet blowing machine for 5l Q series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 6



5L-4

Item

Parameter

Bottle Type



















Max volume(ML)

5000

Max diameter(MM)

Φ150

Bottleneck diameter(MM)

Φ18 ~ Φ120

Bottle max height(MM)

<330

Preform max height(MM)

<155

Mold clamping stroke(MM)

120

Bottom mold stroke(MM)

60

Distance between bottles(MM)

/

Theory output(bottles/hour)

3,500(5L round bottle)

Mold cavity

4

Oven Specification





Heating unit

4

Heating lamp layer

8

Preform seat(pieces)

42

Power Specification







Voltage

380V

Frequency

50Hz

Actual consumption

40~80kw/h

All installation power

120kw

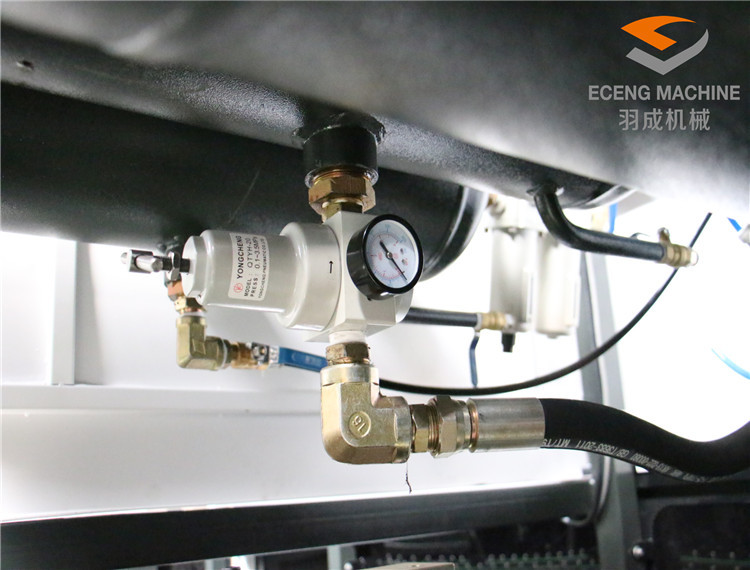

Air Source

(High Pressuure air consumption depends on volume of pet bottle)







LP compressed air pressure

1Mpa

LP compressed air consumption

1m3/min

HP compressed air pressure

3.5Mpa

HP compressed air consumption

2m3/min

Cooling Water

(Temperature≤18℃)



Pressure

2~4bar

Flow

2.5m3/h

Weight

Main machineovenelectric cabinet

about 2t

Machine dimension

Main machine(L×W×H)

6.2×2.4×2.4m



Preform auto-loader(L×W×H)

2.0×2.4×2.4m

Note:air consumption of the air source is adjusted according to bottle volume,altitude etc.

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 8

pet blowing machine for 5l Q series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

 Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 10

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 12

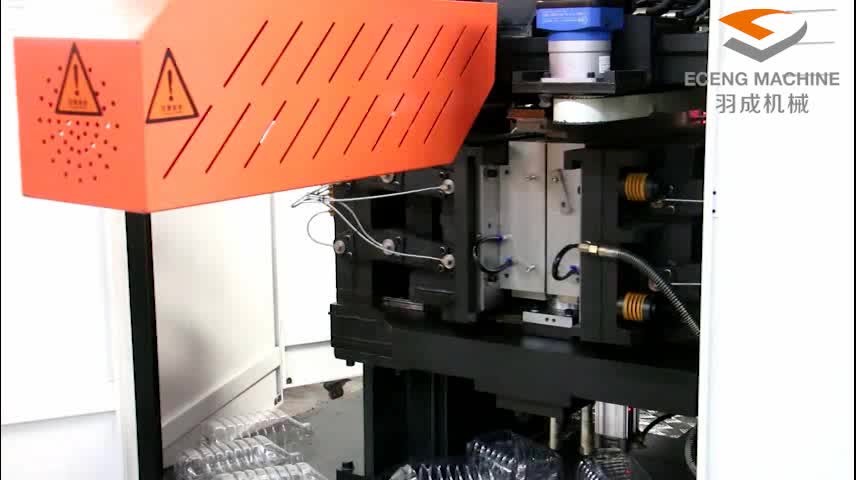

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 14

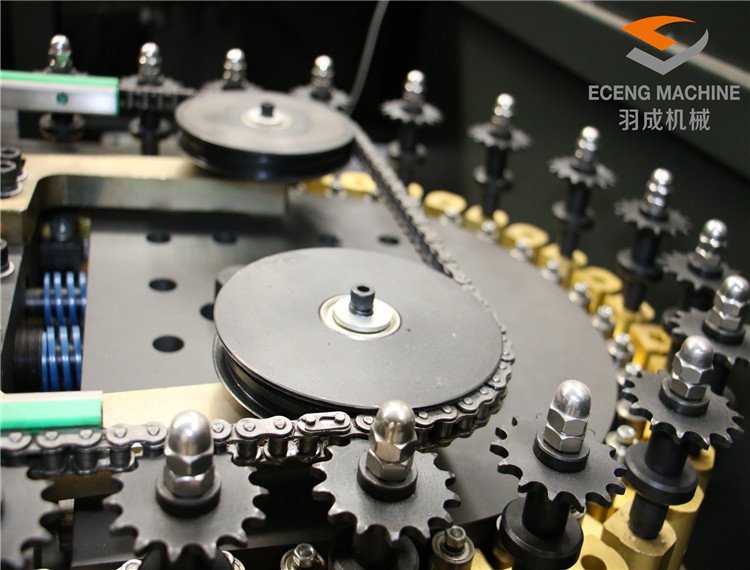

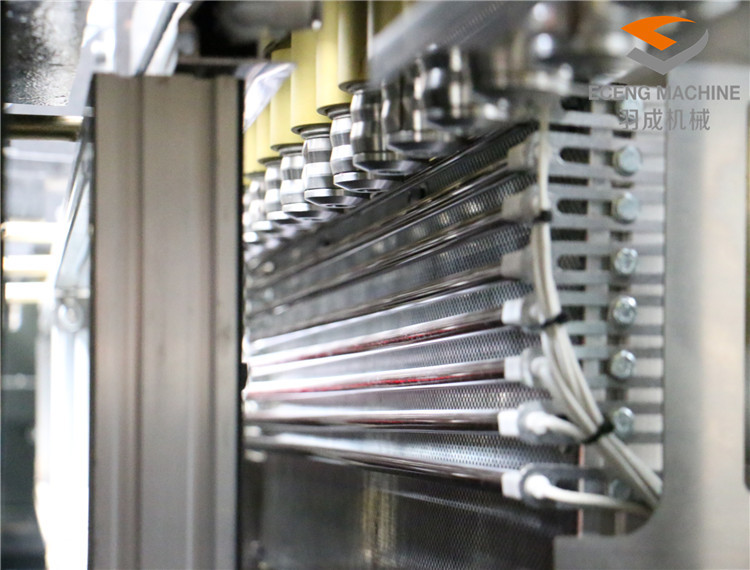

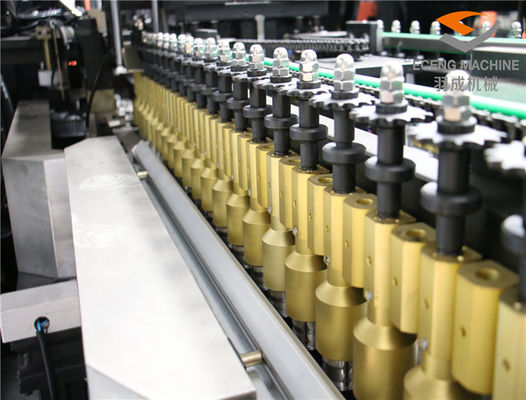

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 16

pet blowing machine for 5l Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.



Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 18



Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 20Stretch Blow PET 5 Liter Blow Moulding Machine 4 Cavity 22
