Features Gallery Product Description Request A Quote

Features

Specifications

Plastic Processed: PET

Max.Bottle Height(mm): 300 Mm

Neck Diameter(mm): 38 Mm

Max.Bottle Diameter(mm): 100 Mm

Bottle Volume(ml): 20000 Ml

Condition: New

Application: Bottle

Blow Moulding Type: Stretch Blow Moulding

Year: 2019

Voltage: 380V,50HZ

Dimension(L*W*H): 5.5*1.8*1.9m

Hollow Part Volume: 2L

High Pressure Valve Brand: SMC

Rotary Cylinder Brand: SMC

PLC Brand: DELTA

Power (kW): 49

Weight (KG): 6100 KG

Automation: Automatic

Warranty: 1 Year

Key Selling Points: Automatic

Applicable Industries: Manufacturing Plant

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Automatic: Yes

Color: Black And White

Output: 10000

Size Of The Machine: 5.5*1.8*1.9

Weight: 6.1tons

Power(W): 50KW

Port: Shanghai

Highlight:

20000ml milk bottle blow molding machine

PET milk bottle blow molding machine

pet blowing machine bottle mouth dia 28mm

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: Eceng

Certification: CE ISO

Model Number: K6

Payment & Shipping Terms

Packaging Details: standard export wooden case or according to your requirements

Delivery Time: 45days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set/Sets per Year

Gallery

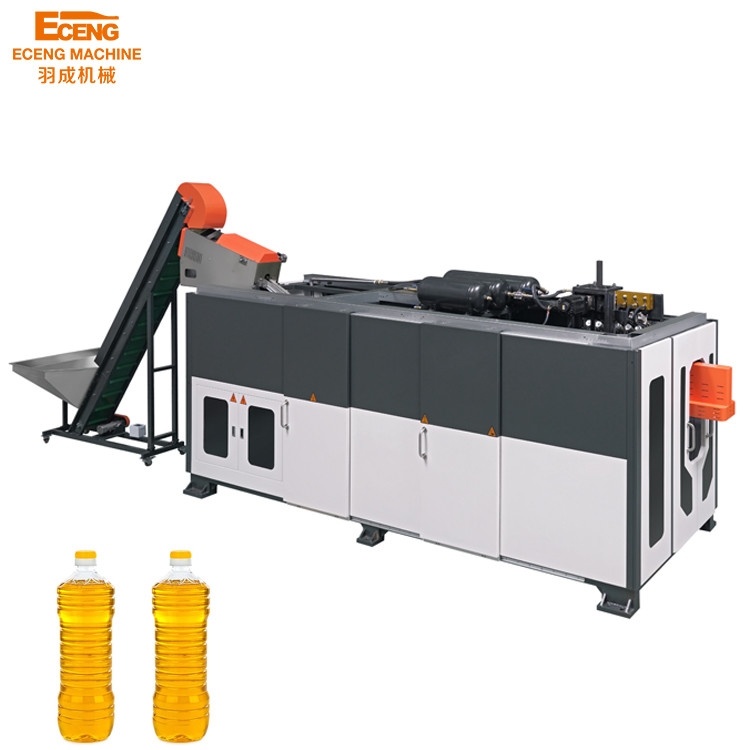

20000ml PET Milk Bottle Blow Molding Machine Bottle Mouth Dia 28mm

Product Description

Automatic Plastic Milk Water Edible Oil Pet Bottle Making Blowing Machinery For Sale

specification

Model K6
Bottle type specification	Cavity	6
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-30mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Capacity specification	Theory output	9000~12000BPH
		Bottle type volume	500ML
		Bottle type weight	17g
		Bottle type	Round
Power specification	Light tube quantity	32pcs
		Light tube power	1.25KW
		Maximum heating power	40KW
		All electric machine installation	49KW
		Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
		Blow bottle pressure	25-45kg/cm2
		Higher -pressure gas consumption	8000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Forzen water flow	120L/min
Machine specification	Machine size	5.5x1.8x1.9
Machine specification		Machine weight	6.1ton

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Detailed Images

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

Kseries linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.

4. manual and automatic methods of operation, human-machine interface control, simple operation.

5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle .

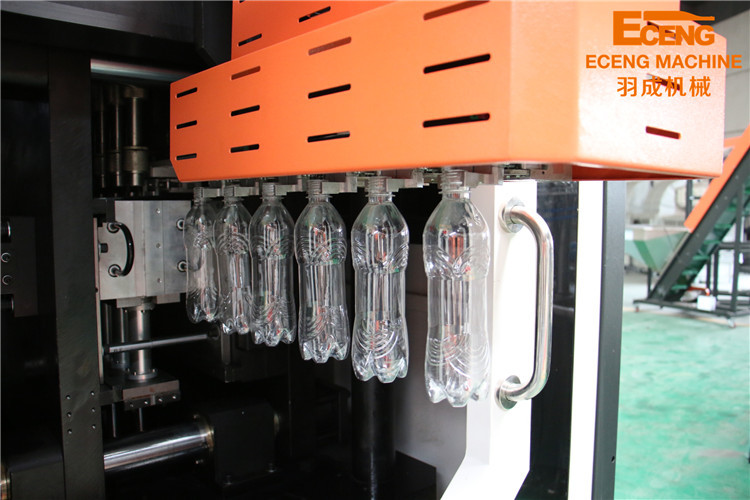

blowing mould

our advantage

1. Resonable price

2. Good after service

3. experienced skilled workers and professional engineers

4. Good quality ,excellent service ,long life mould

5. on time delivery time

6.our engineers can be online for 24 hours to serve you

Company Introduction

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.

Packing&Shipping

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
