1L-2L Round Automatic PET Bottle Blowing Machine 6100kg

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: CE/ISO
Model Number: k6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets 1-1 Sets
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 220V Or As Customer Request
Dimension(L*W*H): 5.5*1.8*1.9 Hollow Part Volume: 2l
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: DELTA Power (kW): 49
Weight (KG): 6100 Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Food & Beverage Factory Automatic: Yes
Step: 2 Heating Method: Electric Cycle Heating
Service: Full Technical Training Bottle Volume: 1L -2L
Output: 9000-12000 Bph Weight: 6.1 Tons
Port: Shanghai/Ningbo
High Light:

2L automatic pet bottle blowing machine

,

automatic pet bottle blowing machine 6100kg

,

2L plastic bottle machine

Factory Supply Auto Pet Blowing Machines / Blow Molding Equipment To Make Plastic Bottles

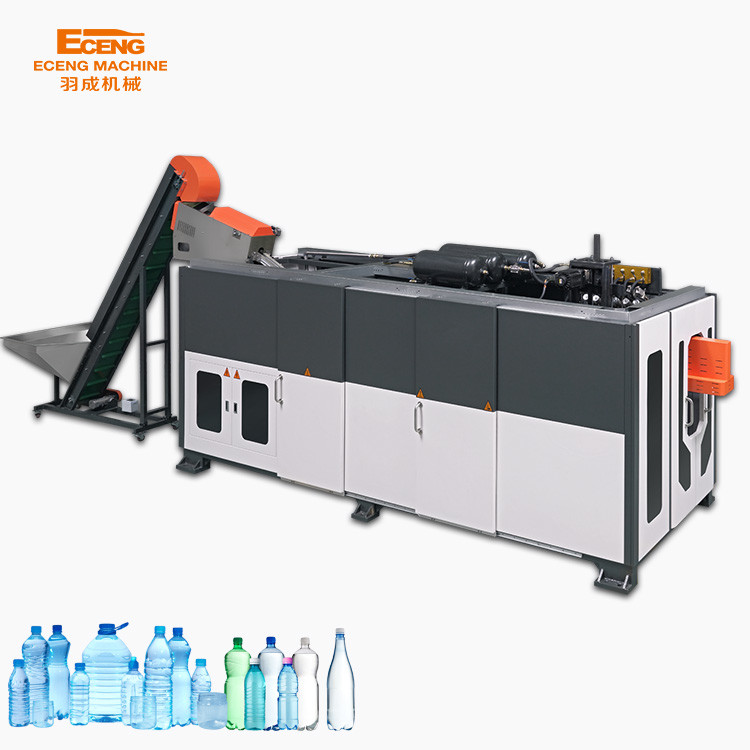

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 0
specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
Product Description
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 2
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images

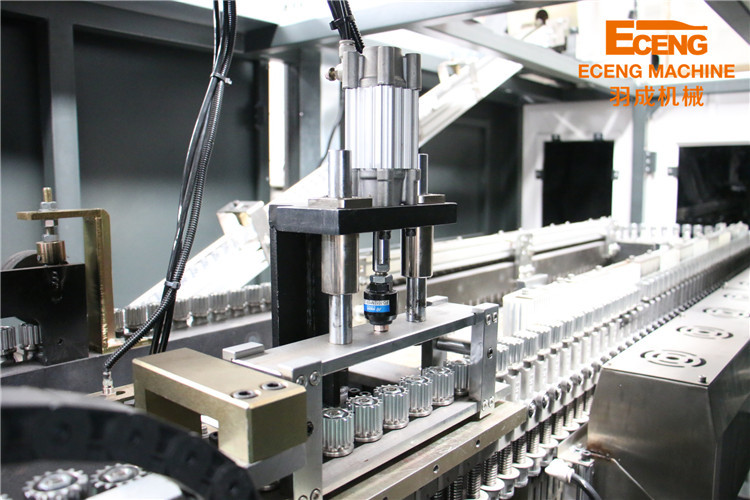

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 4

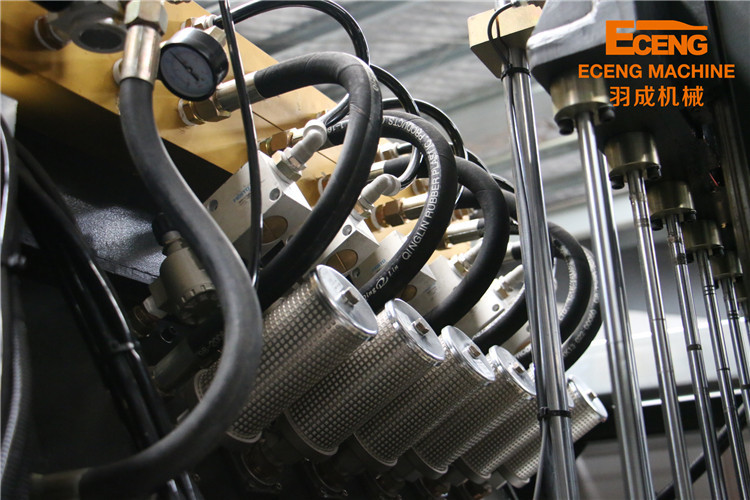

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 6

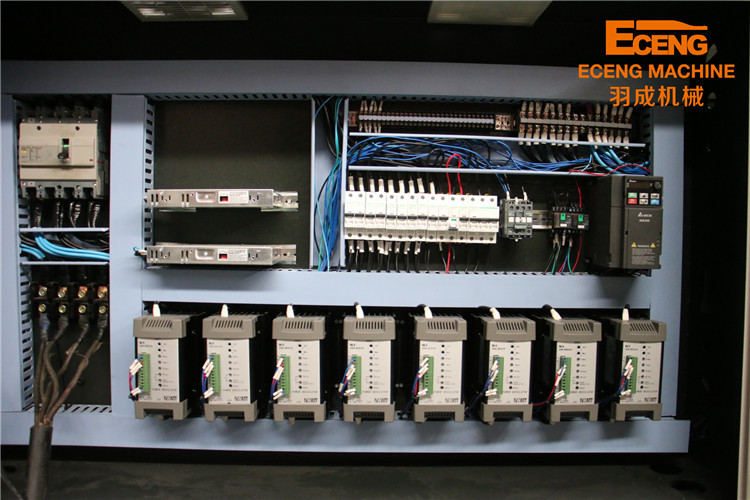

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 8
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Kseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

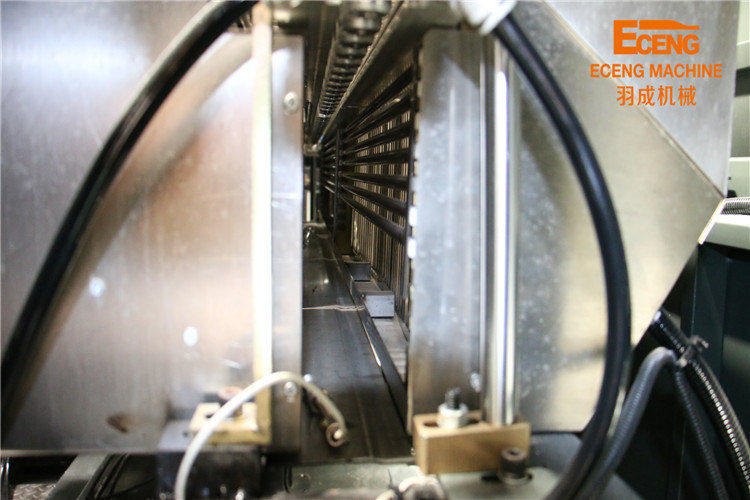

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 10
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction

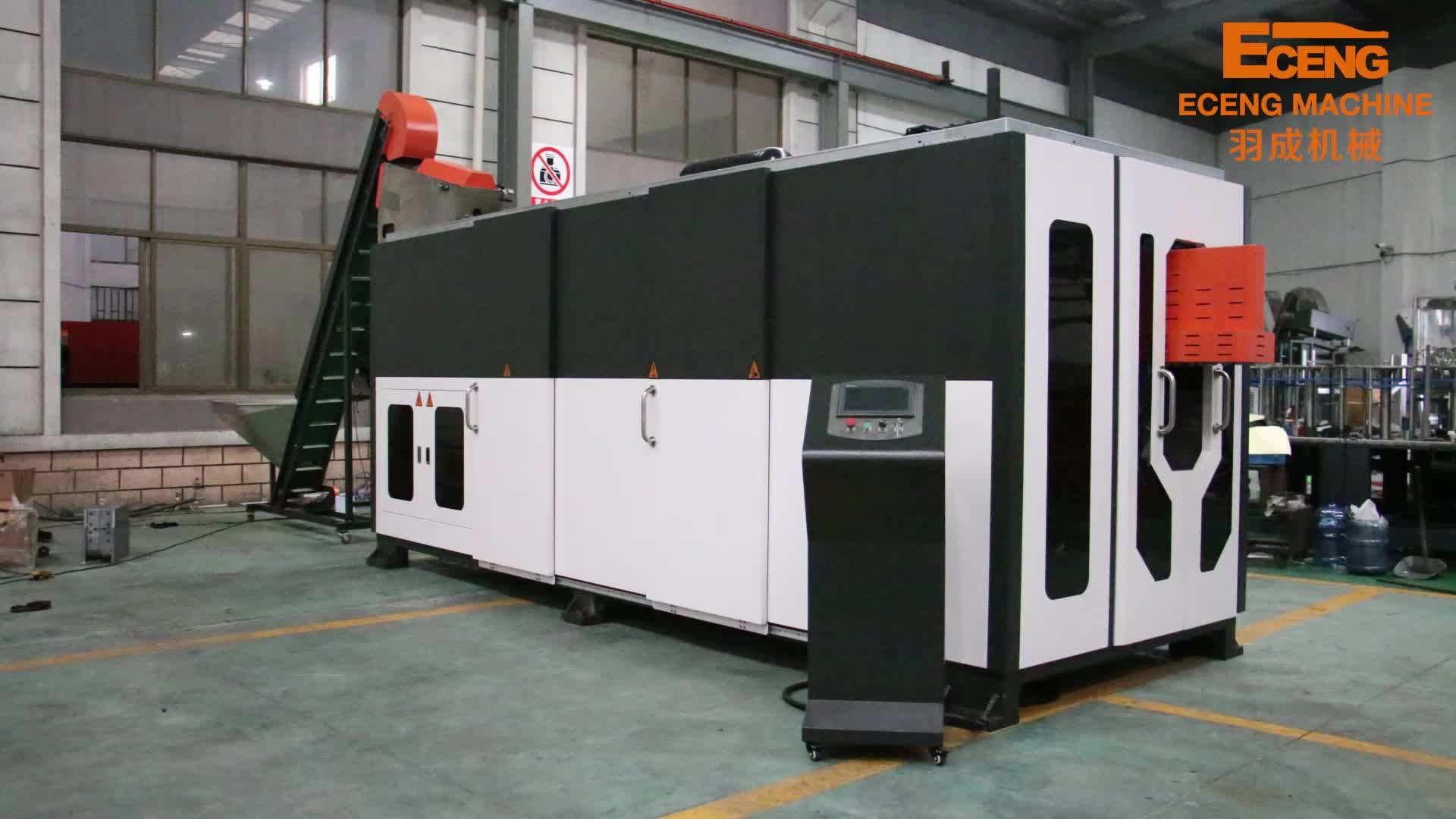

1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 12
Packing&Shipping
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 14
After Sales Service
1. Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 16
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 18
1L-2L Round Automatic PET Bottle Blowing Machine 6100kg 20
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
