2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m

2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m

2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: CE/ISO
Model Number: k6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20,000.00 - $50,000.00/Sets
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 220V Or As Customer Request
Key Selling Points: Automatic Service: Full Technical Training
Bottle Volume: 100ml -2L Light Tube: 32 Pieces
Key Words: Plastic Blowing Machine Output: 9000-12000
High Light:

2 ltr Automatic Blow Molding Machine

,

2 ltr mineral water bottle blowing machine

,

mineral water bottle blowing machine 5.5*1.8*1.9m

manufacturers high speed 2ltr mineral water pet bottle blowing blow molding machine



2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 0


2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 1
specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 3
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 5
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 7
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 9

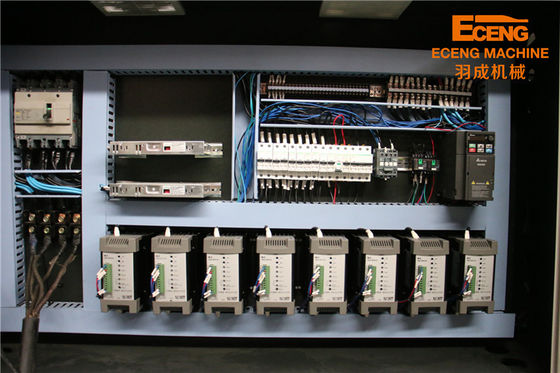

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Kseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 11
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 13
Packing&Shipping
2 Ltr Mineral Water Bottle Automatic Blow Molding Machine 5.5*1.8*1.9m 15
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
