49kw 20 Litre Jar Manufacturing Machine

49kw 20 Litre Jar Manufacturing Machine

  • High Light

    49kw 20 litre jar manufacturing machine

    ,

    PET 20 litre jar manufacturing machine

    ,

    49kw water bottle blow molding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    220V Or As Customer Request
  • Dimension(L*W*H)
    6.5*1.8*1.9
  • Hollow Part Volume
    20liter
  • Power (kW)
    49
  • Weight (KG)
    6000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Energy Saving
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Style
    Plastic Mineral Water Bottle Blowing Machine
  • Step
    2
  • Heating Method
    Electric Cycle Heating
  • Service
    Full Technical Training
  • Bottle Volume
    MAX 20Liter
  • Light Tube
    32 Pieces
  • Weight
    6tons
  • Port
    Shanghai/Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    eceng
  • Certification
    CE/ISO
  • Model Number
    KB1
  • Minimum Order Quantity
    1set
  • Price
    $38,000.00 - $45,000.00/Sets
  • Packaging Details
    packed by wooden pallet or as customer request of 5 gallon plastic PET bottle blow moulding machine
  • Delivery Time
    35days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    15 Set/Sets per Month

49kw 20 Litre Jar Manufacturing Machine

sopladora de botellones 5 galones / Plastic 5 Gallon Water Bottle Making Machine
Product Description

49kw 20 Litre Jar Manufacturing Machine 0

49kw 20 Litre Jar Manufacturing Machine 2

49kw 20 Litre Jar Manufacturing Machine 4

k series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

k series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

49kw 20 Litre Jar Manufacturing Machine 6



  Ltem KB1
Bottle type specification Cavity 1
Theory output 300-600BPH
Max.volume 20L
Bottle mouth maximum overall diameter 70mm
Bottle biggest diameter 350mm
Bottle maximun height 550mm
Power specification Light tube quantity 48pcs
Light tube power 1.5KW
Maximum heating pwoer 72KW
All electric machine installtion 79KW
Actual consumption 30%--60%
Air pressure specification Work pressure 5-6kg/cm2
Blow bottle pressure 25-35kg/cm2
Higher-pressure ges consumption 2000-3000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 12000kcal/hr
Forzen water flow 88L/min
Machine specification Size of the machine 5.2x2.0x2.0
Weight of the machine 6ton


49kw 20 Litre Jar Manufacturing Machine 8

k series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

49kw 20 Litre Jar Manufacturing Machine 10

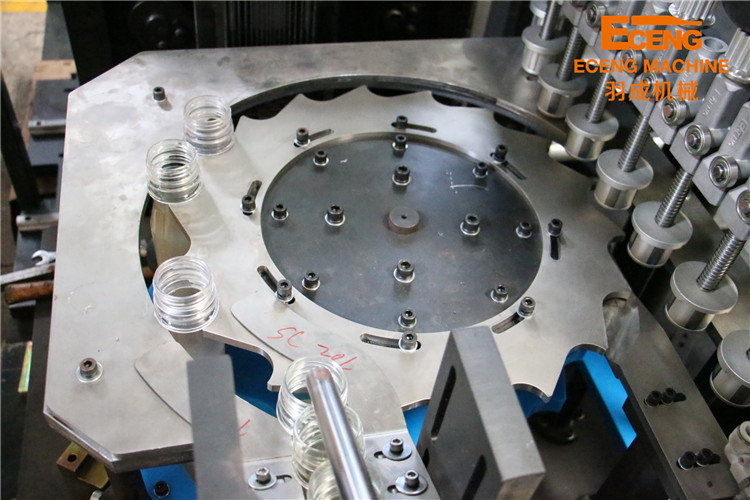

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

49kw 20 Litre Jar Manufacturing Machine 12

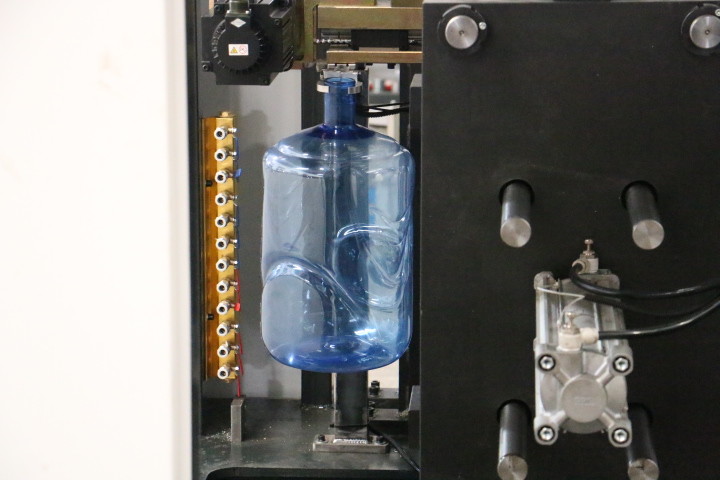

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

49kw 20 Litre Jar Manufacturing Machine 14

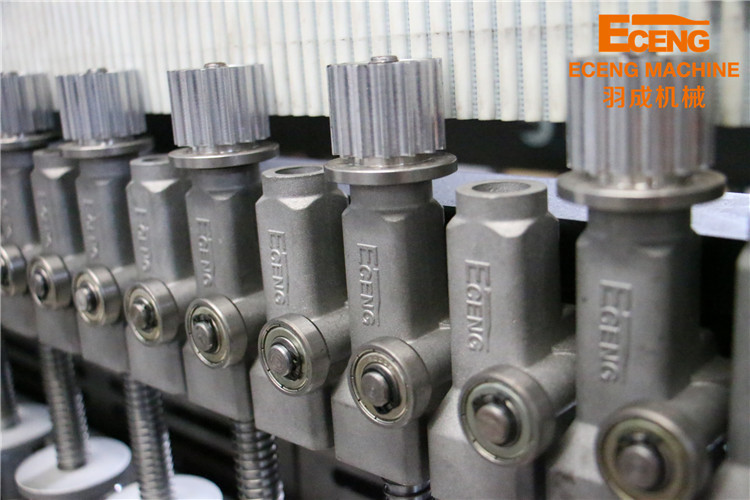

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

49kw 20 Litre Jar Manufacturing Machine 16

k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

 49kw 20 Litre Jar Manufacturing Machine 1849kw 20 Litre Jar Manufacturing Machine 20



49kw 20 Litre Jar Manufacturing Machine 22



49kw 20 Litre Jar Manufacturing Machine 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
