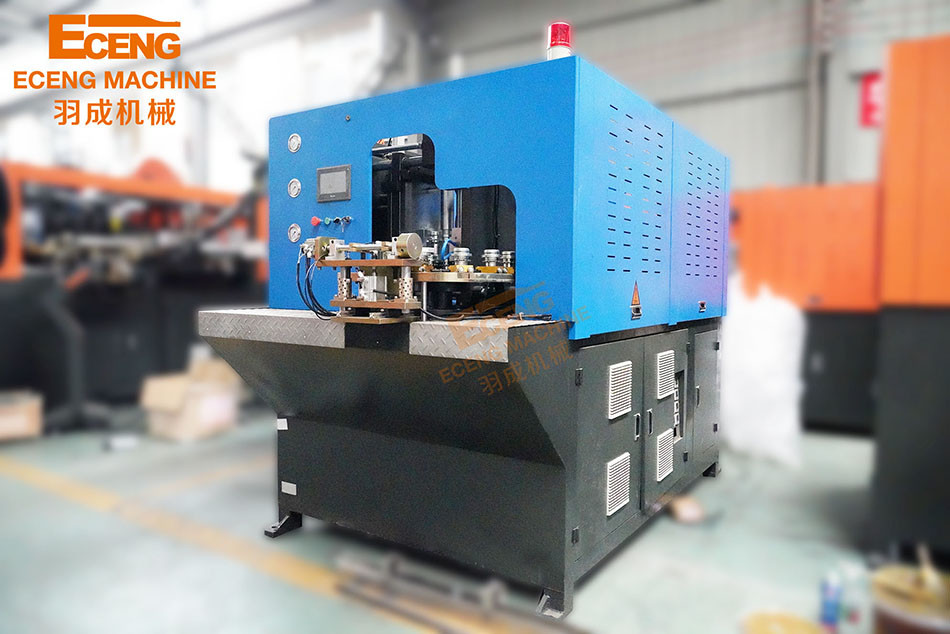

CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH

CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH

  • High Light

    27kw pet stretch blow moulding machine

    ,

    pet stretch blow moulding machine 2200BPH

    ,

    bottle blowing machine 2200BPH

  • Plastic Processed
    PET
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Injection Blow Moulding
  • Year
    2019
  • Voltage
    380V/50HZ
  • Dimension(L*W*H)
    2.25mx1.6mx1.7m
  • Hollow Part Volume
    2L
  • Power (kW)
    49
  • Weight (KG)
    2500
  • Automation
    Automatic
  • Warranty
    12 Months
  • Key Selling Points
    Easy To Operate
  • Applicable Industries
    Food & Beverage Factory
  • Automatic
    Yes
  • Cavity
    2
  • Theory Output
    2200BPH
  • Max.volume
    2L
  • Bottle Mouth Maximum
    100mm
  • Bottle Maximum Height
    100mm
  • Bottle Biggest Diameter
    330mm
  • Power
    27kw
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    H2
  • Minimum Order Quantity
    1set
  • Price
    $14,500.00 - $21,000.00/Sets
  • Packaging Details
    To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    200 Set/Sets per Year

CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH

Eceng H2 plastic refined oil bottle stretch blow molding machine pet edible oil bottles blowing manual machines
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 0
specification
Item

H2




Bottle type specification
Cavity
2

Theory output
2200

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 2
Eceng H2 plastic pet refined oil bottle blow molding machine blowing machines
H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 4
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 6

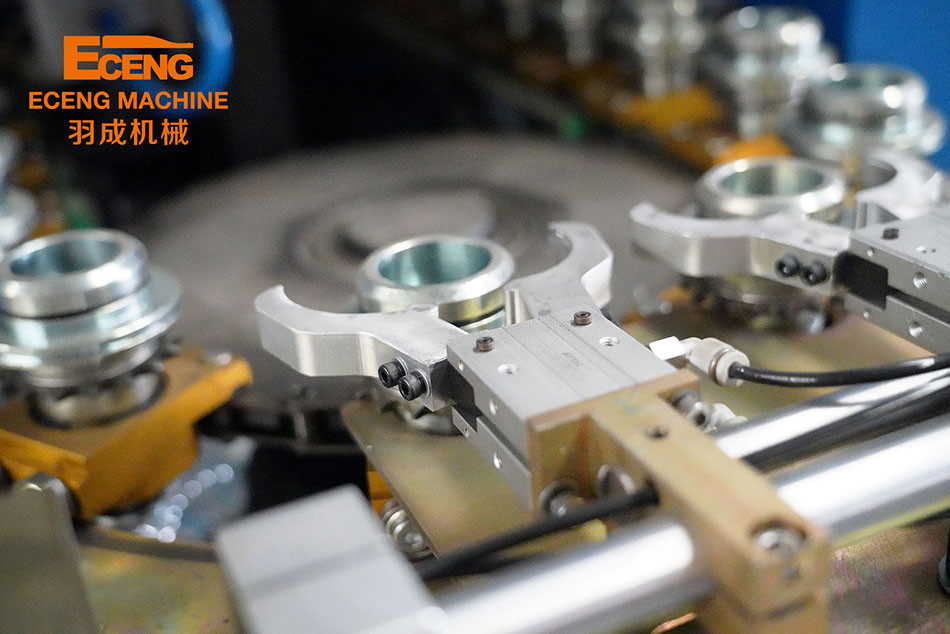

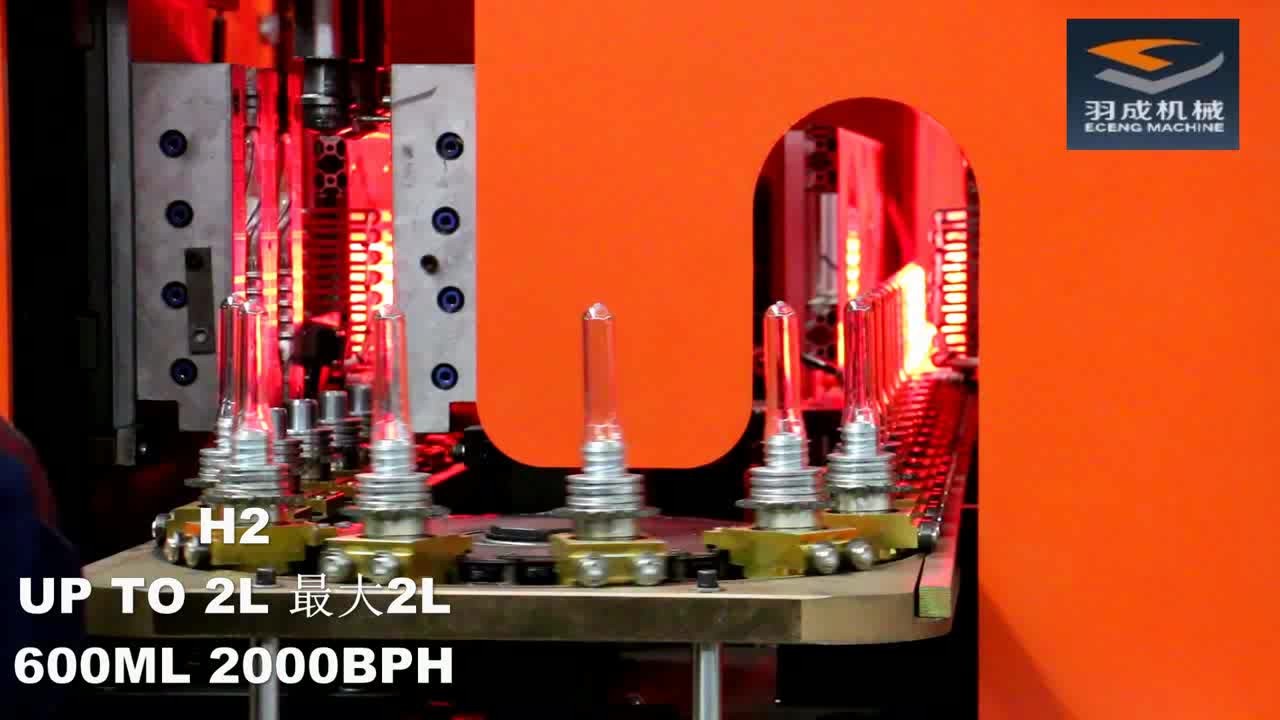

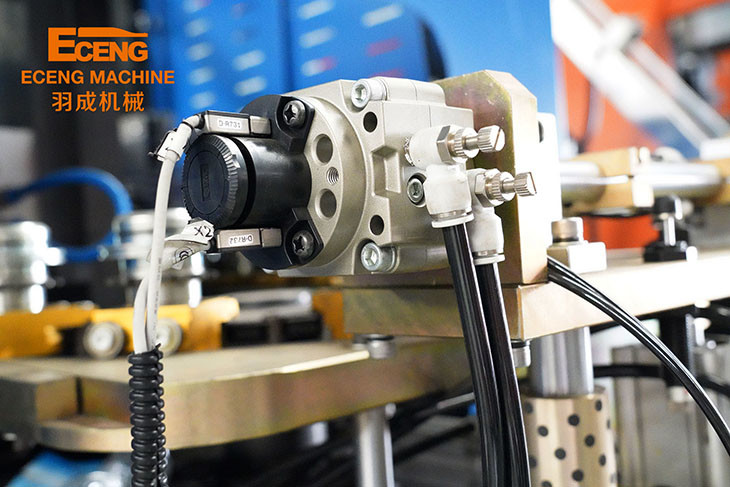

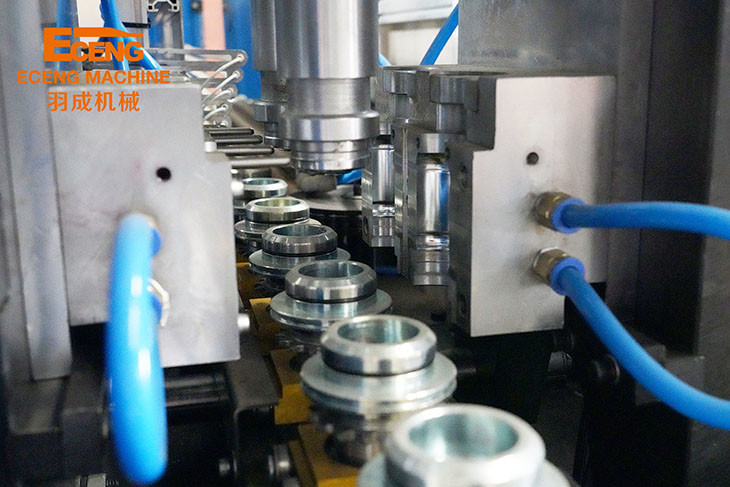

Detailed Images
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 8
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 10
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 12
H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 14
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 16
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 18
Packing&Shipping
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 20
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 22
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 24
CE ISO Blue 27kw PET Stretch Blow Moulding Machine 2200BPH 26
