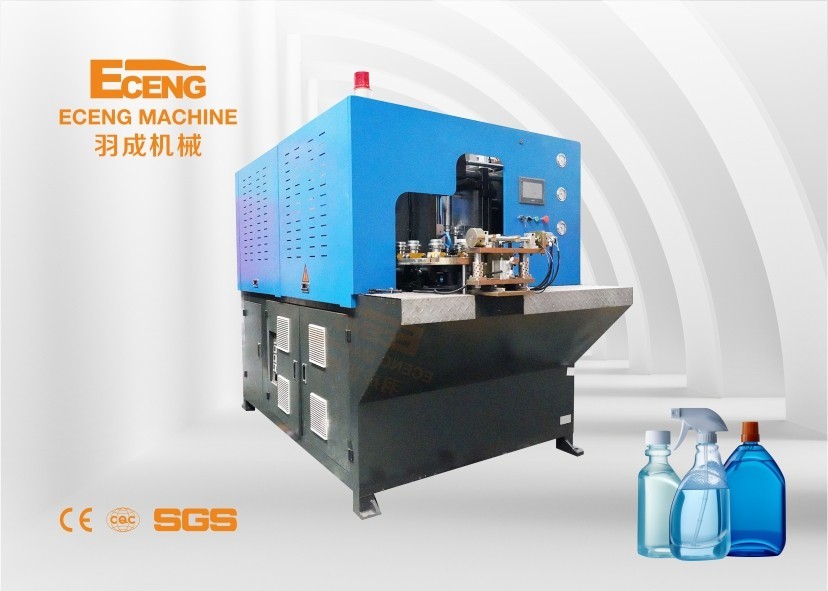

Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing

Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing

Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: H2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $14,500.00 - $21,000.00/Sets
Packaging Details: To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Blow Moulding Type: Injection Blow Moulding Voltage: 380V/50HZ
Dimension(L*W*H): 2.25mx1.6mx1.7m Automation: Automatic
Key Selling Points: Easy To Operate Cavity: 2
Theory Output: 2200BPH Port: Shanghai
High Light:

Two Cavity Manual Feed Blowing Machine

,

380V Manual Feed Blowing Machine

,

50HZ Feed Injection Blowing Machine

Two Cavity Manual Feed Blowing Machine Designed for Cosmetic Bottle Manufacturing
specification
Item

H2




Bottle type specification
Cavity
2

Theory output
2200

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton



Cheap Price Small Plastic Blowing Machines:

1. Designed specifically for cosmetic bottle production, providing top quality results every time.
2. H2 manual feed blowing machine with 2 cavity design for increased efficiency and output.
3. Highly reliable and durable construction to withstand continuous use in industrial settings.
4. Easy to operate and maintain, reducing overall downtime and increasing overall productivity.
5. Adjustable controls for precise bottle shaping and forming, ensuring consistency and accuracy with every production run.

Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 0
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 2
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 3

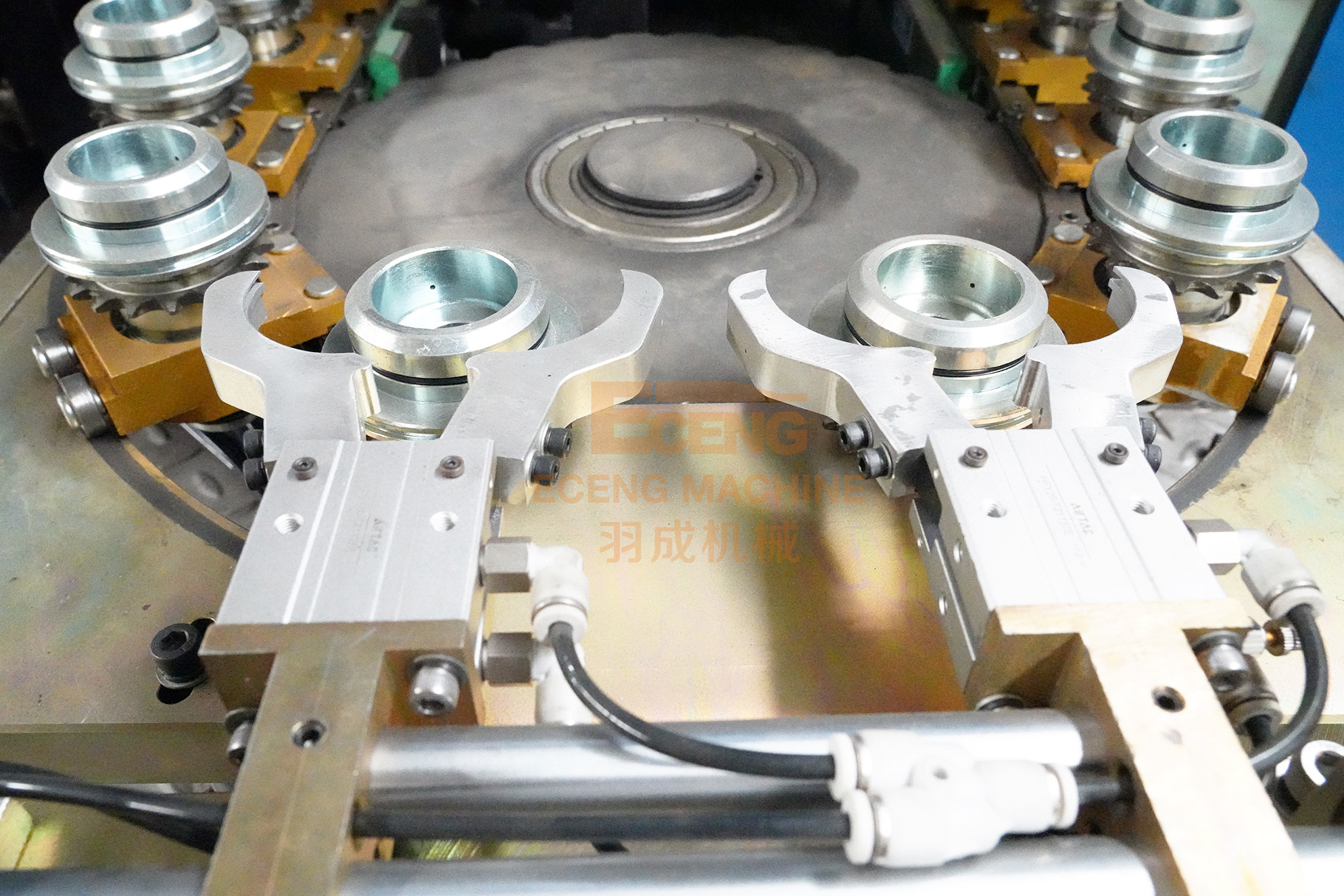

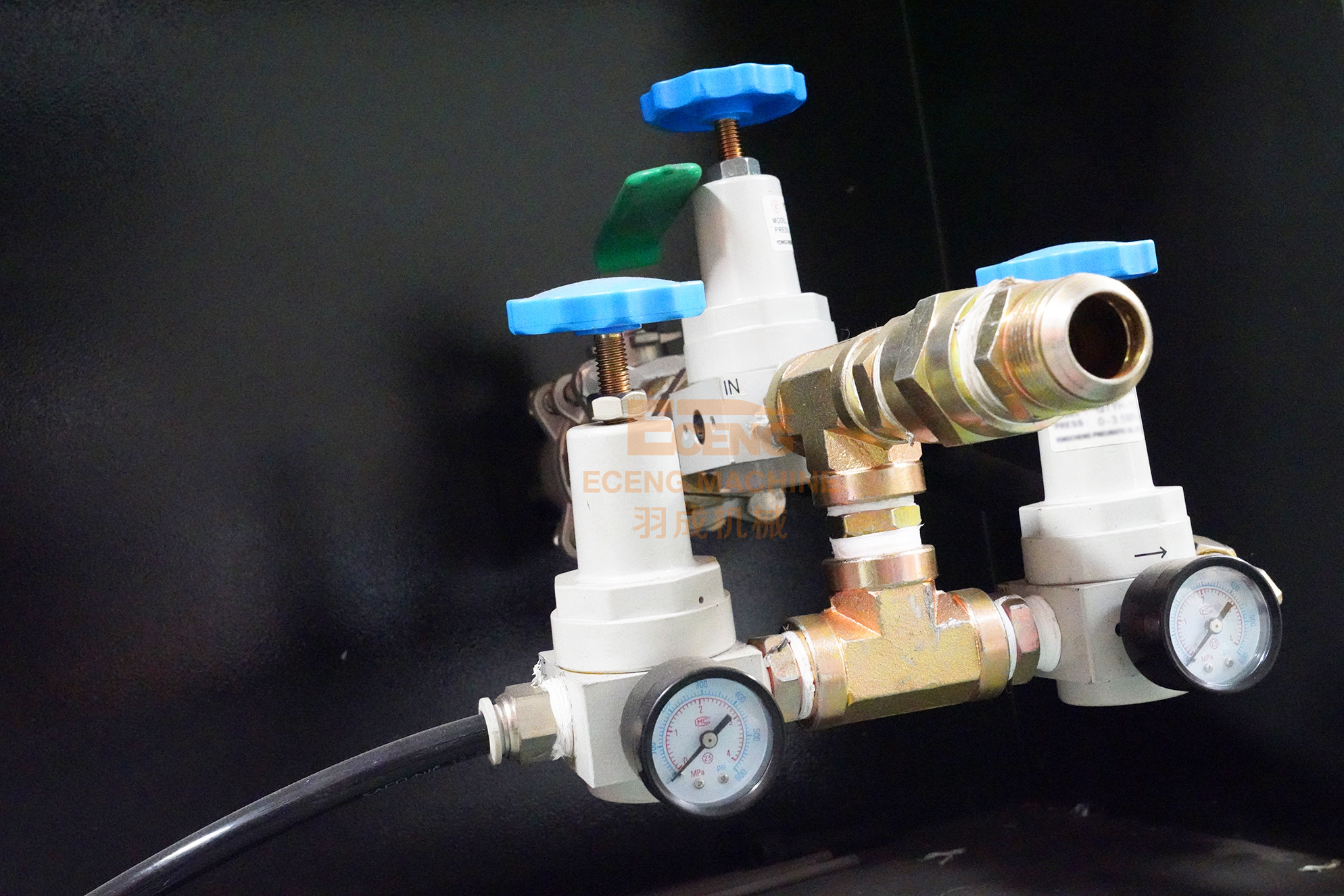

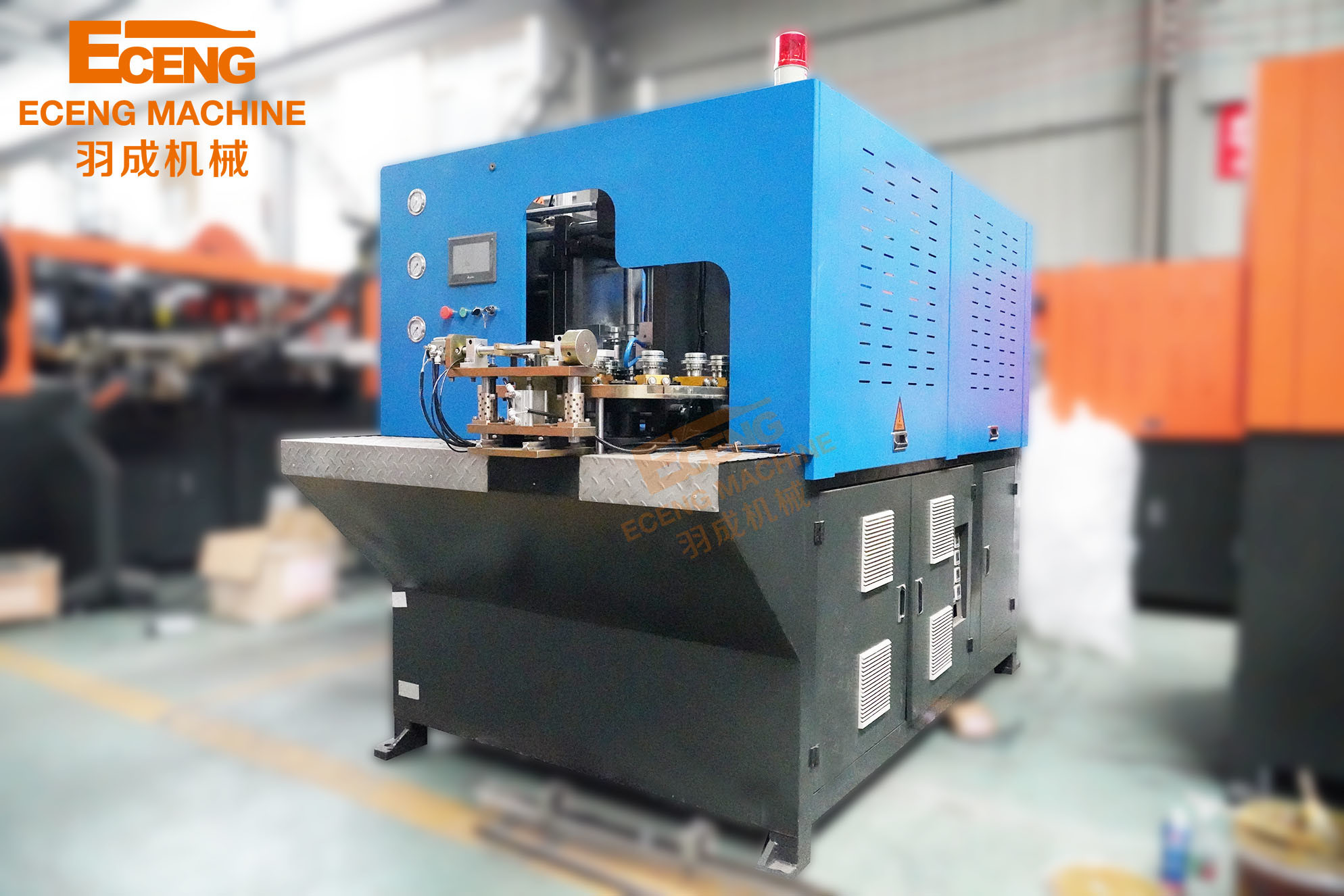

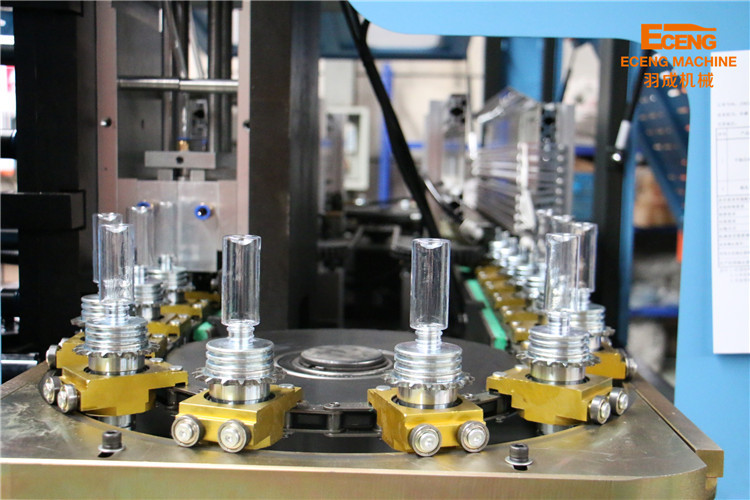

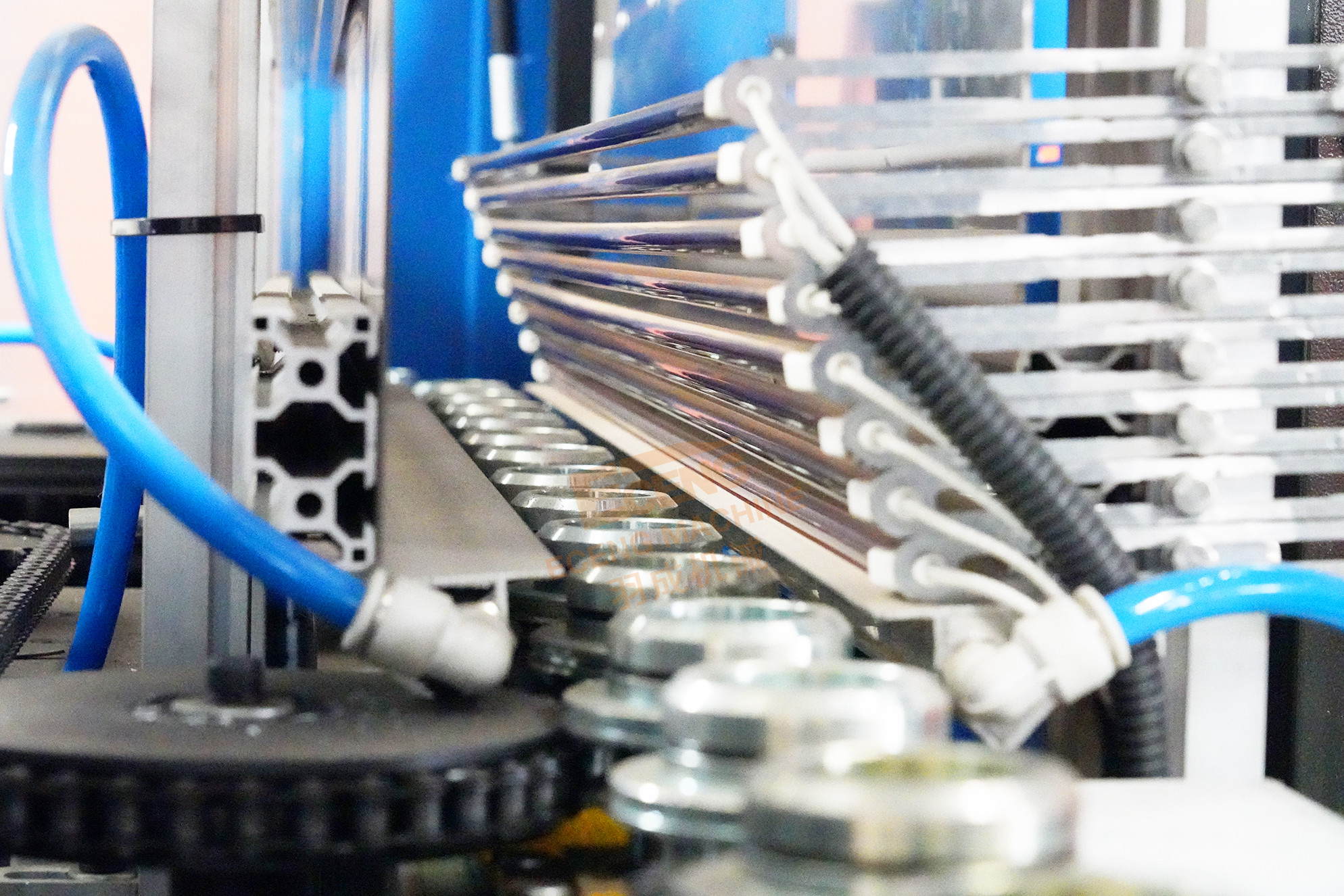

Detailed Images
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 5
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 7
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 9
H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 11
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 13
Company Introduction
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 15
Packing&Shipping
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 17

Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 19
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 20
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 22
Two Cavity Manual Feed Blowing Machine For Cosmetic Bottle Manufacturing 24
