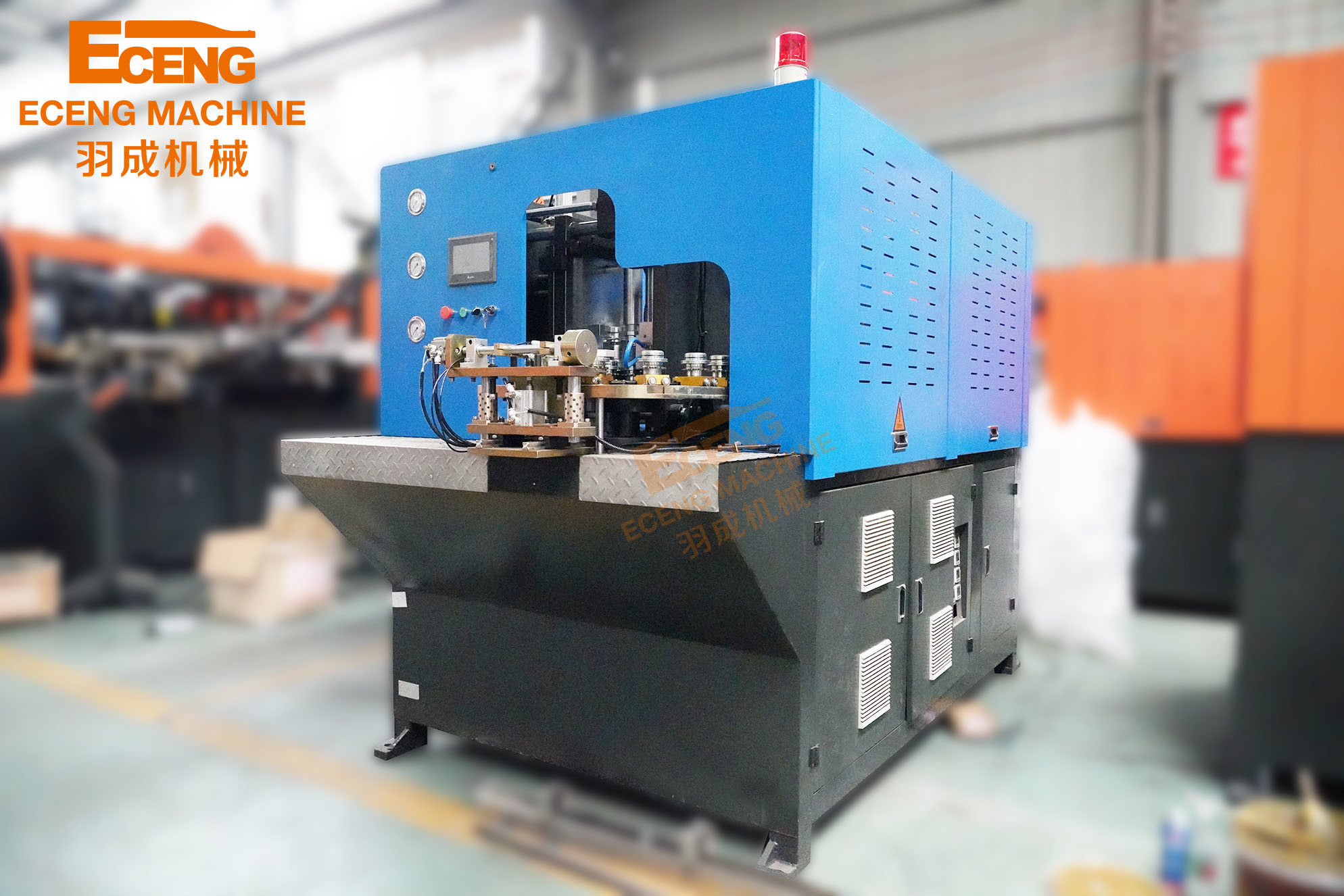

Linear Stretch Blow Molding Machine 1800bph Hand Feed Preform

Linear Stretch Blow Molding Machine 1800bph Hand Feed Preform

  • High Light

    Linear Stretch Blow Machine

    ,

    1800bph Stretch Blow Machine

    ,

    Hand Feed Preform Blow Molding Machine

  • Model Number
    H2
  • Color
    Blue
  • Output
    1800bph
  • Weight
    2.5ton
  • Place of Origin
    CHINA
  • Brand Name
    ECENG
  • Certification
    CE SGS ISO
  • Model Number
    H2
  • Minimum Order Quantity
    One
  • Price
    Negotiable
  • Packaging Details
    film/wooden
  • Delivery Time
    45days
  • Payment Terms
    TT LC western Union
  • Supply Ability
    10sets Per month

Linear Stretch Blow Molding Machine 1800bph Hand Feed Preform

H2 2cavity 1800BPH Hand-feeding bottle making machine PET 100ml small Alcohol bottle

Features of cooking oil bottle blowing machine :



1. Stable and fine performance with advanced PLC.



2. Conveying perform automatically with conveyor.

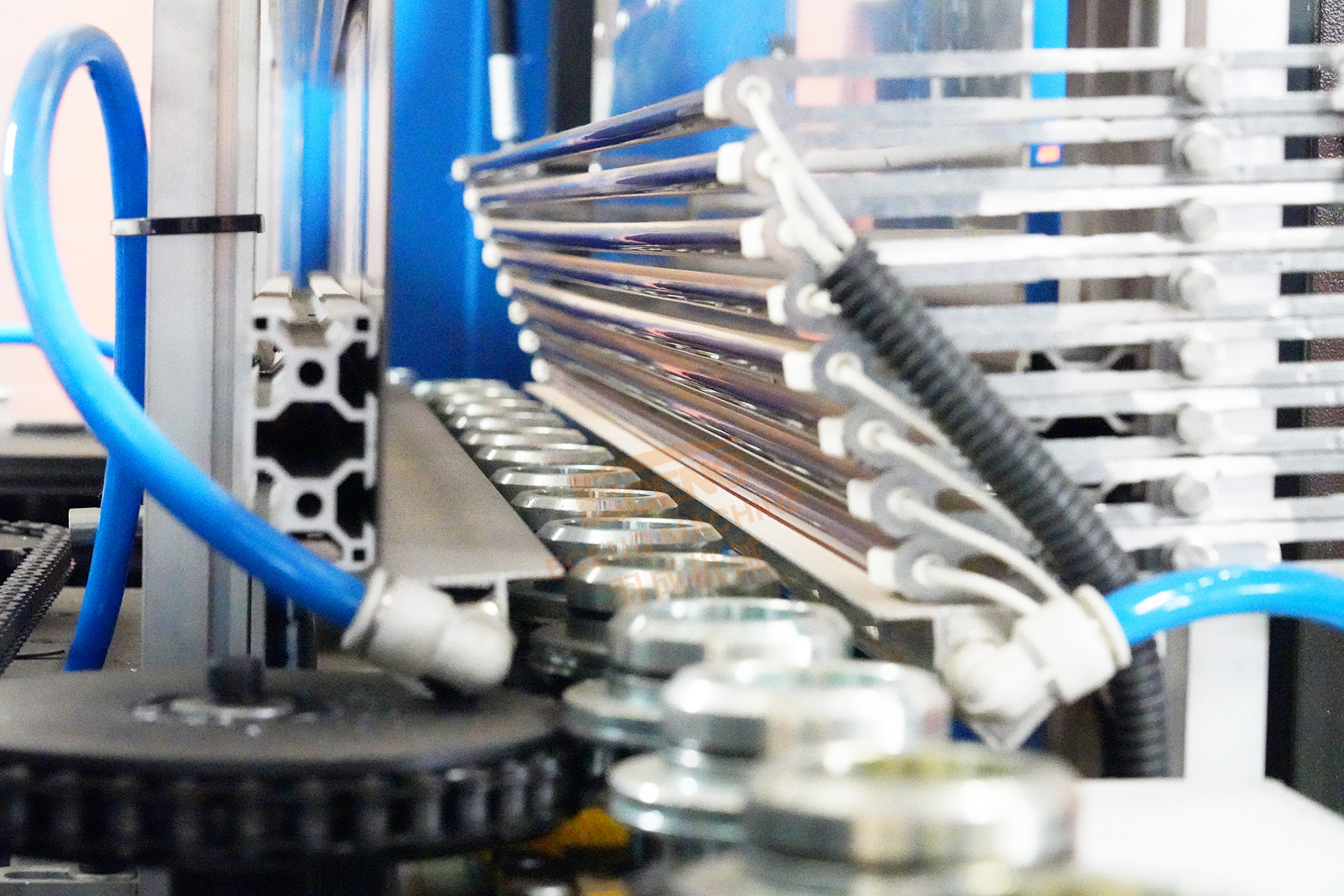

3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



4. Well adjustability to enable the preheater to preheat preform in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



5.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8. Strong clamping force with high pressure and double crank links to lock the mold.



9. Low cost, high efficiency, easy operation, good interchangeability, easy maintenance, etc, with automatic technological process.



Advantage:



1.we are factory, the quality ensured, Safety;

2.Faster delivery, 2cavity PET bottle blow molding machine;

3.suitable for different preform neck size (the Preform jigs can exchangeable);

4.more easy to operate;



model H2
Bottle type specification Cavity 2
Theory output 2200
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 19KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton

Linear Stretch Blow Molding Machine 1800bph Hand Feed Preform 0



Hand feeding PET blowing machine

H2 is hand feeding wide-neck PET jar blow molding machine.It’s best choise for wide-mouth/big neck PET jar/PET can.

H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
