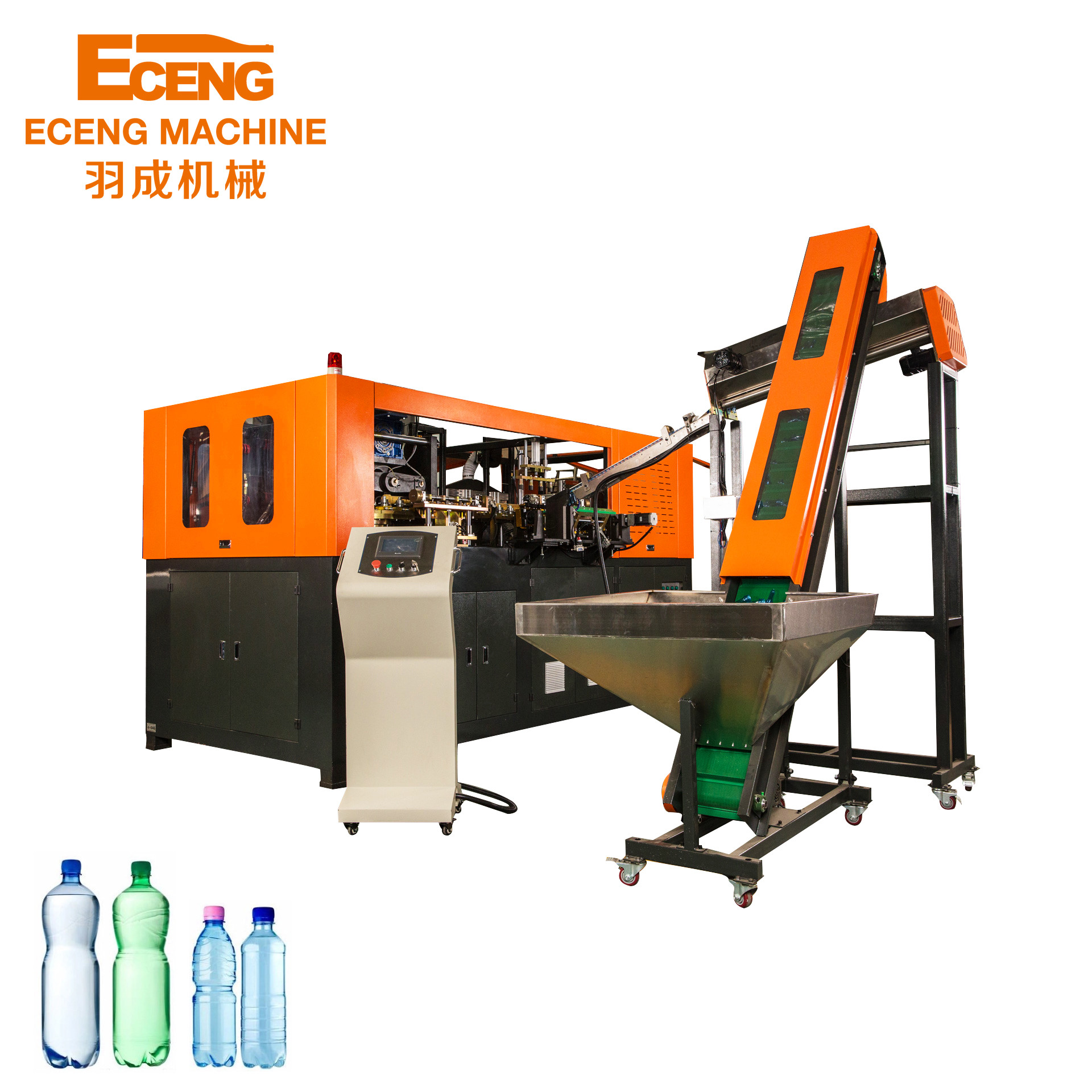

52kW PET Stretch Blow Molding Machine Bottle Maker XINJE PLC Control

Name: 52kW PET Stretch Blow Molding Machine Bottle Maker XINJE PLC Control
Brand: Eceng
SKU: Q6000
Rating: 4.6 (199 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Eceng
Certification:	CE SGS ISO
Model Number:	Q6000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	standard export wooden case or according to your requirements
Delivery Time:	60days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 Set/Sets per Year

Contact Now

Detailed Product Description

Blow Moulding Type:	Stretch Blow Moulding	Hollow Part Volume:	2L
PLC Brand:	XINJE	Key Selling Points:	Automatic
Applicable Industries:	Manufacturing Plant	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Automatic:	Yes
Power(W):	52KW	Port:	Shanghai
High Light:	52kW pet stretch blow molding machine , bottle maker machine XINJE PLC , 52kW bottle maker machine

Eceng High Speed Automatic PET Bottle Making Stretch Blow Molding Machine / pet plastic bottle making machine

specification

Item			Q6000
Bottle type specification	Cavity	4
		Theory output	6000
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-38mm
		Bottle biggest diameter	105mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	32pcs
		Light tube power	1.5KW
		Maximum heating power	48KW
		All electric machine installation	52KW
		Actual consumption	40%-70%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1000L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	3000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Frozen water flow	138L/min
Machine specification	Machine size	4.1x1.6x1.9
Machine specification		Machine weight	3.9ton

Product Description

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

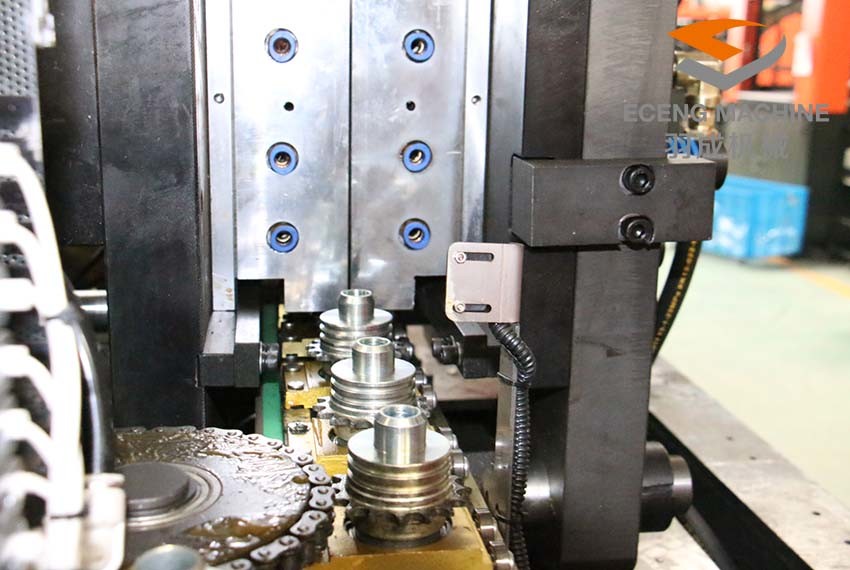

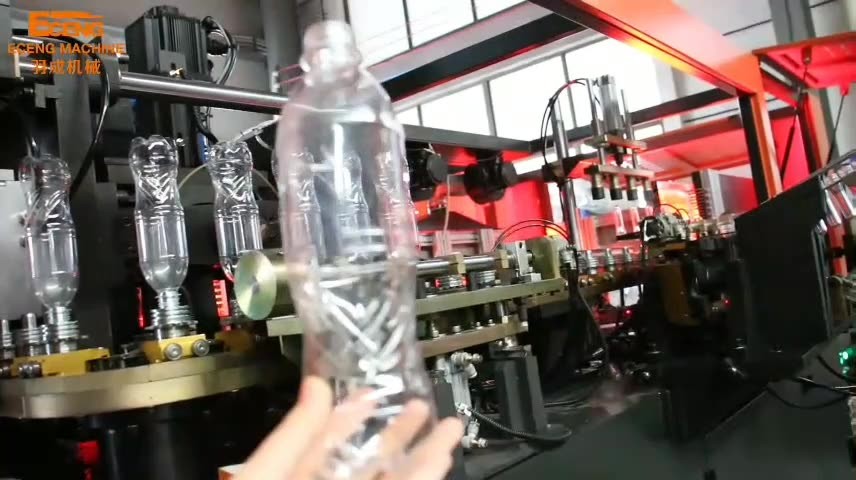

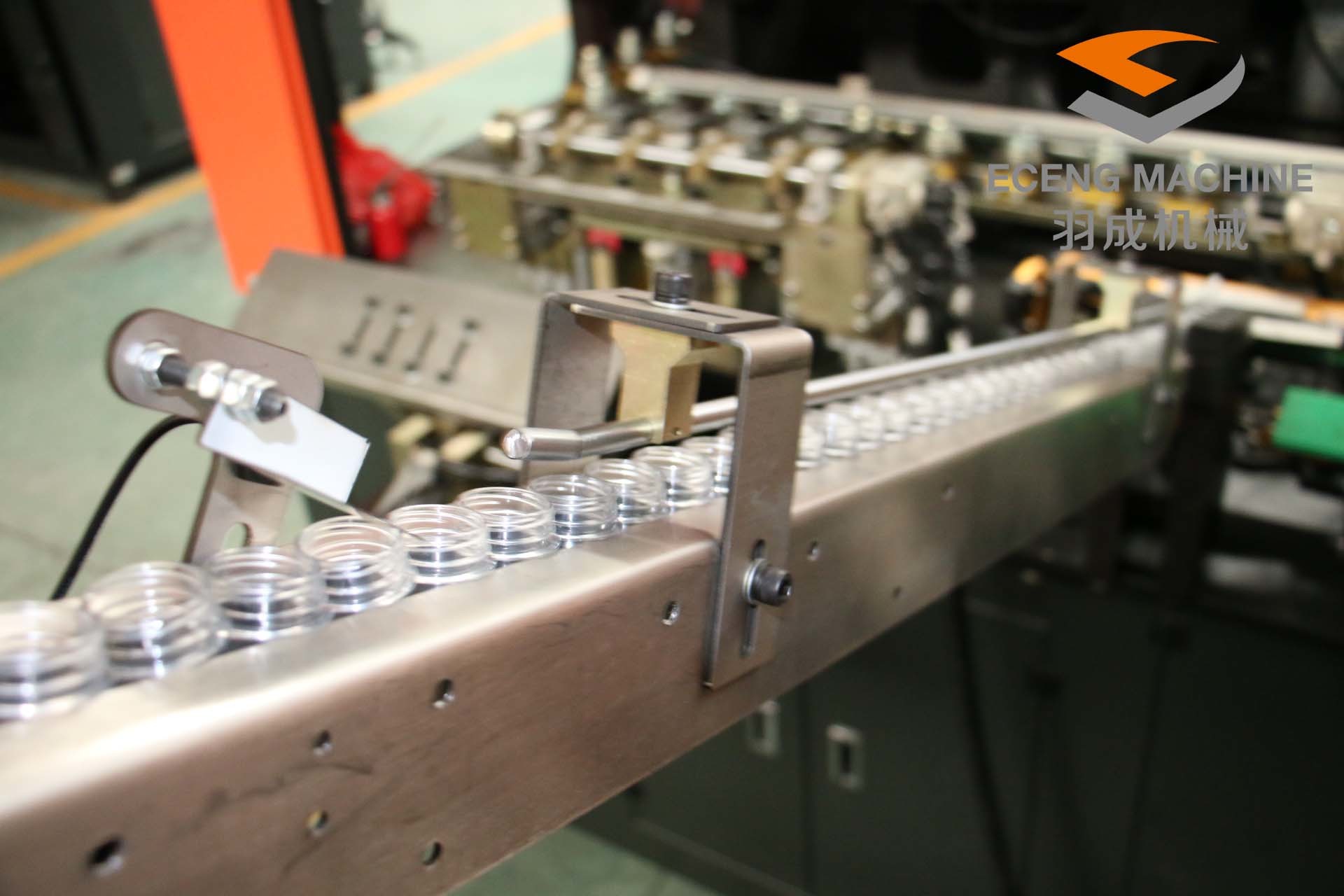

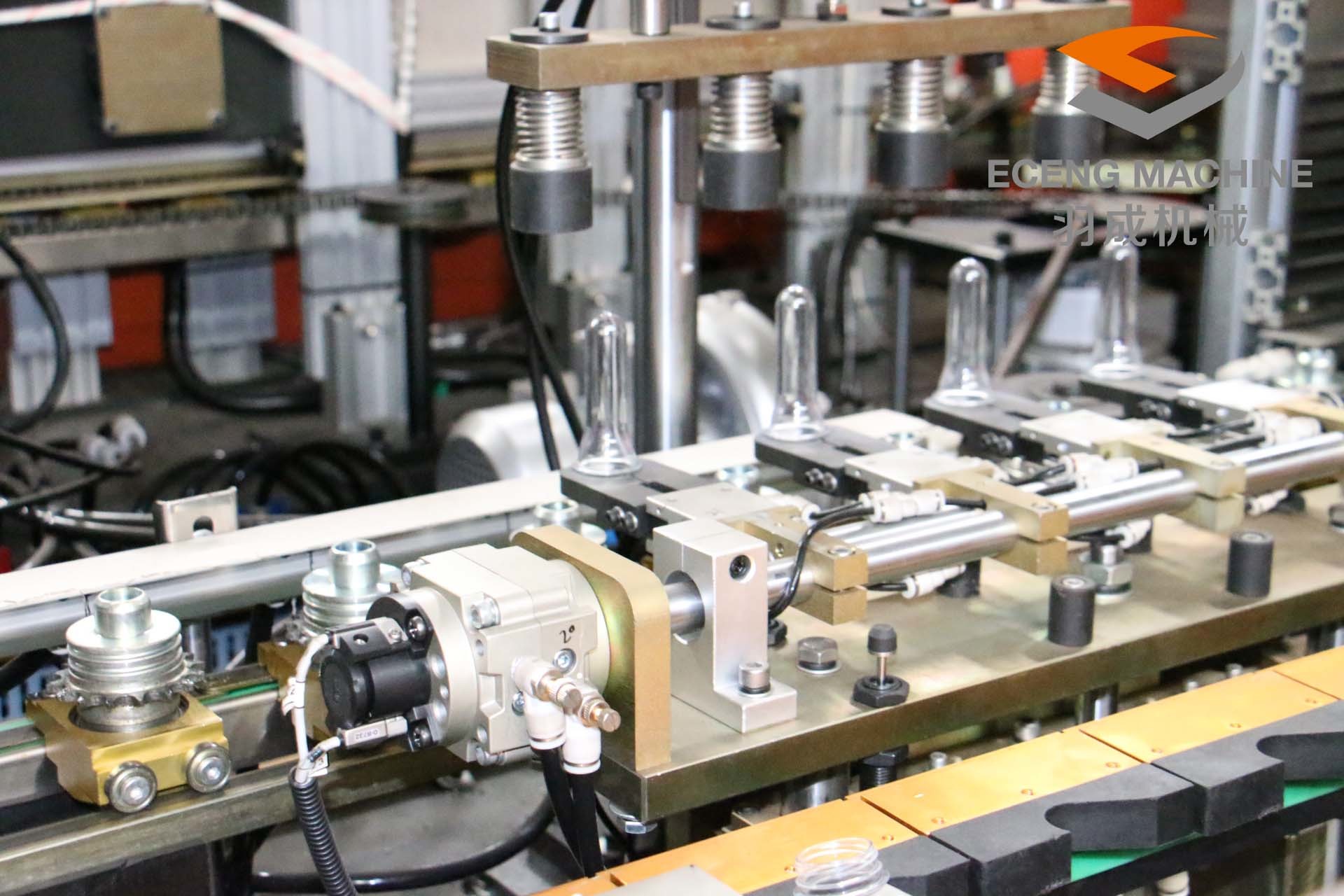

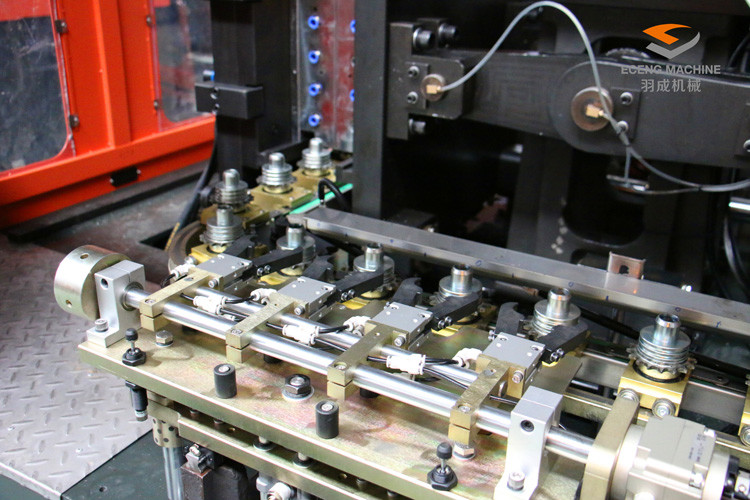

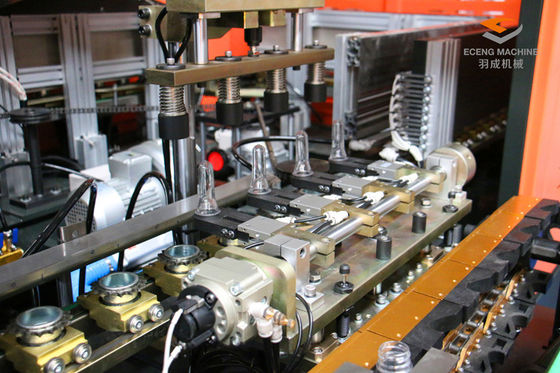

Detailed Images

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

our advantage

1. Resonable price

2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you

Company Introduction

Packing&Shipping

After Sales Service

1.Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
