Zhangjiagang Eceng Machinery Co., Ltd. 86--15850390442 derrick@ecengcompany.com
Eceng Pure Water Bottle Moulding Machine

Eceng Pure Water Bottle Moulding Machine

  • High Light

    Eceng pure water bottle moulding machine

    ,

    Eceng 6 Cavity PET Stretch Blowing Machine

    ,

    2000ml PET Stretch Blowing Machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    105 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V/50HZ, 3phase 380V/220V/415V 50HZ
  • Dimension(L*W*H)
    5.5*1.6*1.9(m)
  • Hollow Part Volume
    2l
  • High Pressure Valve Brand
    Mac
  • Rotary Cylinder Brand
    Smc
  • PLC Brand
    XINJE
  • Power (kW)
    75
  • Weight (KG)
    4500 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Orange
  • PLC
    XINJIE CHINA
  • High Pressure Valve
    Mac/parker
  • Location
    Zhangjiagang City
  • Production Capacity (BPH)
    9000 BPH
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE SGS ISO
  • Model Number
    Q9000
  • Minimum Order Quantity
    1set
  • Price
    $32,800.00/Sets 1-1 Sets
  • Packaging Details
    package suits transportation for 6000bph Automatic blow PET bottle machine/preform blower
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

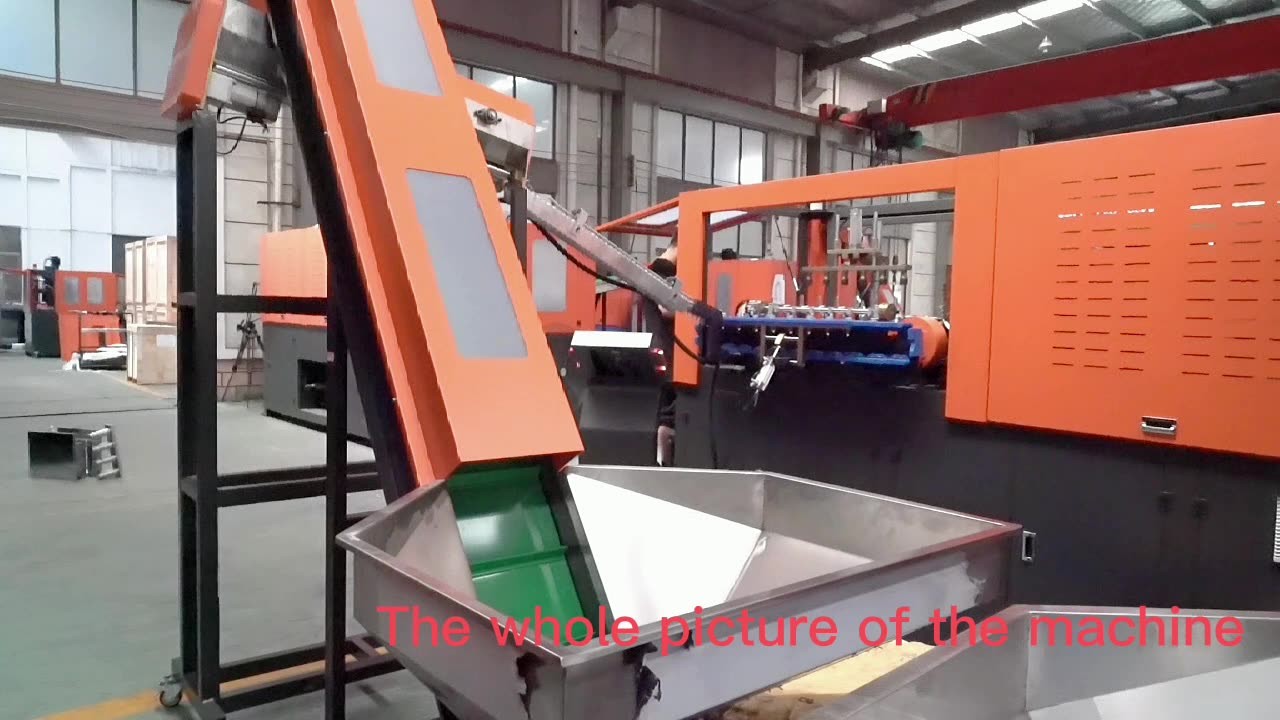

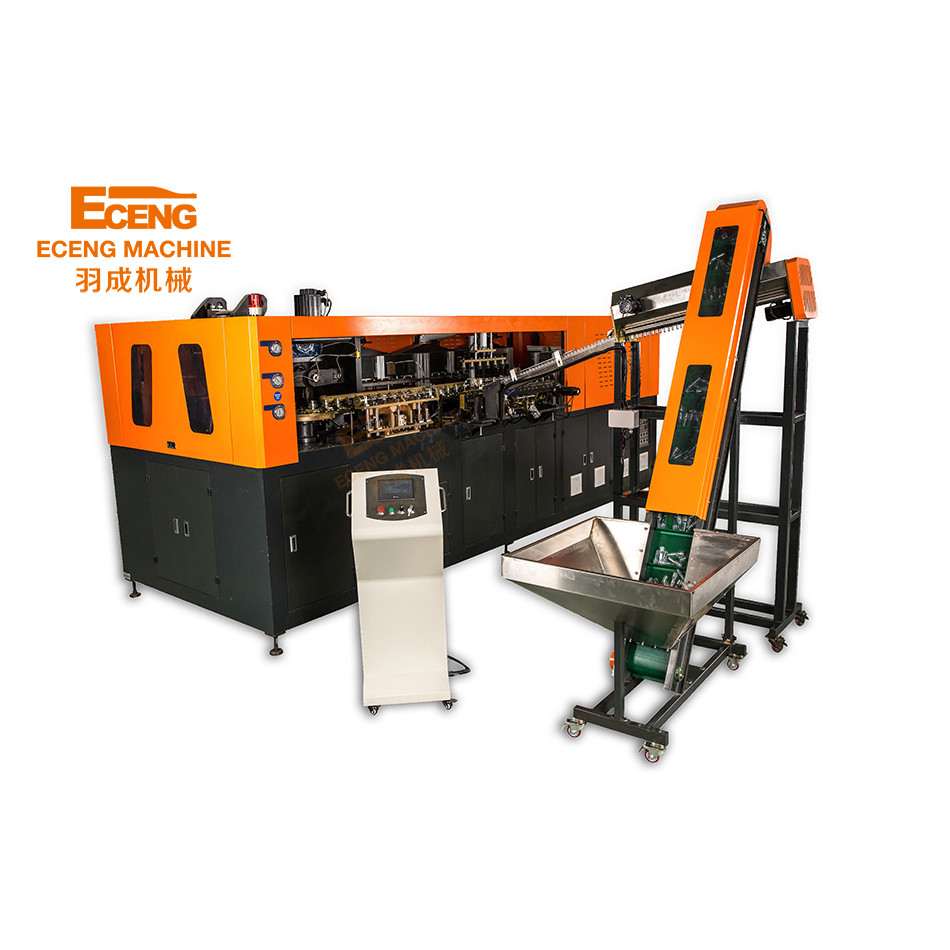

Eceng Pure Water Bottle Moulding Machine

Eceng 6 Cavity Auto Blow Moulding Machine For Making pure water bottleEceng Pure Water Bottle Moulding Machine 0
specification
Item

Q9000




Bottle type specification
Cavity
6

Theory output
9000bph

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
48pcs

Light tube power
1.5KW

Maximum heating power
72KW

All electric machine installation
75KW

Actual consumption
40%--70%



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
5.5x1.6x1.9

Machine weight
4.5ton
Eceng Pure Water Bottle Moulding Machine 2
Eceng Pure Water Bottle Moulding Machine 4
Eceng Pure Water Bottle Moulding Machine 6
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Eceng Pure Water Bottle Moulding Machine 8
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time 6.Our engineers can be online for 24 hours to serve you

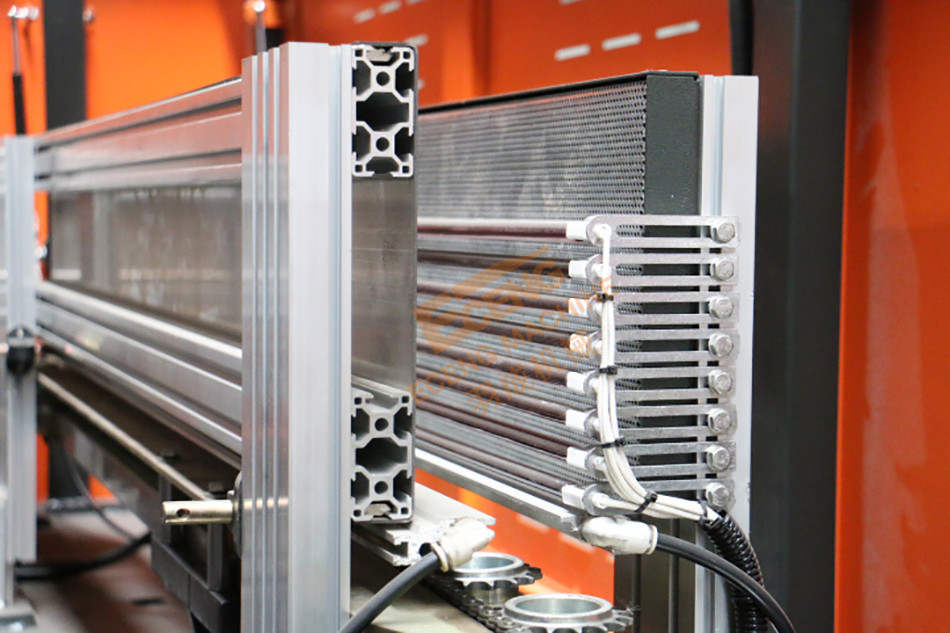

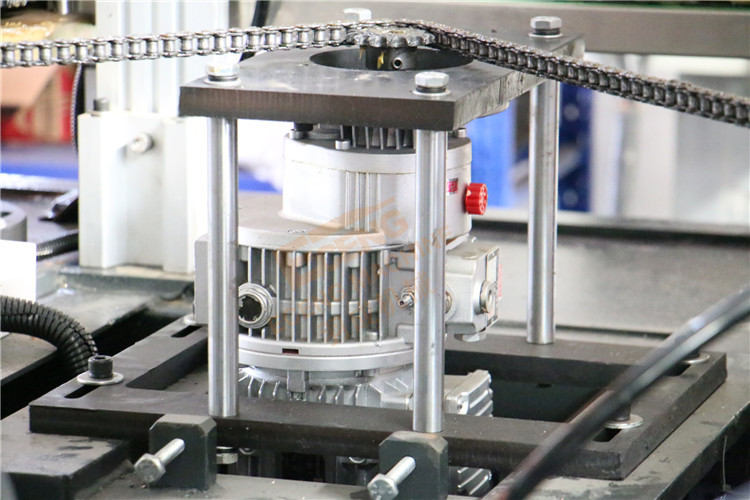

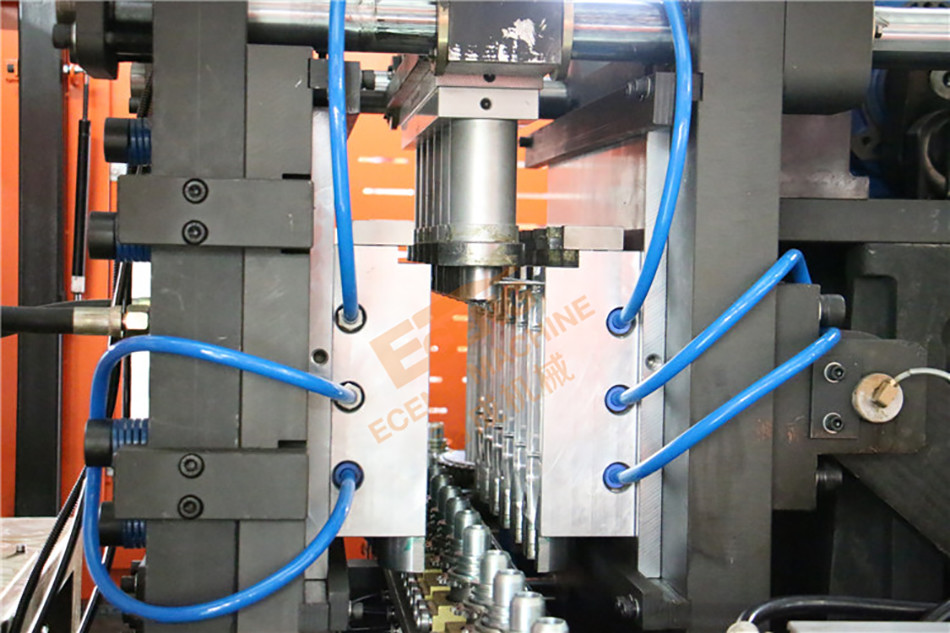

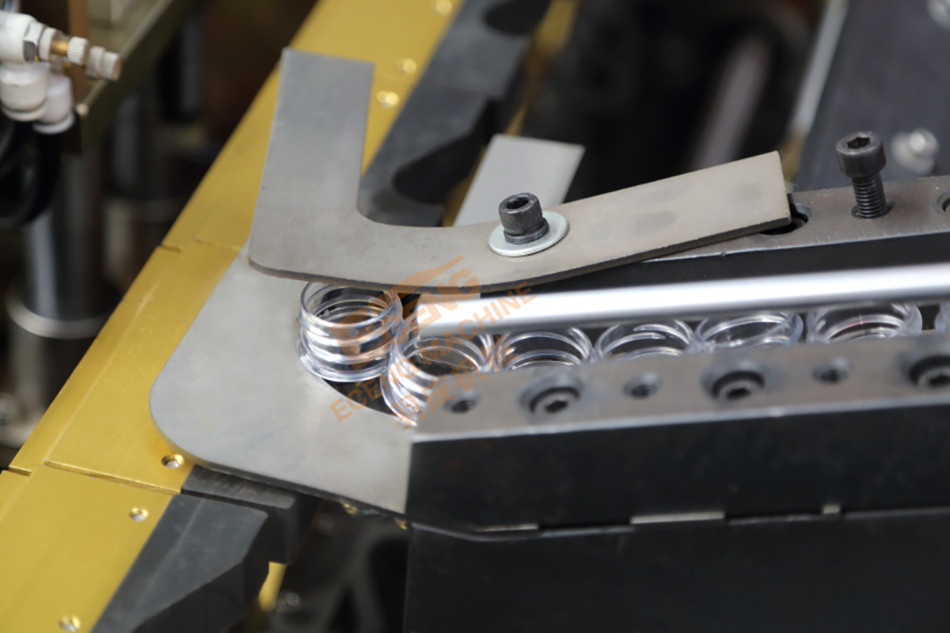

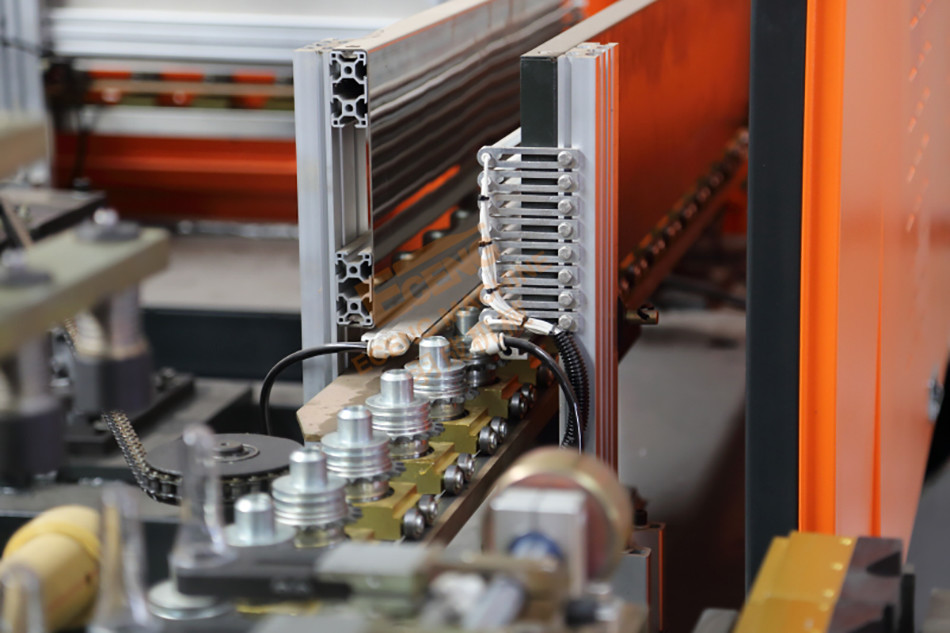

Detailed Images
Eceng Pure Water Bottle Moulding Machine 10
Eceng Pure Water Bottle Moulding Machine 12
Eceng Pure Water Bottle Moulding Machine 14
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
Eceng Pure Water Bottle Moulding Machine 16
Packing&Shipping
Eceng Pure Water Bottle Moulding Machine 18

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
