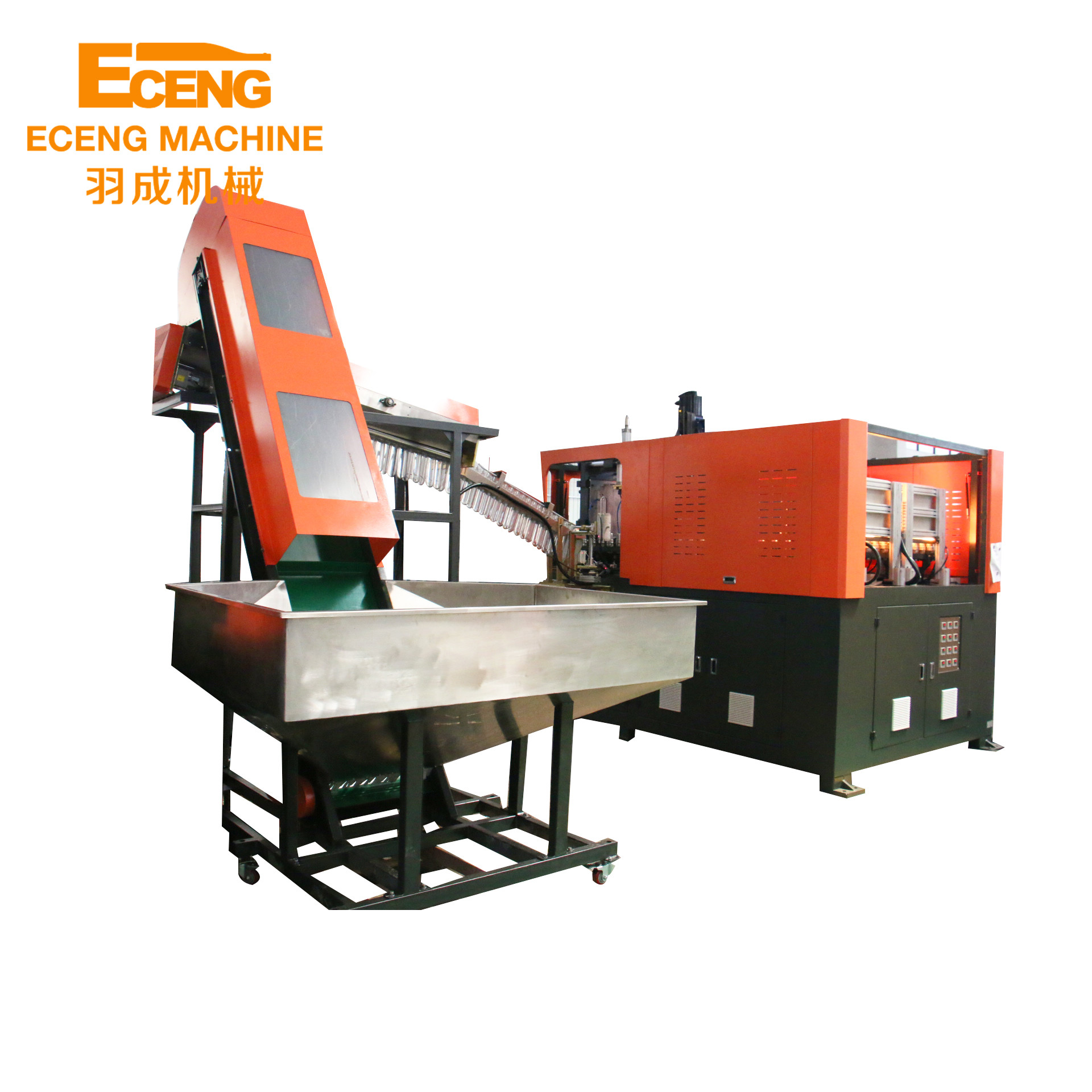

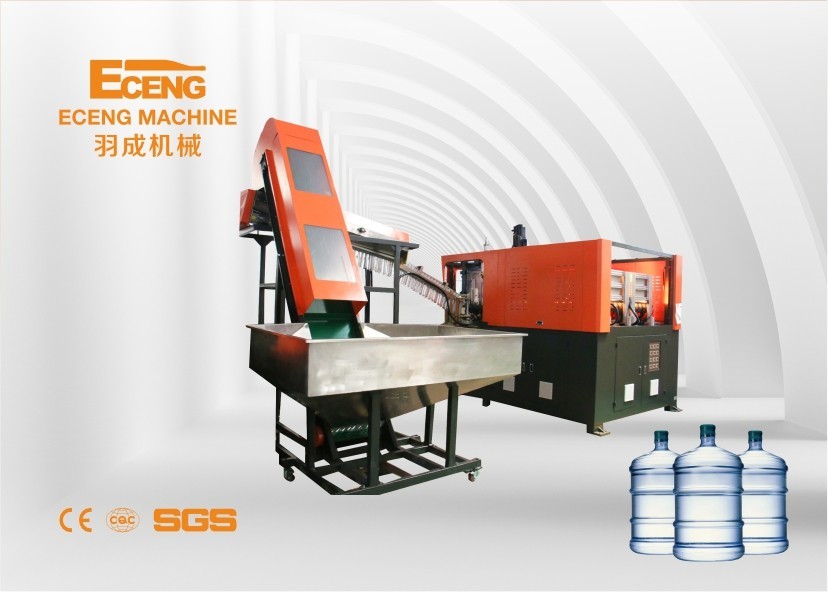

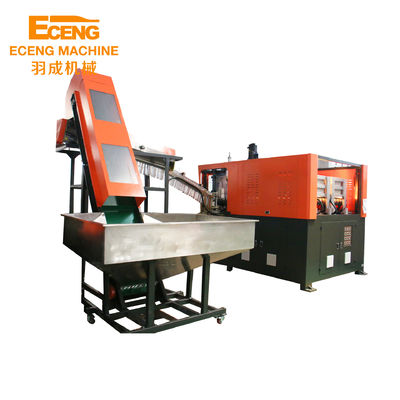

400bph Water Bottle Blowing Machine For PET Bottles 10l 20l

400bph Water Bottle Blowing Machine For PET Bottles 10l 20l

  • High Light

    400bph water bottle making machine

    ,

    400bph blowing machine for pet bottles

    ,

    blowing machine for pet bottles 10l 20l

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    550 Mm
  • Neck Diameter(mm)
    150 Mm
  • Max.Bottle Diameter(mm)
    350 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2021
  • Voltage
    380V/50HZ, 3phase 380V/220V/415V 50HZ
  • Dimension(L*W*H)
    5.2*2.0*2.0(m)
  • Hollow Part Volume
    20L
  • High Pressure Valve Brand
    Mac
  • Rotary Cylinder Brand
    Smc
  • PLC Brand
    XINJE
  • Power (kW)
    75
  • Weight (KG)
    6000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Showroom Location
    Peru, Thailand, Mexico, Pakistan, Viet Nam, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Japan, Uzbekistan, Argentina, Australia, Ukraine, Kyrgyzstan, Malaysia, Kazakhstan, Tajikis
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
  • Automatic
    Yes
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
  • Color
    Orange
  • PLC
    XINJIE CHINA
  • High Pressure Valve
    Mac/parker
  • Location
    Zhangjiagang City
  • Production Capacity (BPH)
    400 BPH
  • Local Service Location
    Viet Nam, Philippines, India, Pakistan, Peru, Saudi Arabia, Italy, France, Germany, Thailand, Russia, Egypt, Mexico, Canada, Brazil, South Africa, Chile, Malaysia, Kyrgyzstan, UAE, Argentina, South Korea, Bangladesh, Algeria, Colombia, Japan, Sri Lanka, Ni
  • After Warranty Service
    Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    Q20L-1
  • Minimum Order Quantity
    1set
  • Price
    $32,800.00/Sets 1-1 Sets
  • Packaging Details
    package suits transportation for 6000bph Automatic blow PET bottle machine/preform blower
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

400bph Water Bottle Blowing Machine For PET Bottles 10l 20l

400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 0
specification
Item

Q20L-1




Bottle type specification
Cavity
1

Theory output
400bph

Max.volume
20L

Bottle mouth maximum overall diameter
150mm

Bottle biggest diameter
350mm

Bottle maximum height
550mm



Power specification
Light tube quantity
48pcs


1.5KW

Maximum heating power
72KW

All electric machine installation
75KW

Actual consumption
52.5KW



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
2000-3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
12000kcal/hr

Frozen water flow
88L/min

Machine specification
Machine size
5.2x2.0x2.0

Machine weight
6ton
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 2
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 4
Product Description
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 6

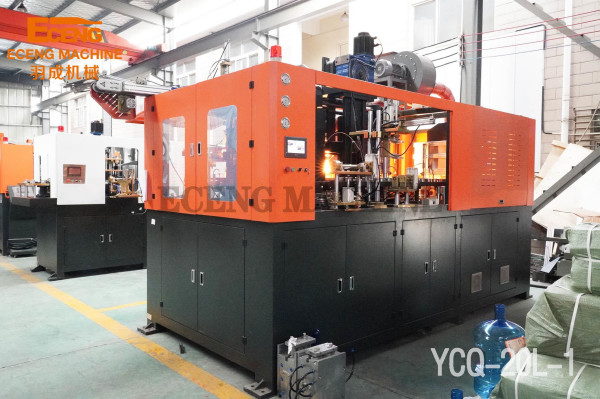

Q-20L-1 5 gallon PET blow moulding machine is used to produce 5gallon PET bottle that is now demanded extremely in the market.
Facing great demand for 5 gallon PET bottle at market, we will certainly become the right machine for your investment. The whole
procedure is automatic. It is controlled with microcomputer. In order to achieve the purpose of automatic transporting bottles,
the user should connect the conveyor belt with the blow molding machine. By transmission device, the machine can be connected to
the filling machine directly and start inline filling.

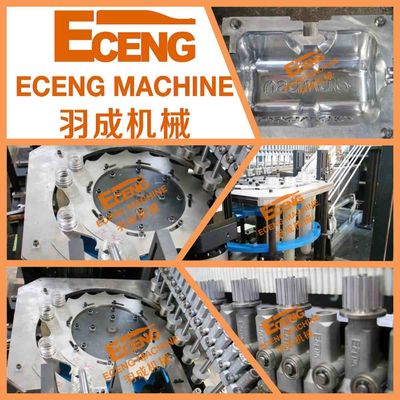

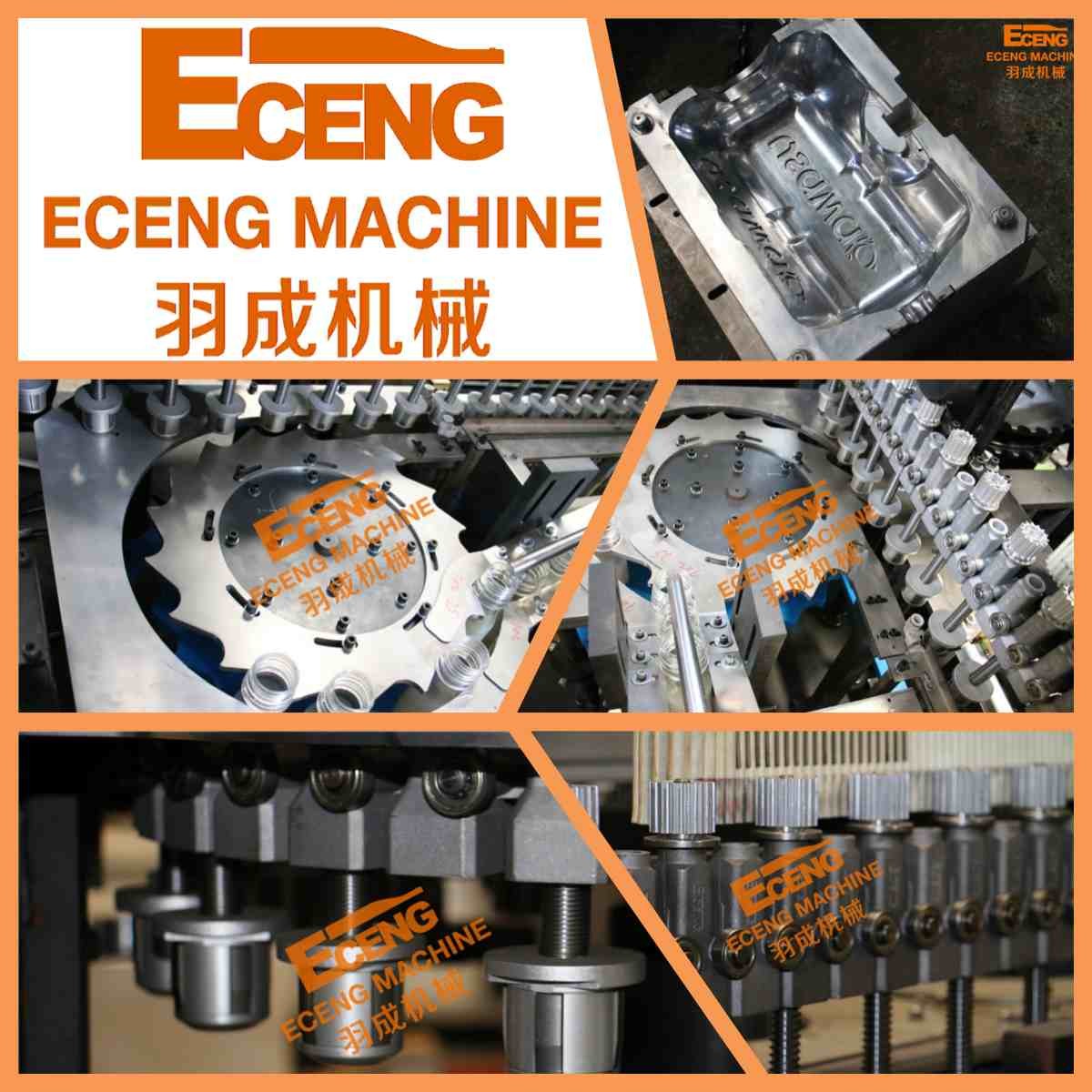

Detailed Images
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 8
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 10
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 12
Technical features of 5 gallon stretch blow molding machine
1. Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
2. Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from othersand save power by more than 50%.
3. Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement ofstability.
4. Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability
and high speed.
5. Hydraulic mould clamping system replace the traditional pneumatic clamping system ,booster pressure from one sides with 2 plateforming to assure the high clamping stability at a pass rage of 99.8%.
Company Introduction
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 14
Packing&Shipping
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 16
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 18
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 20
400bph Water Bottle Blowing Machine For PET Bottles 10l 20l 22
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
