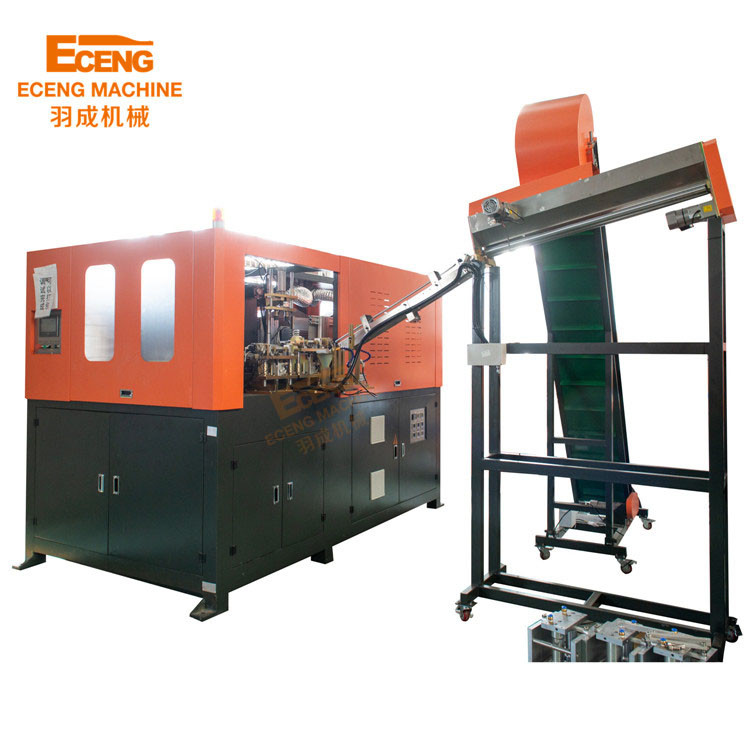

Eceng Toiletries PET Bottle Blowing Machine 3 Phase 380V

Name: Eceng Toiletries PET Bottle Blowing Machine 3 Phase 380V
Brand: Eceng
SKU: Eceng
Price: 20 USD
Availability: InStock
Rating: 4.8 (104 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Eceng
Certification:	CE&ISO

Payment & Shipping Terms:

Price:	$20,000.00/Sets >=1 Sets
Packaging Details:	8 cavities 8000 bph plastic bottle pet blow moulding machine is adopted wooden pallet packing or decided by customer.
Supply Ability:	10 Set/Sets per Month

Contact Now

Detailed Product Description

Plastic Processed:	PET	Max.Bottle Height(mm):	330 Mm
Neck Diameter(mm):	38 Mm	Max.Bottle Diameter(mm):	100 Mm
Bottle Volume(ml):	2000 Ml	Condition:	New
Application:	Bottle	Blow Moulding Type:	Stretch Blow Moulding, Extrusion Blow Moulding
Year:	2019	Voltage:	Three Phase 380V
Dimension(LWH):	2.251.61.7(m)	Hollow Part Volume:	2L
High Pressure Valve Brand:	SMC	Rotary Cylinder Brand:	SMC
PLC Brand:	DELTA	Power (kW):	27
Weight (KG):	2500 KG	Automation:	Automatic
Warranty:	1 Year	Key Selling Points:	Automatic
Applicable Industries:	Food & Beverage Factory	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training	Automatic:	Yes
Model Type:	Eceng Company Make Blowing Machine	Max Bottle Volume:	2 Liter
Color:	Orange	Delivery Time:	45 Working Days
Guarantee Time:	1 Year For Free	Bottle Diameter:	100mm
Bottle Material:	PET	Local Service Location:	Turkey, Viet Nam, Philippines, Pakistan, Saudi Arabia, Italy, France, Germany, Thailand, Russia, Egypt, Indonesia, Brazil, South Africa, Chile, Malaysia, Kyrgyzstan, UAE, Argentina, South Korea, Kenya, Bangladesh, Algeria, Colombia, Sri Lanka, Ukraine, Nig
After Warranty Service:	Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support	Port:	Shanghai
High Light:	Eceng PET Bottle Blowing Machine , Toiletries plastic bottle blowing machine , plastic bottle blowing machine 3 phase 380V

Eceng PET blow molding machine full auto Toiletries Bottles plastic bottle blow moulding machine

specification

Item			Q3000
Bottle type specification	Cavity	2
		Theory output	3000bph
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-80mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	32pcs
		Light tube power	0.75KW
		Maximum heating power	24KW
		All electric machine installation	27KW
		Actual consumption	30%--60%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1500L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	1500Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	5000kcal/hr
		Frozen water flow	30L/min
Machine specification	Machine size	2.25x1.6x1.7
Machine specification		Machine weight	2.5ton

Product Description

Eceng 600ML plastic sport drink bottle blow moulding machine bottles moulding machines

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Our Advantage

1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time

Want to know more message , contact us with out hesitate ! Inquiry us now !

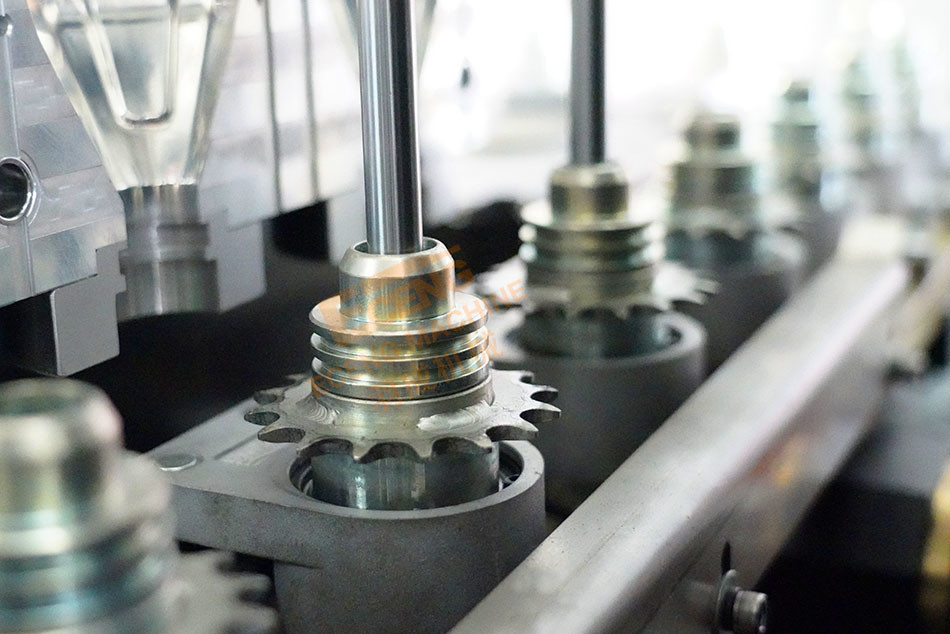

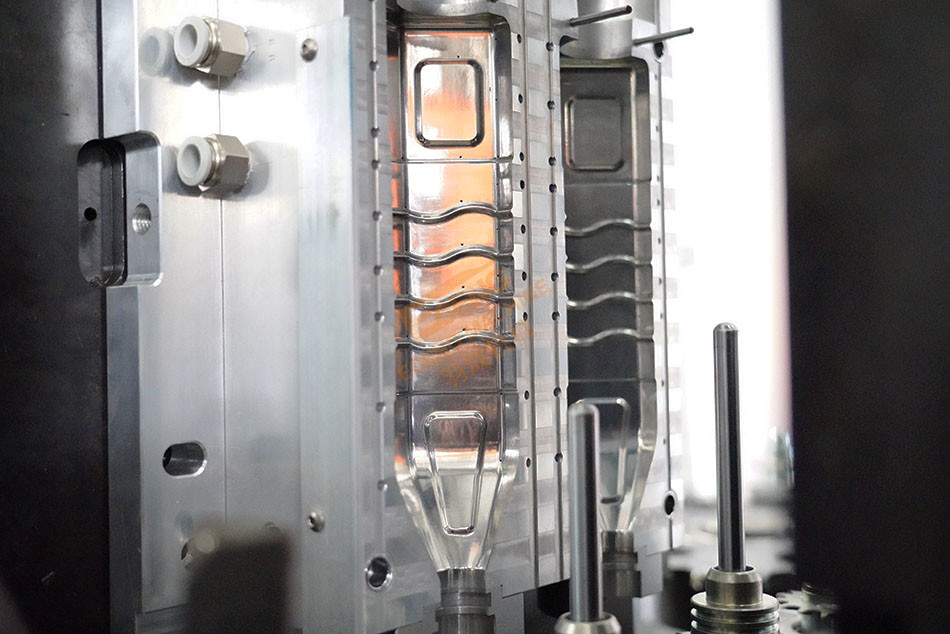

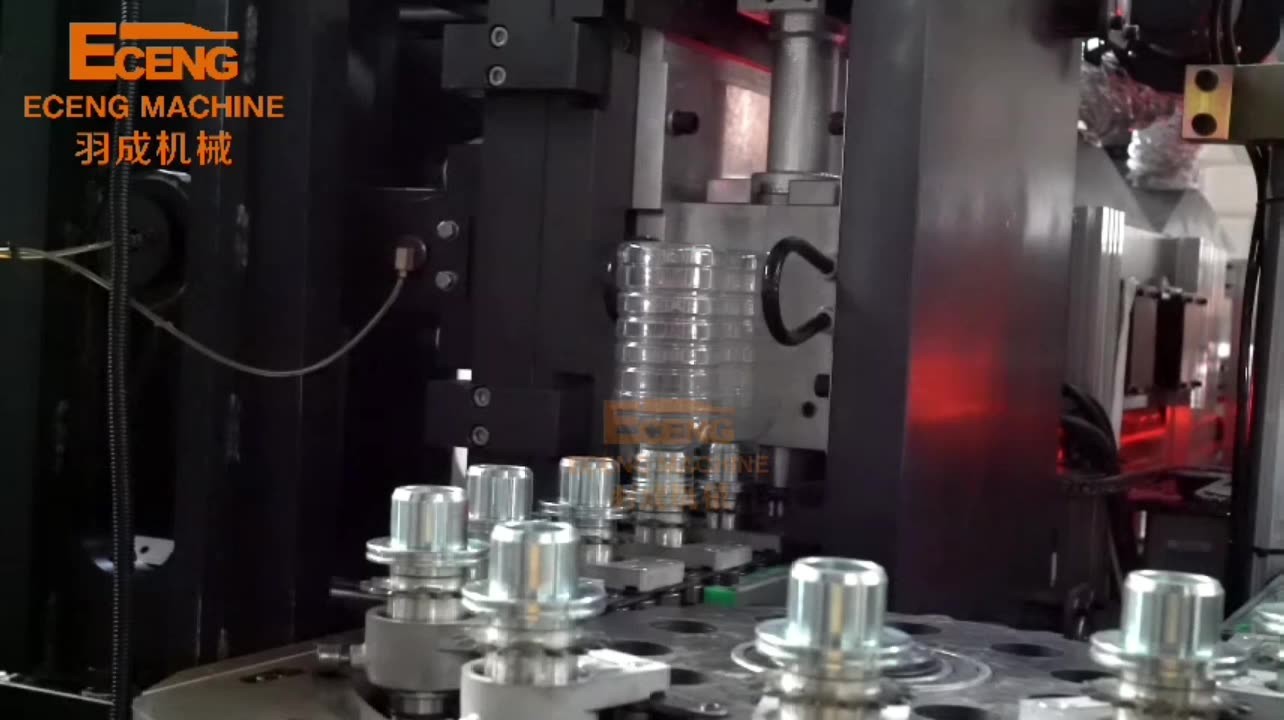

Detailed Images

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

Company Introduction

Packing&Shipping

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box

After Sales Service

1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
