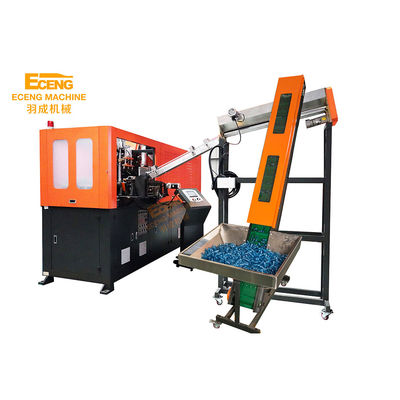

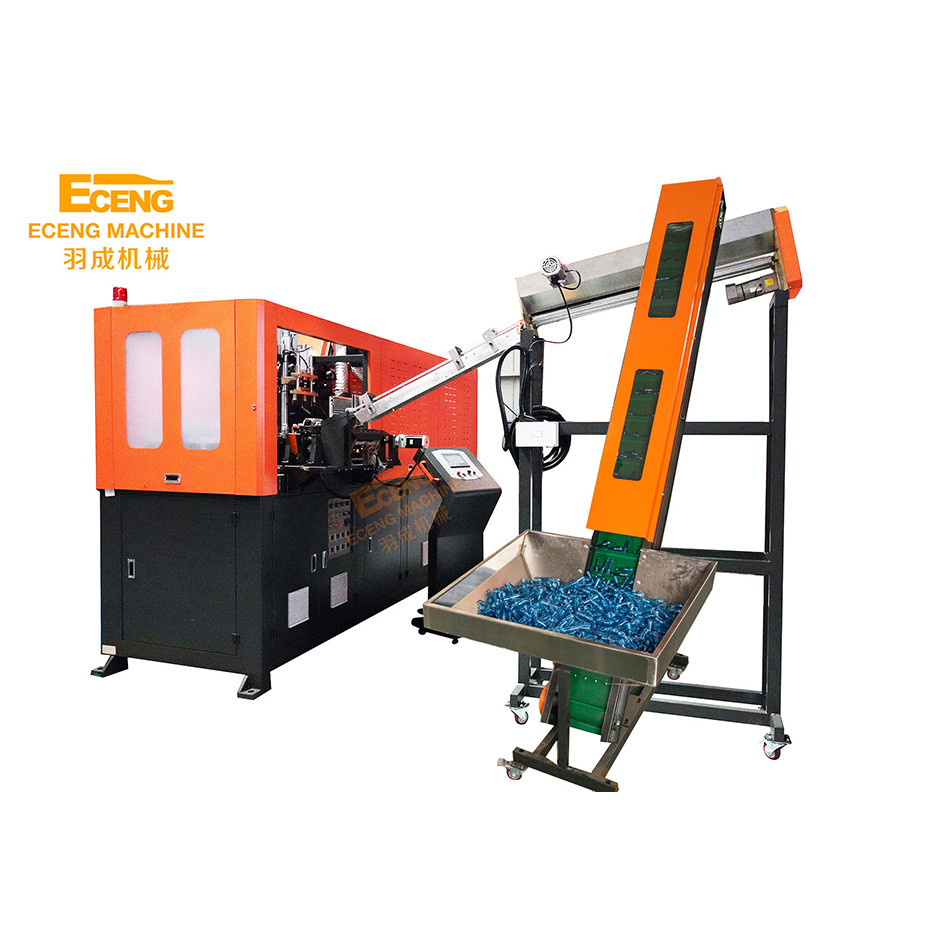

SMC Plastic PET Bottle Making Machine DELTA PLC Control

SMC Plastic PET Bottle Making Machine DELTA PLC Control

  • High Light

    SMC plastic pet bottle making machine

    ,

    plastic pet bottle making machine PLC control

    ,

    bottle moulding machine DELTA PLC control

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    105 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Voltage
    Three Phase 380V
  • Dimension(L*W*H)
    2.6*1.8*2.45(m)
  • Hollow Part Volume
    2L
  • High Pressure Valve Brand
    SMC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    27
  • Weight (KG)
    2500 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Model Type
    Eceng Company Make Blowing Machine
  • Max Bottle Volume
    3 Liter
  • Color
    Orange
  • Delivery Time
    45 Working Days
  • Guarantee Time
    1 Year For Free
  • Bottle Diameter
    105mm
  • Bottle Material
    PET
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE&ISO
  • Minimum Order Quantity
    1set
  • Price
    $20,000.00/Sets >=1 Sets
  • Packaging Details
    8 cavities 8000 bph plastic bottle pet blow moulding machine is adopted wooden pallet packing or decided by customer.
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

SMC Plastic PET Bottle Making Machine DELTA PLC Control

Eceng Factory price good quality Automatic Juice drink bottle of 450ml Plastic Bottle Making Machine
SMC Plastic PET Bottle Making Machine DELTA PLC Control 0
specification
Item

Q4500




Bottle type specification
Cavity
3

Theory output
4500bph

Max.volume
2L

Bottle mouth maximum overall diameter
38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
18pcs

Light tube power
1.5KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.6x1.8x2.45

Machine weight
2.5ton
SMC Plastic PET Bottle Making Machine DELTA PLC Control 2
SMC Plastic PET Bottle Making Machine DELTA PLC Control 4



Eceng 600ML plastic sport drink bottle blow moulding machine bottles moulding machines
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
SMC Plastic PET Bottle Making Machine DELTA PLC Control 6
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
SMC Plastic PET Bottle Making Machine DELTA PLC Control 8
Want to know more message , contact us with out hesitate ! Inquiry us now !
Detailed Images

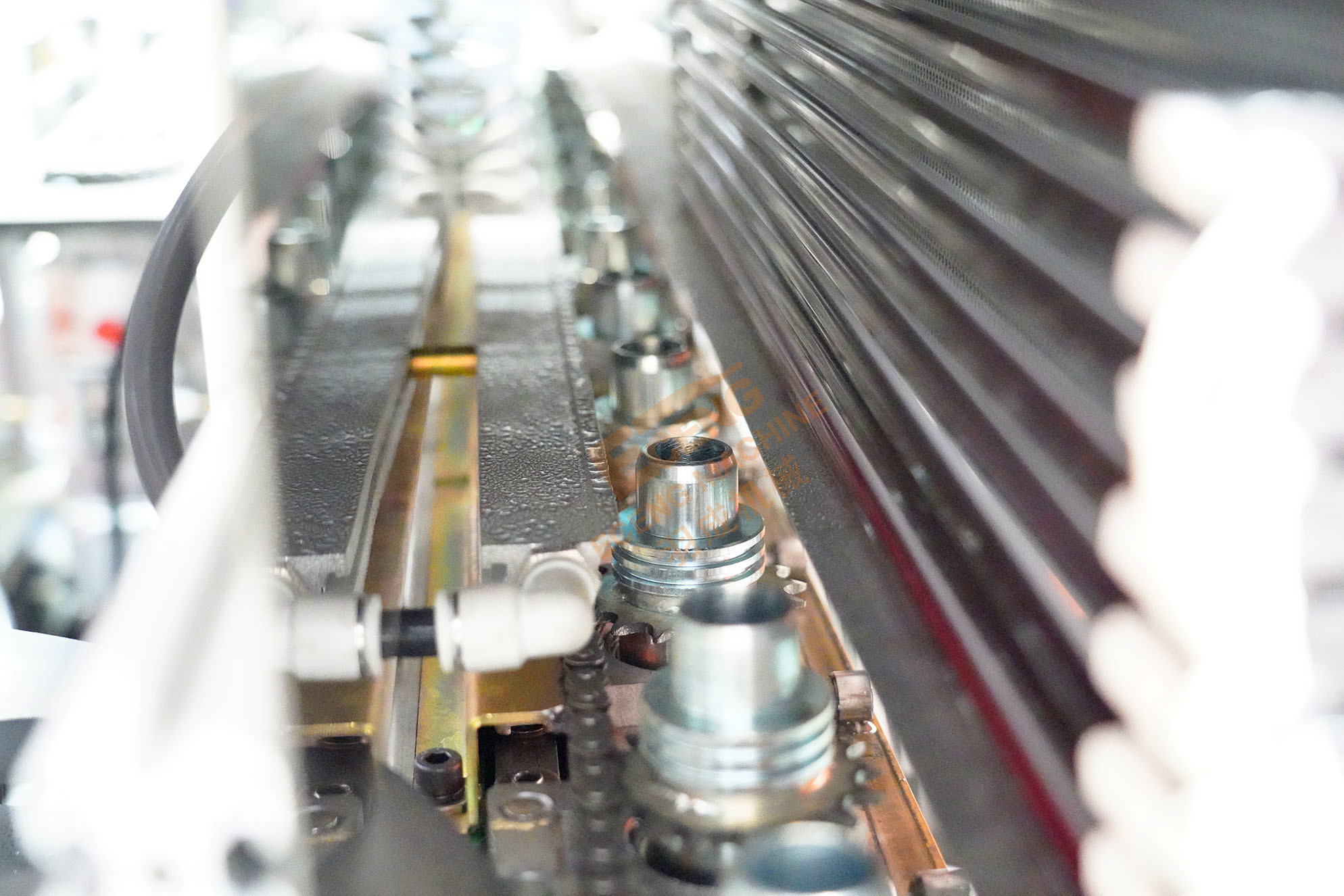

SMC Plastic PET Bottle Making Machine DELTA PLC Control 10

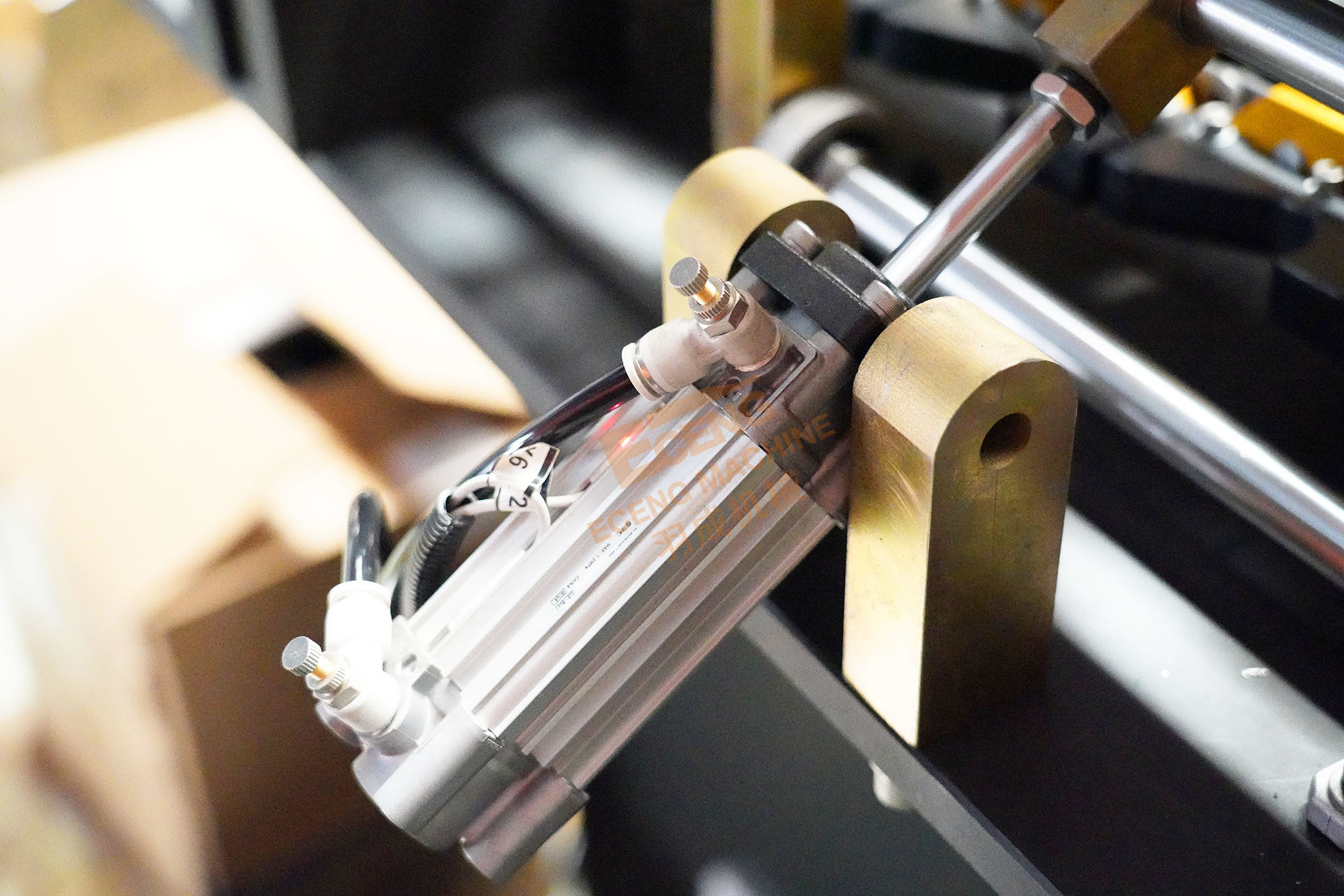

SMC Plastic PET Bottle Making Machine DELTA PLC Control 12

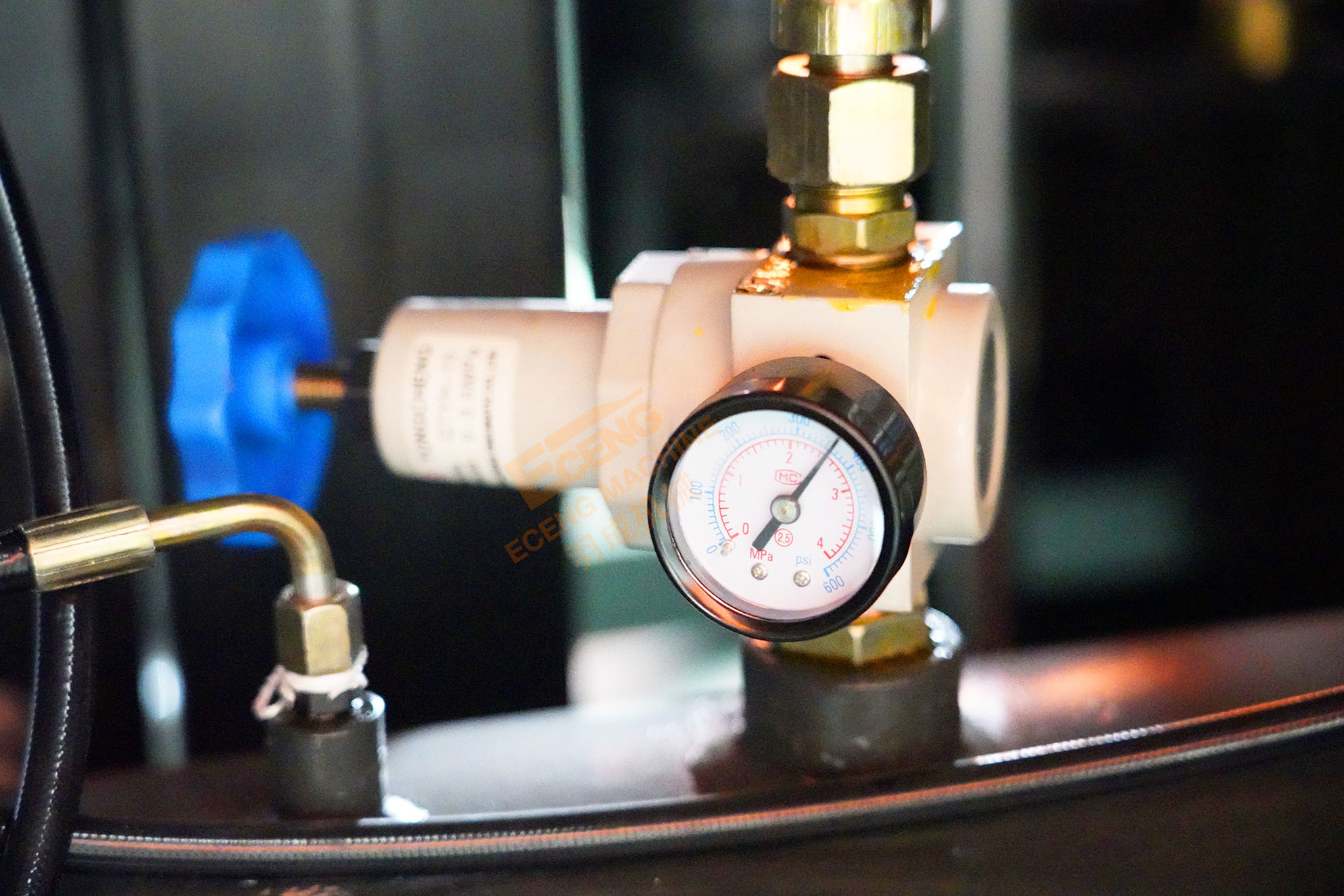

SMC Plastic PET Bottle Making Machine DELTA PLC Control 14

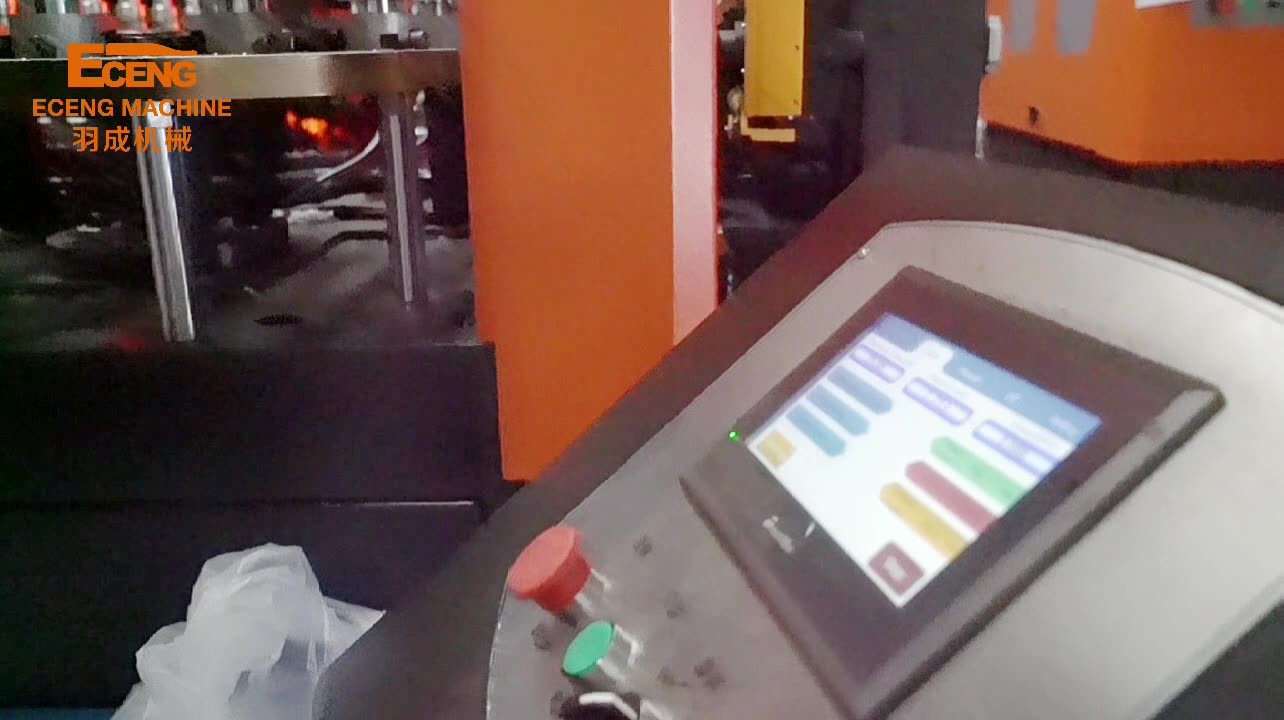

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

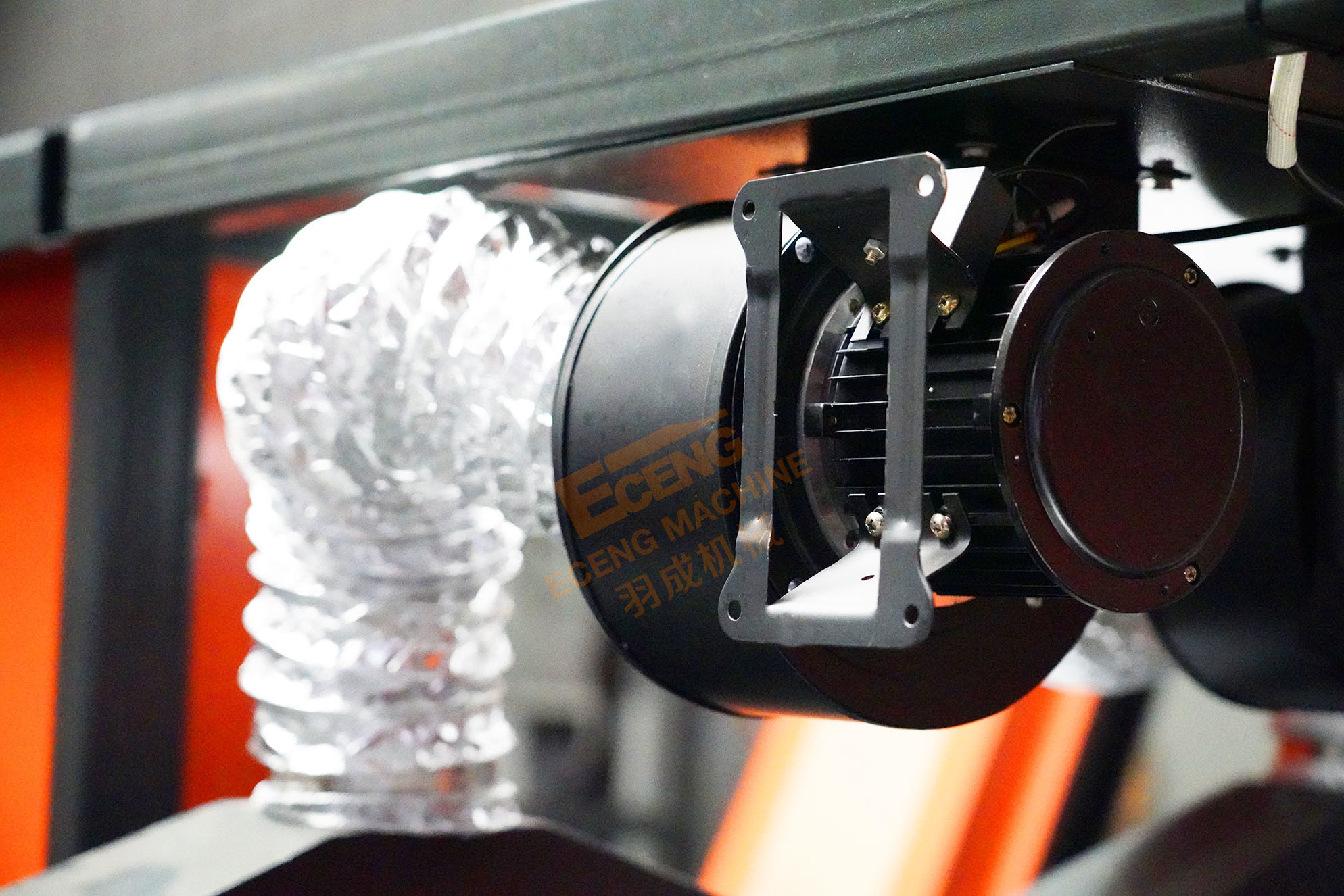

SMC Plastic PET Bottle Making Machine DELTA PLC Control 16
Company Introduction
SMC Plastic PET Bottle Making Machine DELTA PLC Control 18
Packing&Shipping
SMC Plastic PET Bottle Making Machine DELTA PLC Control 20

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
SMC Plastic PET Bottle Making Machine DELTA PLC Control 22

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
