LDPE PET Bottle Blowing Machine

LDPE PET Bottle Blowing Machine

  • High Light

    LDPE PET Bottle Blowing Machine

    ,

    LDPE plastic bottle molding machine

    ,

    plastic bottle molding machine 220v 380v

  • Plastic Processed
    PET, PC, PVC, PE, PE/PP, LDPE, HDPE, PP
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    220v 380v
  • Dimension(L*W*H)
    4.5x1.6x1.9
  • Hollow Part Volume
    2L
  • High Pressure Valve Brand
    SMC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    40
  • Weight (KG)
    4000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Showroom Location
    Egypt, United States, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgy
  • Applicable Industries
    Manufacturing Plant
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
  • Automatic
    Yes
  • After-sales Service Provided
    Overseas Third-party Support Available, Field Maintenance And Repair Service, Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training
  • Bottle Material
    PET
  • Heating Method
    Electric Cycle Heating
  • Service
    Full Technical Training
  • Product Name
    PET Bottle Blowing Machine
  • Weight
    4.5 Ton
  • Power(W)
    48KW
  • Name
    Plastic Making 0.5L- 2L Automatic PET Bottle Blowing Machine
  • Local Service Location
    Egypt, United States, Philippines, Brazil, Saudi Arabia, Pakistan, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrg
  • After Warranty Service
    Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
  • Port
    Shanghai/Ningbo
  • Place of Origin
    China
  • Brand Name
    ECENG
  • Certification
    CE ISO
  • Model Number
    Q6000
  • Price
    $5,500.00 - $35,000.00/Sets
  • Packaging Details
    Packed with wooden case,or to be decided by customer for pet bottle blowing machine
  • Supply Ability
    15 Set/Sets per Month

LDPE PET Bottle Blowing Machine

fulli automat pet bottl blowing machin prices

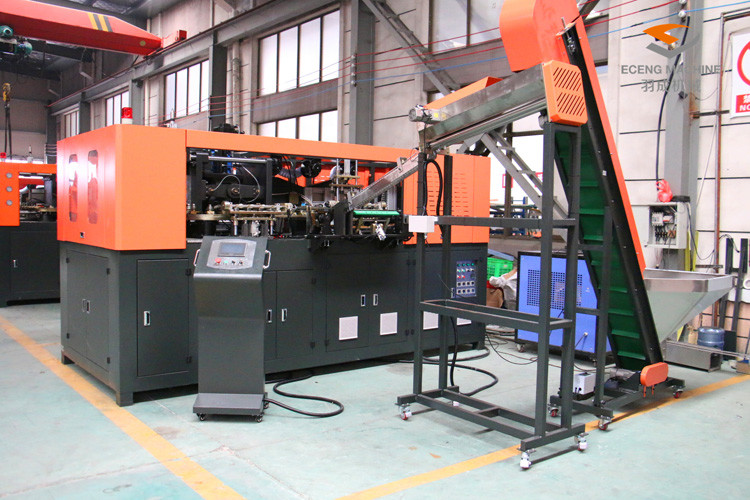

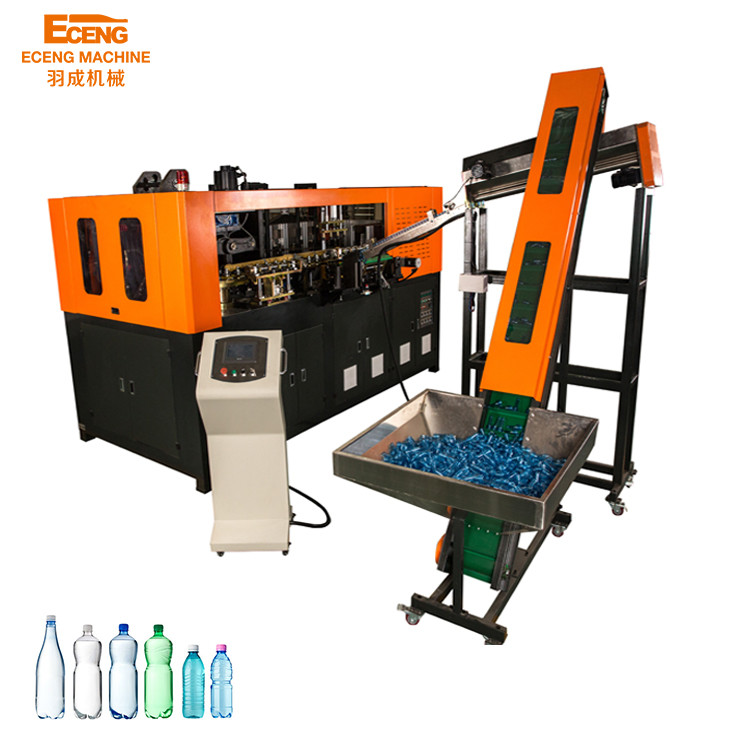

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
LDPE PET Bottle Blowing Machine 0
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
LDPE PET Bottle Blowing Machine 2

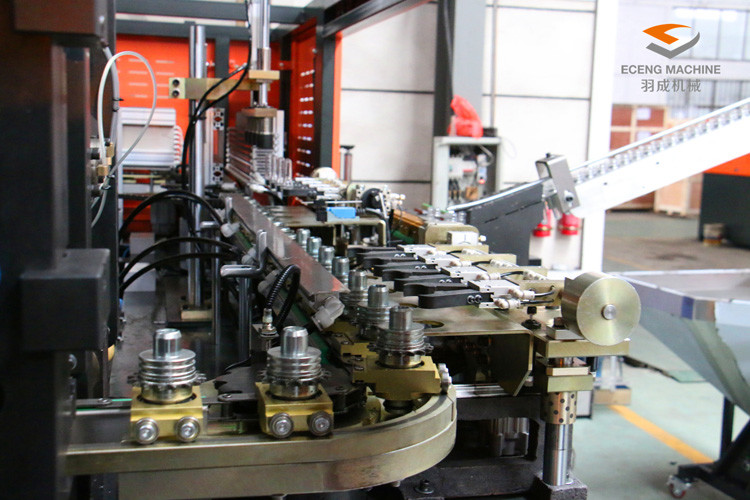

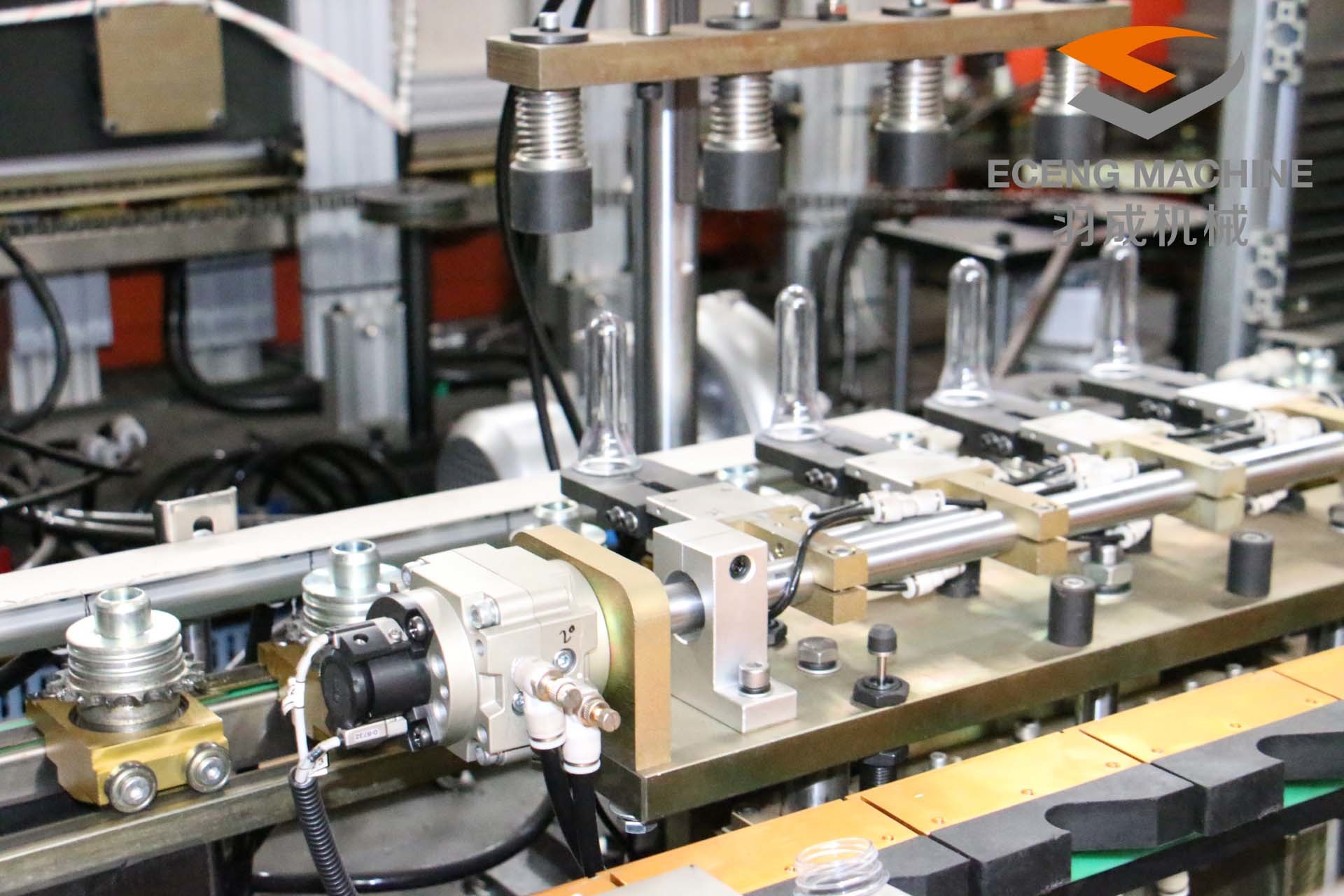

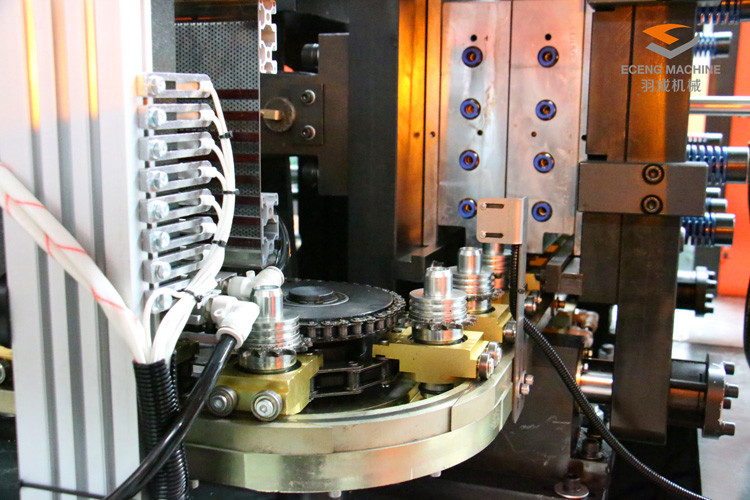

Servo transmission system
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
LDPE PET Bottle Blowing Machine 4
LDPE PET Bottle Blowing Machine 6
Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
LDPE PET Bottle Blowing Machine 8
LDPE PET Bottle Blowing Machine 10
Intelligent Human-Machine Interface
1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
40pcs

Light tube power
1.5KW

Maximum heating power
60KW

All electric machine installation
65KW

Actual consumption
40%--70%


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.5x2.0x2.3

Machine weight
4.5ton
LDPE PET Bottle Blowing Machine 12
Company Introduction
LDPE PET Bottle Blowing Machine 14
ECENG MACHINE
1 / A standardized workshop with a total area of 20,000 square meters.
2/Founded in 2007,has 13 years of experience in blow molding machines.
3 / Located in Zhangjiagang, only 120km from Shanghai.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.

ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Exhibition
LDPE PET Bottle Blowing Machine 16
Packing&Shipping
LDPE PET Bottle Blowing Machine 18
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
LDPE PET Bottle Blowing Machine 20
LDPE PET Bottle Blowing Machine 22
LDPE PET Bottle Blowing Machine 24
Recommend Products
LDPE PET Bottle Blowing Machine 26
FAQ
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
