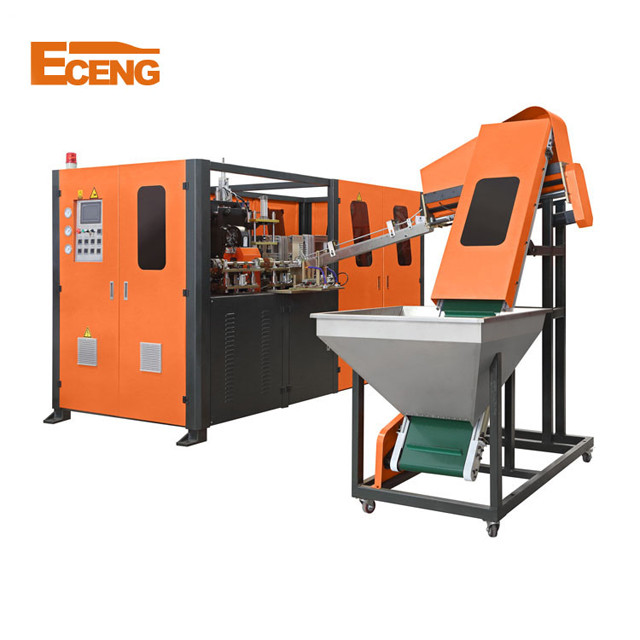

6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing

6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing

  • High Light

    6000bpn PET Bottle Blowing Machine

    ,

    6000bpn plastic container manufacturing machine

    ,

    2000ml plastic container manufacturing machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    380 Mm
  • Neck Diameter(mm)
    100 Mm
  • Max.Bottle Diameter(mm)
    38 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V/50HZ
  • Dimension(L*W*H)
    8.45*1.6*1.9(m)
  • Hollow Part Volume
    2000ml
  • Weight (KG)
    4500 KG
  • Automation
    Automatic
  • Warranty
    One Year
  • Key Selling Points
    Automatic
  • Showroom Location
    Saudi Arabia, Turkey, Italy, Thailand, Mexico, India, Pakistan, Viet Nam, Canada, United States, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Nigeria, Argentina, Romania, Australia, Ukraine, Kyrgyzstan, Malaysia
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Automatic
    Yes
  • Color
    Orange
  • PLC
    Mitsubishi
  • Cylinder
    SMC
  • High Pressure Valve
    Mac/parker
  • Low Pressure Valve
    SMC
  • Location
    Zhangjiagang City
  • Capacity
    6000BPH
  • Local Service Location
    Turkey, United Kingdom, Philippines, India, Pakistan, Saudi Arabia, Germany, Thailand, Russia, Mexico, Brazil, South Africa, Chile, Malaysia, Kyrgyzstan, UAE, Argentina, South Korea, Kenya, Bangladesh, Algeria, Colombia, Japan, Sri Lanka, Ukraine, Nigeria,
  • After Warranty Service
    Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
  • Production Capacity (BPH)
    6000
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Price
    $20,000.00 - $60,000.00/Sets
  • Packaging Details
    Wooden package
  • Supply Ability
    10 Set/Sets per Month

6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing

blow molding bottle making machine price
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 0
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
5000~6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
52KW

Actual consumption
40%--70%



Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.1x1.6x1.9

Machine weight
3.9ton
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 4
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 6
Want to know more message , contact us with out hesitate ! Inquiry us now !

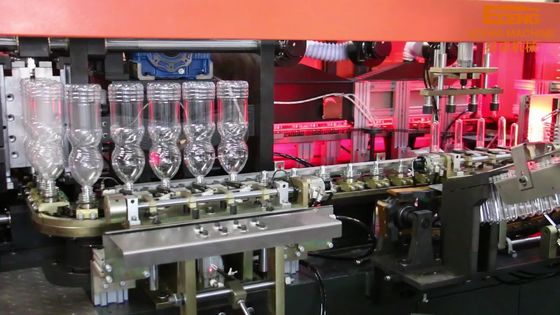

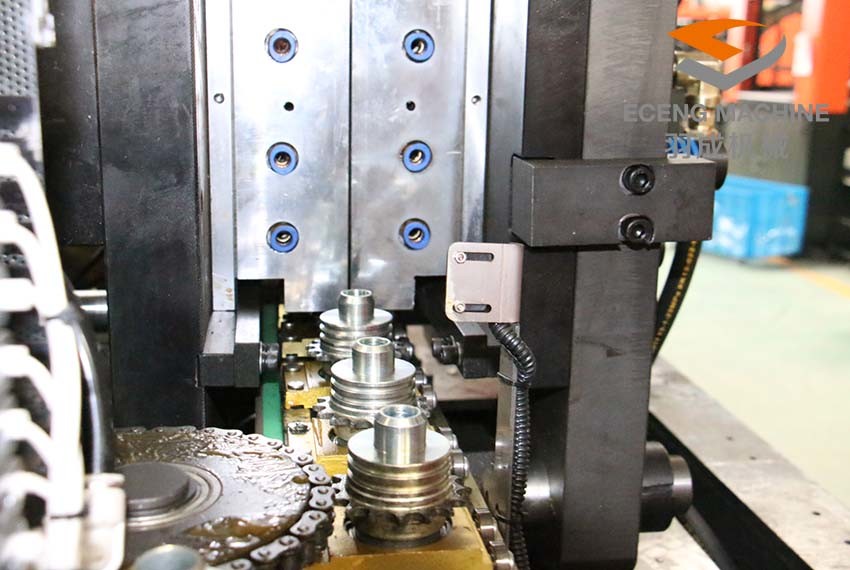

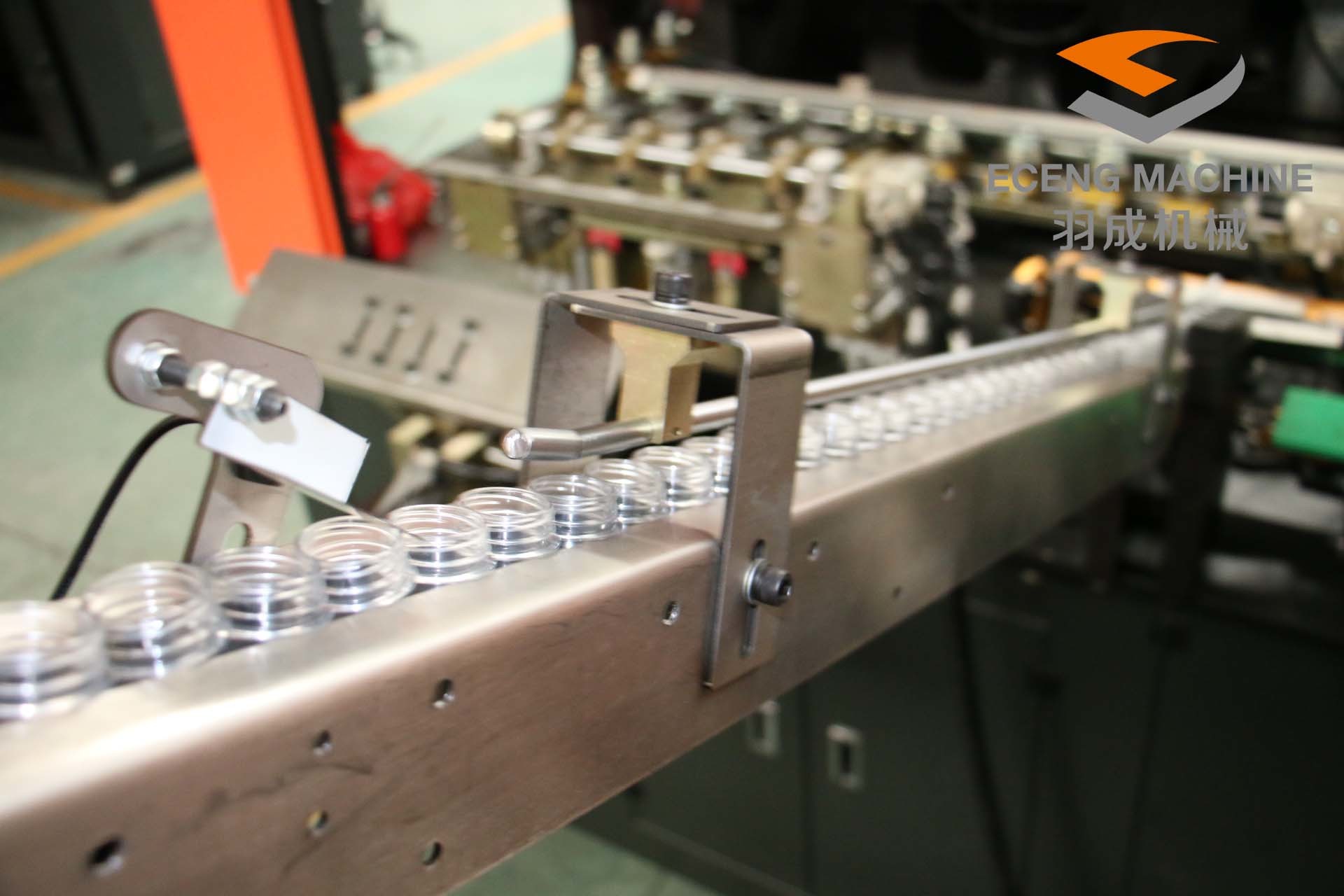

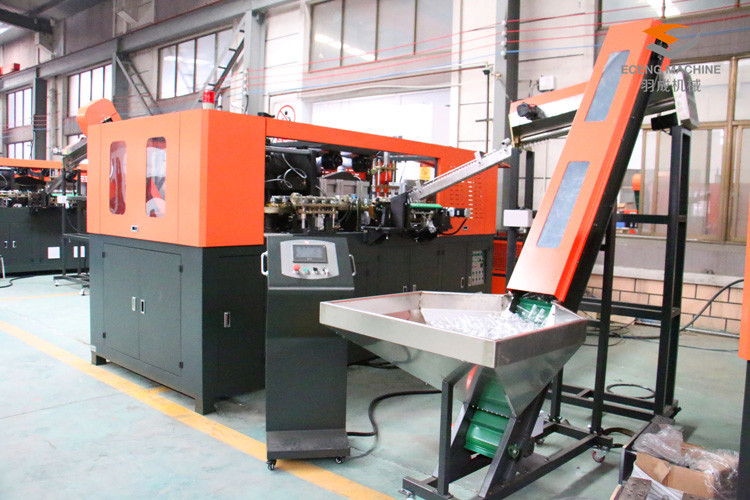

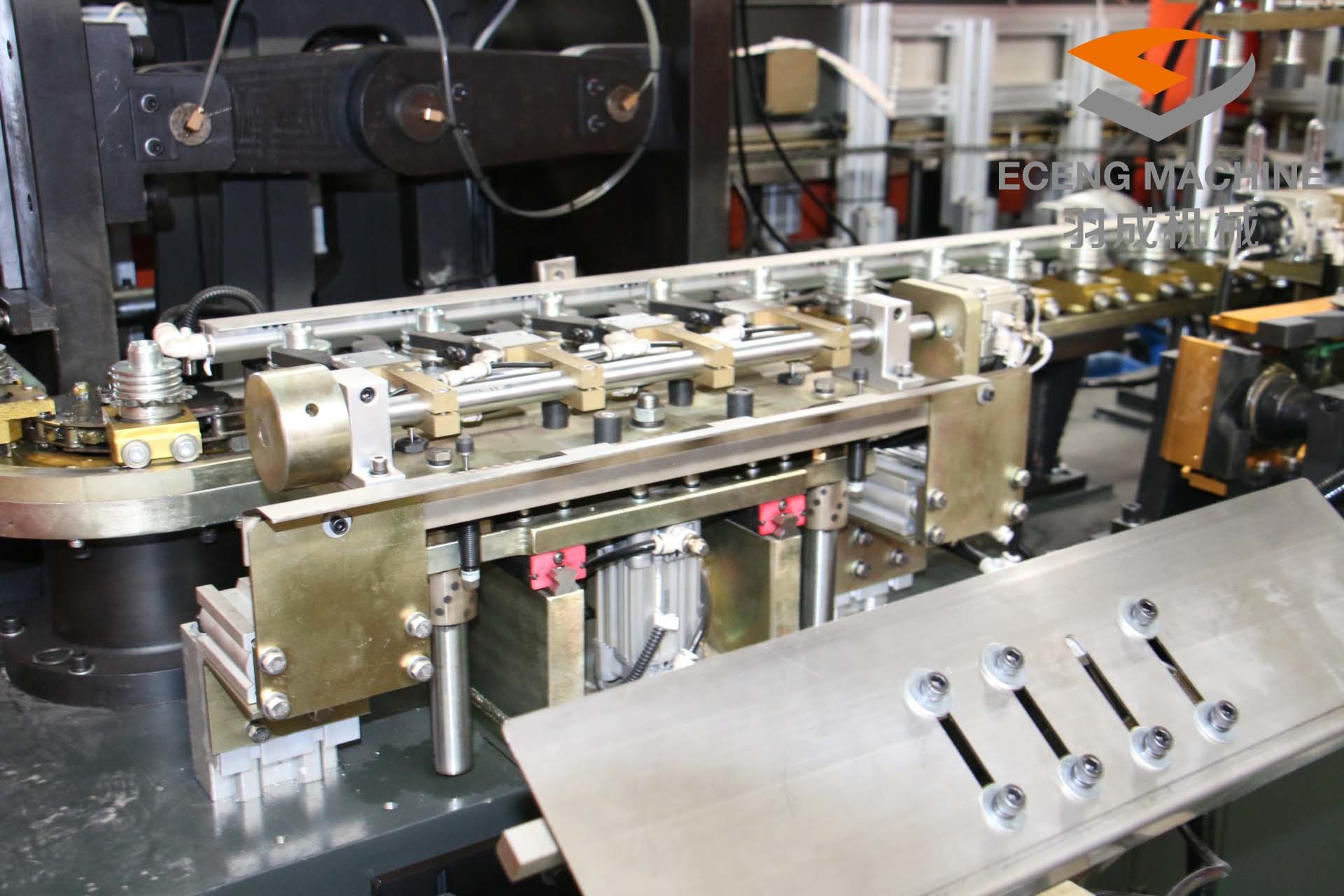

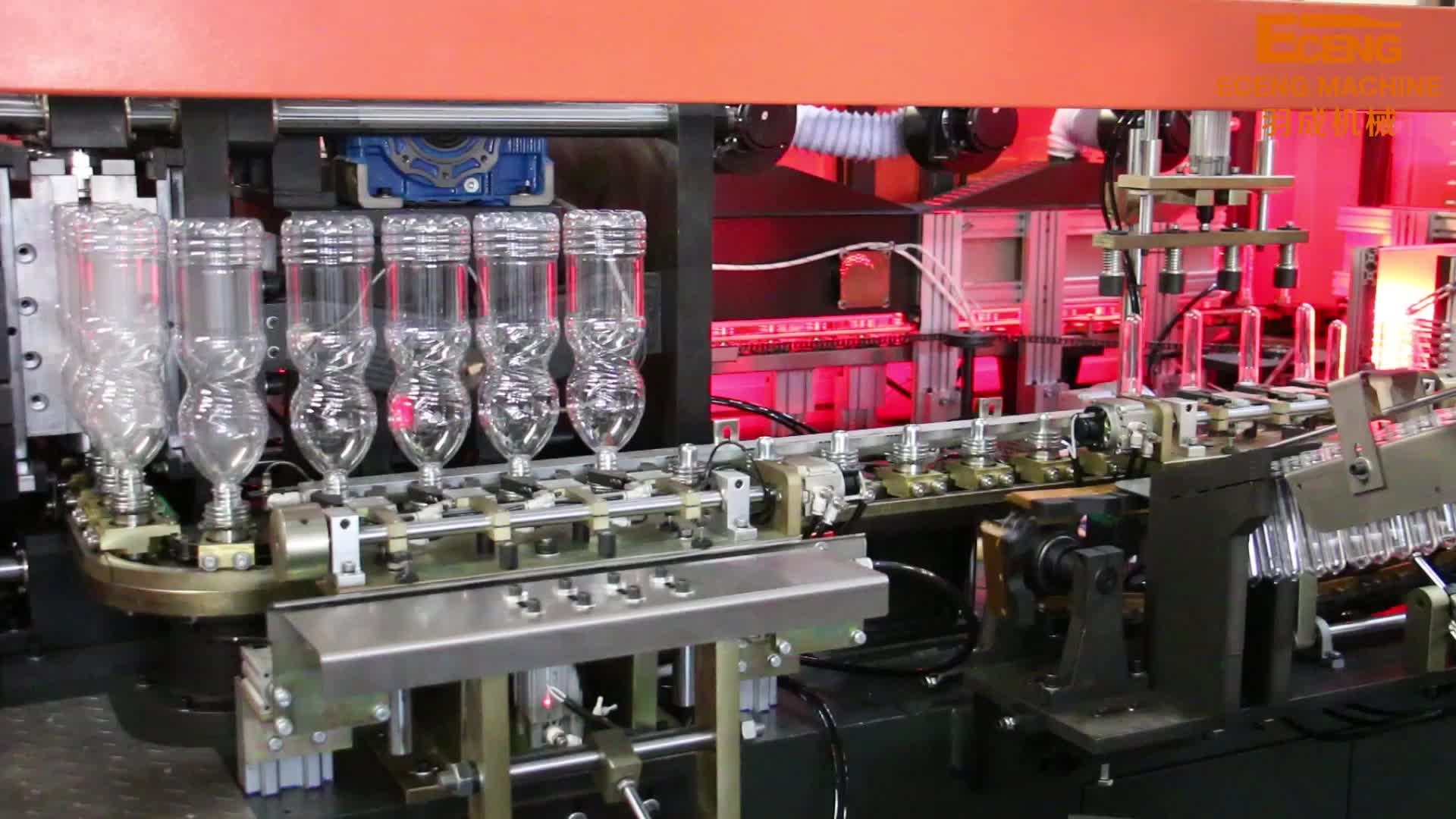

Detailed Images
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 8
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 10
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 12
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 14
Company Introduction
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 16
Packing&Shipping
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 18

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 20

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 22
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 24
6000bpn PET Bottle Blowing Machine 6000bpn Plastic Container Manufacturing 26
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
