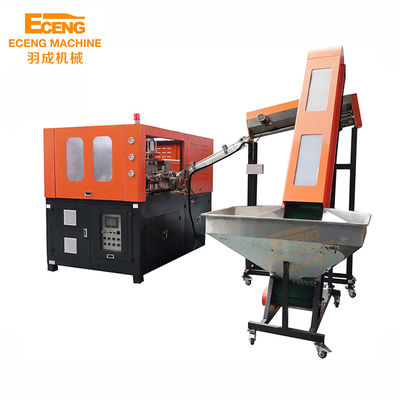

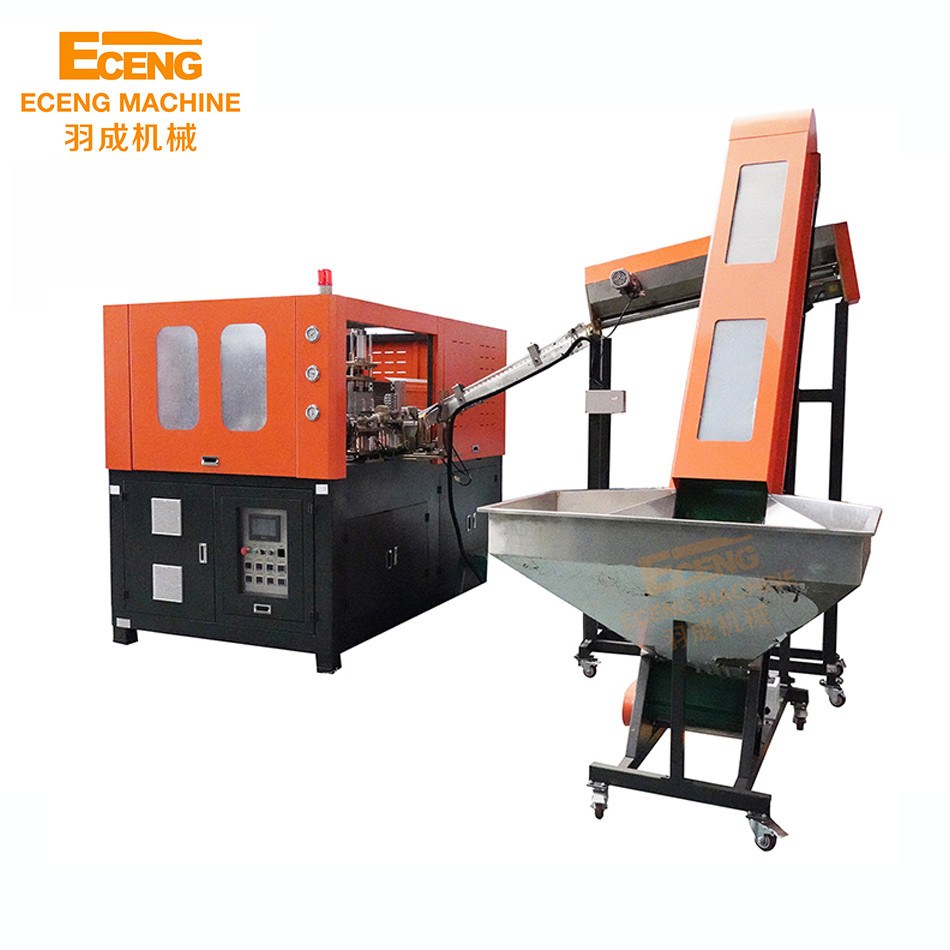

300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control

300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control

  • High Light

    300ml fully automatic blow moulding machine

    ,

    fully automatic blow moulding machine XINJE PLC

    ,

    300ml pet bottle blow molding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    80 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2021
  • Dimension(L*W*H)
    2.25*1.6*1.7m
  • Hollow Part Volume
    2L
  • High Pressure Valve Brand
    MAC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    XINJE
  • Power (kW)
    27
  • Weight (KG)
    2500 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Manufacturing Plant
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Orange
  • Output
    2000bph
  • Size Of The Machine
    2.25*1.6*1.7
  • Weight
    2.5 Tons
  • Power(W)
    27KW
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE SGS ISO
  • Model Number
    YCQ-2L-2
  • Minimum Order Quantity
    1set
  • Price
    $26,800.00/Sets 1-1 Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control

300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 0
specification
Item

YCQ-2L-2




Bottle type specification
Cavity
2

Theory output
2000

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 2
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 4
Detailed Images
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 6
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 8
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 10

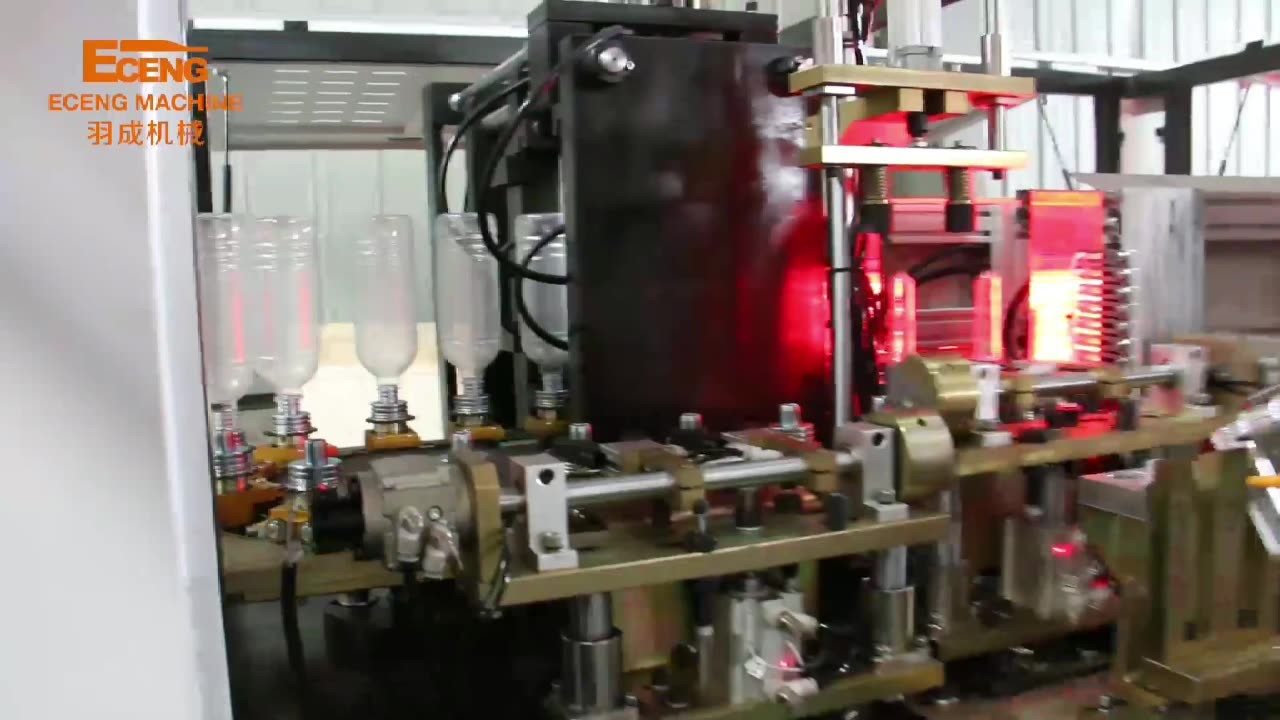

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed
of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated
beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic
bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Feature:

A. Advanced PLC control system, stable and excellent performance.

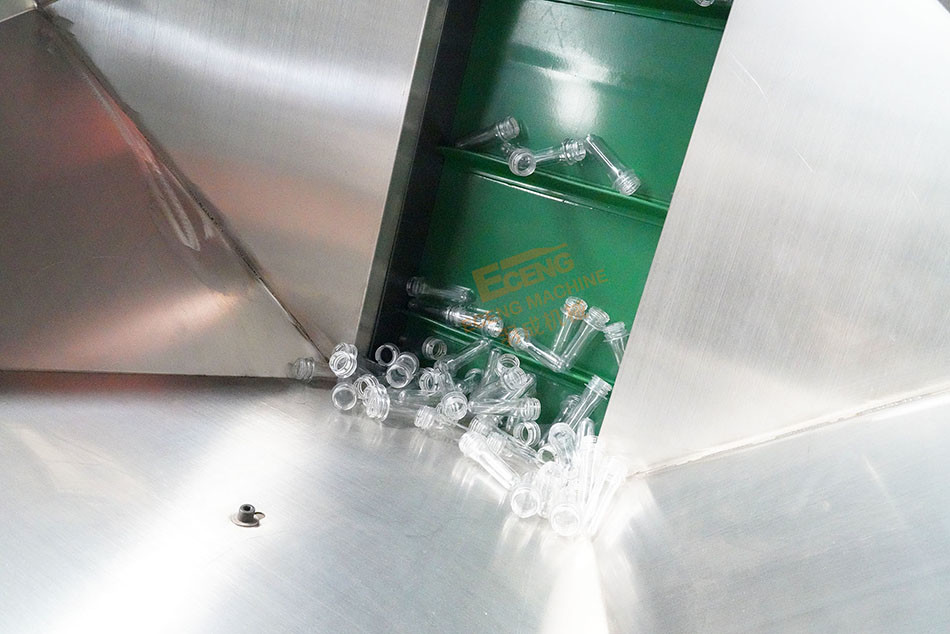

B. Conveyor belt automatically feeds preforms.

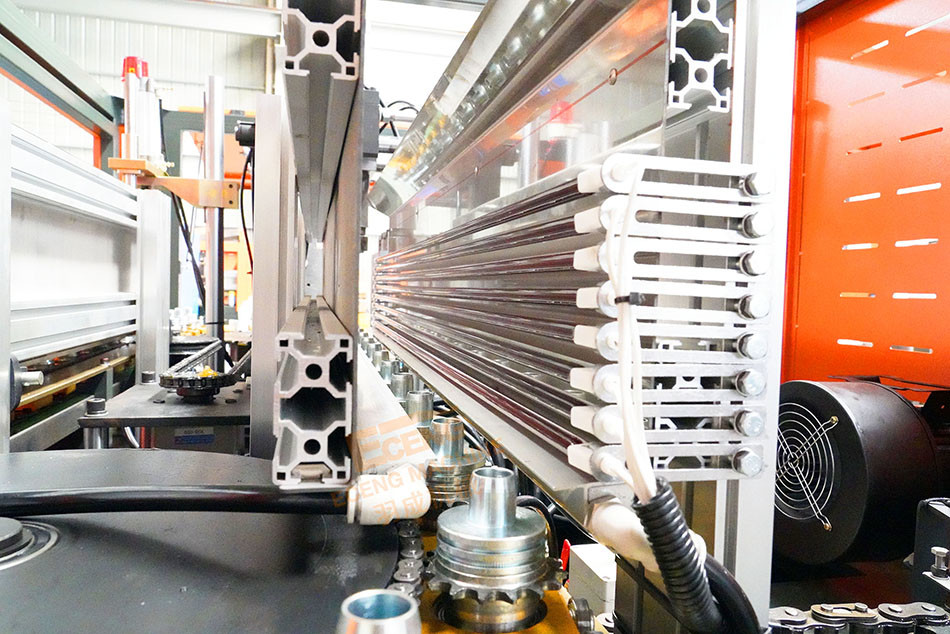

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously inthe infrared pre-heater.
D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature
device,temperature is kept within a certain range.
E. Safety locks are provided during each mechanical action to protect operator's safety.

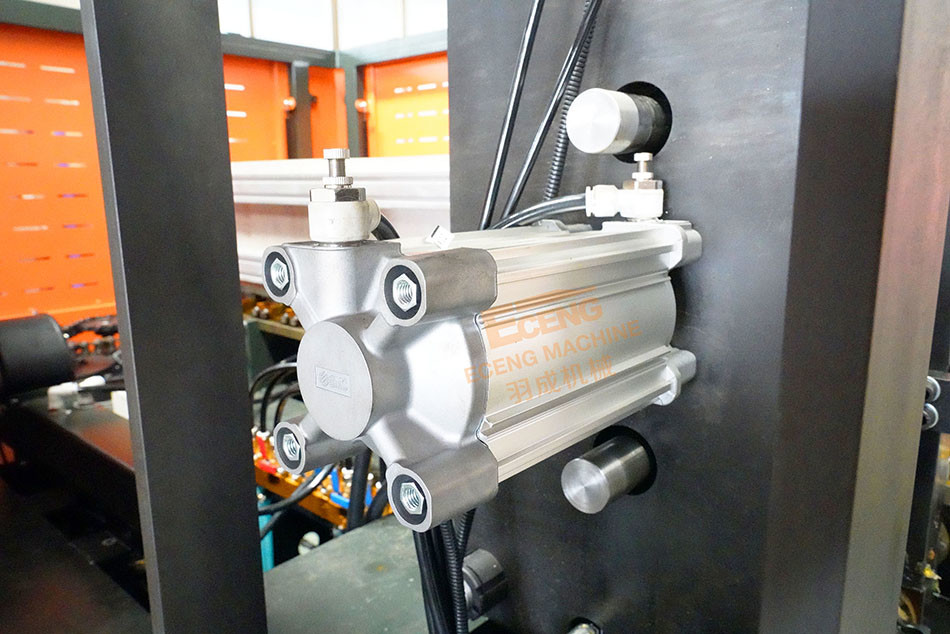

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.
G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.
H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, unique valve position design makes blowing process easier to control.
K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.
L. Avoid bottle contamination.
M. Protection of low temperature cooling system.
N. Easy to install and start.
O. Low scrap rate.

300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 12

Company Introduction
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 14
Packing&Shipping
300ml PET Bottle Fully Automatic Blow Moulding Machine XINJE PLC Control 16
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
