5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m

  • High Light

    5 gallon blowing machine 5.2*2.0*2.0m

    ,

    5 gallon pet stretch blow moulding machine

    ,

    pet stretch blow moulding machine 5.2*2.0*2.0m

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle, PET Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    Three Phase 380V
  • Dimension(L*W*H)
    5.2*2.0*2.0(m)
  • Hollow Part Volume
    20l
  • Power (kW)
    49
  • Weight (KG)
    4500
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Factory
  • After-sales Service Provided
    Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas
  • Automatic
    Yes
  • Color
    Orange
  • Cavity
    1
  • Max.volume
    20L
  • Theory Output
    400BPH
  • Factory Location
    Zhangjiagang
  • Port
    Shanghai / Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE&ISO&SGS
  • Model Number
    YCQ-20L-1
  • Minimum Order Quantity
    1set
  • Price
    $1,000.00 - $8,000.00/Sets
  • Packaging Details
    wooden case packing.
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month plastic bottle manufacturing machines

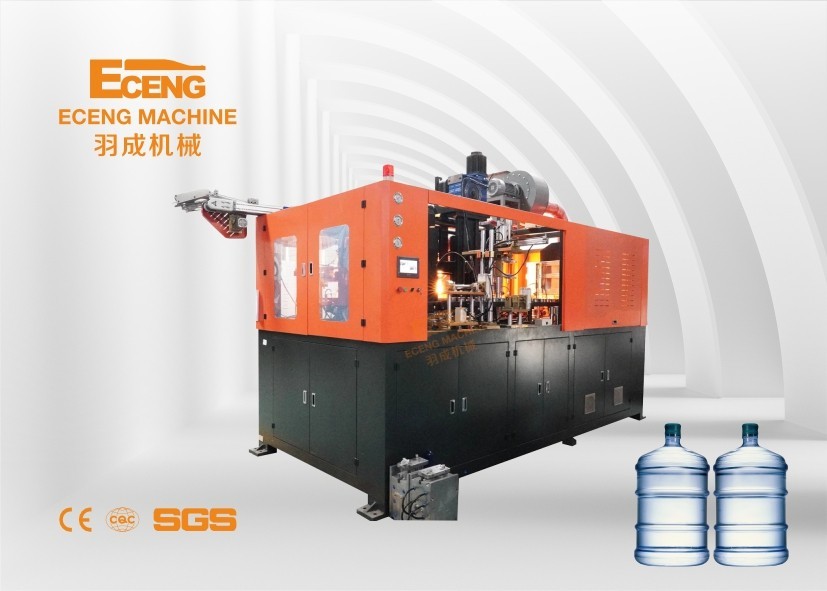

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m

5gallon plastic blowing molding machine / stretch pet bottle blowing moulding machine / producing machine



 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 0

Technical Parameter

Item
YCQ-20L-1
Bottle type specification
Cavity
1
Theory output
800-1000
Max.volume
20L
Bottle mouth maximum overall diameter
150mm
Bottle biggest diameter
350mm
Bottle maximum height
550mm
Power specifications
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
37.5KW
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
2000-3000Ltr/min
Forzen water specification
Work pressure
5-6 kg/cm2
Temperature range
10°C
Consumption
12000kcal/hr
Forzen water flow
88L/min
Machine specification
Size of the machine
5.2x2.0x2.0
Weight of the machine
6ton



Main Feature

1. Stable performance with Advanced PLC

2. Conveying performs automatically with conveyor.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and  eternal temperature in the preheater with an automatic thermostatic apparatus.

5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck

6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.

7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.

8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.

9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.

11.Low rejection rete: less than 0.5 percent.





 Accessory equipment



1.Heating system

Each oven equipped with 8 heating tube,cooling water tube is on the below,Have the effect of cooling protection.

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 2

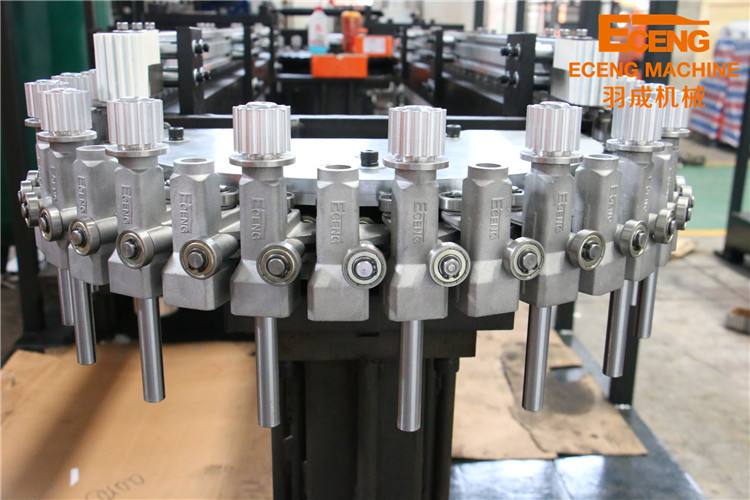

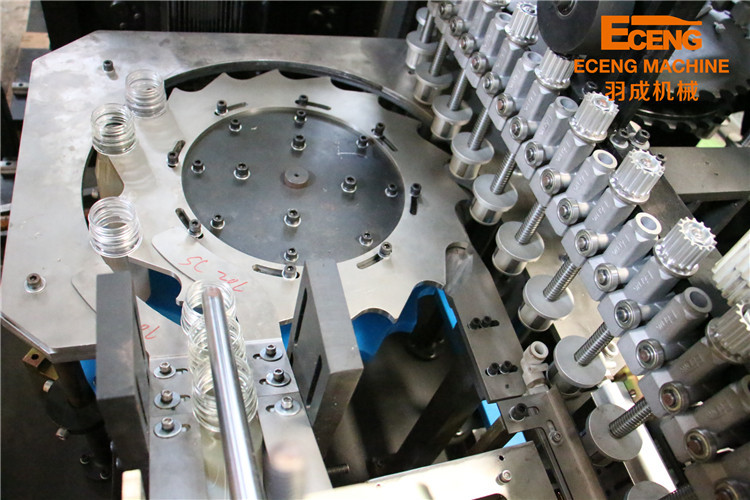

2.Operating track

With electric rotating machinery and servo motor drive, make preform rotate and move.This system

ensure the preform uniformly heated.

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 4

3.Manipulator

Equipped with double sets, one set assist the appending machine put the preform into machine. One set to take the bottle . Fully automatic, convenient and efficient.

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 6

4.Pneumatic

Pneumatic device has the advantage:

1.Simple construction

2.Stable perform

3.Convenient

4.Easy to install and maintain

5.Security is higher than hydraulic system.

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 8

5.Clamping device

Equipped with SMC cylinder,high speed and quality. Crank-type clamping make machine run smoothly and safely.

 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 10





Related Products
5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 12 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 14 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 16
YCQ-10L-1 YCQ-2L-4   YCQ-2L-6E
5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 18 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 20 5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 22
  YCQ-2L-6   YCQ-2L-3  YCQ-5L-2



Company Profile

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 24



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
It’s needless to say that our products have superior quality and strict QC is carried out by our experienced engineering group. To respect customers as our good friends and try our best to build much closer relationships with customers are always our main purposes. We earnestly hope that you will become one of our customers.

5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 26



Packaging & Shipping



5 Gallon PET Stretch Blow Moulding Machine 5.2*2.0*2.0m 28

Our Services



The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.


Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).

2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.


After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.



 please also include the capacity in one hour and bottle size or volume, it is easy and accurate for us to recommand a right machine! Then I will send the quotation and materials and photos to your  e-mail.
