0.2L-5L Mineral Water Bottle Blowing Machine

0.2L-5L Mineral Water Bottle Blowing Machine

  • High Light

    0.2L-5L mineral water bottle blowing machine

    ,

    MAC 5 ltr blow moulding machine

    ,

    26kw 5 Liter Blow Moulding Machine

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    3phase 380V50hz
  • Dimension(L*W*H)
    2.6*1.5*1.7
  • Hollow Part Volume
    5L
  • High Pressure Valve Brand
    MAC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    MITSUBISHI
  • Power (kW)
    26
  • Weight (KG)
    2500
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Color
    Orange
  • Necessary Auxiliary Devices
    Air Compressor,chiller,cold Dryer,filter
  • Quality Guarantee
    1 Year
  • Replacement Assembly Parts
    Provide For Free
  • Model Type
    Bottle Blow Molding Machine
  • Cavity
    1
  • Port
    Shanghai / Ningbo
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE
  • Model Number
    YCQ-5L-1
  • Minimum Order Quantity
    1set
  • Price
    $10,000.00 - $17,000.00/Sets
  • Packaging Details
    packing with wooden pallet or film package
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 Set/Sets per Month 10

0.2L-5L Mineral Water Bottle Blowing Machine

0.2L-5L mmineral water beverage soft drink oil pet bottle blowing blow machine price

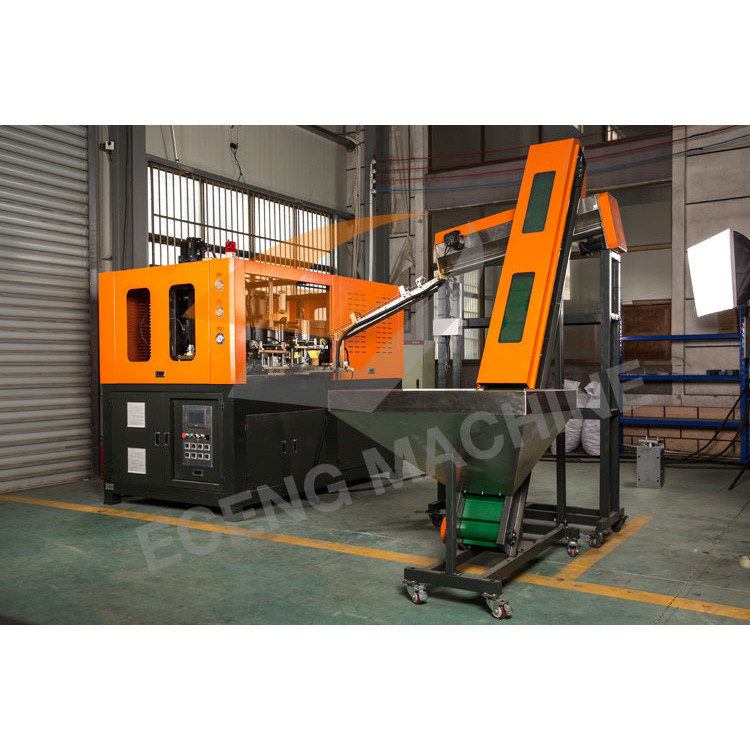

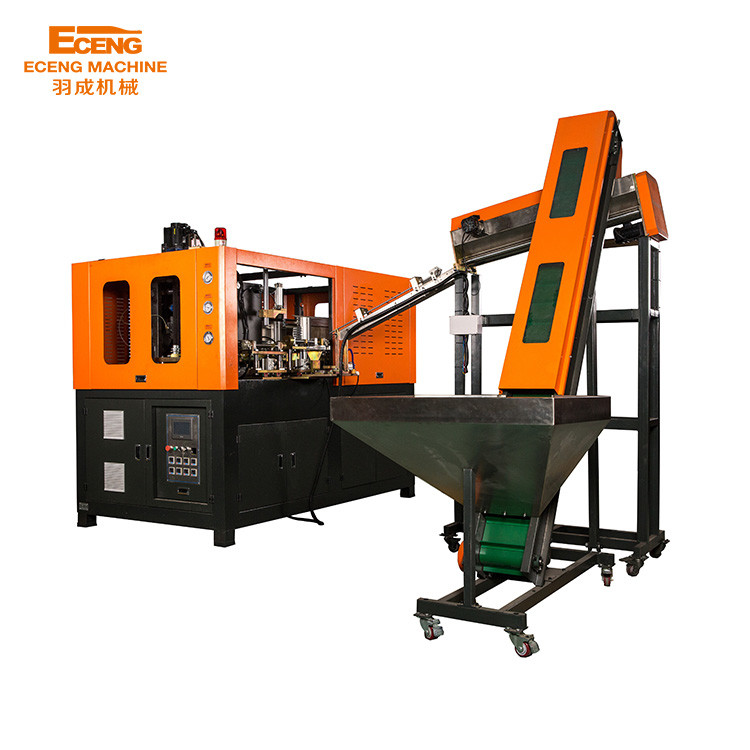

Product Photo

0.2L-5L Mineral Water Bottle Blowing Machine 0

Main Features

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.



A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

Product Parameters

Item

YCQ-5L-1

Bottle type specification

Cavity

1

Theory output

700-900

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

2.5x1.6x1.7

Weight of the machine

2.5ton

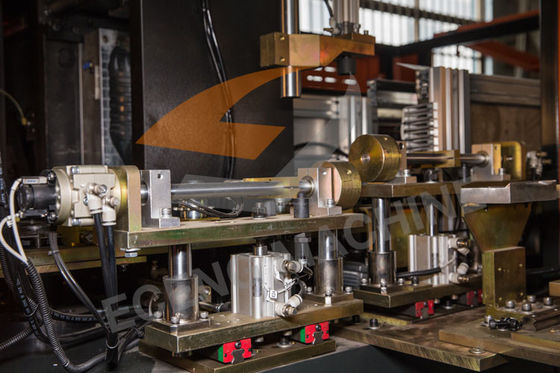

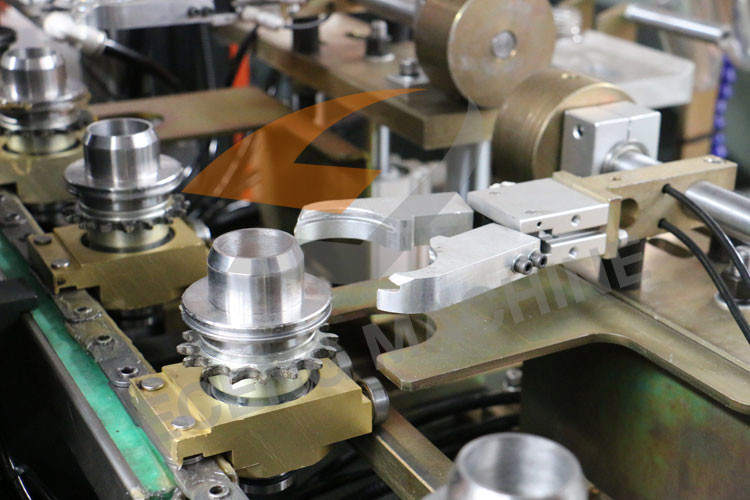

Product Details

1,Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

2,Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

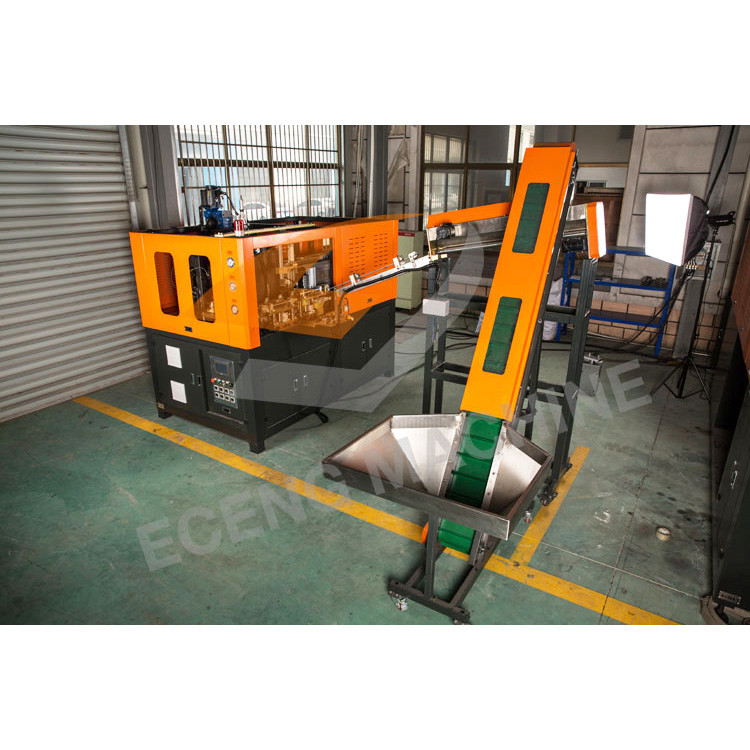

3,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

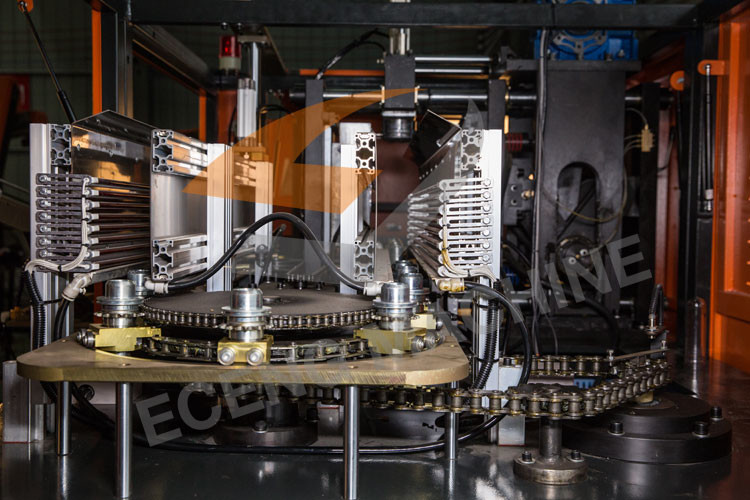

4,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

5,YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
