Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V

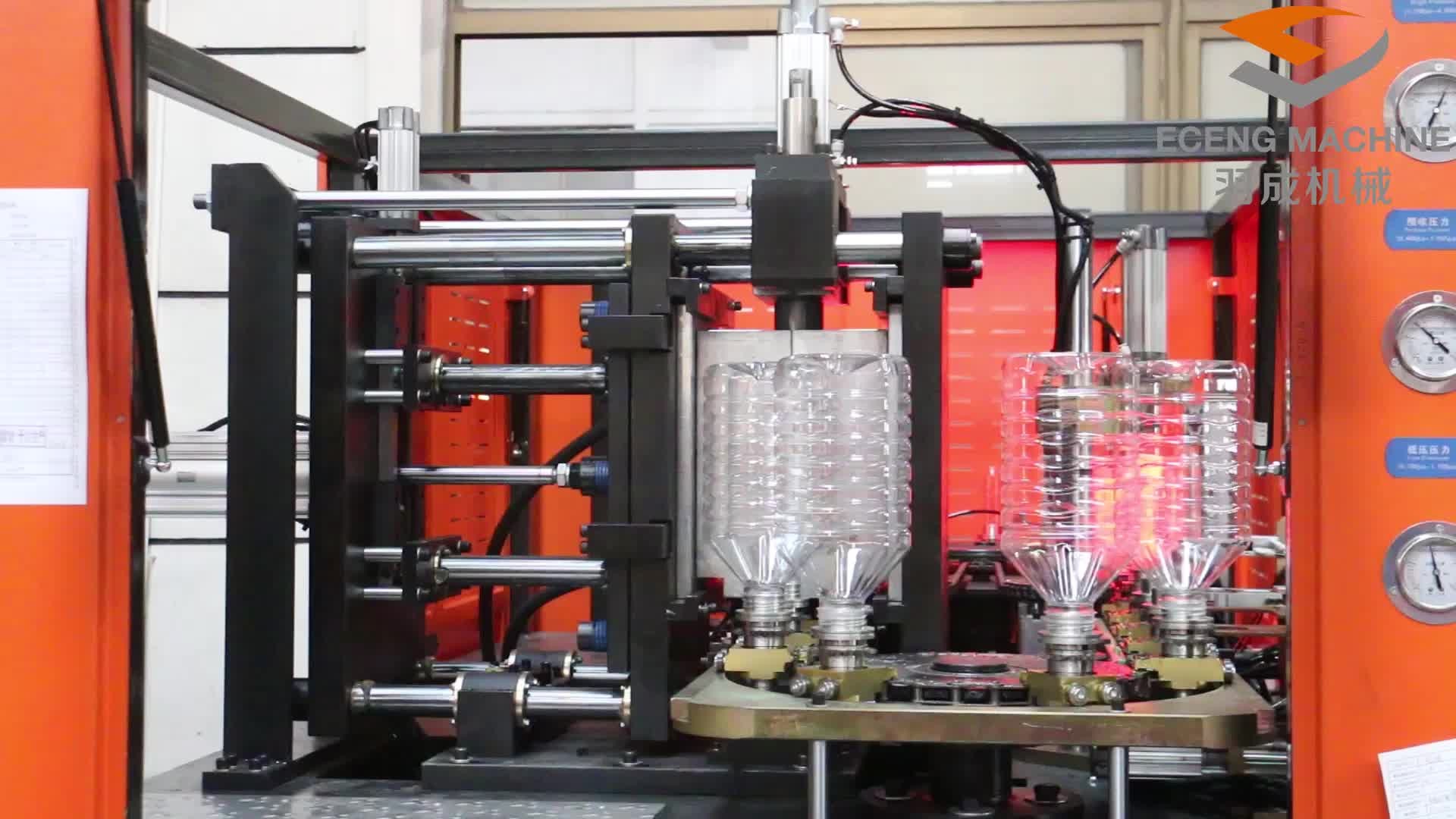

  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
  • Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V
Product Details:
Place of Origin: China
Brand Name: Eceng
Certification: CE
Model Number: YCQ-5L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $17,000.00/Sets
Packaging Details: packing with wooden pallet or film package suits for Stretch blowing machine for 5l pet bottle factory supply
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month 10
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 3phase 380V50hz
Hollow Part Volume: 5L Warranty: 1 Year
Key Selling Points: Automatic Blow Molding Machine Necessary Auxiliary Devices: Air Compressor,chiller,cold Dryer,filter
Quality Guarantee: 1 Year Model Type: Bottle Blow Molding Machine
High Light:

Stretch 5 ltr blow moulding machine

,

5 ltr blow moulding machine 3 phase 380V

,

pet bottle blow molding machine 3 phase 380V

Stretch blowing machine for 5l pet bottle factory supply
specification
Item

YCQ-5L-1




Bottle type specification
Cavity
1

Theory output
700-900

Max.volume
5L

Bottle mouth maximum overall DIdiameter
150mm

Bottle biggest diameter
180mm

Bottle maximum height
400mm



Power specifications
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
51KW

Actual consumption
35.7KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3400Ltr/min


Forzen water specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
50L/min

Machine specification
Size of the machine
2.5x1.6x1.7

Weight of the machine
2.5ton
Product Description
pet blowing machine for 5l YCQseries linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's YCQseries linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Detailed Images
YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. YCQseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

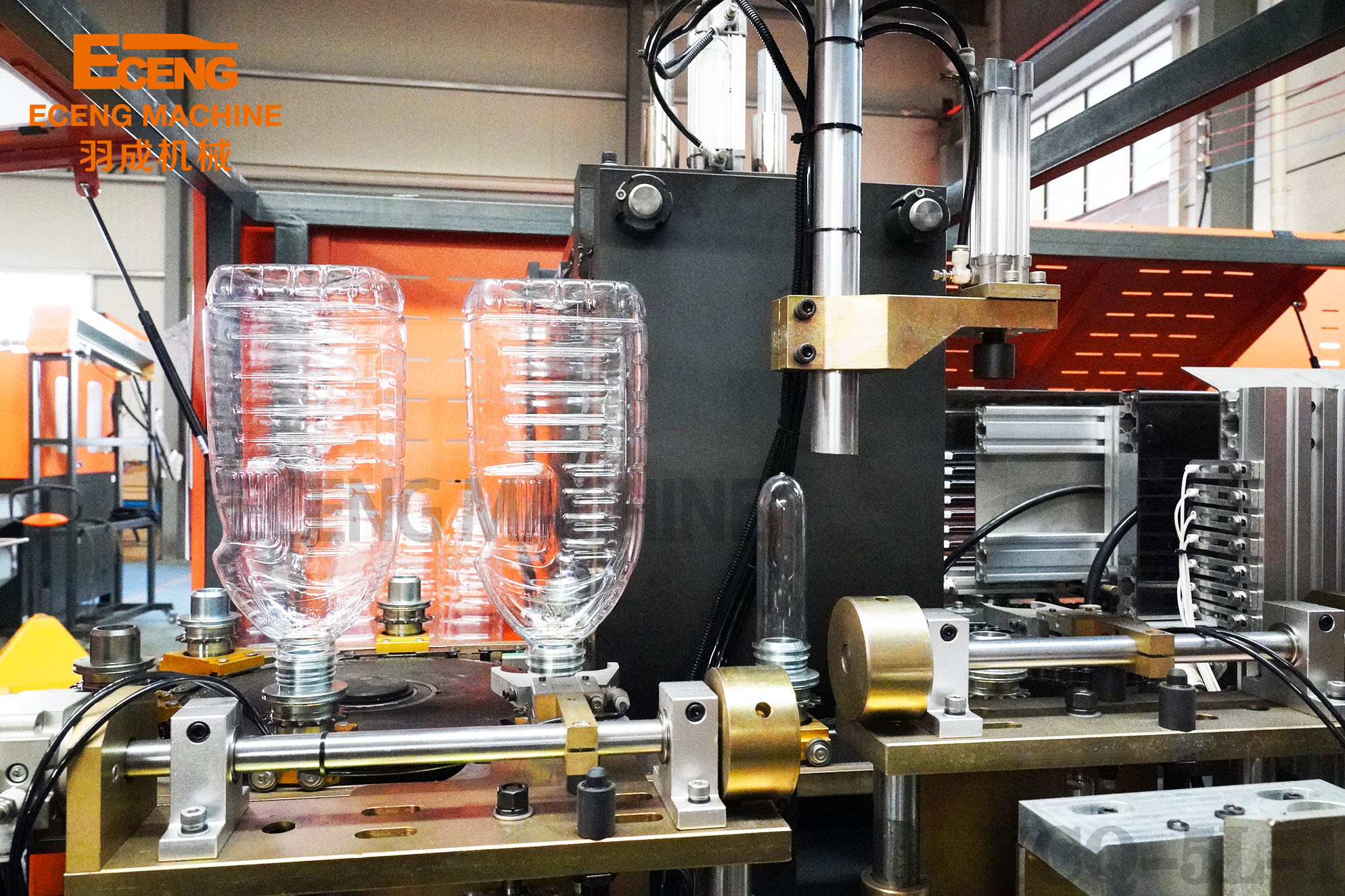

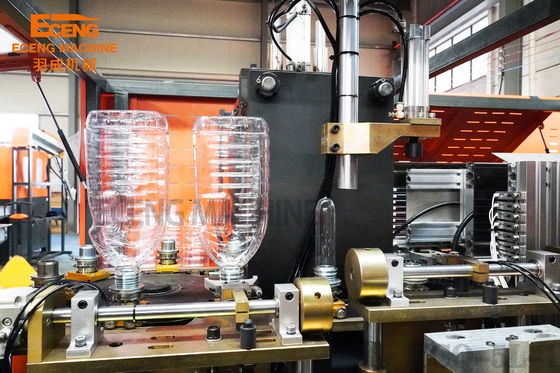

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 2

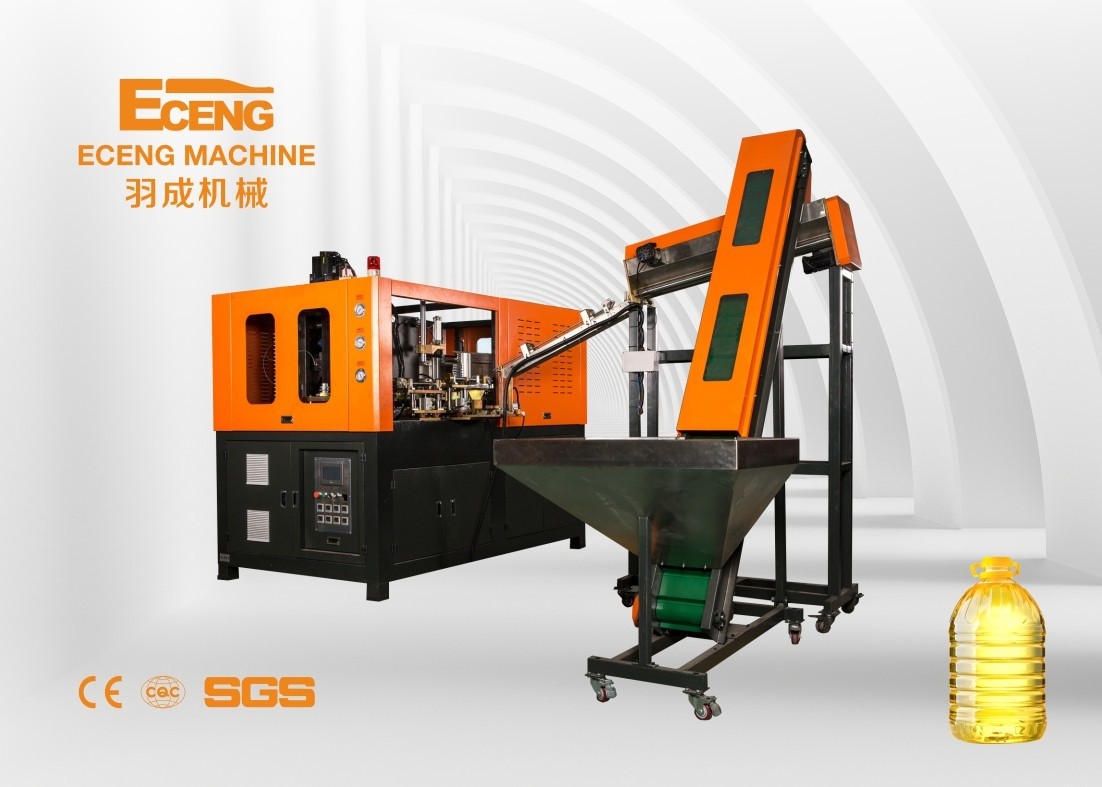

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 3

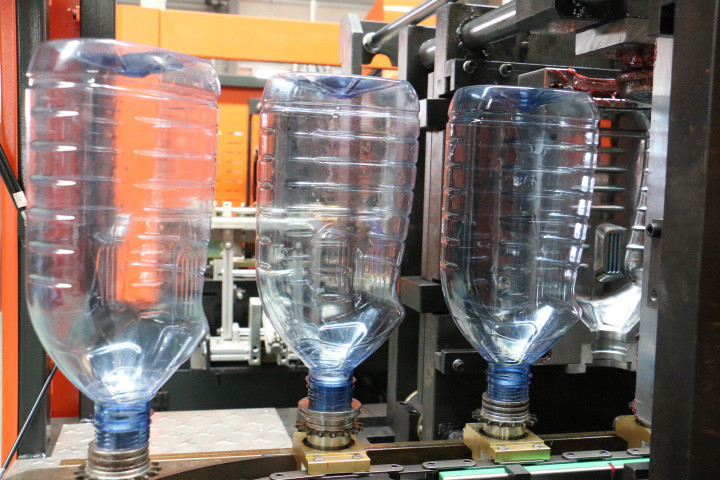

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 4

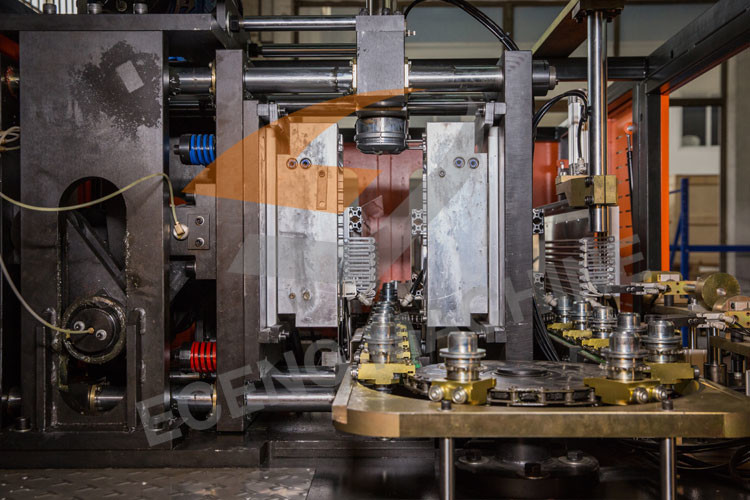

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 6

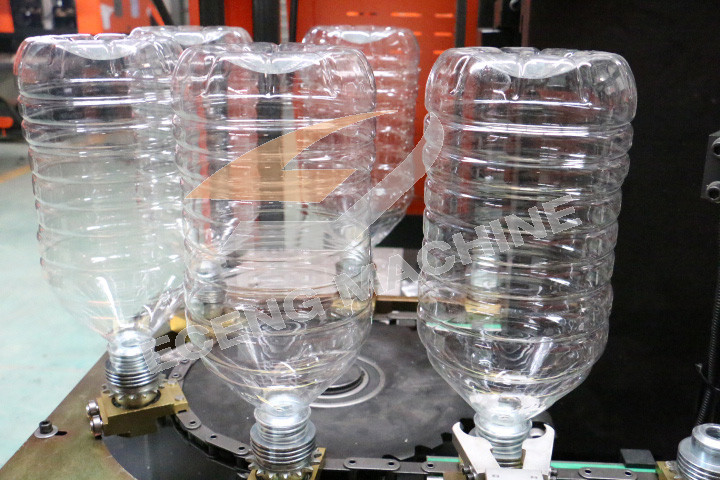

Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 8
Company Introduction
Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 9
Packing&Shipping
Stretch PET Bottle 5 Ltr Blow Moulding Machine 3 Phase 380V 11
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
