2l PET Stretch Blow Moulding Machine 50KW For Industrial

2l PET Stretch Blow Moulding Machine 50KW For Industrial

2l PET Stretch Blow Moulding Machine 50KW For Industrial
2l PET Stretch Blow Moulding Machine 50KW For Industrial
2l PET Stretch Blow Moulding Machine 50KW For Industrial
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: YCQ-2L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $16,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements of hot sell 2l pet blowing machine for industrial quality
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Application: Bottle
Key Selling Points: Easy To Operate Warranty Of Core Components: 1 Year
Power(W): 50KW Blow Moulding Type: Stretch Blow Moulding
High Light:

stretch blow molding machine 50KW

,

2000ml stretch blow molding machine

,

2l pet stretch blow moulding machine

hot sell 2l pet blowing machine for industrial quality

2l PET Stretch Blow Moulding Machine 50KW For Industrial 0

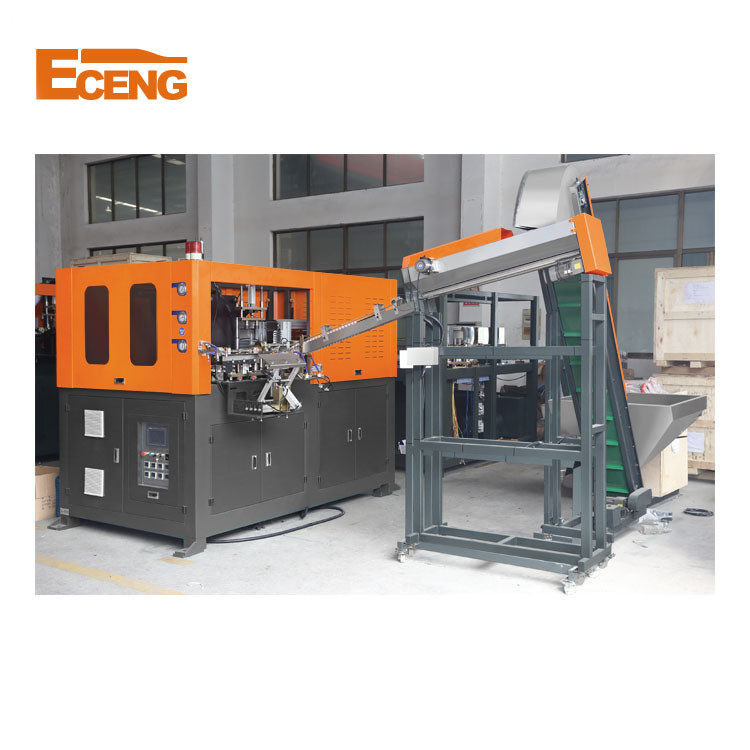

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

2l PET Stretch Blow Moulding Machine 50KW For Industrial 2



Item

YCQ-2L-2

Bottle type specification

Cavity

2

Theory output

2000-2500

Max.volume

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton




2l PET Stretch Blow Moulding Machine 50KW For Industrial 4



2l PET Stretch Blow Moulding Machine 50KW For Industrial 5



Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 2l PET Stretch Blow Moulding Machine 50KW For Industrial 7

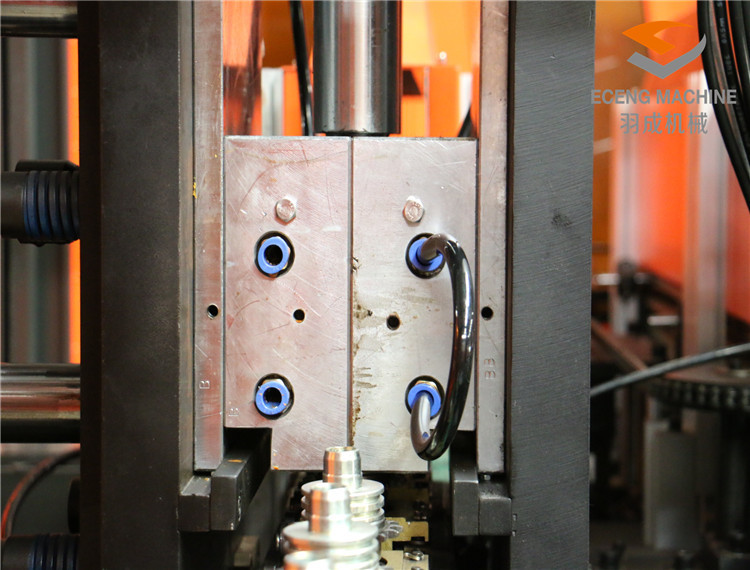

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

 2l PET Stretch Blow Moulding Machine 50KW For Industrial 9

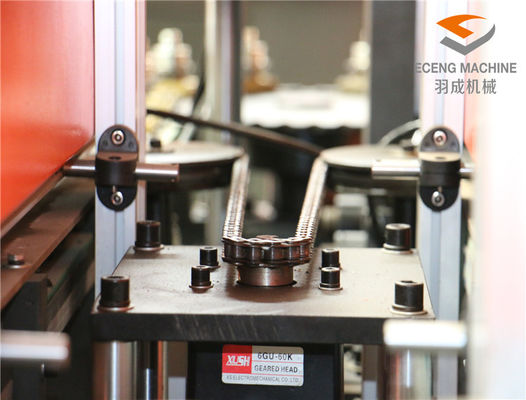

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

2l PET Stretch Blow Moulding Machine 50KW For Industrial 11

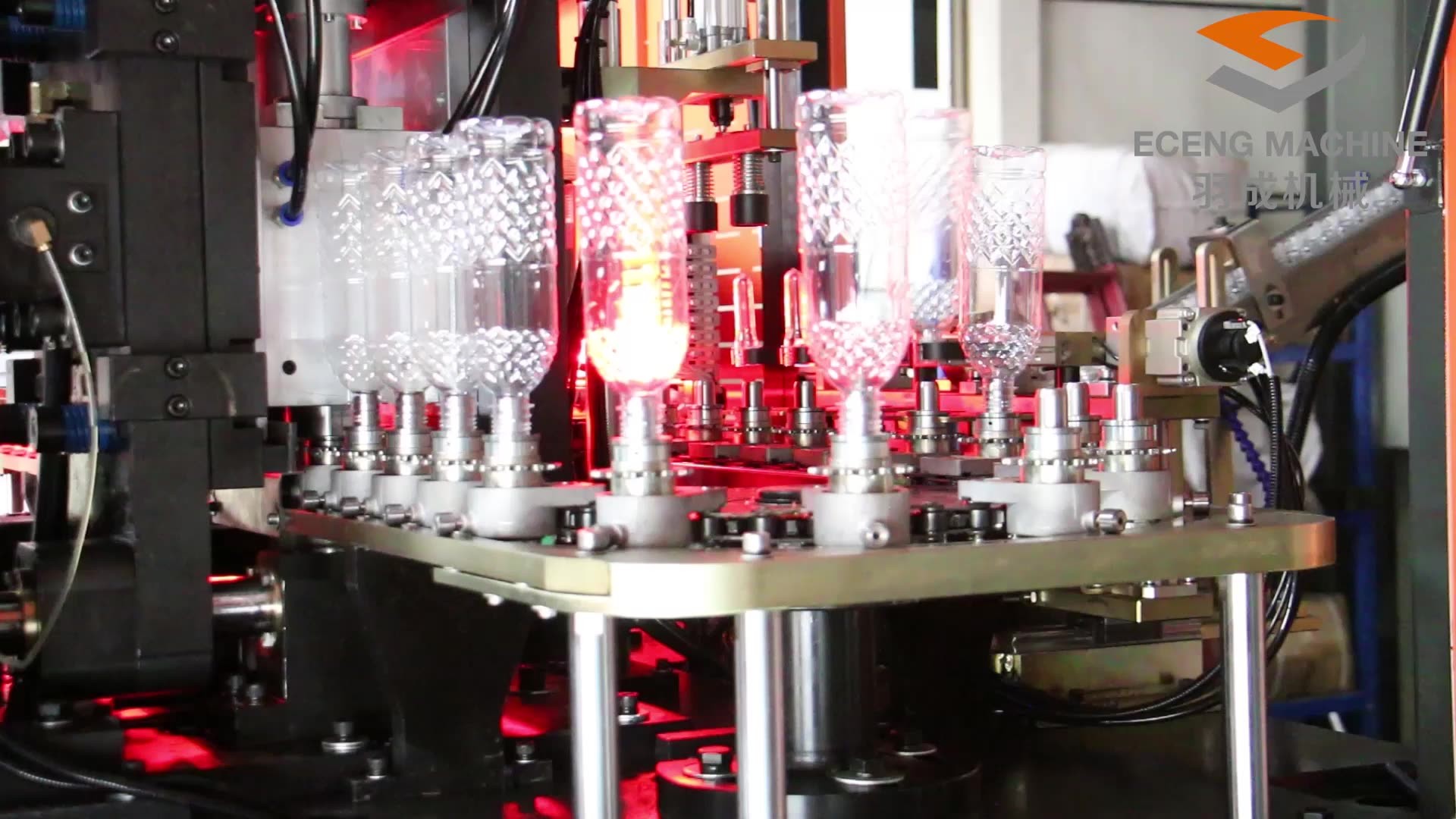

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 2l PET Stretch Blow Moulding Machine 50KW For Industrial 13

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

 2l PET Stretch Blow Moulding Machine 50KW For Industrial 15

2l PET Stretch Blow Moulding Machine 50KW For Industrial 17





2l PET Stretch Blow Moulding Machine 50KW For Industrial 192l PET Stretch Blow Moulding Machine 50KW For Industrial 21

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
