Place of Origin: | Jiangsu, China |
Brand Name: | Eceng |
Certification: | CE ISO SGS |
Model Number: | Q3000 |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | To be packed in strong new wooden cases,suitable for long distance ocean |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 Set/Sets per Year |
Blow Moulding Type: | Injection Blow Moulding | Dimension(L*W*H): | 2.25mx1.6mx1.7m |
---|---|---|---|
Automation: | Automatic | Warranty: | 1 Year |
Key Selling Points: | Easy To Operate | Theory Output: | 3500BPH |
Max.volume: | 2L | Port: | Shanghai |
Highlight: | 2 liter PET Stretch Blowing Machine,automatic pet blowing machine 2.25mx1.6mx1.7m,2 liter automatic pet blowing machine |

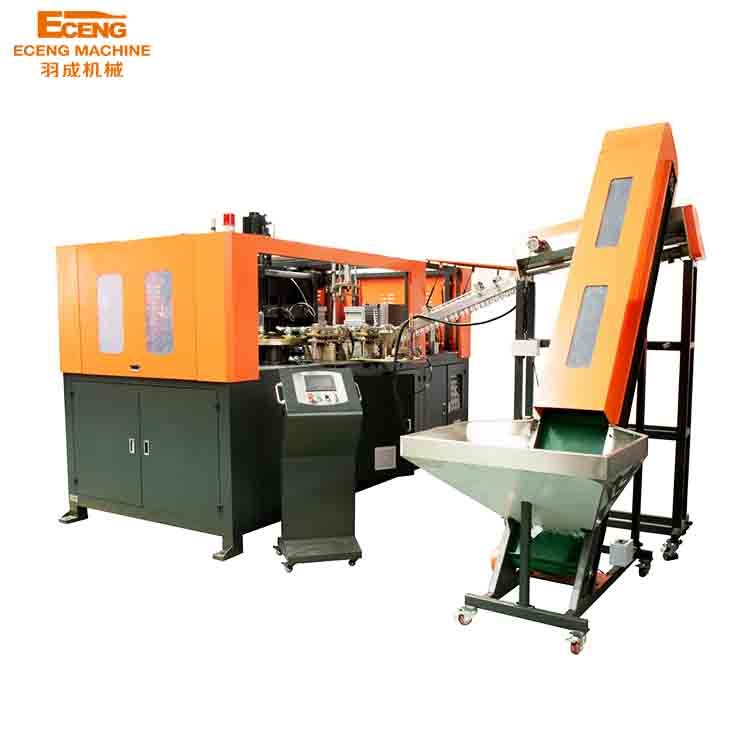

simplified auto automatic blow job machine for wild mouth botthe MADE IN CHINA
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Item
|
Q3000
|
|
Bottle type specification
|
Cavity
|
2
|
Theory output
|
3500
|
|
Max.volume
|
2L
|
|
Bottle mouth maximum overall diameter
|
80mm
|
|
Bottle biggest diameter
|
100mm
|
|
Bottle maximum height
|
330mm
|
|
Power specification
|
Light tube quantity
|
32pcs
|
Light tube power
|
0.75KW
|
|
Maximum heating power
|
24KW
|
|
All electric machine installation
|
27KW
|
|
Actual consumption
|
19KW
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
Low-pressure gas consumption
|
1000L/min
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
Temperature range
|
10℃
|
|
Consumption
|
5000kcal/hr
|
|
Frozen water flow
|
30L/min
|
|
Machine specification
|
Machine size
|
2.25x1.6x1.7
|
Machine weight
|
2.5ton
|
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
