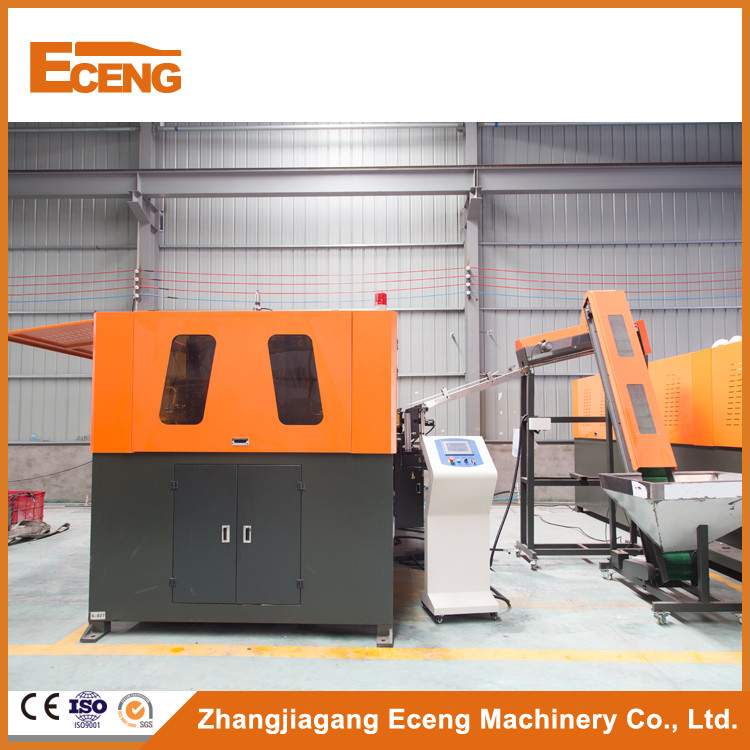

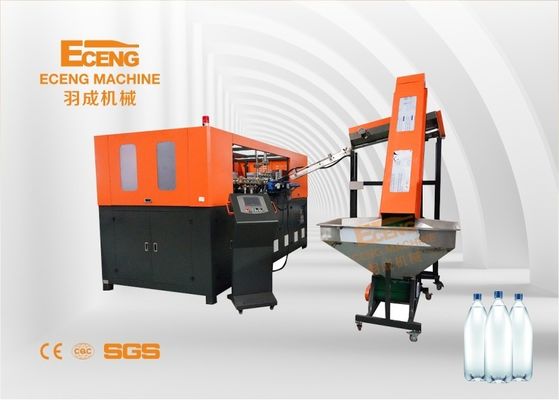

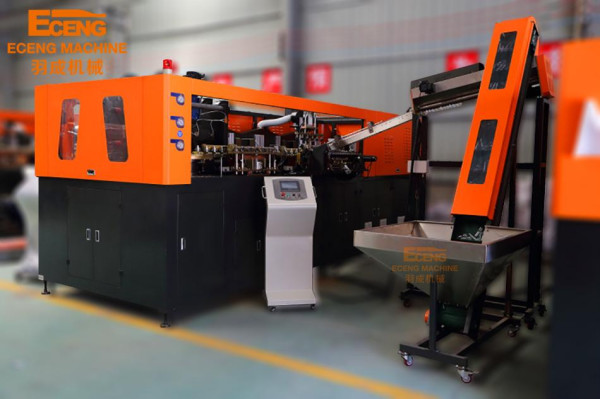

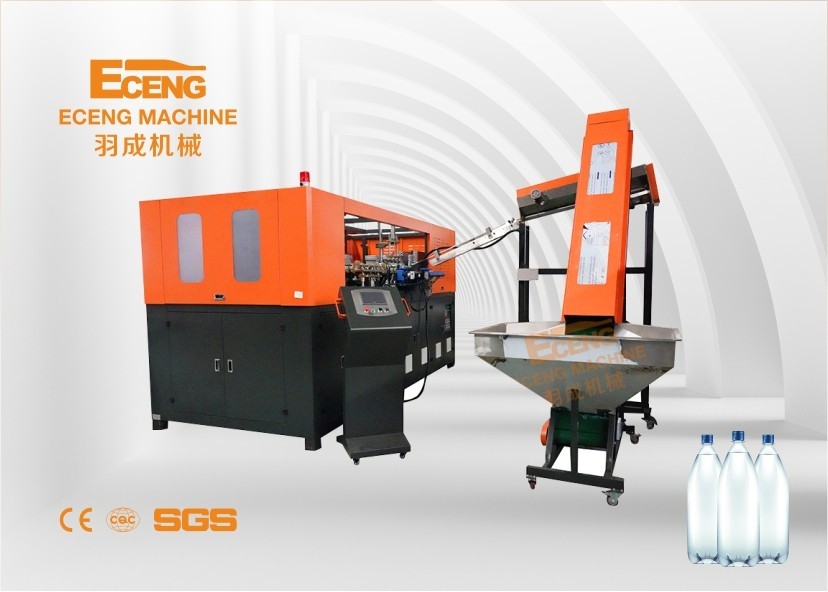

50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg

50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg

  • 50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg
  • 50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg
  • 50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg
  • 50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg
50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO SGS
Model Number: YCQ-2L-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $35,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 5.4*1.6*1.7m
Warranty: One Year For Free Weight: 5 Tons
Power: 50KW Automatic: Yes
Color: Blue And Orange Warranty: 1 Year
Output: 2200-7200 Size Of The Machine: 5.3x1.6x1.9
Weight Of The Machine: 3750kg Port: Shanghai
High Light:

50KW fully automatic blow moulding machine

,

fully automatic pet stretch blow molding machine

,

pet stretch blow molding machine 3750kg

fully automatic print link blow moulding machine equipment high quality

50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg 0

50KW Fully Automatic PET Stretch Blow Molding Machine 3750kg 2



     What is technical parameter of our print link blow moulding machine?







item

YCQ-2L-6



Bottle type specification









cavity

6

theory output (PCS/HR)

5000-6000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications





Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw



Air pressure specification





Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min



Frozen water specification





Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton



     What is the feature for our print link blow moulding machine?



A. Stable performance with advanced PLC.



B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.



G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



H. Strong clamping force with high pressure and double crank links to lock the mold.



I. Two ways of operating: automatic and manual.



J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.



K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.



L. Contamination is avoided for the bottle body.



M. Ideal effect of the chilling with the chilling system.



N. Easy installation and starting



O. Low rejection rate: less than 0.3percent.



     What is the parts of our print link blow moulding machine?



machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA

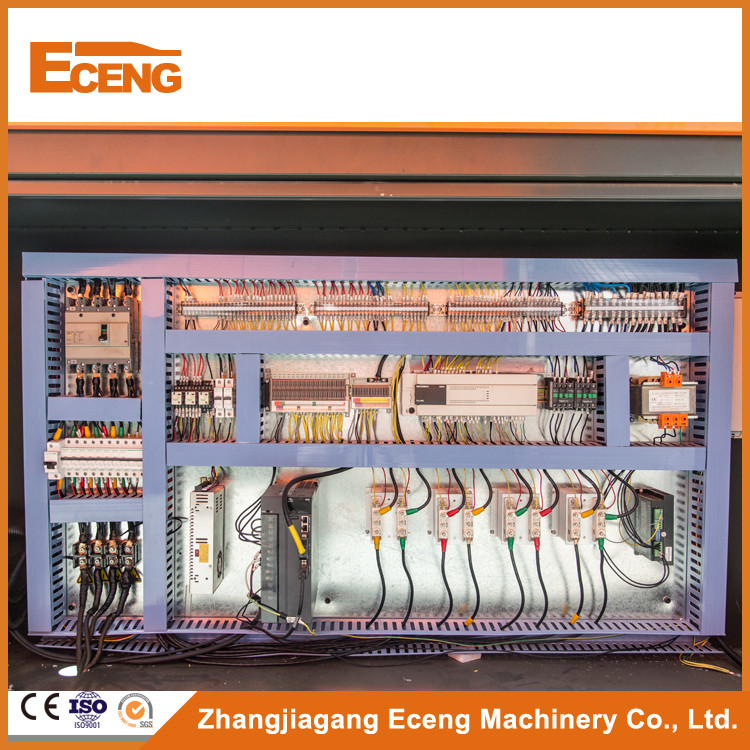

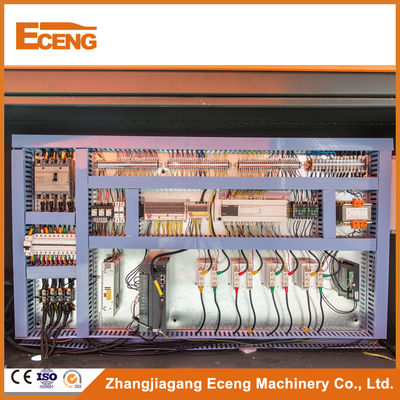

PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN
