49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m

  • High Light

    5 litre Stretch Blow Moulding Machine

    ,

    5 litre blow moulding machine 6.2x2.4x2.4m

    ,

    49kw 5 litre blow moulding machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    5000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    According To Customer's Request
  • Dimension(L*W*H)
    6.2x2.4x2.4m
  • Hollow Part Volume
    5l
  • Power (kW)
    49
  • Weight (KG)
    6000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Easy To Operate
  • Applicable Industries
    Food & Beverage Factory
  • Production Capacity (BPH)
    3100 BPH
  • Automatic
    Yes
  • Weight
    5000kg
  • Heating Method
    Electric Cycle Heating
  • Service
    Full Technical Training
  • Style
    Plastic Bottle Machine
  • Color
    Orange
  • Material
    Pet
  • Name
    Pet Blowing Machine For 5l
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    Eceng
  • Certification
    CE SGS ISO
  • Model Number
    5L4
  • Minimum Order Quantity
    1set
  • Price
    $39,800.00/Sets 1-1 Sets
  • Packaging Details
    wooden package or film package for blowing machine for 5l pet bottle
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    8 Set/Sets per Month

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m

Fully automatic cheap price low prices stretch blow molding moulding 5 liter small pet plastic machine

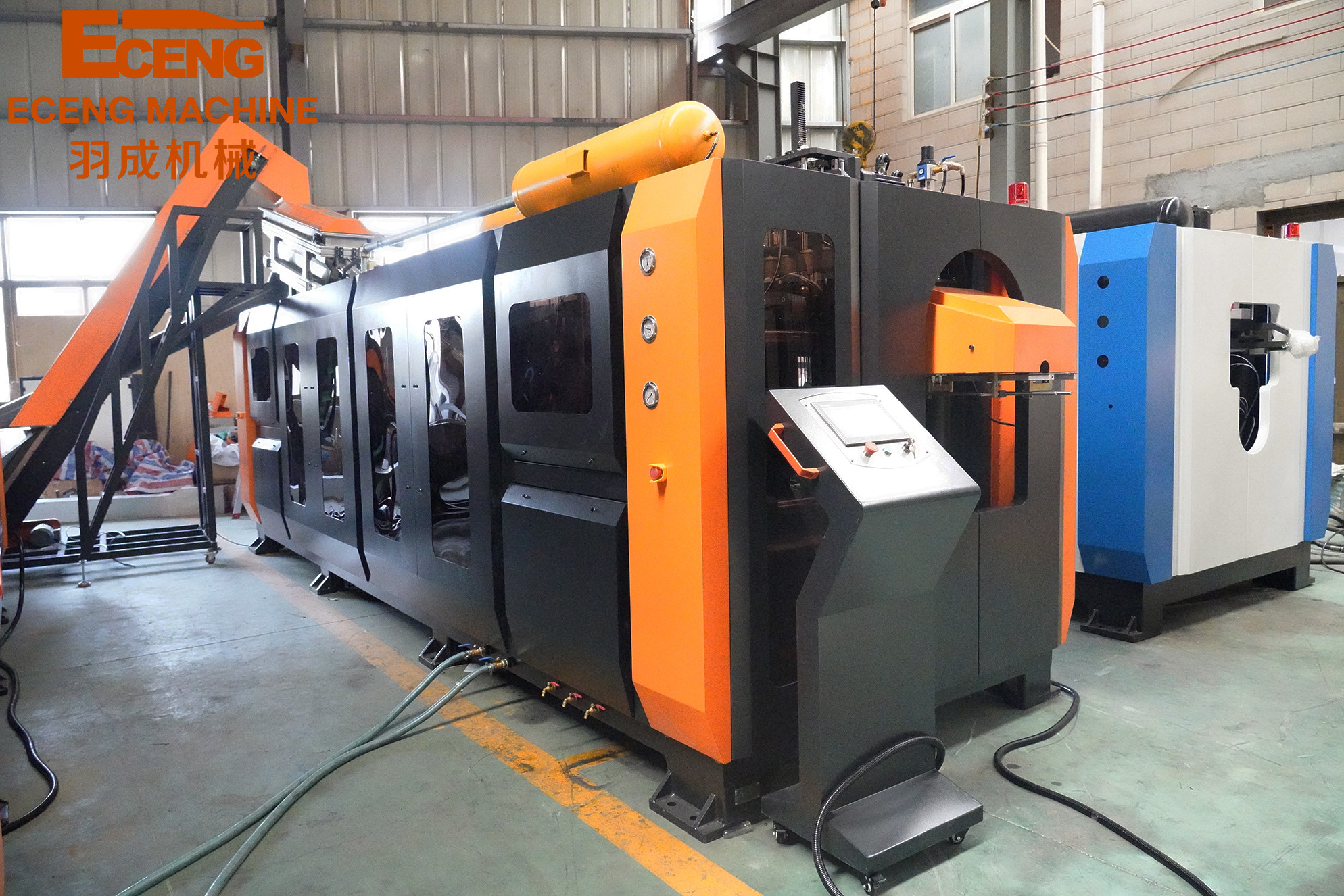

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 0

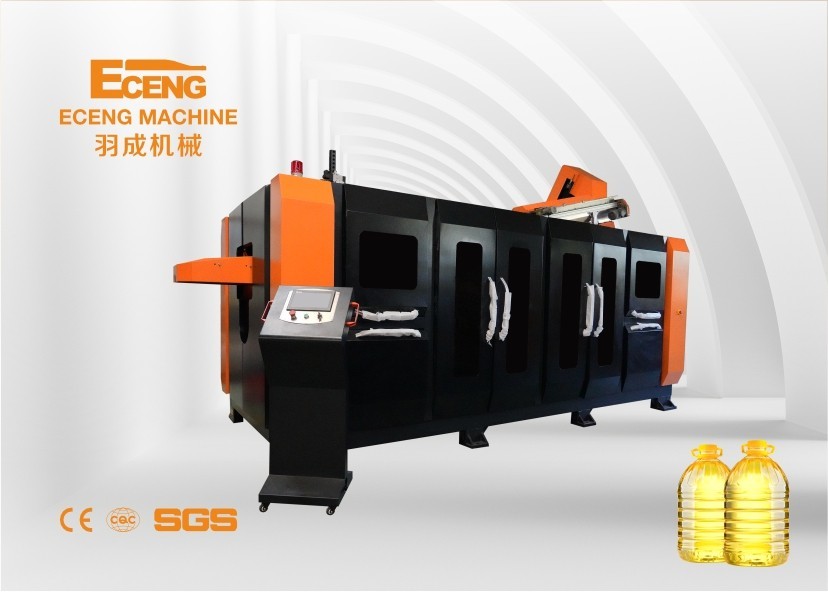

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 2

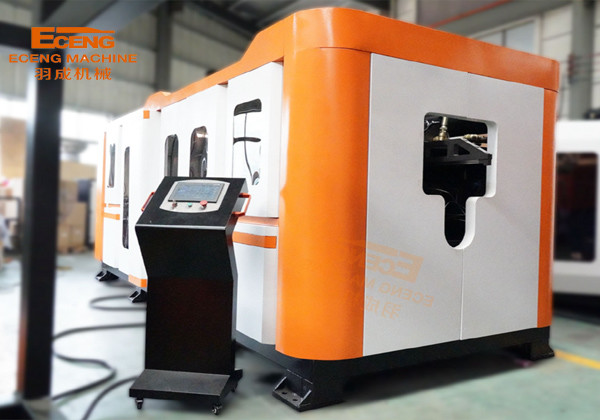

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 4

pet blowing machine for 5l Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

pet blowing machine for 5l Q series linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

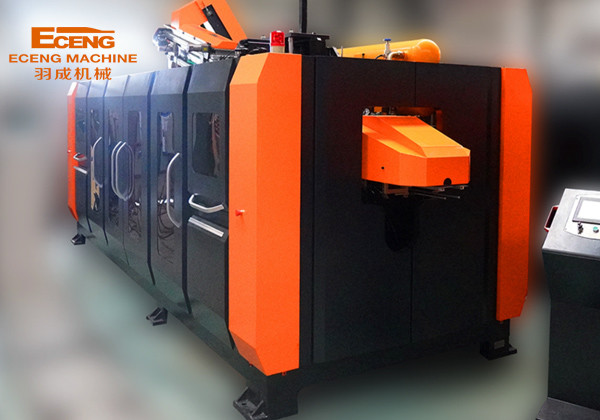

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 6



5L-4

Item

Parameter

Bottle Type



















Max volume(ML)

5000

Max diameter(MM)

Φ150

Bottleneck diameter(MM)

Φ18 ~ Φ120

Bottle max height(MM)

<330

Preform max height(MM)

<155

Mold clamping stroke(MM)

120

Bottom mold stroke(MM)

60

Distance between bottles(MM)

/

Theory output(bottles/hour)

3,500(5L round bottle)

Mold cavity

4

Oven Specification





Heating unit

4

Heating lamp layer

8

Preform seat(pieces)

42

Power Specification







Voltage

380V

Frequency

50Hz

Actual consumption

40~80kw/h

All installation power

120kw

Air Source

(High Pressuure air consumption depends on volume of pet bottle)







LP compressed air pressure

1Mpa

LP compressed air consumption

1m3/min

HP compressed air pressure

3.5Mpa

HP compressed air consumption

2m3/min

Cooling Water

(Temperature≤18℃)



Pressure

2~4bar

Flow

2.5m3/h

Weight

Main machineovenelectric cabinet

about 2t

Machine dimension

Main machine(L×W×H)

6.2×2.4×2.4m



Preform auto-loader(L×W×H)

2.0×2.4×2.4m

Note:air consumption of the air source is adjusted according to bottle volume,altitude etc.

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 8

pet blowing machine for 5l Q series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

 49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 10

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 12

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 14

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 16

pet blowing machine for 5l Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.



49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 18



49kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 2049kw 5 Litre Stretch Blow Moulding Machine 6.2x2.4x2.4m 22

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
