Home ProductsLinear Bottle Blowing Machine

500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m

500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m

500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K6
Payment & Shipping Terms:
Packaging Details: standard export wooden case or according to your requirements
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 38 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: 380V,50HZ
Dimension(L*W*H): 5.5*1.8*1.9m Hollow Part Volume: 2L
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: DELTA Power (kW): 49
Weight (KG): 6100 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Showroom Location: Egypt, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Applicable Industries: Manufacturing Plant
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support
Color: Black And White Output: 10000
Size Of The Machine: 5.5*1.8*1.9 Weight: 6.1tons
Power(W): 50KW Local Service Location: Egypt, United States, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukrai
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Port: Shanghai
High Light:

500ml PET bottle blowing machine

,

hot filling water bottle blowing machine 500ml

,

water bottle blowing machine 5.5*1.8*1.9m

500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 0
specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
Product Description
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 2
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 4
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 6
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 8
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .

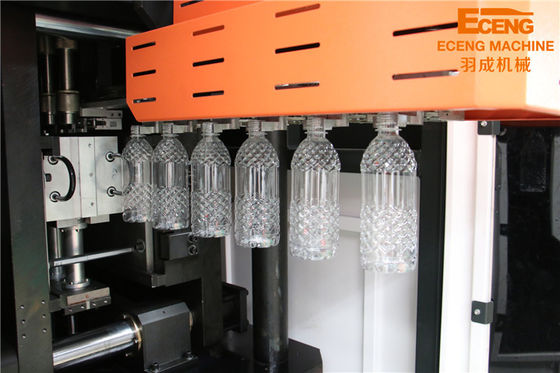

blowing mould
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 10
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 12
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 14
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 16
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 18
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 20
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 22
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 24
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 26
500ml Hot Filling Water PET Bottle Blowing Machine 5.5*1.8*1.9m 28
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
