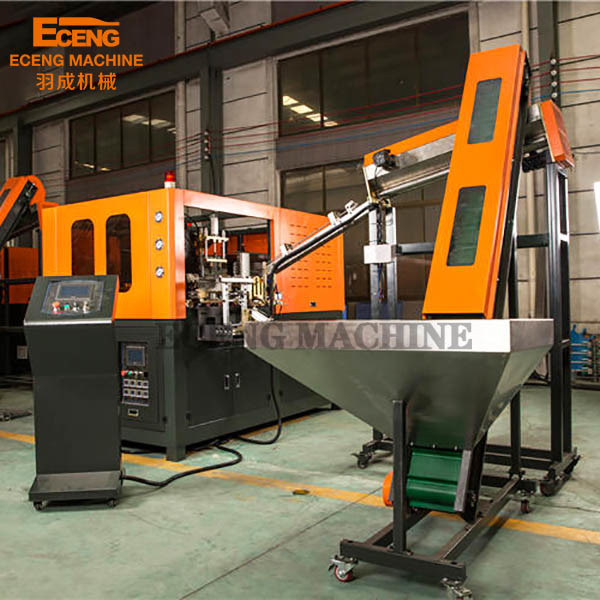

6000BPH PET Stretch Blowing Machine 2000ml PET Bottle Production Line

Name: 6000BPH PET Stretch Blowing Machine 2000ml PET Bottle Production Line
Brand: Eceng
SKU: Q6000
Price: 35 USD
Availability: InStock
Rating: 4.9 (119 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Eceng
Certification:	CE ISO
Model Number:	Q6000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$35,000.00/Sets 1-1 Sets
Packaging Details:	wooden case packing or naked packing for Plastic Automatic Bottle Blowing Machine
Delivery Time:	45days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 sets per Year

Contact Now

Detailed Product Description

Plastic Processed:	PET	Max.Bottle Height(mm):	330 Mm
Neck Diameter(mm):	38 Mm	Max.Bottle Diameter(mm):	100 Mm
Bottle Volume(ml):	2000 Ml
High Light:	6 cavity PET Stretch Blowing Machine , 1200BPH PET Stretch Blowing Machine , 2000ml pet bottle production line

Exceptional Mineral Water Making 1.5L Plastic Automatic plastic Bottle blow Blowing molding Machine prices

Product Description

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Q series fully servo bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .

Servo transmission system

High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.

Intelligent Human-Machine Interface

1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.

specification

Item			Q6000
Bottle type specification	Cavity	4
		Theory output	6000
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-38mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	40pcs
		Light tube power	1.5KW
		Maximum heating power	60KW
		All electric machine installation	65KW
		Actual consumption	40%--70%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1600L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	6000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Frozen water flow	138L/min
Machine specification	Machine size	4.5x2.0x2.3
Machine specification		Machine weight	4.5ton

Company Introduction

ECENG MACHINE

1 / A standardized workshop with a total area of 20,000 square meters.

2/Founded in 2007,has 13 years of experience in blow molding machines.
3 / Located in Zhangjiagang, only 120km from Shanghai.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.

ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.

Exhibition

After Sales Service

1.Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

FAQ

1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
