Home ProductsLinear Bottle Blowing Machine

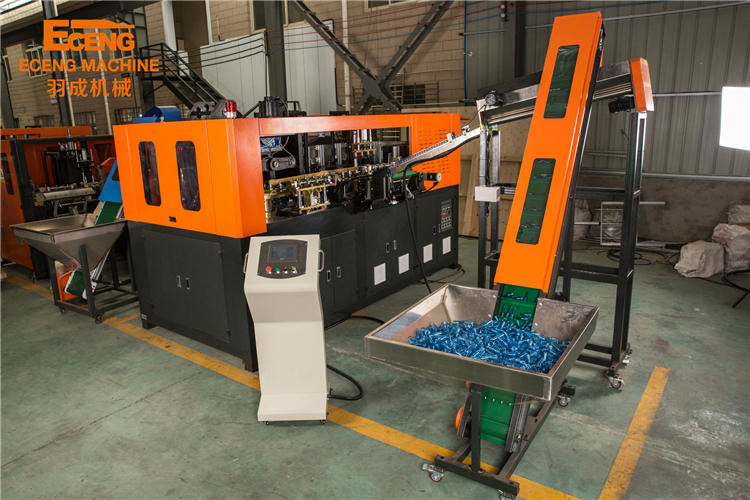

6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine

6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine

6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2021 Voltage: 380V,50HZ
Dimension(L*W*H): 4.1*1.6*1.9m Hollow Part Volume: 2l
High Pressure Valve Brand: MAC Rotary Cylinder Brand: SMC
PLC Brand: XINJE Power (kW): 52
Weight (KG): 3900 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant Marketing Type: Hot Product 2019
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Automatic: Yes
Color: Orange Output: 6000bph
Size Of The Machine: 4.1*1.6*1.9 Weight: 3.9 Tons
Power(W): 52KW Port: Shanghai
High Light:

52KW 4 Cavity PET Blowing Machine

,

6000bph 4 Cavity PET Blowing Machine

,

SMC pet stretch blow molding machine

Eceng Fully Automatic 4cavity mineral water bottle 400ml Blowing Machine Price Made by the PET preform
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 0
specification
Item

Q6000




Bottle type specification
Cavity
4

Theory output
6000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
52KW

Actual consumption
40%-70%


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
4.1x1.6x1.9

Machine weight
3.9ton
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 2
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 4
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 6
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 8
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 10
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 12
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 14
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 16
Packing&Shipping
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 186000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 19
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 22
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine 24
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
