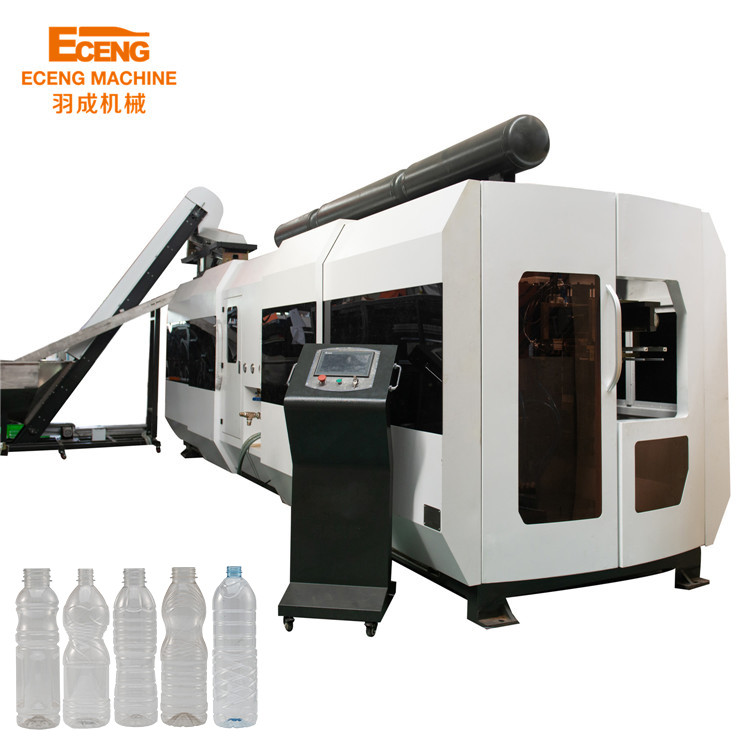

13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine

13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine

13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: k8
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets 1-1 Sets
Packaging Details: packed by wooden pallet or as customer request
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Bottle
Voltage: 220V Or As Customer Request Hollow Part Volume: 2L
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: XINJIE Weight (KG): 7450 KG
Automation: Automatic Warranty: 1 Year
Key Selling Points: Automatic Applicable Industries: Manufacturing Plant
Heating Method: Electric Cycle Heating Output: 13000bph
High Light:

13000bph Automatic Blow Molding Machine

,

SMC Automatic Blow Molding Machine

,

500ml pet bottle manufacturing machine

Eceng 8 Cavities 600ml Full Automatic Juice drink bottle Making Machine Blowing Machine13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 0
specification
             Model                                                                    K8






Bottle type specification
Cavity
8

Max.volume
200ml-2L

Bottle mouth maximum overall diameter
25-29mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
13000BPH

Bottle type volume
600ML

Bottle type weight
13.5g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
65KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
12000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
12000kcal/hr

Forzen water flow
150L/min

Machine specification
Machine size
7.0x2.0x2.3

Machine weight
7.45ton
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 1
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 3
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 5

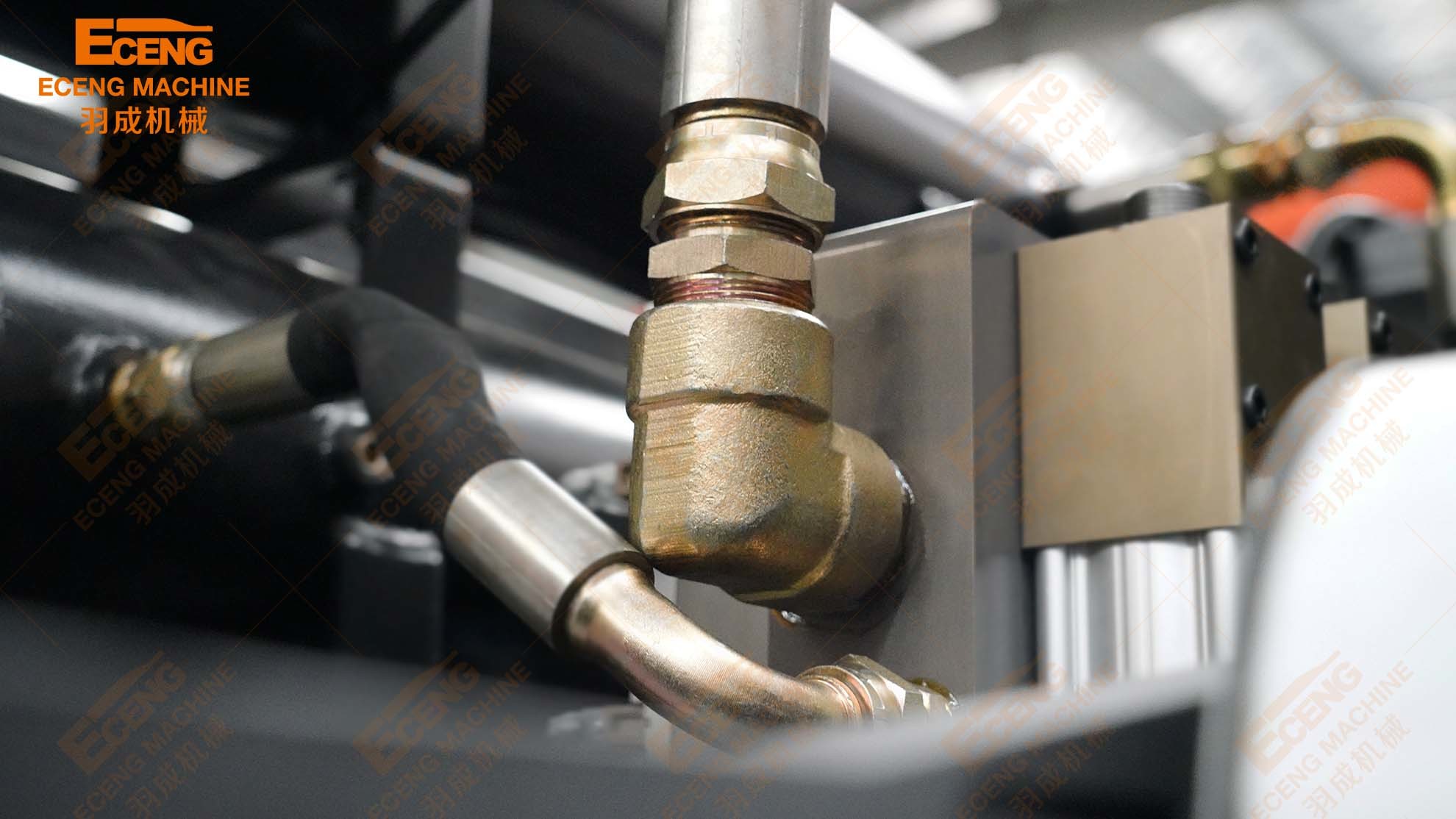

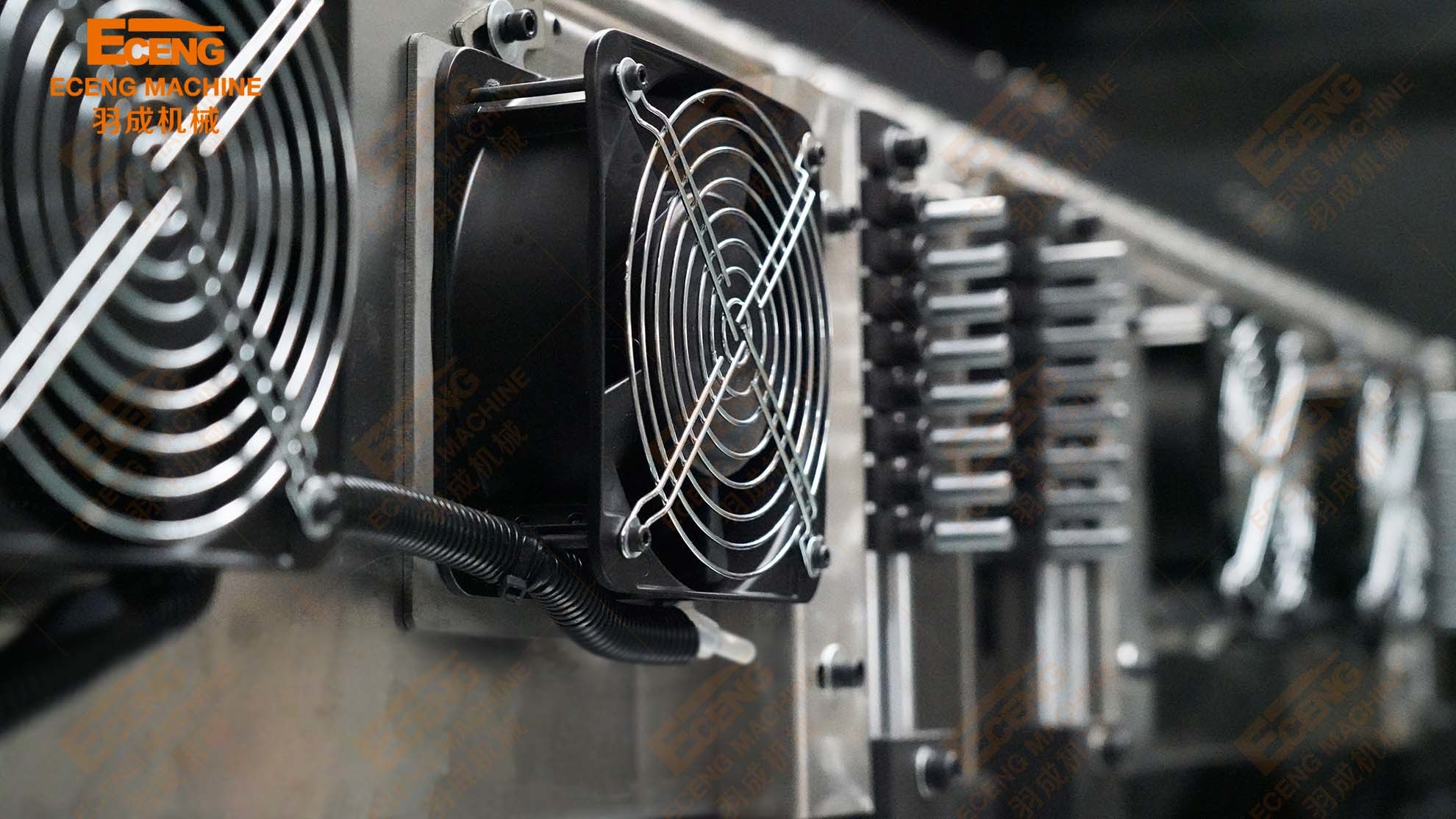

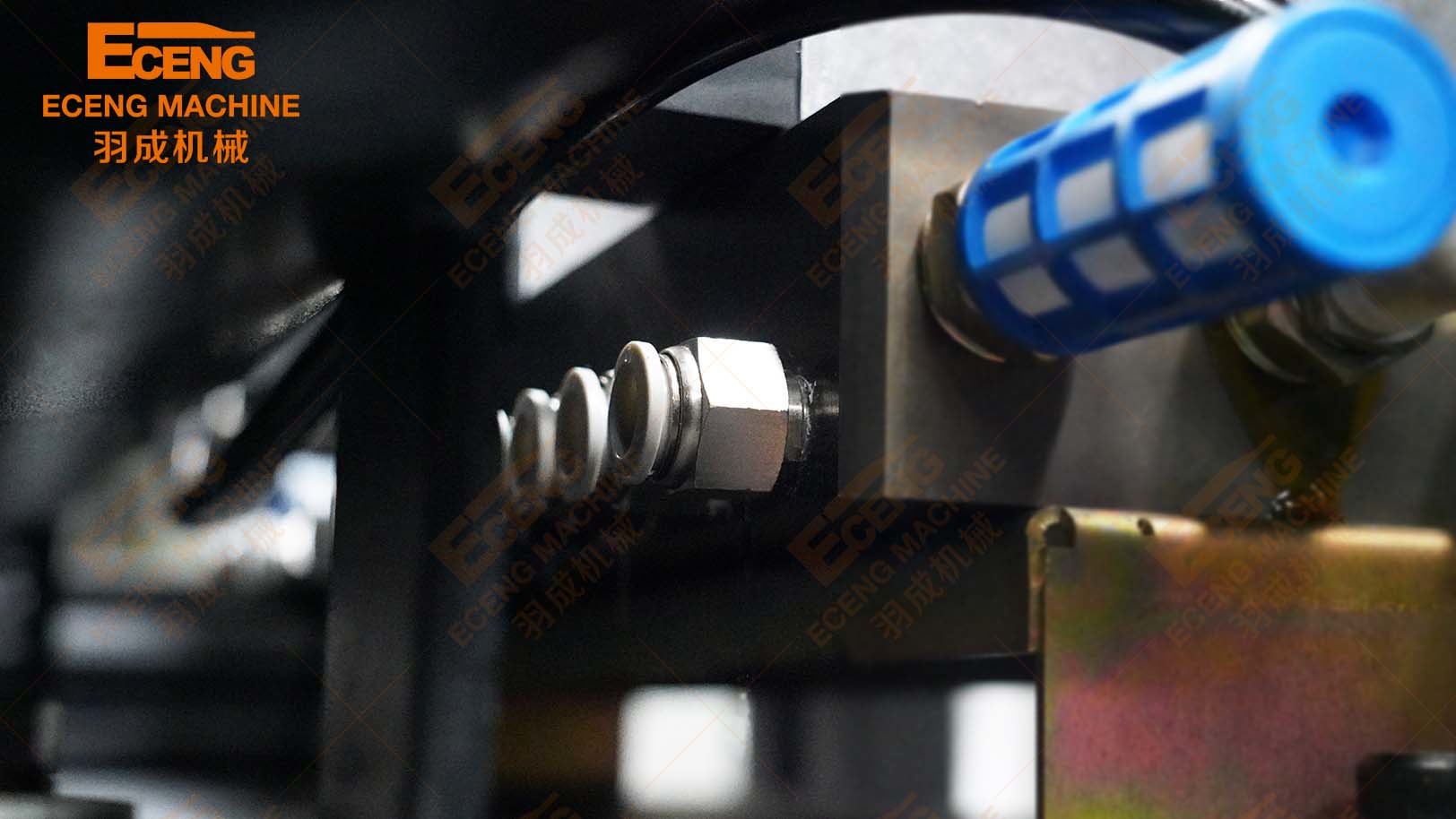

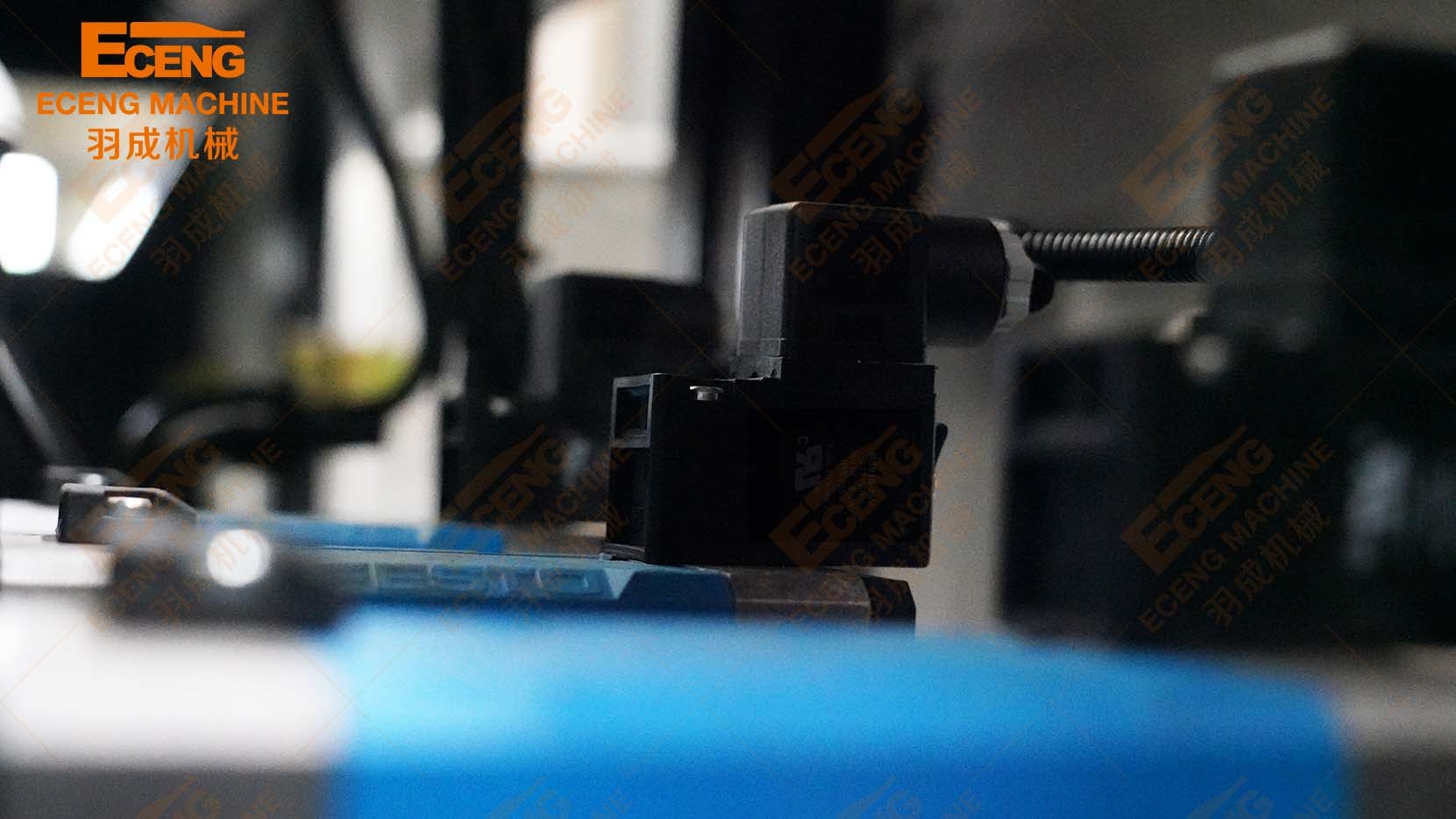

Detailed Images


13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 913000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 10
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 12
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 14
our advantage
1.  Resonable price
2.  Good after service
3.  experienced skilled workers and professional
4.  Good quality ,excellent service ,long life mould
5.  on time delivery time
6. our engineers can be online for 24 hours to you
Company Introduction
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 16
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 18
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 20
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
13000bph SMC Automatic Blow Molding Machine 500ml Pet Bottle Manufacturing Machine 22

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3 .the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
