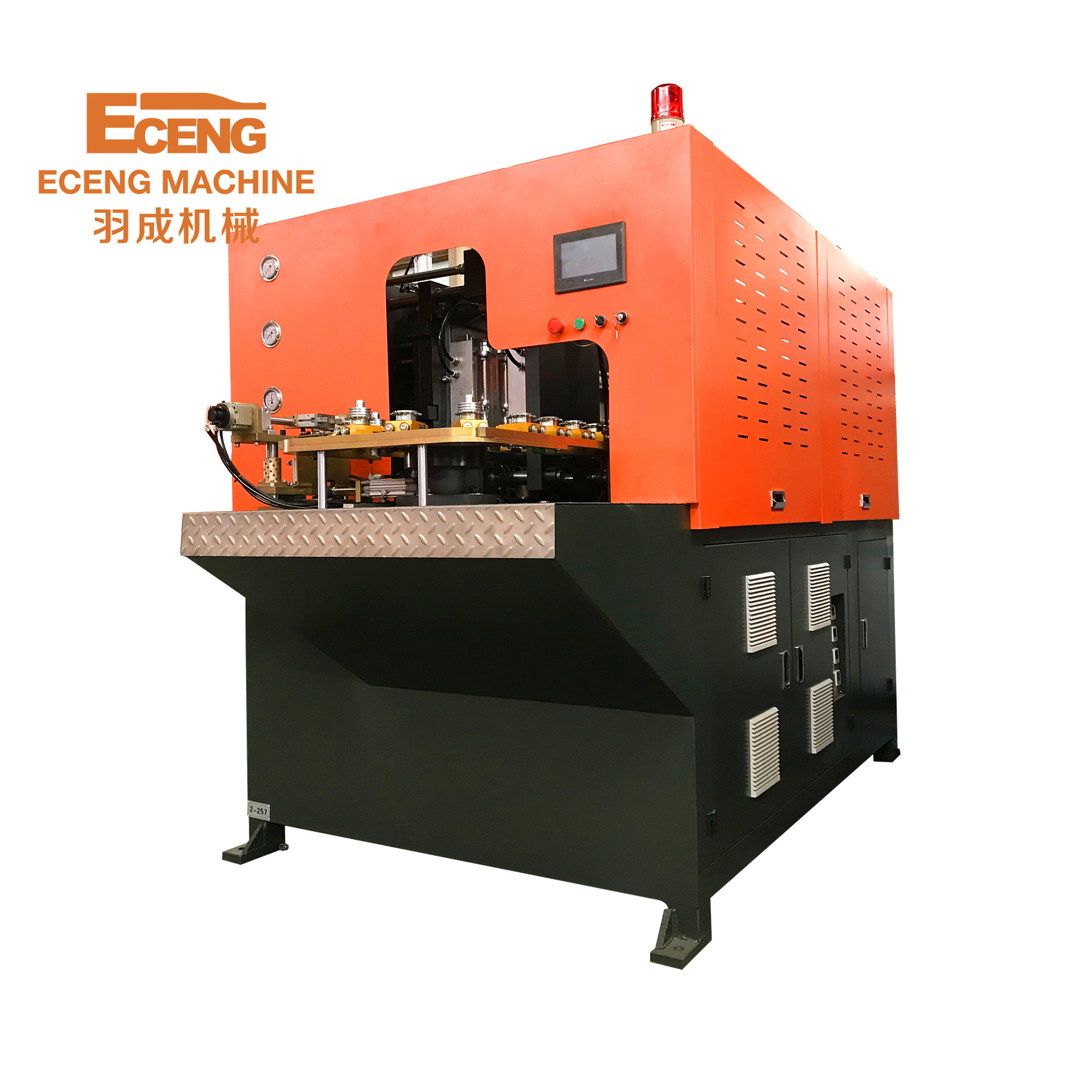

1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch

1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch

  • 1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch
1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO SGS
Model Number: H2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20,000.00 - $40,000.00/Sets
Packaging Details: Wooden package H2 PET automatic PET bottle blowing machine
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Application: Bottle
Voltage: 380V/50HZ Dimension(L*W*H): 2.25mx1.6mx1.7m
Warranty: One Year Automatic: Yes
Power: 27kw Weight: 2000kg
Color: Blue Output: 3600-4200pcs/hr
Max.volume: 50ml-2000ml Consumption: 5000kcal/hr
Low-pressure Gas Consumption: 1600L/min Capacity: 1500-2000 BPH
High Light:

1000ml PET Bottle Blow Molding Machine

,

27kw Stretch Plastic Bottle Molding Machine

,

PET Bottle Stretch Blow Molding Machine

H2 PET automatic PET bottle blowing machine

1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 0

 1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 2

1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 4

H series PET automatic PET bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.

Features:

1.Wide versatility, suitable for a variety of diameters and shapes, especially for daily-chemical products.

2.Without auto-loader, update and change preform more quickly.

3.High safety,no contact with mould-clamping and high-pressure blowing units,away from dangerous areas.

4.Low labor intensity.

5.With advanced PLC control system,excellent performance and stability.

6.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.

7.Safety locking device in every mechanical action to protect operator's safety.

8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.

9.Use air cylinder instead of hydraulic cylinder, low pollution, low noise.

10.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.

11.With both automatic and manual operation method.

12.Avoid bottle contamination,easy to install and start.

13.Low scrap rate.

1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 6



Item

H2

Bottle type specification

Cavity

2

Theory output

2200

Max.volume

2L

Bottle mouth maximum overall Diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Light tube power

0.75KW

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

19KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Frozen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

5000kcal/hr

Frozen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton



1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 8

Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 10

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.





Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 1000ml Automatic PET Bottle Blow Molding Machine 27kw Stretch 13

H linear H2 PET automatic PET bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.







Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
