6 Cavity PET Bottle Blowing Machine 49kw 10000BPH Fully Auto

6 Cavity PET Bottle Blowing Machine 49kw 10000BPH Fully Auto

  • High Light

    6 Cavity PET Blowing molding Machine

    ,

    49kw PET Blowing molding Machine

    ,

    10000BPH PET Blowing molding Machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    5.5*1.8*1.9m
  • Hollow Part Volume
    2L
  • Warranty
    1 Year, One Year For Free
  • Warranty
    1 Year
  • Output
    10000
  • Production Capacity (BPH)
    10000 BPH
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO SGS
  • Model Number
    K6
  • Minimum Order Quantity
    1set
  • Price
    $39,800.00/Sets >=1 Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Delivery Time
    60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    500 Set/Sets per Year

6 Cavity PET Bottle Blowing Machine 49kw 10000BPH Fully Auto

6 cavity fully auto blow moulding machine plastic water bottle making machine price PET bottle blowing machine

Machine Features:

1. High safety: No body injury hidden danger, machine avoids the danger of manual bottle taking, reduce the lost caused by accident, and increase productivity.



2.High speed and efficiency: adopts to high speed precision servo motor to control the pathway running.



3.Stable performance: adopts to SIEMENS man machine touch screen computer control system, which has the advantage of accurate, fast and stable. The structure is simple, heater and machine main part connected with slide way one body type, which is simple and easy to maintain.



4.Testing components use famous electrical equipment from Germany and Japan. Strong current control use

international famous brand, the performance stable and accurate.



5. Adopts to infrared tubes to heat the preforms. The tubes controlled in closed loop, which can well avoid the influence caused by outer voltage to the preform heating. The distance between tubes and performs can be easily adjusted, this is good for different bottle shapes and quality requirements.



6. pet bottle blow moulding equipment has the function of automatic alarm and fault detect.



7. pet bottle blow moulding equipment
can keep 9 different data of 9 different blowing drafts. When change molds and performs, can straight use

the data without redressing the data, very easy to operate.



8. Adpot to imported pneumatic components from Germany Japan Taiwan etc, can ensure running fast with zero fault rate.



9. pet bottle blow moulding equipment
is high reaction, exchange fast, low fault rate, and running stable. The whole machine adopts to super

standard shockproof structure, which can reduce the shock to the lowest when machine in high speed running. This prolong the use life of the components.



10. Air circuit has two parts, action and blowing, it can fulfill different air pressure requirements of blowing and action. Can also buy high pressure blowing exhaust air recycle system, which will save air by 10-15%



11. Adopts to the new type double bend arm and four pull rod hydraulic clamping structure. High clamping force, and it will enlarge the pressure when blowing.

Product Parameters

                               Model                                                                 K6

Bottle type specification



Cavity

6

Max.volume

2L

Bottle mouth maximum overall diameter

28-30mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Capacity specification



Theory output

9000~12000BPH

Bottle type volume

500ML

Bottle type weight

17g

Bottle type

Round

Power specification

Light tube quantity

32pcs

Light tube power

1.25KW

Maximum heating power

40KW

All electric machine installation

49KW

Actual consumption

30%--60%

Air pressure specification



Work pressure

5-6kg/cm2

Blow bottle pressure

25-45kg/cm2

Higher -pressure gas consumption

8000Ltr/min

Air pressure specification



Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

120L/min

Machine specification

Machine size

5.5x1.8x1.9

Machine weight

6.1ton

Product Details

1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

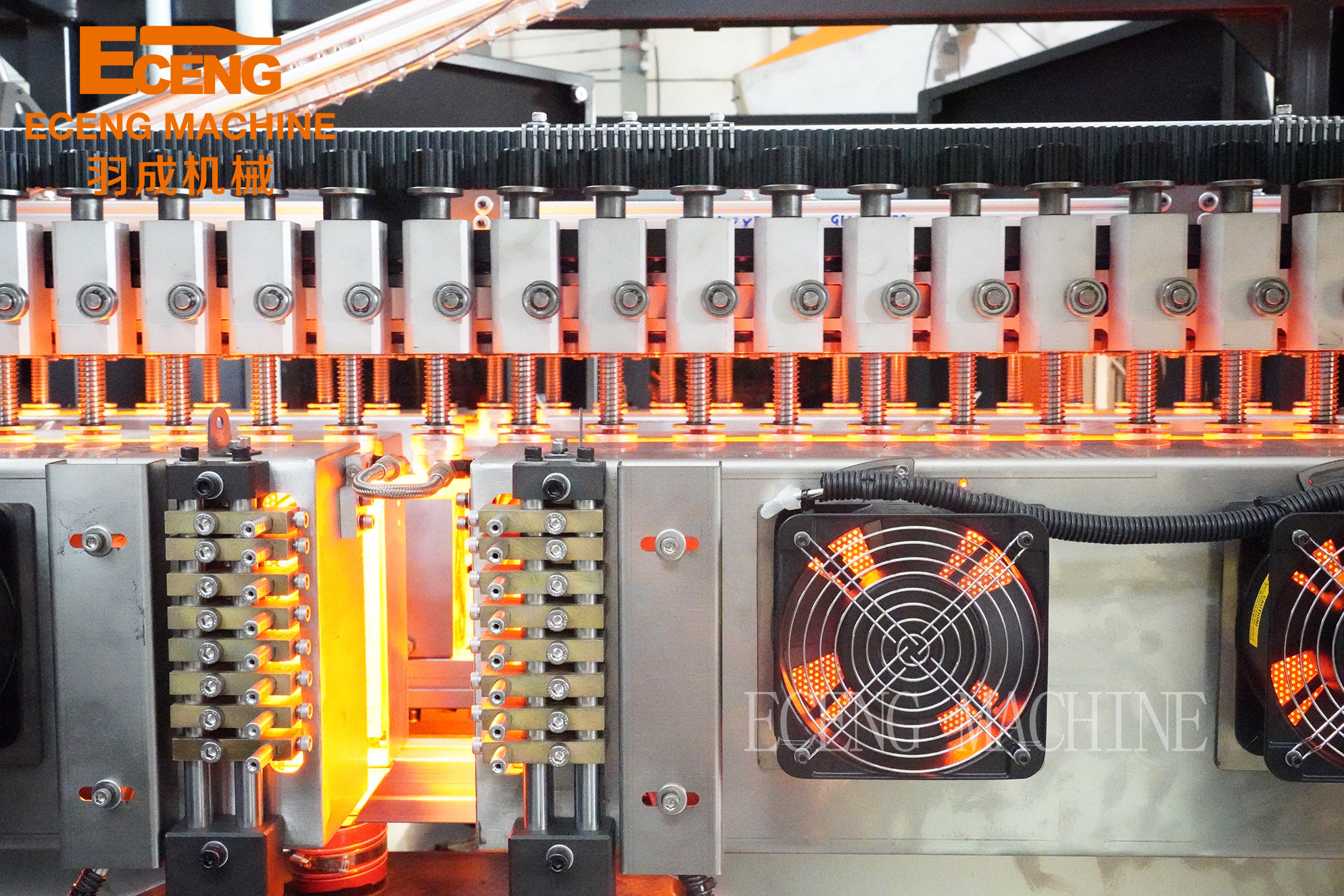

3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

4,k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
