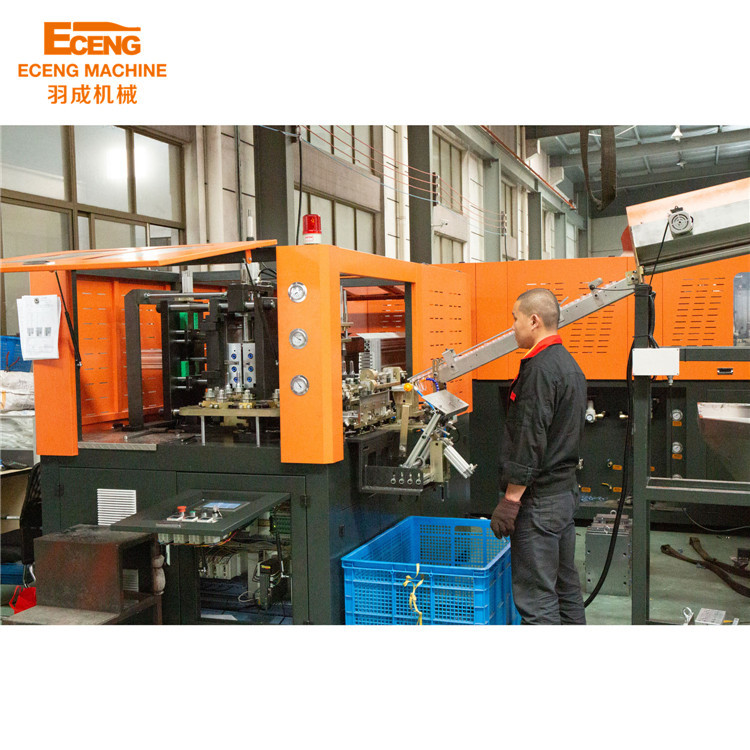

CE TUV Plastic PET Blowing Machine 2700 Pc/Hr Automatic

CE TUV Plastic PET Blowing Machine 2700 Pc/Hr Automatic

  • High Light

    saving energy PET bottle Blowing Machine

    ,

    PET Blowing Machine 2700 Pc/Hr

    ,

    CE TUV Plastic PET Blowing Machine

  • Plastic Processed
    PET
  • Automation
    Automatic
  • Warranty Of Core Components
    1 Year
  • After-sales Service Provided
    Overseas Service Center Available
  • Max Volume
    2L
  • Cavity
    2
  • Theory Output
    2400-2700pc/hr
  • Kye Word
    Bottle Molding Machine
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng bottle
  • Certification
    CE, TUV
  • Model Number
    YCQ-2L-2
  • Minimum Order Quantity
    1set
  • Price
    $10,000.00 - $30,000.00/Sets
  • Packaging Details
    bottle molding machine will be packed with wooden packages for long sea transportion
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    15 Set/Sets per Year bottle molding machine

CE TUV Plastic PET Blowing Machine 2700 Pc/Hr Automatic





Automatic PET blowing machine/PET blower/Pet bottle making machine

Machine Model: YCQ-2L-2

CE TUV Plastic PET Blowing Machine 2700 Pc/Hr Automatic 0



Machine Featuers------Bottle molding machine

1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion,repairing and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock



Technical Parameter------bottle molding machine



Item

YCQ-2L-2

Bottle type specification

Cavity

2

Theory output

2000-2500

Max.volume

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.25x1.6x1.7

Weight of the machine

2.5ton
