| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Model Number: | K4 |
| Minimum Order Quantity: | One |
|---|---|
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | K4 | Color: | White |
|---|---|---|---|
| Output: | 8000-10000bph | Weight: | 4.3ton |
| Highlight: | Automatic PET Bottle Blow Molding Machine,2500BPH PET Bottle Blow Molding Machine,K4 PET Bottle Blow Molding Machine |
||
Automatic PET bottle blow molding machine single-mold speed of linear blowing machine 2500BPH .
Eceng machine K4:
| model | k4 | |
| Bottle type specification | Cavity | 4 |
| Theory output | 8000-10000 | |
| Max.volume | 200ml-2000ml | |
| Bottle mouth maximum overall diameter | 25-29mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 16pcs |
| Maximum heating power | 20KW | |
| All electric machine installation | 29KW | |
| Actual consumption | 30%-60% | |
| Air pressure specification | Work pressure | 5-6kg/cm2 |
| Low-pressure gas consumption | 6000L/min | |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 6000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 120L/min | |
| Machine specification | Size of the machine | 3.6x1.6x1.9 |
| Weight of the machine | 4.3ton | |
Kseries linear bottle blowing machine features:

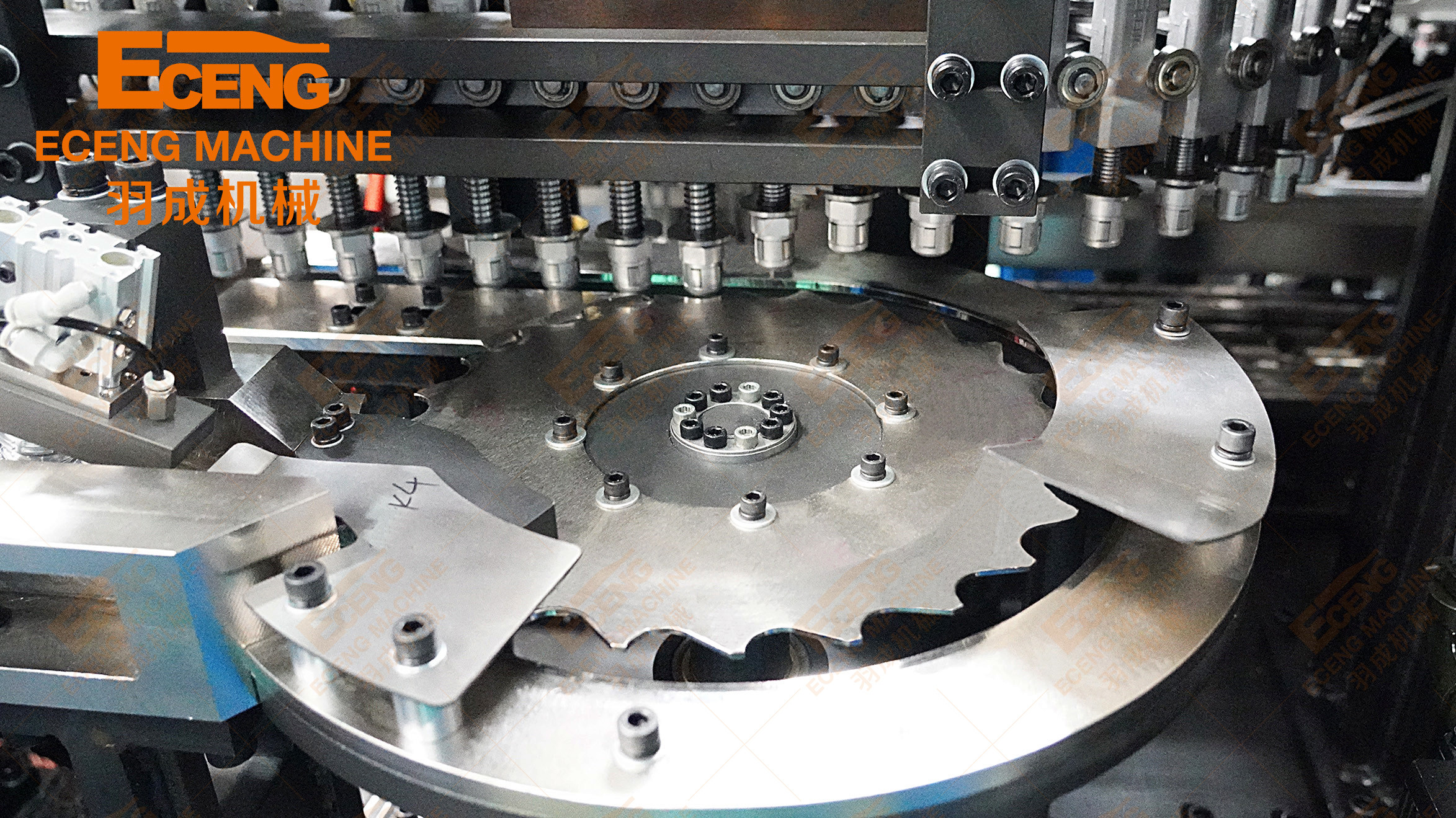

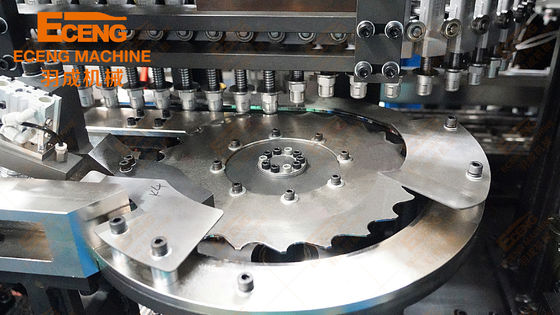

1. The blow molding machine is full automatic and has fast high effcientcy feeding system, adopting the sart wheel in the inverter motor to load embyro, to save the source.
2. Energy saving and high efficiency semi open style heating system can save more than 30%comparing with the same line.
3. Adopting Double Crank Arm Mechanical Sealing Mould, Bottle Die Likage Structure, matching with high pressure compensation sealing mould, to solve the problem of expanded mould and wide mould joint line.
4. Aopting Uk Norgren High Pressure Combination valve, big flowing, fast reaction, to improve unit production and save energy.
5. Standard Fittings Supply System to ensure the equipment run steadily and reduce the maintenance cost.
6. MMI design, Linear Structure, Simple Opration, Convenient and Fast Changing Mould.
7. Auto off Loading Bottle System, can be connected with conveyor(vacuum pipe)automaticly, matching with filling system.
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
