Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L

Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L

  • Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
  • Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
  • Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
  • Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
  • Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: Q20L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $32,800.00/Sets 1-1 Sets
Packaging Details: package suits transportation for 6000bph Automatic blow PET bottle machine/preform blower
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V/50HZ, 3phase 380V/220V/415V 50HZ
Applicable Industries: Food & Beverage Factory Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support Production Capacity (BPH): 400 BPH
High Light:

oil water bottle blowing moulding machine

,

5gallon bottle blowing moulding machine

,

20L bottle blowing moulding machine



single cavitie 3-5gallon 10L 20L oil water bottle plastic blowing moulding machine.

specification
Item
YCQ-20L-1




Bottle type specification
Cavity
1
Theory output
300
Max.volume
20L
Bottle mouth maximum overall diameter
150mm
Bottle biggest diameter
350mm
Bottle maximum height
550mm



Power specification
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
52.5KW


Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
2000-3000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
12000kcal/hr
Frozen water flow
88L/min

Machine specification
5.2Machine size
2.25x2.0x2.0
Machine weight
6ton


YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed
of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated
beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic
bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Feature:

A. Advanced PLC control system, stable and excellent performance.
B. Conveyor belt automatically feeds preforms.
C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously inthe infrared pre-heater.
D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature
device,temperature is kept within a certain range.
E. Safety locks are provided during each mechanical action to protect operator's safety.
F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.
G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.
H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, unique valve position design makes blowing process easier to control.
K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.
L. Avoid bottle contamination.
M. Protection of low temperature cooling system.
N. Easy to install and start.
O. Low scrap rate.
Product Description

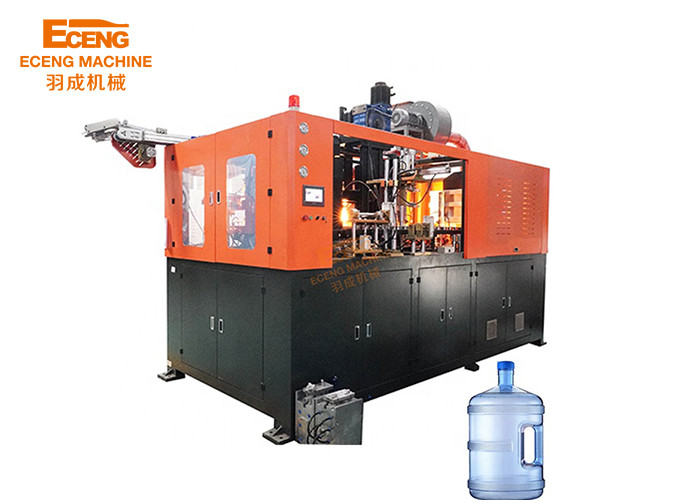

Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 1
Detailed Images

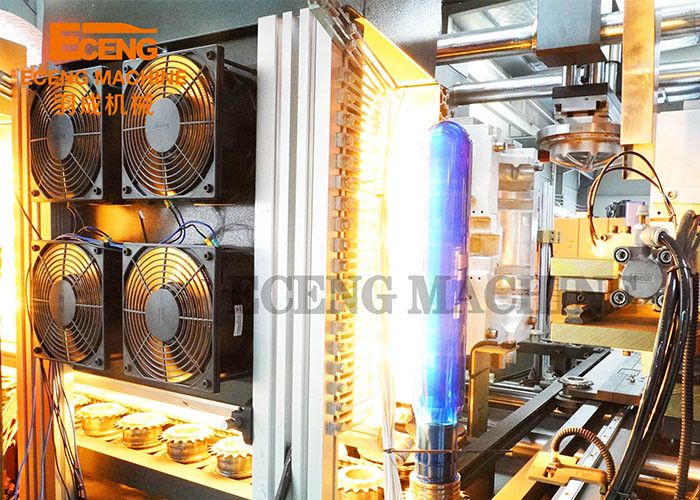

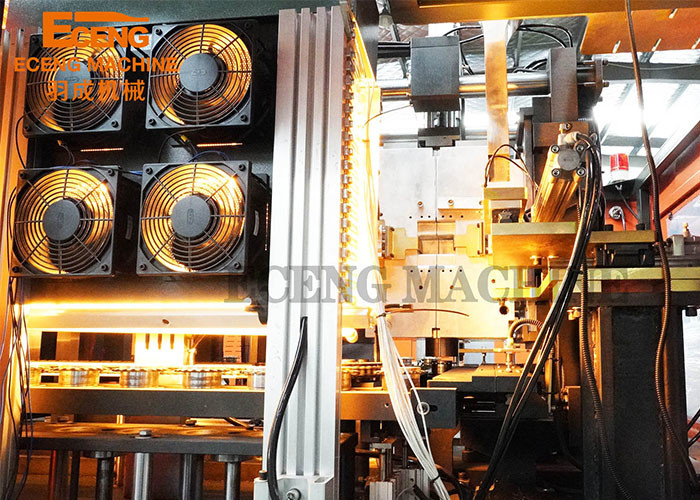

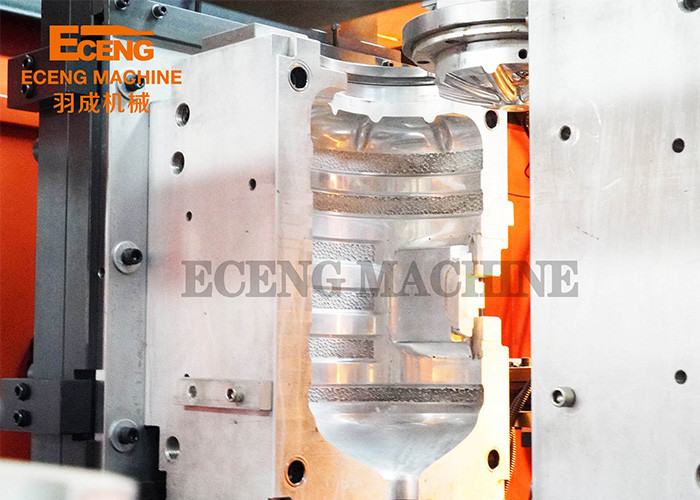

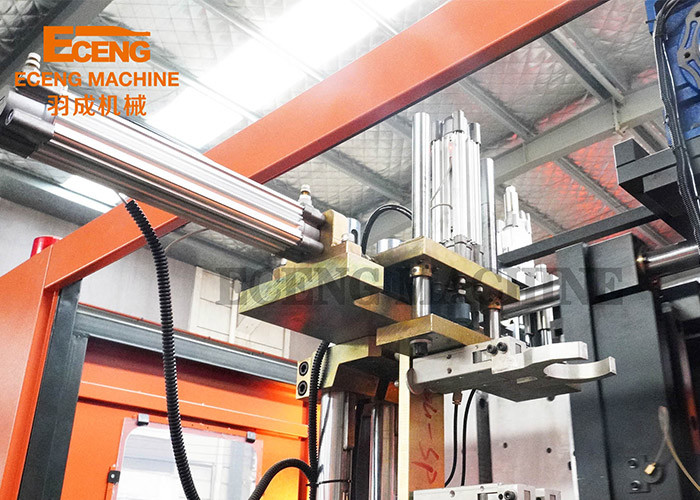

Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 4


Company Introduction
Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 5
Packing&Shipping
Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 7
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.
Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 9
Oil Water Bottle Plastic Blowing Moulding Machine Single Cavitie 3 - 5gallon 10L 20L 11
