YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l

YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l

  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
  • YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: YCQ-2L-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $40,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Application: Bottle, Plastic Bottle Blow Moulding Type: Stretch Blow Moulding
Showroom Location: Peru, Turkey, France, None, Italy, Thailand, Mexico, Viet Nam, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Uzbekistan, Nigeria, Argentina, Romania, Ukraine, Kyrgyzstan, Kazakhstan After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Online Support
Cavity: 4 Factory Location: Zhangjiagang,nearby Shanghai
Local Service Location: United States, United Kingdom, Viet Nam, India, Pakistan, Peru, Saudi Arabia, Italy, France, Germany, Thailand, Russia, Mexico, Indonesia, None, Canada, Brazil, South Africa, Malaysia, Kyrgyzstan, Argentina, South Korea, Bangladesh, Colombia, Japan, Sri La After Warranty Service: Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
High Light:

PET Blowing Moulding Machine

,

4000BPH PET Blowing Moulding Machine

,

4Cavity PET Bottle Blowing Moulding Machine

YCQ-2L-4 4000BPH 4 Cavity PET Blowing Moulding Machine 2l pet bottles

Eceng YCQ-2L-4 4 cavity 4000BPH automatic 2L plastic bottle blow molding machine

Item YCQ-2L-4
Bottle type specification Cavity 4
Theory output 3500-4000
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 40kw
All electric machine installation 43kw
Actual consumption 21.5kw
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000 Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 8000kcal/hr
Forzen water flow 88L/min
Machine specification Size of the machine 4.5x1.6x1.9
Weight of the machine

3.5ton



YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l 1

YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l 3

YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l 5

1. This 4cavities plastic blowing moulding machine is specially designed for the production of 2L PET bottles with high precision and efficiency.
2. With its advanced stretch blow molding technology, this machine can produce bottles that are durable, lightweight and crystal-clear in appearance.
3. The 4cavities design ensures a higher productivity and reduced production cost, making it an ideal choice for small to medium sized bottle making factories.
4. Equipped with a user-friendly control system, this machine is easy to operate and requires minimal maintenance, ensuring maximum uptime and profitability.
5. Whether you need to produce bottles for water, juice, milk or any other beverages, this 4cavities plastic blowing moulding machine is your best bet for high-quality, cost-effective bottle production.

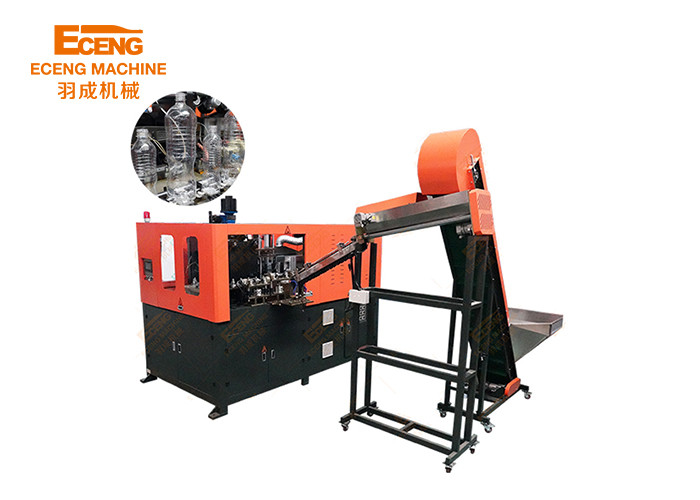

photo show--  2L pet bottla machine

YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l 7

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.



our workshop--  5L pet bottle machine





YCQ-2L-4 PET Blowing Moulding Machine 4000BPH 4 Cavity 2l 9



   We Warmly Welcome Customers All Over The World To Our Company!
