Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE |
| Model Number: | Q-5L-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packing with wooden pallet or film package suits for high quality 1L-5L automatic blowing molding machine made in zhangjiagang |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month 10 |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Hollow Part Volume: | 5L | Automation: | Automatic |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Model Type: | Bottle Blow Molding Machine | Cavity: | 1 |
| Highlight: | 1Cavity Stretch Blow Moulding Machine,Q5L1 Stretch Blow Moulding Machine,Oil Bottle Blow Moulding Stretch Machine |
||
Q5L1 1Cavity Stretch Blow Moulding Machine for 5 Liter Oil BottleProduction

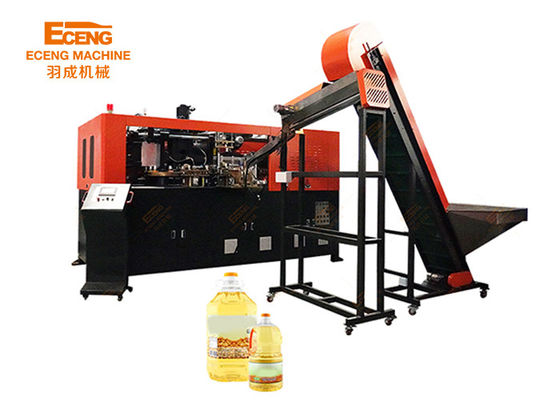

Product Photo
Main Features
1. Q5L1 1Cavity 900BPH Stretch Bottle Blowing Machine is perfect for producing 5L oil bottles with ease and efficiency.
2. This machine features a single cavity and can produce up to 900 bottles per hour, making it an ideal solution for small to medium-scale enterprises.
3. It uses advanced technology for precise and accurate bottle molding, ensuring uniformity and consistency in every bottle created.
4. With its compact and user-friendly design, the Q5L1 1Cavity 900BPH Stretch Bottle Blowing Machine is easy to operate and maintain, reducing maintenance costs and downtime.
5. Whether you're a startup or an established business, this machine is a reliable and cost-effective choice for all your 5L oil bottle production needs.
Product Parameters
|
Item |
Q-5L-1 |
|
|
Bottle type specification |
Cavity |
1 |
|
Theory output |
700-900 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
2.5x1.6x1.7 |
|
Weight of the machine |
2.5ton |
|
Product Details
1,Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.
2,Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.
3,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

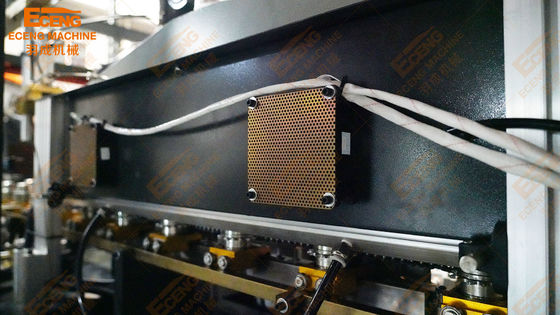

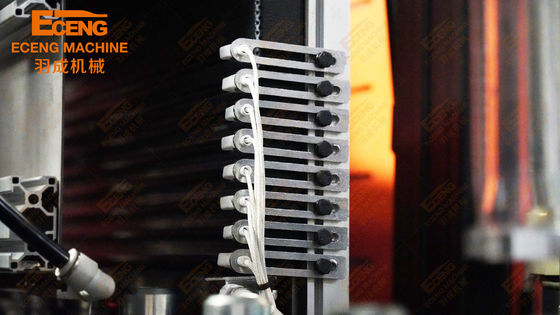

4,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
