K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making

K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making

K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K5L4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 360 Mm
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50HZ
Dimension(L*W*H): 7.8*1.95*2.54m Hollow Part Volume: 5L
PLC Brand: DELTA Power (kW): 75
Key Selling Points: Automatic Applicable Industries: Manufacturing Plant
High Light:

500ml Pet Linear Bottle Blowing Machine

,

K5L4 Pet Bottle Blowing Machine

,

4 Cavity Linear Bottle Blowing Machine

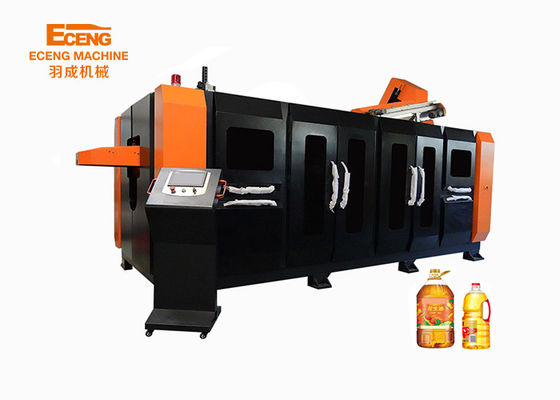

Eceng K5L4 4 Cavity Pet Bottle Blowing Machine for 500ml 1L 2L 5L Oil Containers Making
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 0
specification
             Model                                                                    K5L4






Bottle type specification
Cavity
4

Max.volume
5L

Bottle mouth maximum overall diameter
38-63mm

Bottle biggest diameter
185mm

Bottle maximum height
360mm


Capacity specification
Theory output
3000-4000BPH

Bottle type volume
5000ML

Bottle type weight
220g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
2KW

Maximum heating power
64KW

All electric machine installation
75KW

Actual consumption
40%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
18000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
7.8x1.95x2.54

Machine weight
10.6ton
The Eceng K5L4 4 Cavity Pet Bottle Blowing Machine is a state-of-the-art piece of equipment that is specifically designed for the manufacturing of high-quality plastic bottles. It is capable of producing bottles of various sizes, ranging from 500ml to 5L, which makes it ideal for the production of oil containers.

One of the key benefits of this machine is its high production capacity, which enables manufacturers to produce a large number of bottles in a short period of time. This is particularly important for companies that need to meet tight deadlines and keep up with their customers' demands.

Another advantage of the Eceng K5L4 is its ease of operation, which makes it simple for manufacturers to set up and start producing bottles quickly. The machine is also designed to be highly efficient and reliable, minimizing downtime and maximizing productivity.

Furthermore, this machine incorporates advanced technology that ensures the bottles produced are of superior quality.

In conclusion, the Eceng K5L4 4 Cavity Pet Bottle Blowing Machine is an excellent investment for companies that need to manufacture high-quality plastic bottles, particularly for oil containers. It is highly efficient, reliable, and produces bottles of superior quality. Therefore, it is a machine that is highly recommended for those looking to streamline their manufacturing process.

K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 3
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 4
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 6
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 8
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 10

K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 12
Company Introduction
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 13
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 15
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 17
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 19
Packing&Shipping
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 20
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 22
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 24
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 26
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 28
K5L4 4 Cavity Pet Bottle Blowing Machine For 500ml 1L 2L 5L Oil Containers Making 30
