Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K5L4 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $35,800.00/Sets 1-1 Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Bottle Volume(ml): | 2000 Ml | Condition: | New |
|---|---|---|---|
| Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V,50HZ | Dimension(L*W*H): | 7.8*1.95*2.54m |
| Hollow Part Volume: | 5L | Applicable Industries: | Manufacturing Plant |
| High Light: | Eceng Oil Bottle Blowing Machine,K5L4 High Speed Bottle Blowing Machine,4000BPH Pet Bottle Blowing |
||

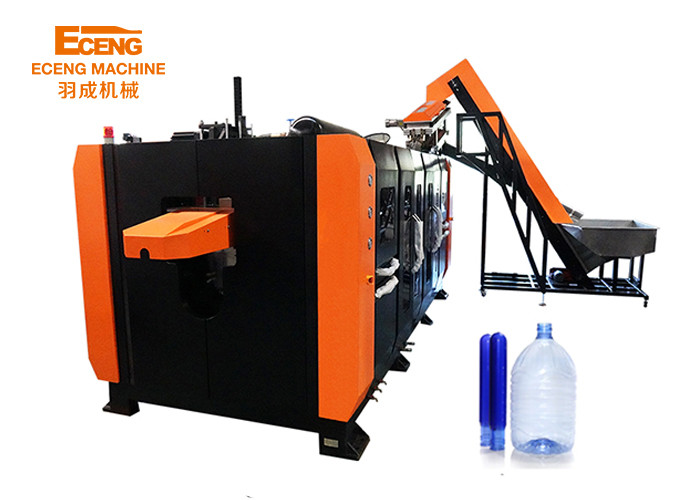

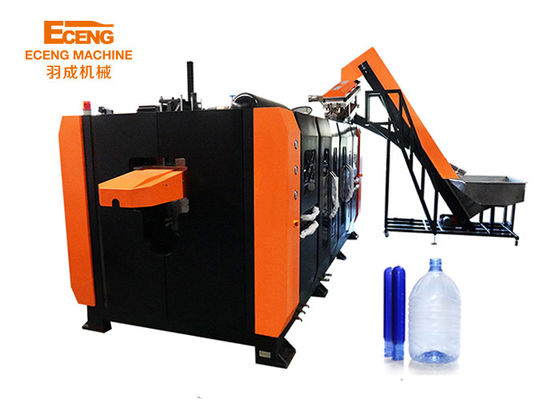

Eceng K5L4 High Speed Oil Bottle Blowing Making Machine 1L-5L 3000-4000BPH
|
Model K5L4
|
|
|
||
|
Bottle type specification
|
Cavity
|
4
|
||
|
|
Max.volume
|
5L
|
||
|
|
Bottle mouth maximum overall diameter
|
38-63mm
|
||
|
|
Bottle biggest diameter
|
185mm
|
||
|
|
Bottle maximum height
|
360mm
|
||
|
Capacity specification
|
Theory output
|
3000-4000BPH
|
||
|
|
Bottle type volume
|
5000ML
|
||
|
|
Bottle type weight
|
220g
|
||
|
|
Bottle type
|
Round
|
||
|
Power specification
|
Light tube quantity
|
32pcs
|
||
|
|
Light tube power
|
2KW
|
||
|
|
Maximum heating power
|
64KW
|
||
|
|
All electric machine installation
|
75KW
|
||
|
|
Actual consumption
|
40%--60%
|
||
|
Air pressure specification
|
Work pressure
|
5-6kg/cm2
|
||
|
|
Blow bottle pressure
|
25-45kg/cm2
|
||
|
|
Higher -pressure gas consumption
|
8000Ltr/min
|
||
|
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
||
|
|
Temperature range
|
10℃
|
||
|
|
Consumption
|
18000kcal/hr
|
||
|
|
Forzen water flow
|
120L/min
|
||
|
Machine specification
|
Machine size
|
7.8x1.95x2.54
|
||
|
|
Machine weight
|
10.6ton
|
||
Eceng K5L4 automatic pet stretch making machine is perfect for producing 3000-4000BPH high capacity 3L, 4L, and 5L water and oil bottles. With its advanced technology and precise design, it can easily handle the demands of high-volume production.
This state-of-the-art machine is ideal for manufacturers who require a reliable and efficient solution for creating PET bottles. It comes equipped with a range of features that allow for easy operation, maintenance, and customization to meet specific production needs.
Eceng K5L4 stretch making machine is designed to produce high-quality PET bottles that are both durable and lightweight. With its advanced stretching and blowing technology, it can produce bottles that are consistent in shape and size, ensuring a uniform product that meets the highest standards of quality.
Whether you're producing water bottles or oil containers, the K5L4 stretch making machine is the perfect choice. It features a fully automated production process that minimizes downtime and maximizes efficiency, allowing you to keep up with even the most demanding production schedules.
So if you're looking for a high-capacity, reliable, and efficient solution for producing PET bottles, look no further than the K5L4 automatic pet stretch making machine. With its advanced technology, expert design, and unparalleled performance, it's the perfect choice for manufacturers looking to take their production to the next level.
