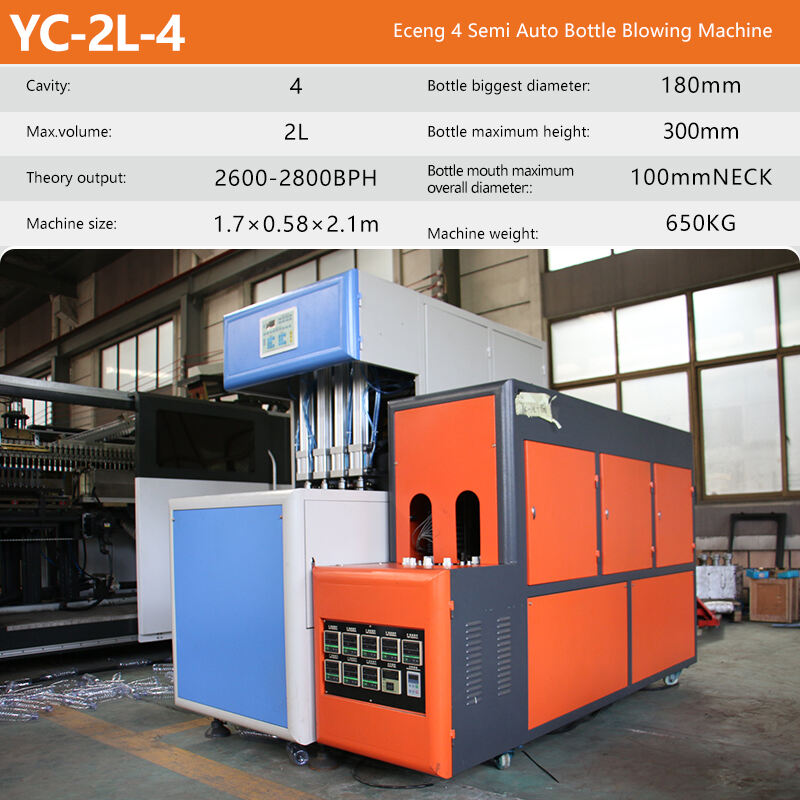

| Model | YC-2L-4 | |
| Product Spec | Cavities | 4 |
| Max.volume | 2L | |
| Theory output | 2600-2800BPH | |
| Max. preform neck size (mm) | 100 | |
| Max. product diameter (mm) | 180 | |
| Max. product height (mm) | 300 | |
| Blow molding part | Die stroke (mm) | 270 |
| Max. mould size (mm) | 390×345 | |
| Mould thickness | Adjustable | |
| Mould spacing (mm) | Adjustable | |
| Max. pulling stroke (mm) | 400 | |
| Machine size (L×W×H)(m) | 1.7×0.58×2.1 | |
| Machine weight (KG) | 650 | |
| Oven | Total power (KW) | 16 |
| Oven Size (L×W×H) | 1.45×0.65×1.15 | |
| Oven weight (KG) | 300 | |
-
High flexibility
Small size, low investment, easy and safe operation
-
Touch screen
Easy to set the parameters of the machine
-

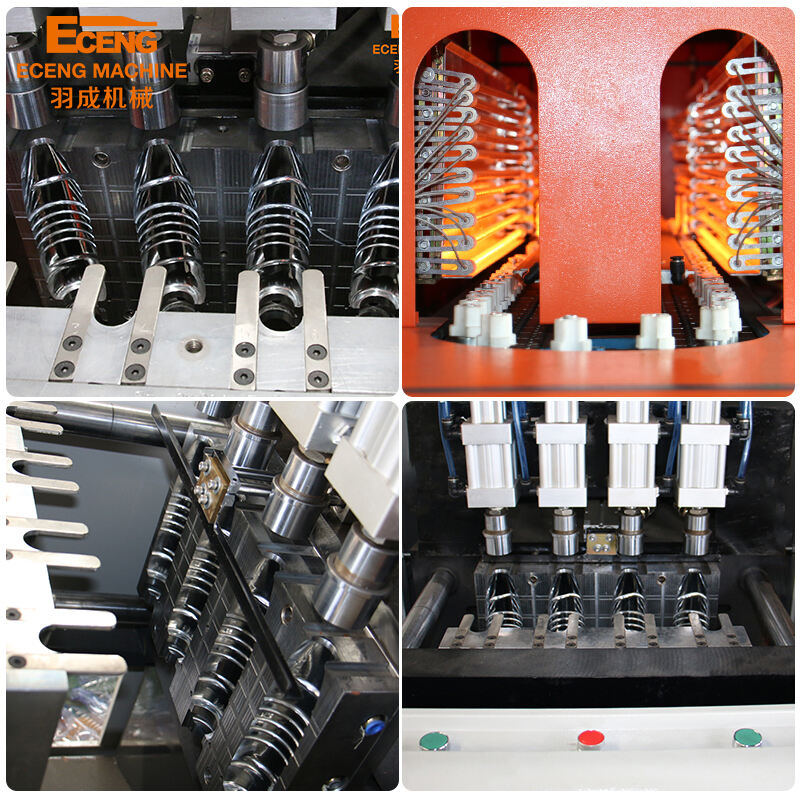

Mold closing system
Front-opening design, Easier to get the bottle
-
Heating system
High-temperature lamp heating, Fast and thorough
-
High-pressure air system
Quality brands, high capacity, quick response
-
Blowing system
Clear, flawless, High quality bottles.
What Can Blow with Eceng Bottle Blowing Machine
including but not limited to:
Round Bottles: commonly used for water bottles, juice bottles, soda bottles, etc.
Square Bottles: commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
Oval Bottles: commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
Irregular-Shaped Bottles: such as flat bottles, triangular bottles, hexagonal bottles, etc.
We can make the most suitableconfiguration according to your requirement in you new project.
-

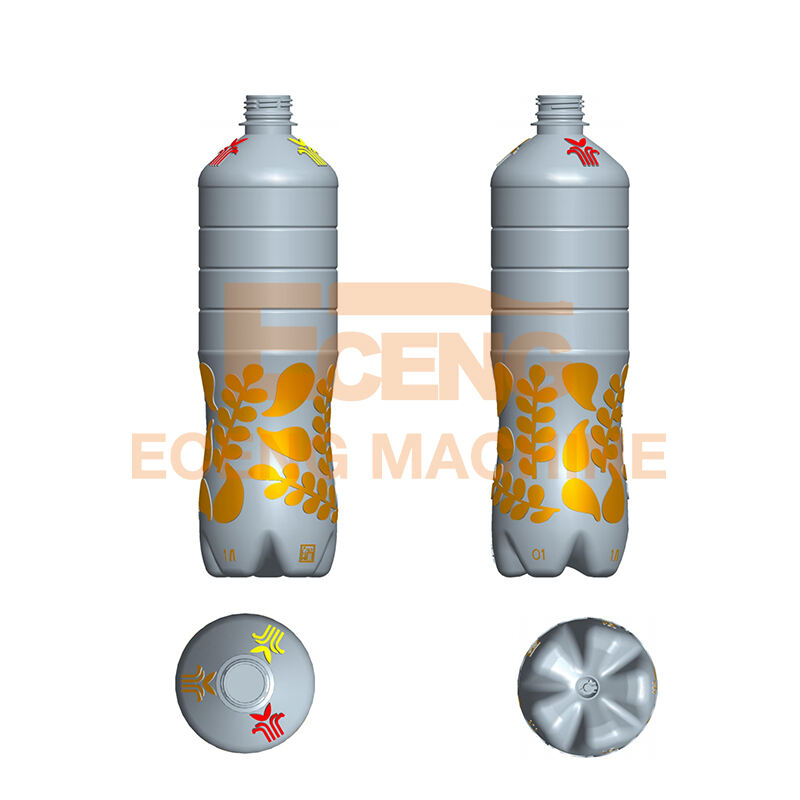

Bottle Design.
Our designers can design bottle styles according to your requirements.
-
Machine Layout.
We will confirm the machine layout according to your factory.
-
Sample Project.
We can provide a sample project for you to visit.
