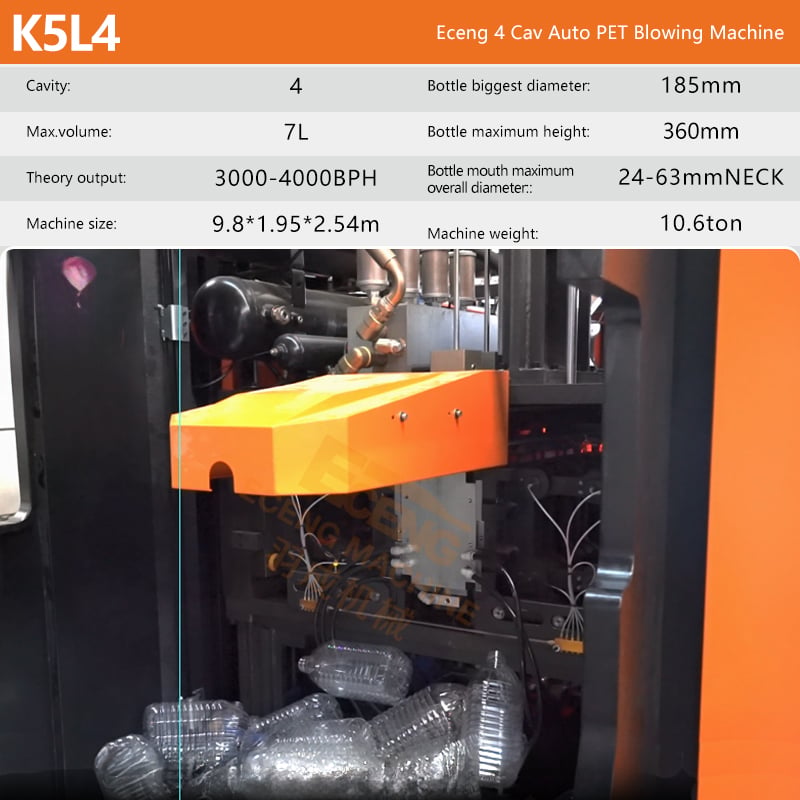

Model |
K5L4 |
|
|
Bottle type specification |
Cavity |
4 |
3000-4000BPH |
||
Max.volume |
7L |
|
Bottle mouth maximum overall diameter |
24-63mm NECK |
|
Bottle biggest diameter |
185mm |
|
Bottle maximum height |
360mm |
|
|
Power specification |
Light tube quantity |
32pcs |
Light tube power |
2KW |
|
|
All electric machine installation |
78KW |
|
Actual consumption |
40%--60% |
|
|
Air pressure specification |
Work pressure |
5-6kg/cm2 |
Blow bottle pressure |
25-45kg/cm2 |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
Temperature range |
10℃ |
|
|
Machine specification |
Machine size |
9.8*1.95*2.54m |
Machine weight |
10.6ton |
|
-

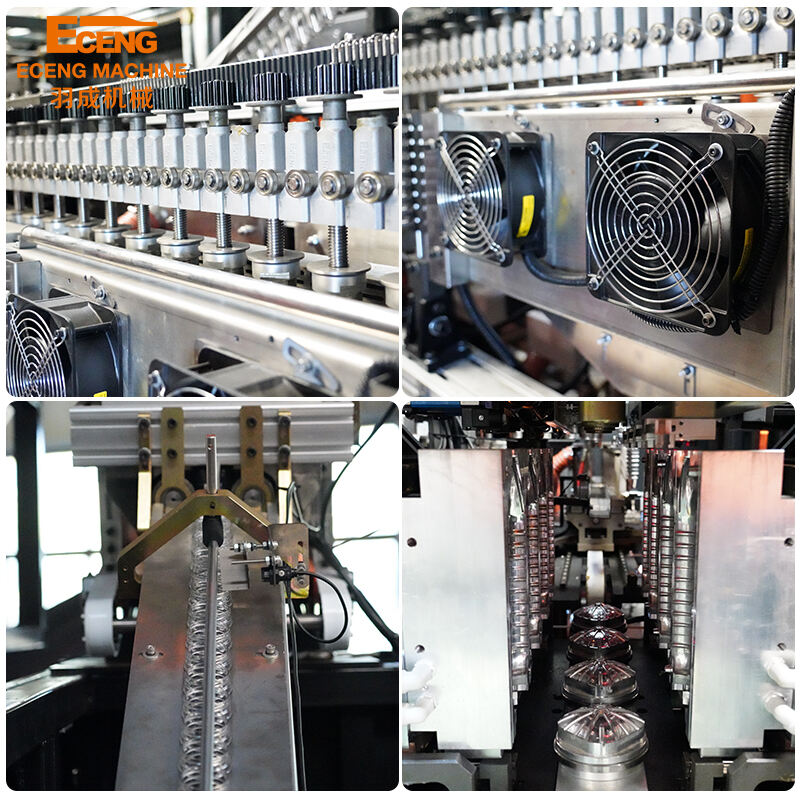

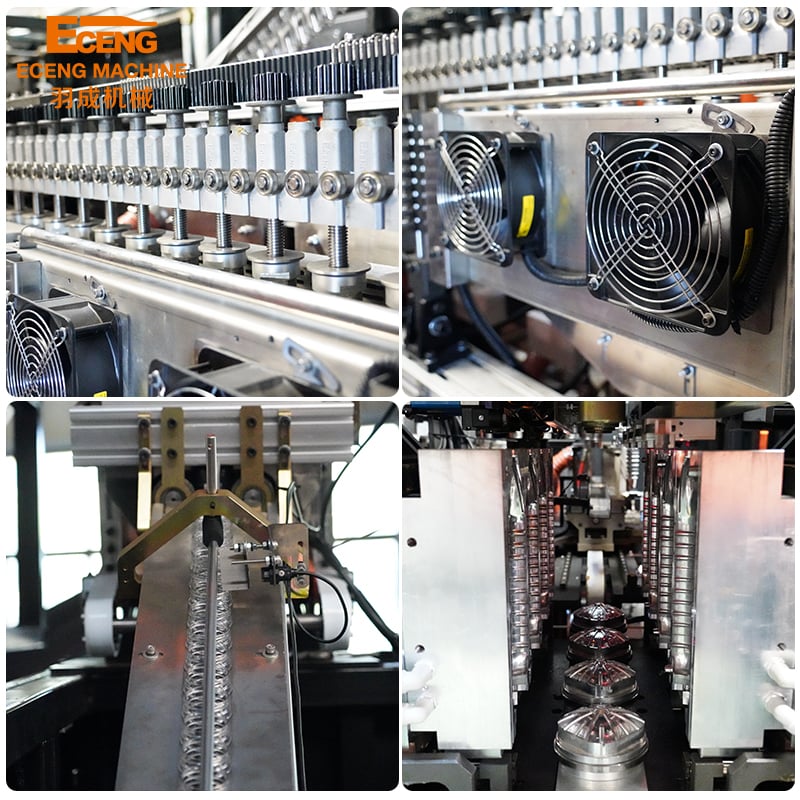

Touch screen has a remote control
Control it online, makes support quick and easy
-
Double-link crank arm clamping system
Improves bottle quality
-
Adjustable pitch system
Effectively reduces energy consumption
-
Heating system
Efficient heating technology, Saves you money
-
All-electric control system
Operates at high speed with low pollution
-
Blowing system
Clear, flawless, High quality bottles.
What Can Blow with Eceng Bottle Blowing Machine
including but not limited to:
Round Bottles: commonly used for water bottles, juice bottles, soda bottles, etc.
Square Bottles: commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
Oval Bottles: commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
Irregular-Shaped Bottles: such as flat bottles, triangular bottles, hexagonal bottles, etc.
We can make the most suitableconfiguration according to your requirement in you new project.
-
Bottle Design.
Our designers can design bottle styles according to your requirements.
-
Machine Layout.
We will confirm the machine layout according to your factory.
-
Sample Project.
We can provide a sample project for you to visit.
