100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH

100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH

  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
  • 100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: One
Price: Negotiable
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: H2 Color: Blue
Output: 1800bph Weight: 2.5ton
High Light:

Alcohol bottle PET Jar Blow Molding Machine 1800BPH

,

pet blowing machine 1800BPH

,

100ml pet blowing machine

H2 2cavity 1800BPH Hand-feeding bottle making machine PET 100ml small Alcohol bottle





model H2
Bottle type specification Cavity 2
Theory output 2200
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 19KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton

100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH 0

100ml Alcohol Bottle PET Jar Blow Molding Machine 1800BPH 1

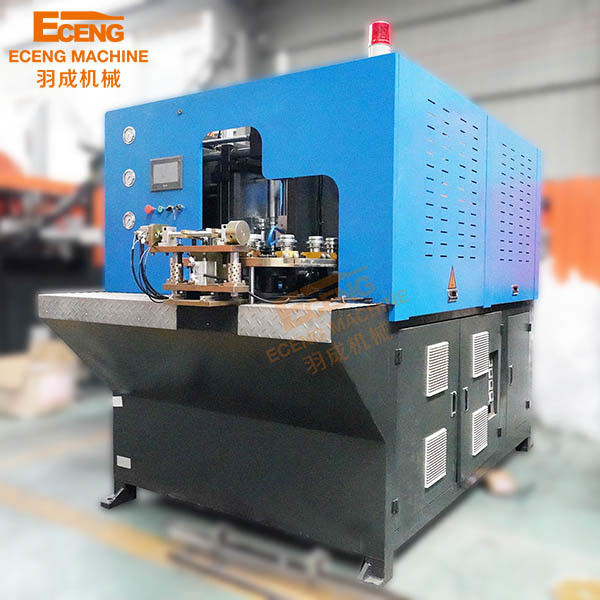

Hand feeding PET blowing machine

H2 is hand feeding wide-neck PET jar blow molding machine.It’s best choise for wide-mouth/big neck PET jar/PET can.

H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
