Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ
Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ
Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: CE ISO SGS, CE
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $45,000.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ High Pressure Valve Brand: SMC
Rotary Cylinder Brand: SMC Automation: Automatic
High Light:

5l pet stretch blow molding machine

,

pet stretch blow molding machine 380V 50HZ

,

bottle blowing machine 380V 50HZ

new generation PET plastic jar pet bottle manufacturing plant

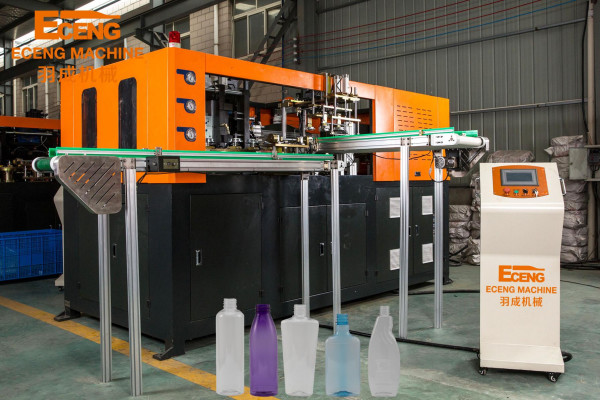

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 0

J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.It is especially suitable for the production and processing of large-diameter 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system, which can be more stable.

Features:

1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.

2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.

3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.

4.Safe, reliable and unique valve position design makes blowing process easier to control

5.Safety locking device in every mechanical action to protect operator's safety.

6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.

7.With both automatic and manual operation method.

8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.

9.Easy to install and start, low scrap rate.

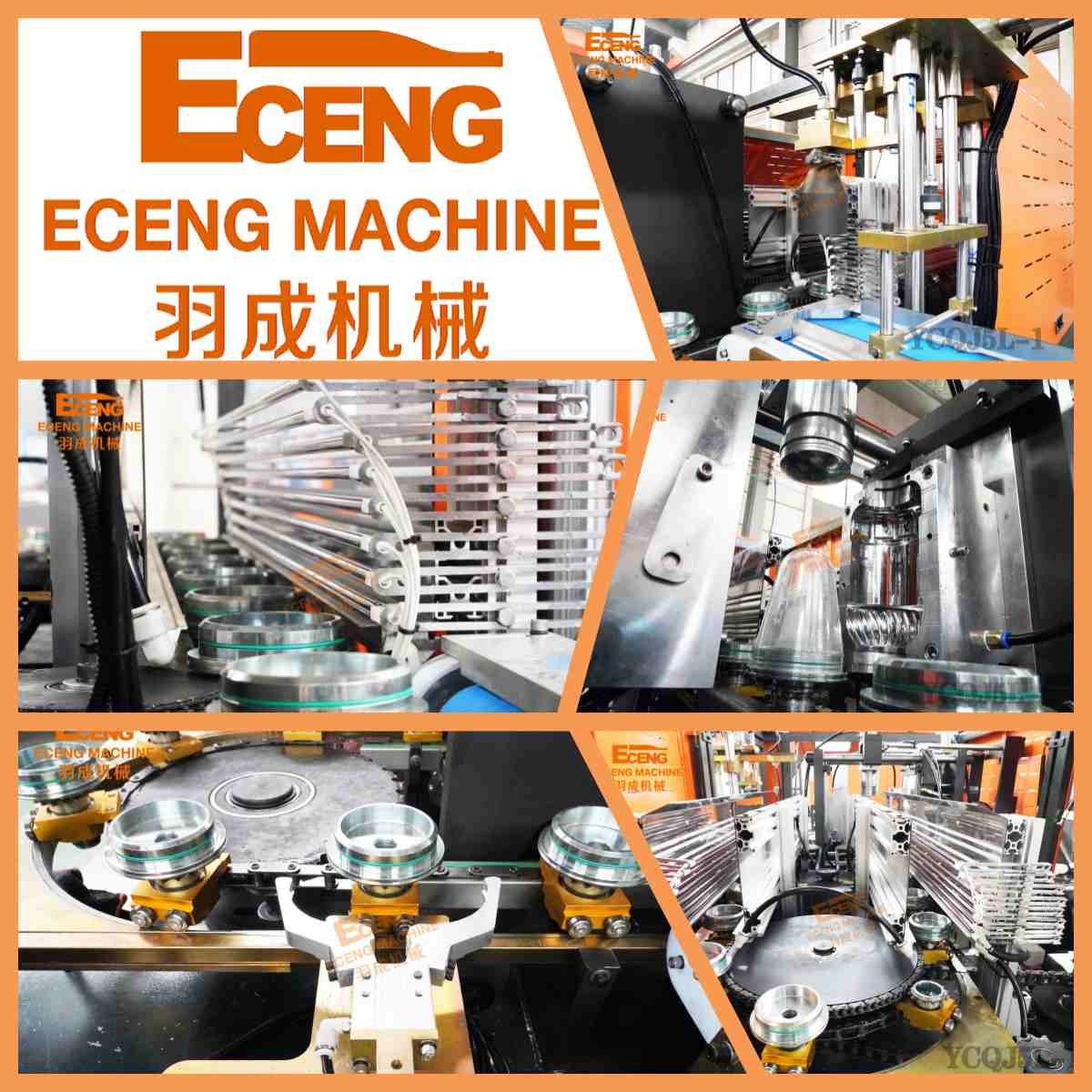

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 1

Item J2
Bottle type specification Cavity 2
Theory output 1200-1300
Max.volume 5L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specifications Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 51KW
Actual consumption 35.7KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3400Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 50L/min
Machine specification Size of the machine 4.7x1.6x1.9
Weight of the machine 3ton

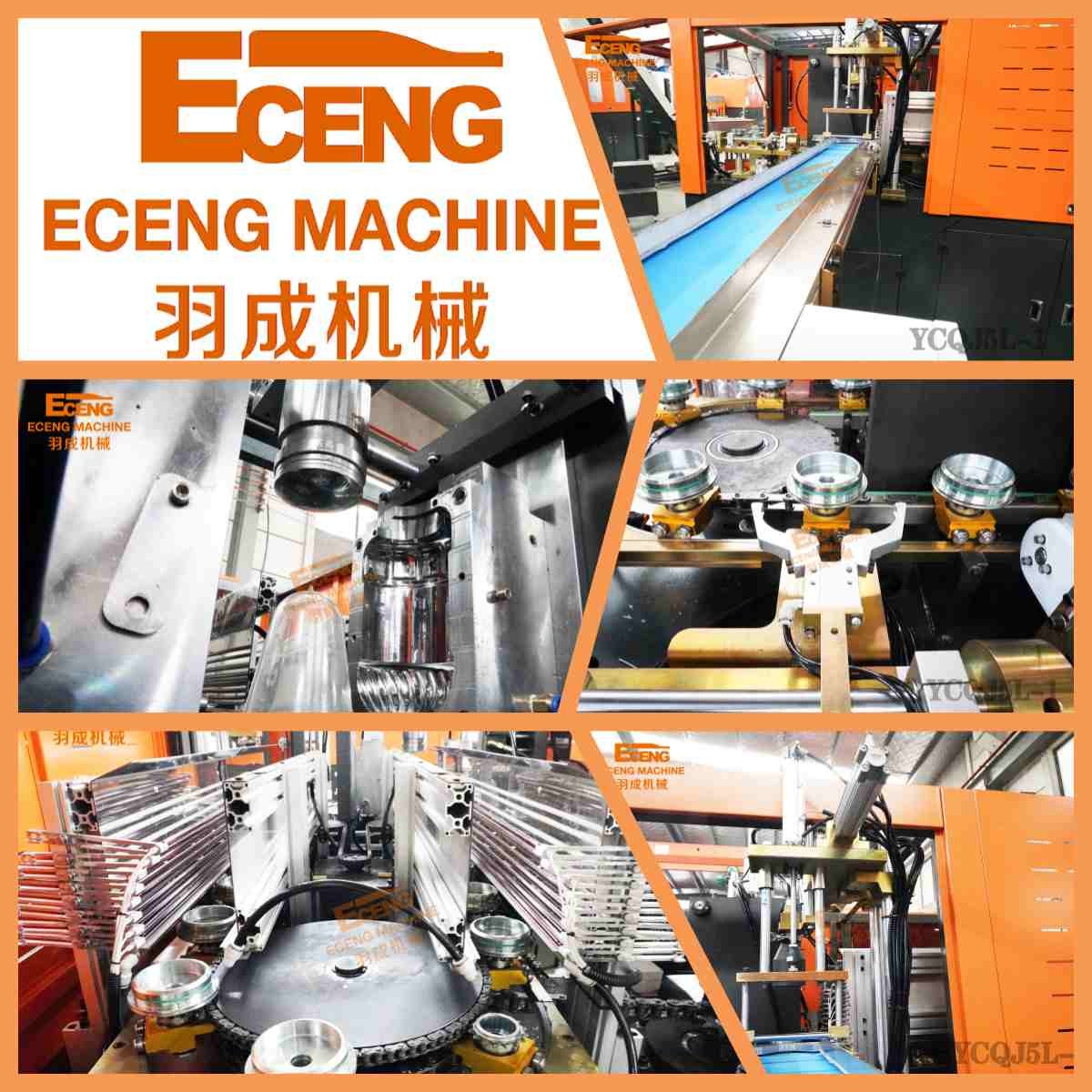

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 2

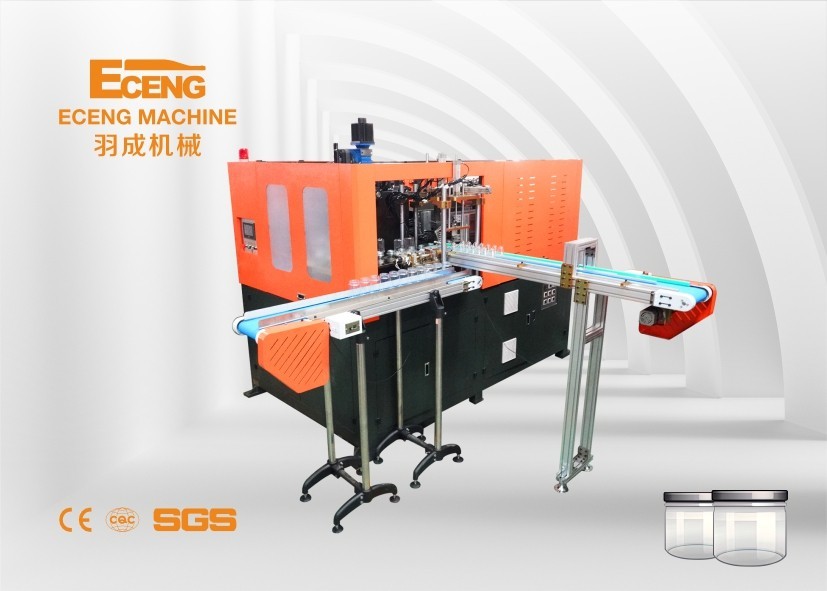

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 3

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 4

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.

Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 5
Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 6

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 7
Automatic 5L Bottle PET Stretch Blow Molding Machine 380V 50HZ 8

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
