Orange 3L Jar PET Stretch Blow Moulding Machine 2 Cavity

Orange 3L Jar PET Stretch Blow Moulding Machine 2 Cavity

  • High Light

    3L pet stretch blow moulding machine

    ,

    pet stretch blow moulding machine 2 cavity

    ,

    3L jar blow molding machine

  • Model Number
    J2
  • Color
    Orange
  • Output
    3000bph
  • Weight
    2.5ton
  • Place of Origin
    CHINA
  • Brand Name
    ECENG
  • Certification
    CE SGS ISO
  • Model Number
    J2
  • Minimum Order Quantity
    One
  • Price
    Negotiable
  • Packaging Details
    film/wooden
  • Delivery Time
    45days
  • Payment Terms
    TT LC western Union
  • Supply Ability
    10sets Per month

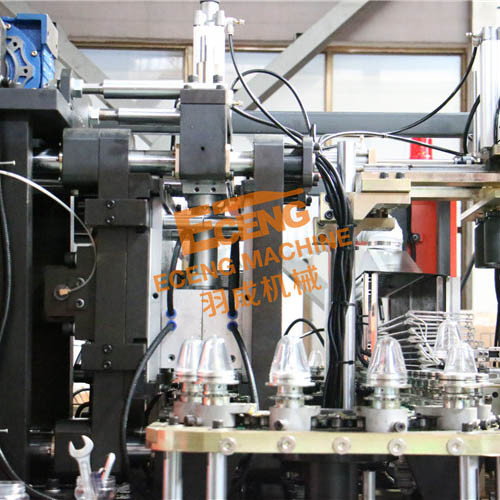

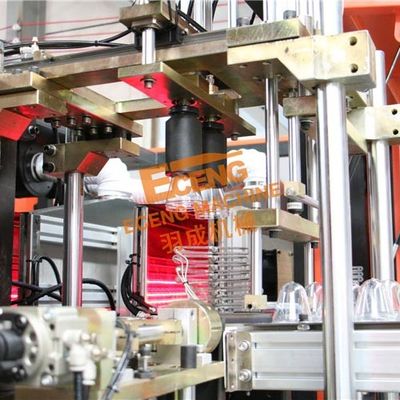

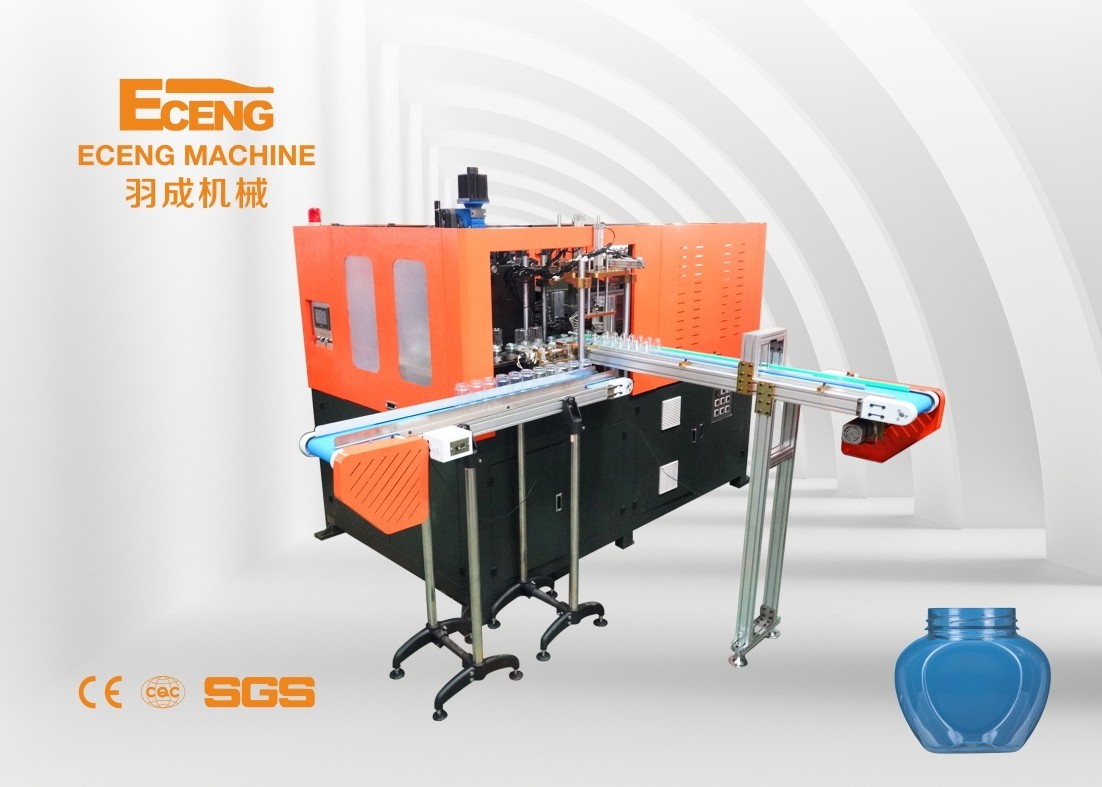

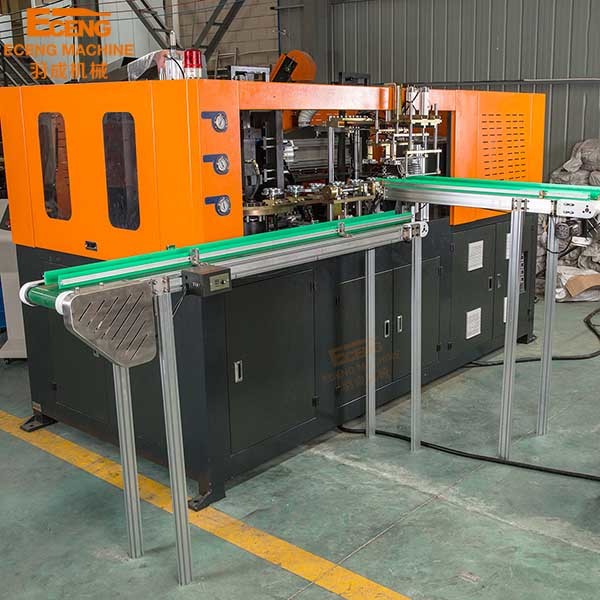

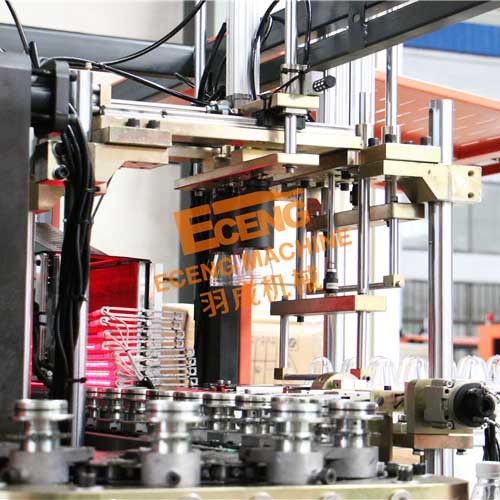

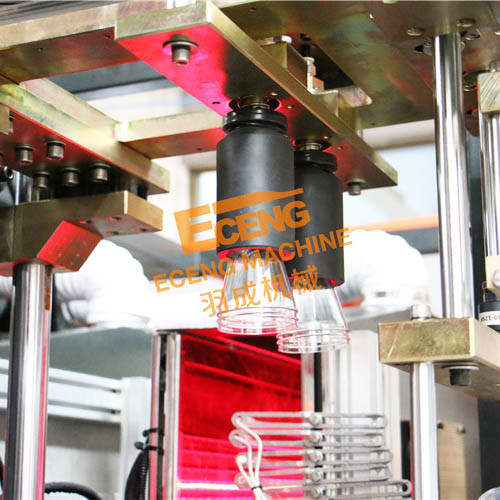

Orange 3L Jar PET Stretch Blow Moulding Machine 2 Cavity

J2 2cavity 3000BPH PET 3L jar biscuit bottle Wide mouth Jar stretch molding machine



Product Parameters

model J2
Bottle type specification Cavity 2
Theory output 3000
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 19KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine

2.25x1.6x1.7

Weight of the machine 2.5ton

Orange 3L Jar PET Stretch Blow Moulding Machine 2 Cavity 0

Wide mouth Jar stretch molding machine

Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.

One worker can control two or three machines.Labor cost saved.

1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.

2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.

3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.

4.Safe, reliable and unique valve position design makes blowing process easier to control

5.Safety locking device in every mechanical action to protect operator's safety.

6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.

7.With both automatic and manual operation method.

8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.

9.Easy to install and start, low scrap rate.
