Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding

Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding

Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Dimension(L*W*H): 2.25*1.6*1.7m
Automation: Automatic Warranty: 1 Year
Key Selling Points: Automatic Showroom Location: Egypt, Philippines, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Ta
Applicable Industries: Manufacturing Plant Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

fully automatic pet bottle blowing machine 3000BPH

,

Eceng J2 stretch blow molding machine

,

3000BPH stretch blow molding machine



Eceng J2 3000BPH PET plastic blowing machines fully automatic stretch blow moulding machine

Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 0
specification
Item

J2




Bottle type specification
Cavity
2

Theory output
3000

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 2
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 4

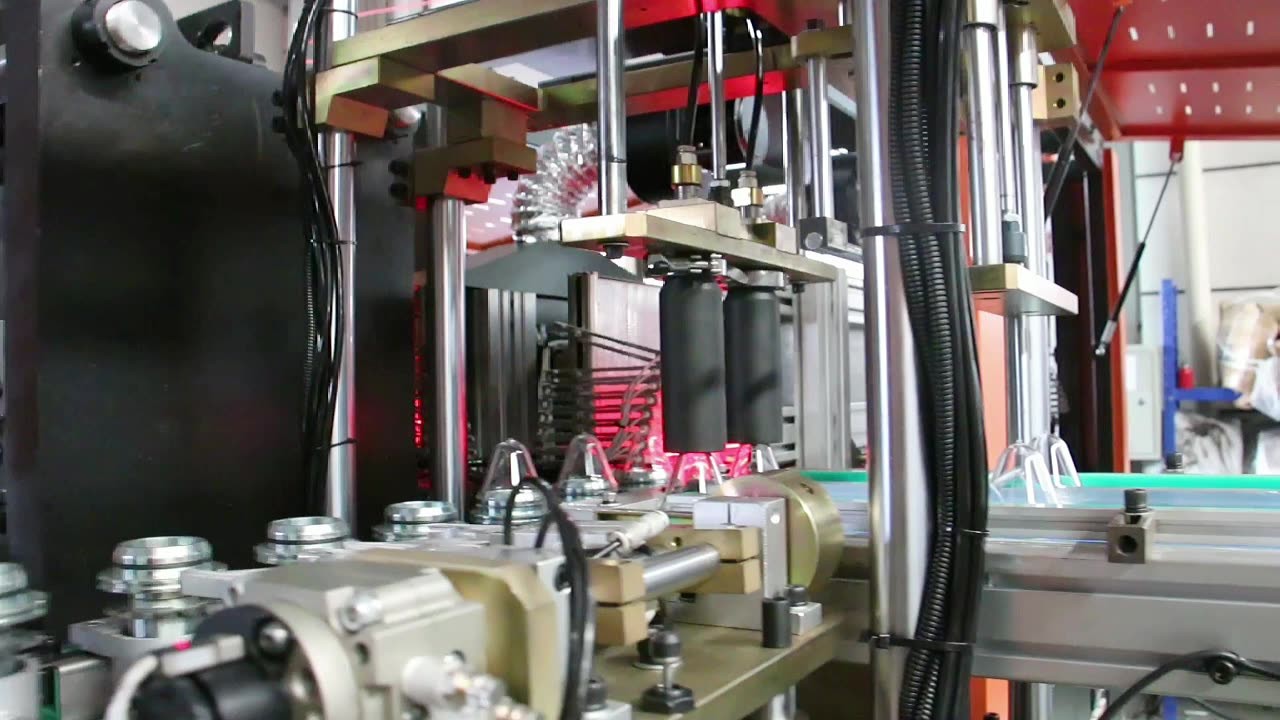

Detailed Images
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide
versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is
precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
One worker can control two or three machines.Labor cost saved.
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically
unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control
5.Safety locking device in every mechanical action to protect operator's safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 6
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 8
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 10
1,Edible oil PET bottle blowing machine is a two-step automatic blowing equipment specially developed for blowing 5 liters of
edible oil bottles, which can meet customers' demands for large-capacity, high-speed, fully automated production.
2,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of
moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger
of high-altitude feeding, reduce labor intensity and increase production efficiency.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
4,J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully
automatic type.
Company Introduction
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 12
Packing&Shipping
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 14
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 16
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 18
Fully Automatic PET Bottle Blowing Machine 3000BPH Eceng J2 Stretch Blow Molding 20
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
