2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR

  • High Light

    2L PET Jar Blow Molding Machine

    ,

    6 cavity blowing machine 6000 PCS/HR

    ,

    2L 6 cavity blowing machine

  • Plastic Processed
    PET
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    According To Customer's Request
  • Dimension(L*W*H)
    6.5x1.5x1.9 (m)
  • Warranty
    One Year
  • Automatic
    Yes
  • Power
    43kw
  • Weight
    4ton
  • Touch Screen
    Hitech
  • PLC
    MITSUBISHI
  • Value
    Paker
  • Cylinder
    Festo
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    ce sgs iso
  • Model Number
    YCQ-2L-6
  • Minimum Order Quantity
    1set
  • Price
    $10,000.00 - $30,000.00/Sets
  • Packaging Details
    wooden packages
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    60 Set/Sets per Week

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR

plastic bottle making machine

Model: YCQ-2L-6





     What is the details of 6 cavity fully automatic pet blowing machine?

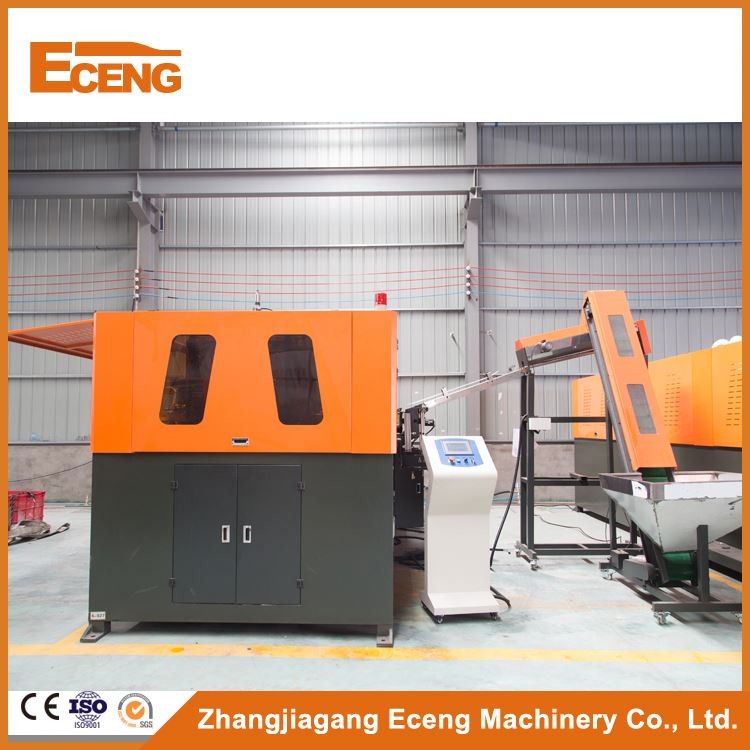

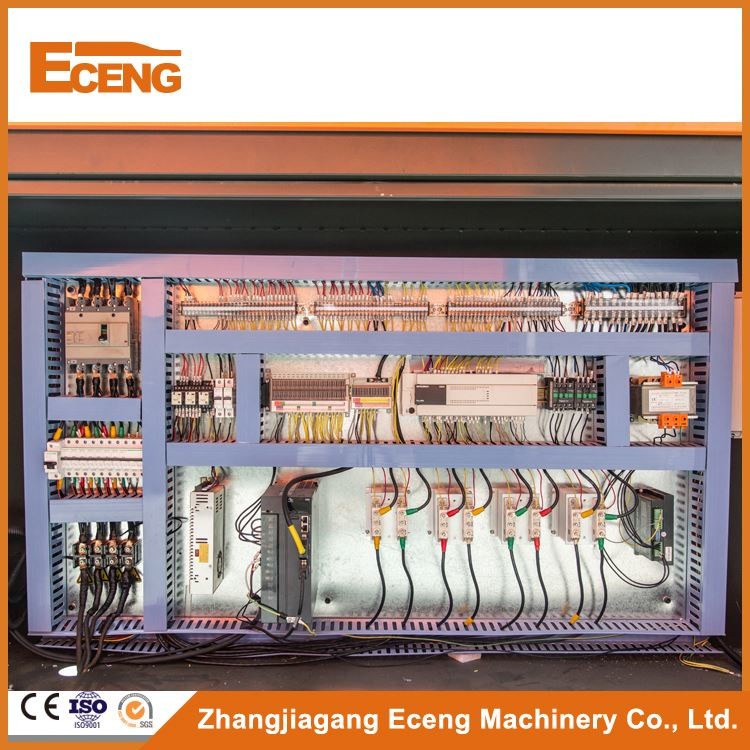

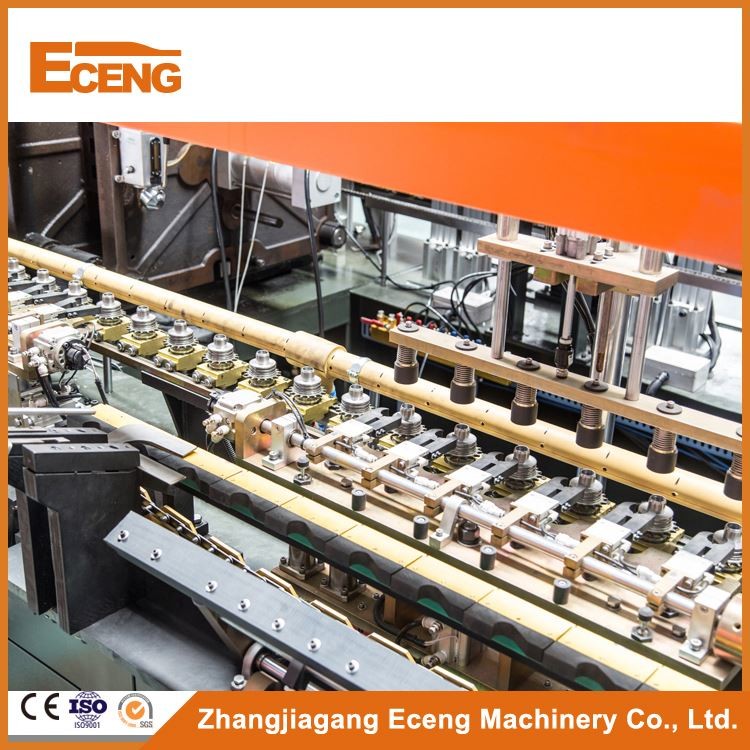

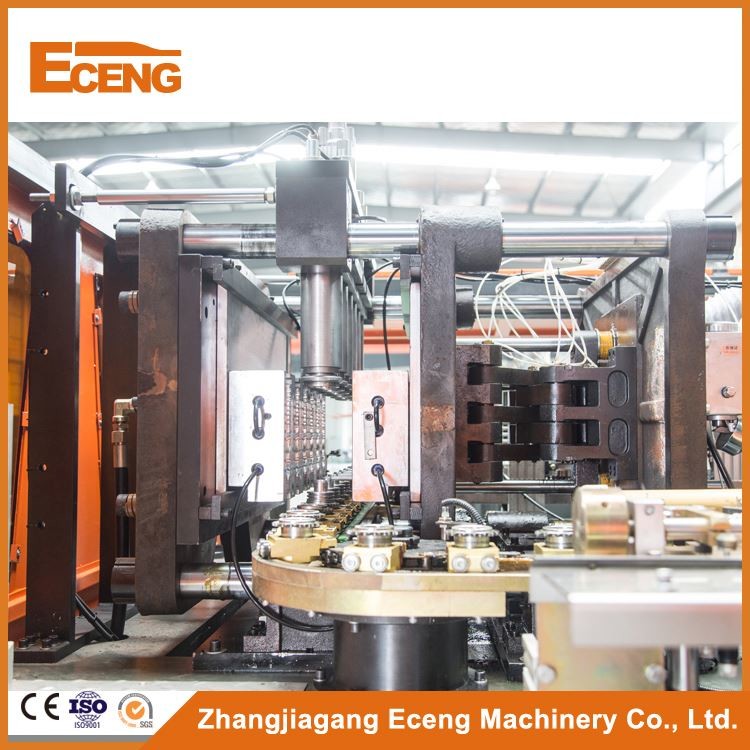

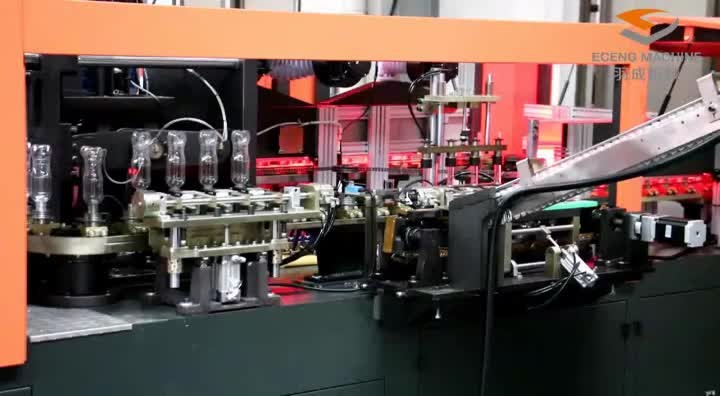

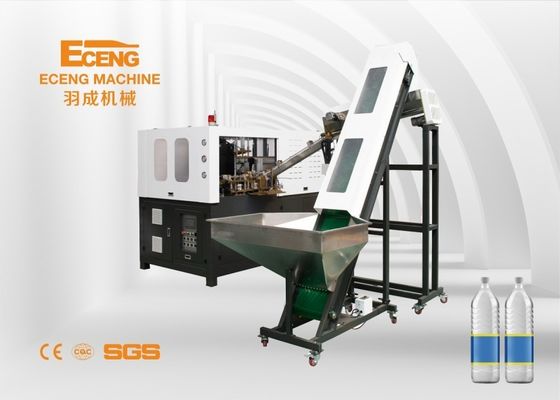

Poduct photos

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR 0

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR 2



     What is technical parameter of our 6 cavity fully automatic pet blowing machine?







item

YCQ-2L-6



Bottle type specification









cavity

6

theory output (PCS/HR)

5000-6000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications





Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw



Air pressure specification





Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min



Frozen water specification





Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton



     What is the feature for our 6 cavity fully automatic pet blowing machine?



A. Stable performance with advanced PLC.



B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.



G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



H. Strong clamping force with high pressure and double crank contact to lock the mold.



I. Two ways of operating: automatic and manual.



J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.



K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.



L. Contamination is avoided for the bottle body.



M. Ideal effect of the chilling with the chilling system.



N. Easy installation and starting



O. Low rejection rate: less than 0.3percent.



     What is the parts of our 6 cavity fully automatic pet blowing machine?



machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN
