Home ProductsChemical Bottle Blow Molding Machine

Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V

Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V

Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V
Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V
Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: J4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $40,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Bottle, Plastic Bottle
Blow Moulding Type: Stretch Blow Moulding Year: 2019
Voltage: 3phase 380V/220V Dimension(L*W*H): 4.1x1.6x1.9(m)
Hollow Part Volume: 2L Power (kW): 32
Weight (KG): 3900 KG Automation: Automatic
Machinery Test Report: Provided Automatic: Yes
Color: Orange Output: 2400-2600BPH
Port: Shanghai
High Light:

sugar bottle 2 cavity pet blowing machine

,

2 cavity pet blowing machine 3 phase 380V

,

pet jar making machine 3 phase 380V

bottle making machine / bottle stretch blowing machine J4

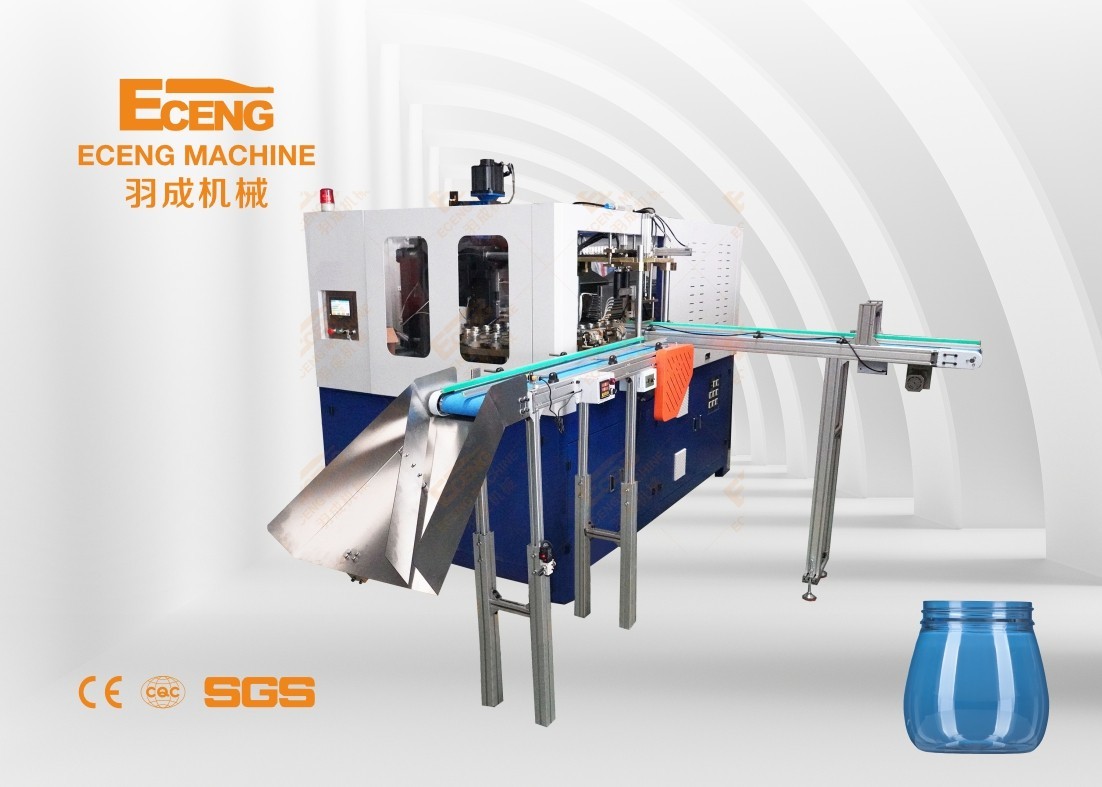

Eceng Factory Manufacture pet blow molding machine 2 cavity jar sugar bottle blowing machine



Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V 0




Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V 1

 Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V 3

 Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V 5



Item

J4

Bottle type specification

Cavity

4

Theory output

2400-2600

Max.volume

2L

Bottle mouth maximum overall DIdiameter

28-80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Size of the machine

4.1x1.6x1.9

Weight of the machine

3.9ton

















company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.









   We Warmly Welcome Customers All Over The World To Our Company!
