Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ

Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ

Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: Q9000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $32,800.00/Sets 1-1 Sets
Packaging Details: package suits transportation for 6000bph Automatic blow PET bottle machine/preform blower
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 38 Mm Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle, Plastic PET Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2021 Voltage: 380V/50HZ, 3phase 380V/220V/415V 50HZ
Dimension(L*W*H): 5.5*1.6*1.9(m) Hollow Part Volume: 2l
High Pressure Valve Brand: Mac Rotary Cylinder Brand: Smc
PLC Brand: XINJE Power (kW): 75
Weight (KG): 4500 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Food & Beverage Factory Marketing Type: Hot Product 2019
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Automatic: Yes
Color: Orange PLC: XINJIE CHINA
High Pressure Valve: Mac/parker Location: Zhangjiagang City
Production Capacity (BPH): 9000 BPH Port: Shanghai
High Light:

Eceng 6 cavity pet blowing machine

,

6 cavity pet blowing machine 380V 50HZ

,

plastic bottle blowing machine 380V 50HZ

Model Q9000

Bottle type specification



 Cavity 6
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 6000-6500BPH
Bottle type capacity 1500ML
Bottle type weight 28-30g
Bottle type circular
Power specification Light tube quantity 48pcs
Light tube power 1.5KW
Maximum heating power 72KW
All electric machine installation 75KW
Actual consumption 40%--70%

Air pressure specification



 Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000Ltr/min

Air pressure specification



 Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 138L/min

Machine specification



 Machine size 5.5x1.6x2.3
Machine weight 5.5ton





Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 0Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 1Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 4
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time 6.Our engineers can be online for 24 hours to serve you

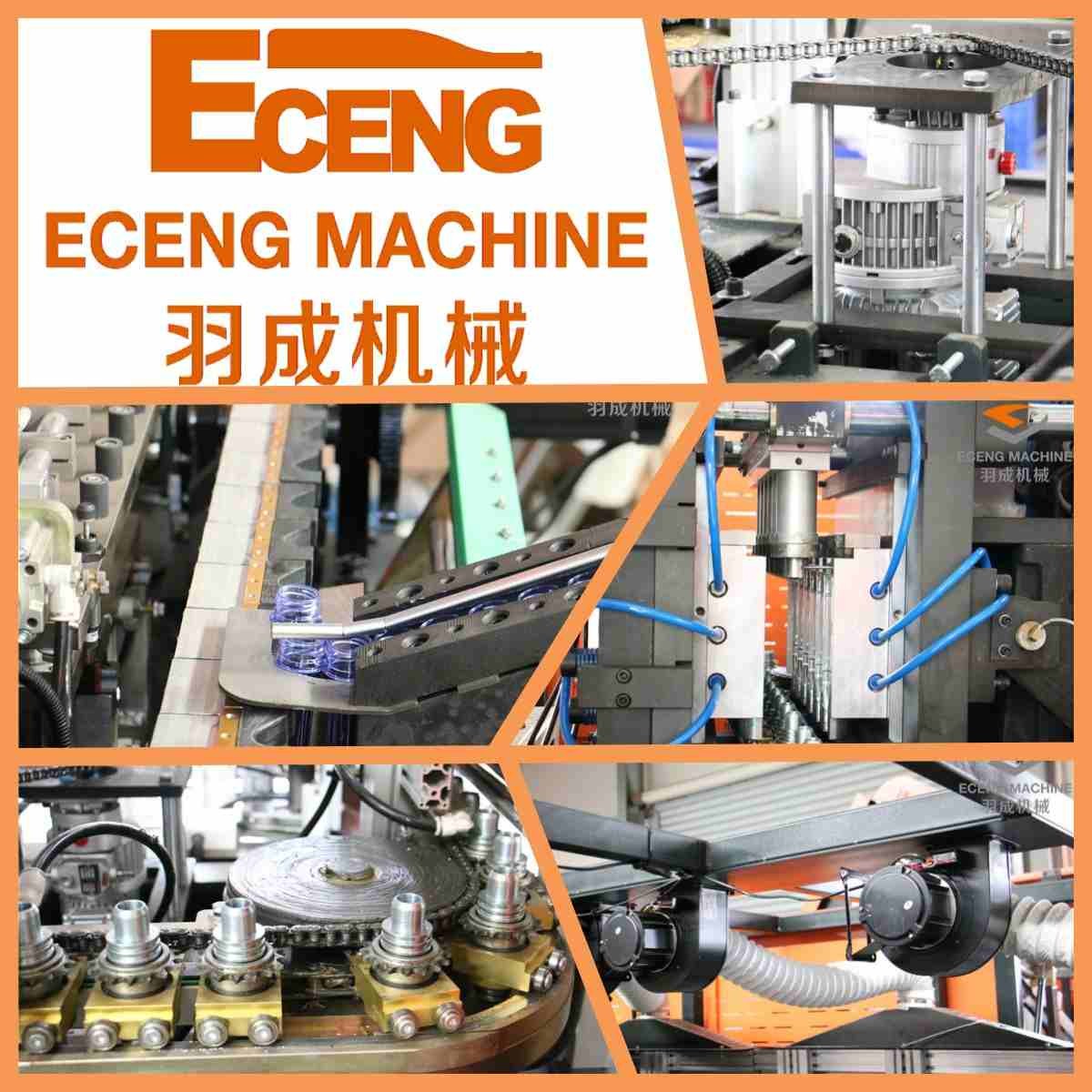

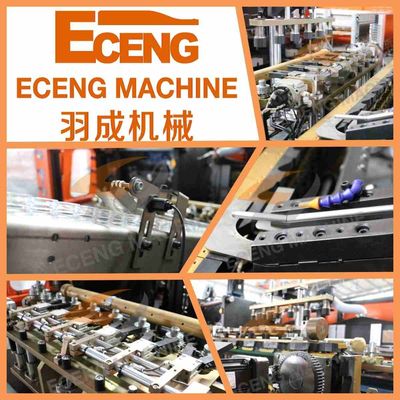

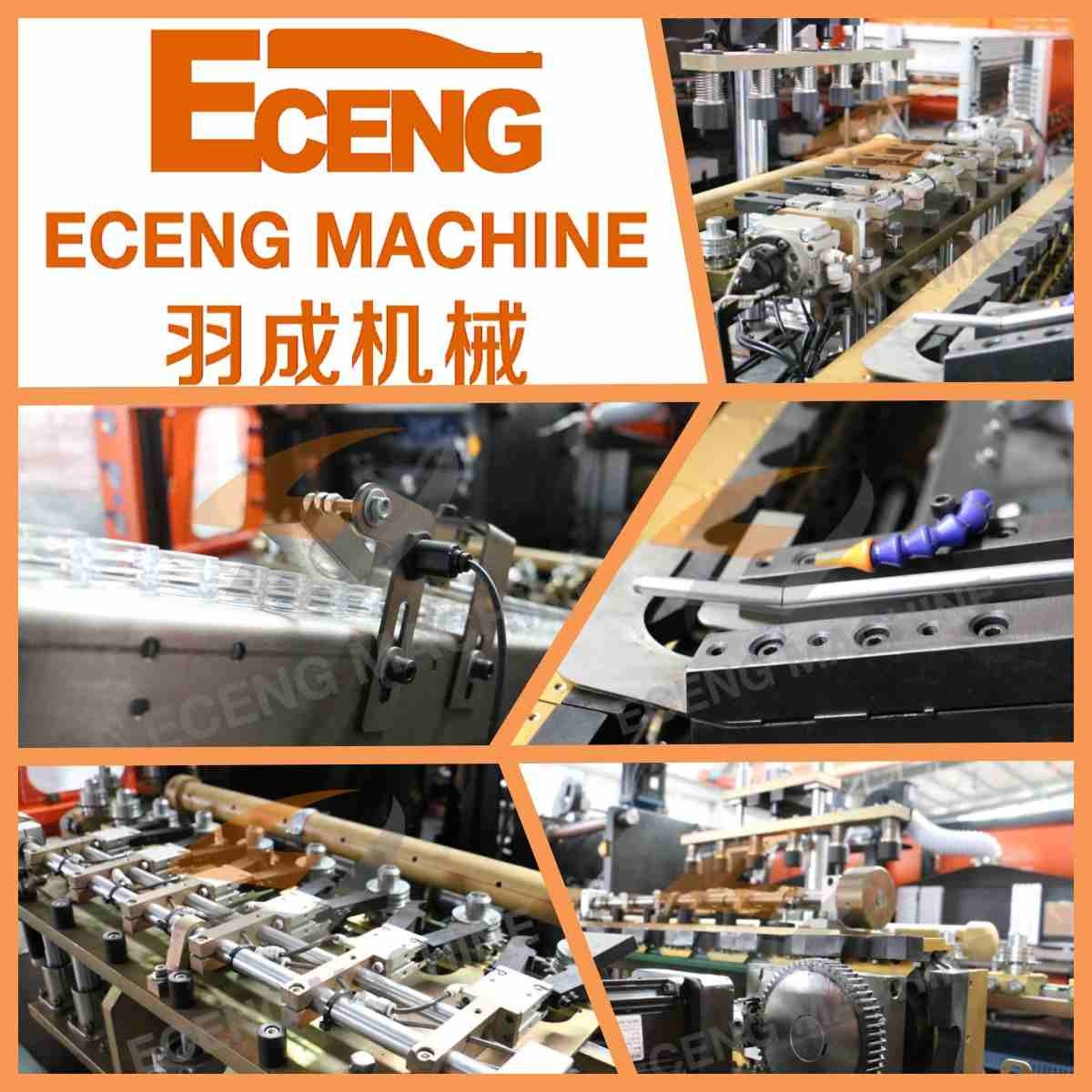

Detailed Images
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 2


Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 10
Packing&Shipping
Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 12
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5.We provide one year warranty 6.well-trained & experienced staff are to answer all your inquiries in English and Chinese 7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions.

Eceng Plastic Bottle 6 Cavity PET Blowing Machine 380V 50HZ 15

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
