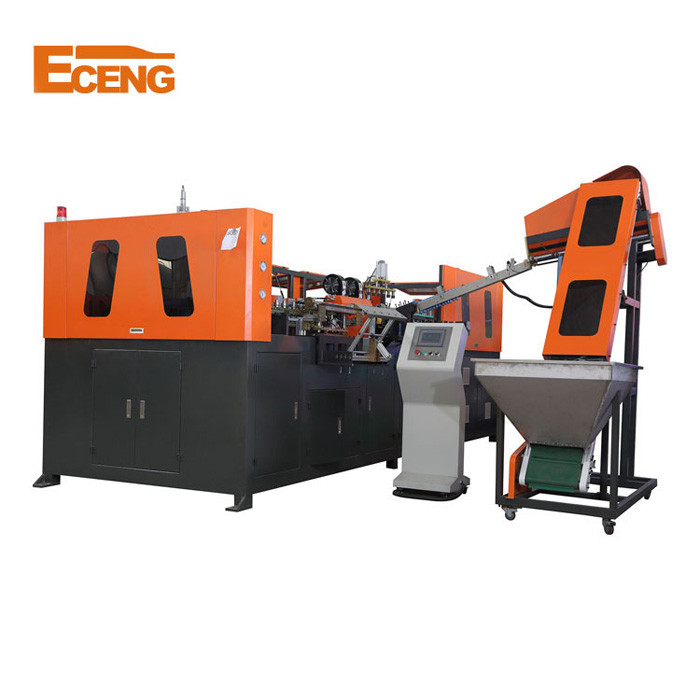

LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR

Name: LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
Brand: Eceng
SKU: q9000
Price: 30 USD
Availability: InStock
Rating: 4.8 (133 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Eceng
Certification:	CE ISO
Model Number:	q9000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$30,000.00 - $40,000.00/Sets
Packaging Details:	Wooden package for pet bottle blowing machine price
Delivery Time:	45days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 Set/Sets per Month pet bottle blowing machine price

Contact Now

Detailed Product Description

Plastic Processed:	PET, PE, PE/PP, LDPE, HDPE	Max.Bottle Height(mm):	330 Mm
Neck Diameter(mm):	28 Mm	Max.Bottle Diameter(mm):	100 Mm
Bottle Volume(ml):	2000 Ml	Condition:	New
Application:	Bottle	Blow Moulding Type:	Stretch Blow Moulding
Year:	2019	Voltage:	Customer
Dimension(LWH):	6.5x1.5x1.9 (m)	Hollow Part Volume:	2l
Power (kW):	49	Weight (KG):	4500 KG
Automation:	Automatic	Warranty:	1 Year
Key Selling Points:	Automatic	Applicable Industries:	Food & Beverage Factory
Marketing Type:	Hot Product 2019	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Automatic:	Yes	Cavity:	6
PLC:	Mitsubishi	Output:	7000-8000PCS/HR
Max.volume:	2L	Actual Consumption:	30kw
Low-pressure Gas Consumption:	1600L/min	Key Words:	Plastic Bottle Blowing Machine
Port:	Shanghai
High Light:	LDPE HDPE PET Stretch Blowing Machine , plastic bottle molding machine 8000PCS/HR , LDPE HDPE plastic bottle molding machine

Good used automatic pet plastic bottle blowing machine price

specification

Item			Q9000
Bottle type specification	Cavity	6
		Theory output	90000
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-38mm
		Bottle biggest diameter	105mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	32pcs
		Light tube power	1.5KW
		Maximum heating power	72KW
		All electric machine installation	75KW
		Actual consumption	40%--70%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1000L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	3000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Frozen water flow	138L/min
Machine specification	Machine size	5.5x1.6x1.9
Machine specification		Machine weight	4.5ton

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

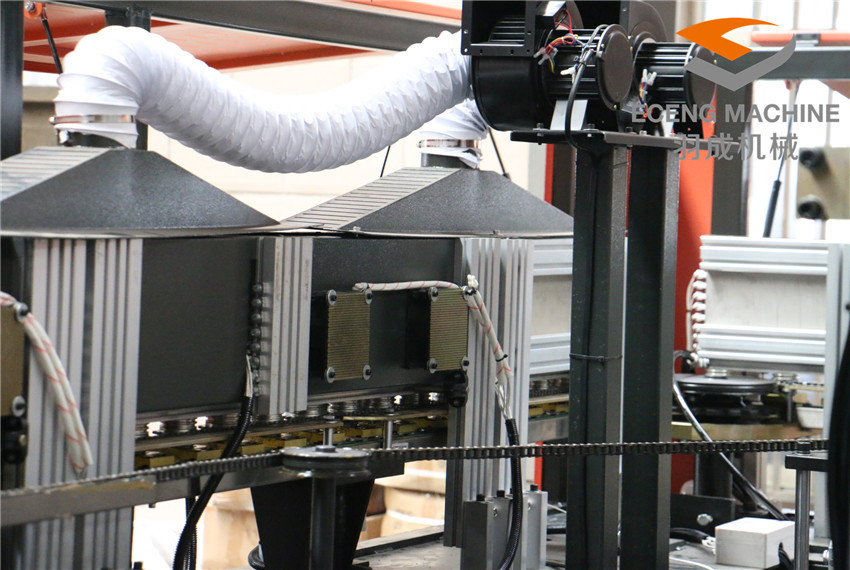

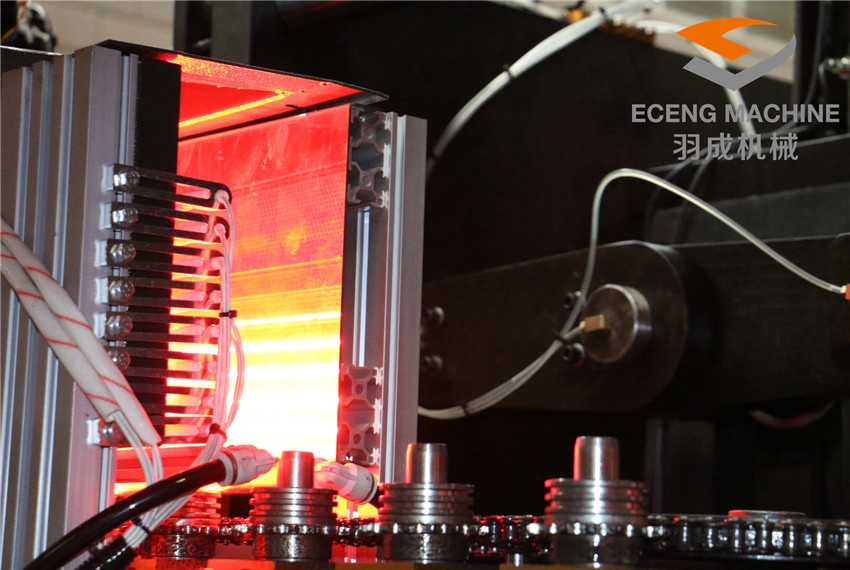

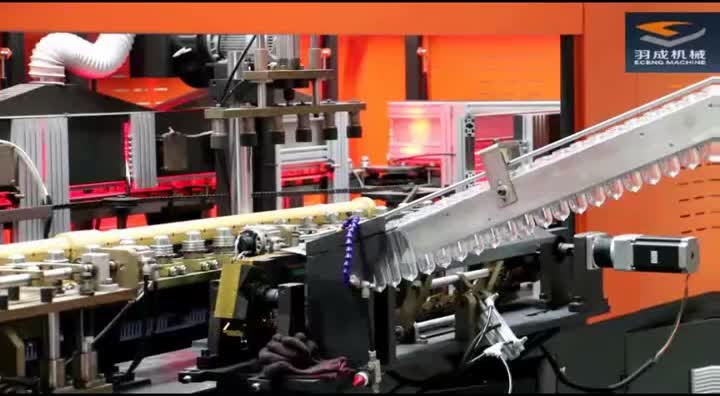

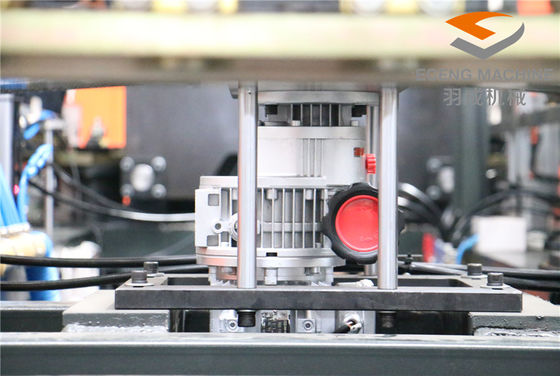

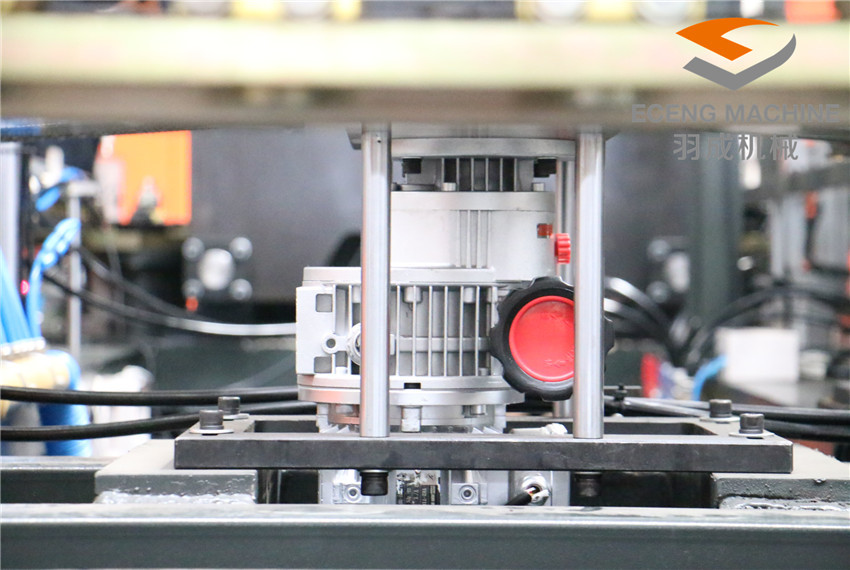

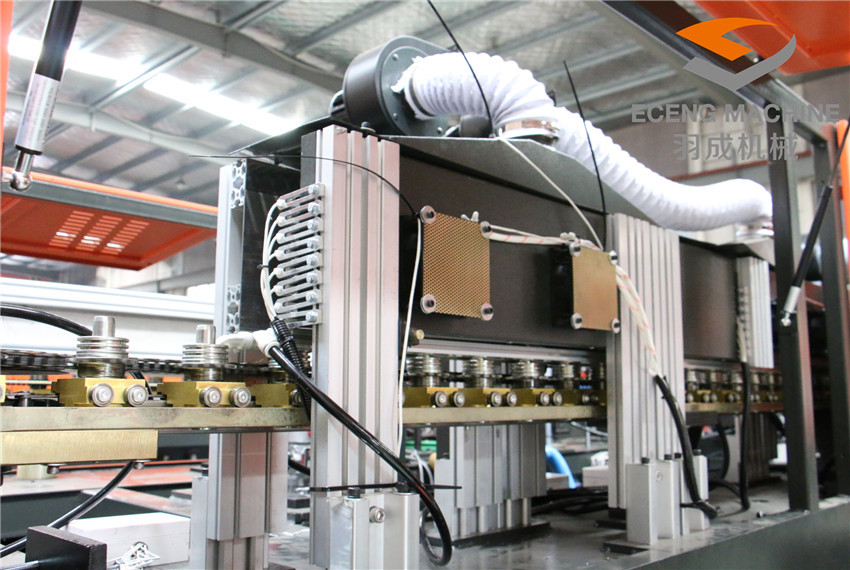

Detailed Images

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Qseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

Company Introduction

Packing&Shipping

After Sales Service

1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3. Quality guarantee We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components except those damaged by non-human factors are guaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine. During warranty period ,the equipment is damaged due to incorrect operation bythe buyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
