Blow your bottle, Shape your dream

|
| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Model Number: | Q3000 |
| Minimum Order Quantity: | One |
|---|---|
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | Q3000 | Color: | Orange |
|---|---|---|---|
| Output: | 3000bph | Weight: | 2.5ton |
| BLOW MOULDING TYPE: | Stretch Blow Moulding | VOLTAGE: | 380V, 50HZ, 3PHASE |
| AUTOMATION: | Automatic | VOLUME: | 2l |
| Highlight: | Automatic Pet Bottle Blow Moulding Machine,3000BPH Pet Blow Moulding Machine,2cavity Pet Blow Moulding Machine |
||

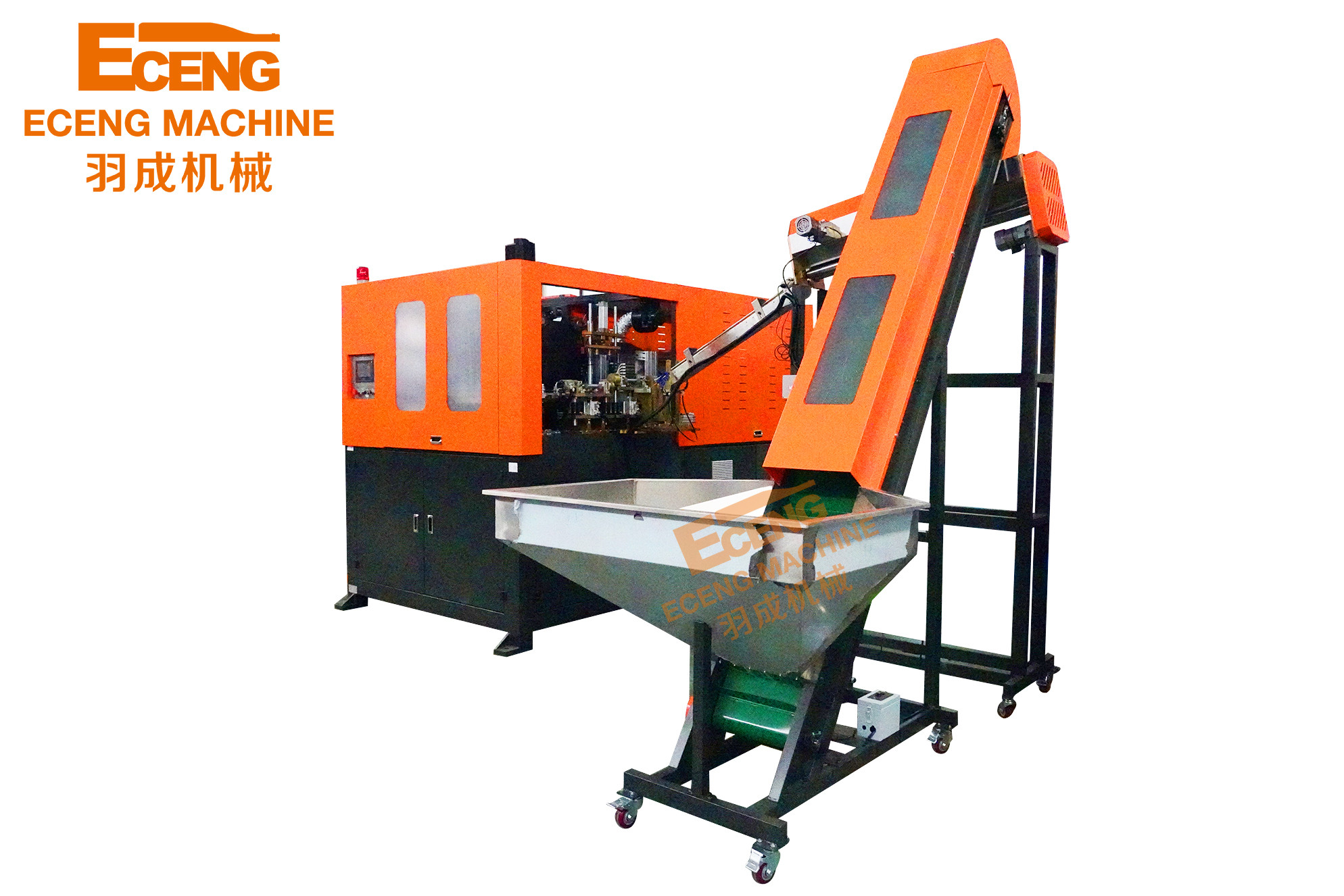

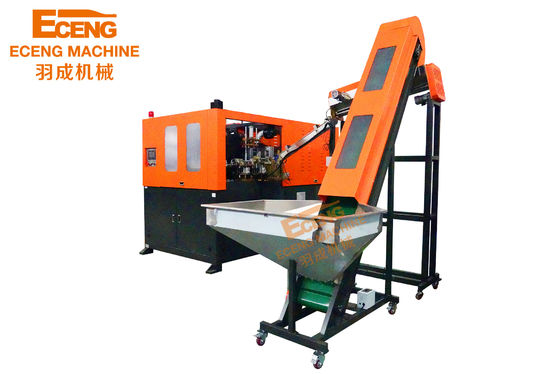

3000BPH 2cavity full automatic bet bottle blow moulding machine Eceng Q3000, for 600ml clear plastic juice bottle.
This series of models adopts international brand servo motors, reducers, electrical components, and control systems to create stable, reliable, efficient, durable, energy-saving and convenient machinery products. It is suitable for blowing PET/PETG cosmetic bottles with various appearances and calibers, especially good at blowing difficult and demanding special-shaped bottles.
| model | Q3000 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 3000 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 32pcs |
| Maximum heating power | 24KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 19KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.25x1.6x1.7 |
| Weight of the machine | 2.5ton | |
stretch blow moulding machine 330ml bottle
Q series fully automatic PET stretch blowing machine is developed by advanced bottle blowing technology.It has advantage of high-level fully automatic,stable working performance,simple structure but high working efficiency.

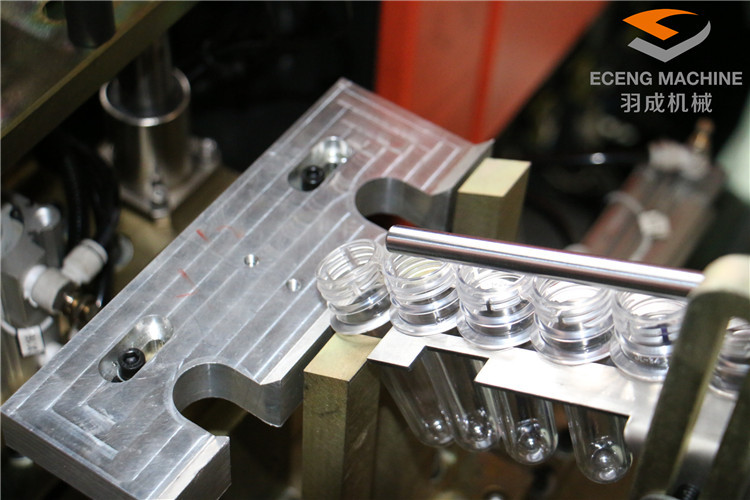

The Q3000 bottle blowing equipment is importing the preform, and through the high-precision handle pick-and-place device, it can be servo-positioned, quickly and accurately put the handle in the mold, and then blow the bottle, so that the bottle body and the handle are fully integrated, and the bottle is fully handled. Automatic production.

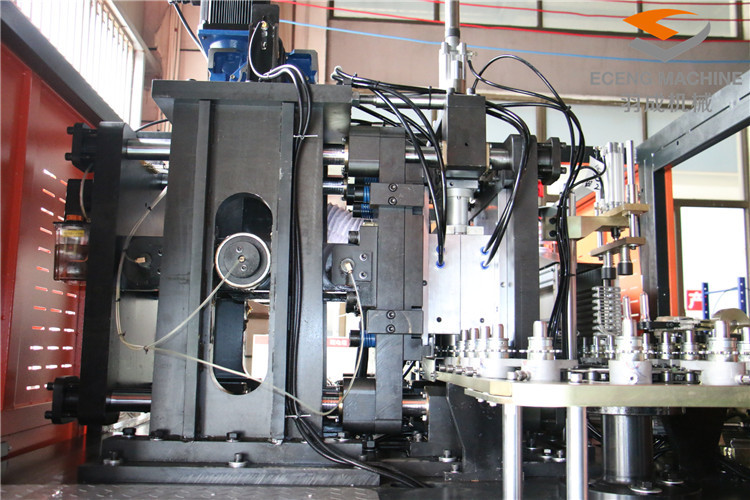

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
