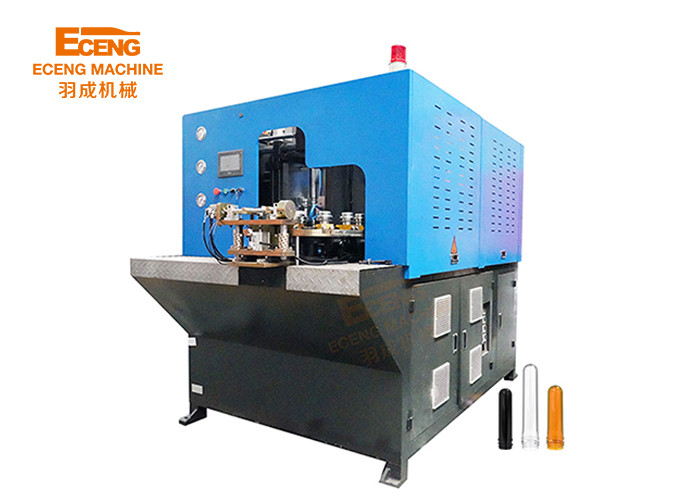

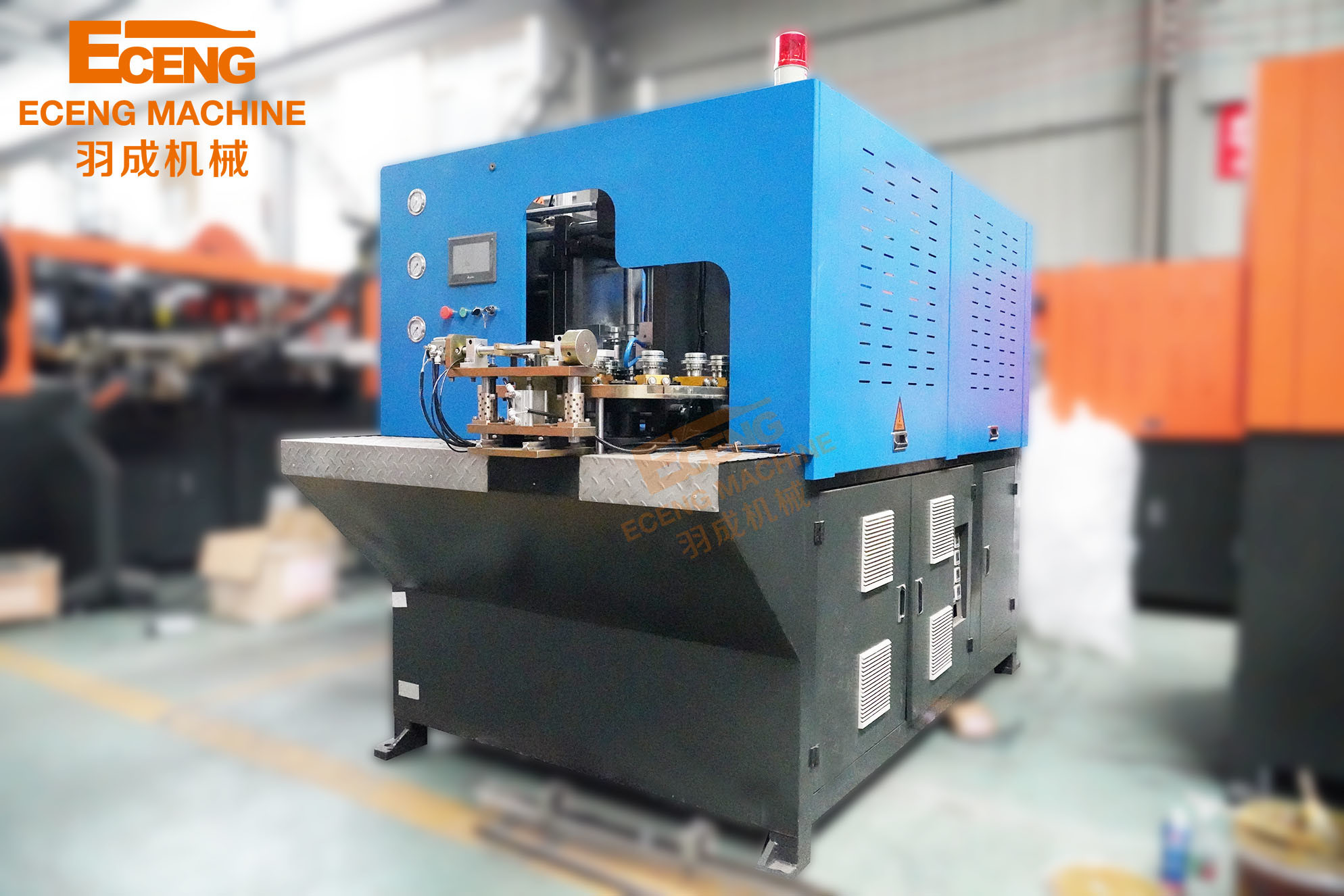

H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output

H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output

H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: H2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $14,500.00 - $21,000.00/Sets
Packaging Details: To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Warranty Of Core Components: 1 Year
Condition: New Voltage: 380V/50HZ
Dimension(L*W*H): 2.25mx1.6mx1.7m Key Selling Points: Easy To Operate
Applicable Industries: Food & Beverage Factory Theory Output: 2200BPH
High Light:

Pet Hand Feeding Bottle Blowing Machine

,

2200BPH Pet Bottle Blowing Machine

,

2Cavity Pet Bottle Blowing Machine

H2 manual hand feeding pet bottle blowing machine 2 cavity, 2200BPH Output
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 0
specification
Item

H2




Bottle type specification
Cavity
2

Theory output
2200

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton



1. H2 manual hand feeding pet bottle blowing machine is designed to provide reliable and efficient performance for small-scale production. With its 2 cavity system, it is capable of producing up to 2200 bottles per hour.
2. This machine is ideal for pet bottle production in industries such as food, beverage, pharmaceuticals, and cosmetics. It provides superior quality with consistent output, ensuring high customer satisfaction.
3. The H2 manual hand feeding pet bottle blowing machine is easy to operate and maintain, making it perfect for small factories and start-ups. Its compact design also saves space in your production line.
4. With its user-friendly interface and manual hand feeding system, this machine offers precision and accuracy, enabling you to produce high-quality bottles with minimal wastage.
5. Whether you're looking for a reliable pet bottle blowing machine for your new business or want to expand your production line, the H2 manual hand feeding pet bottle blowing machine is the right choice for you. Invest in quality and efficiency, and watch your business grow with this excellent machine.



H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 2
H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 4

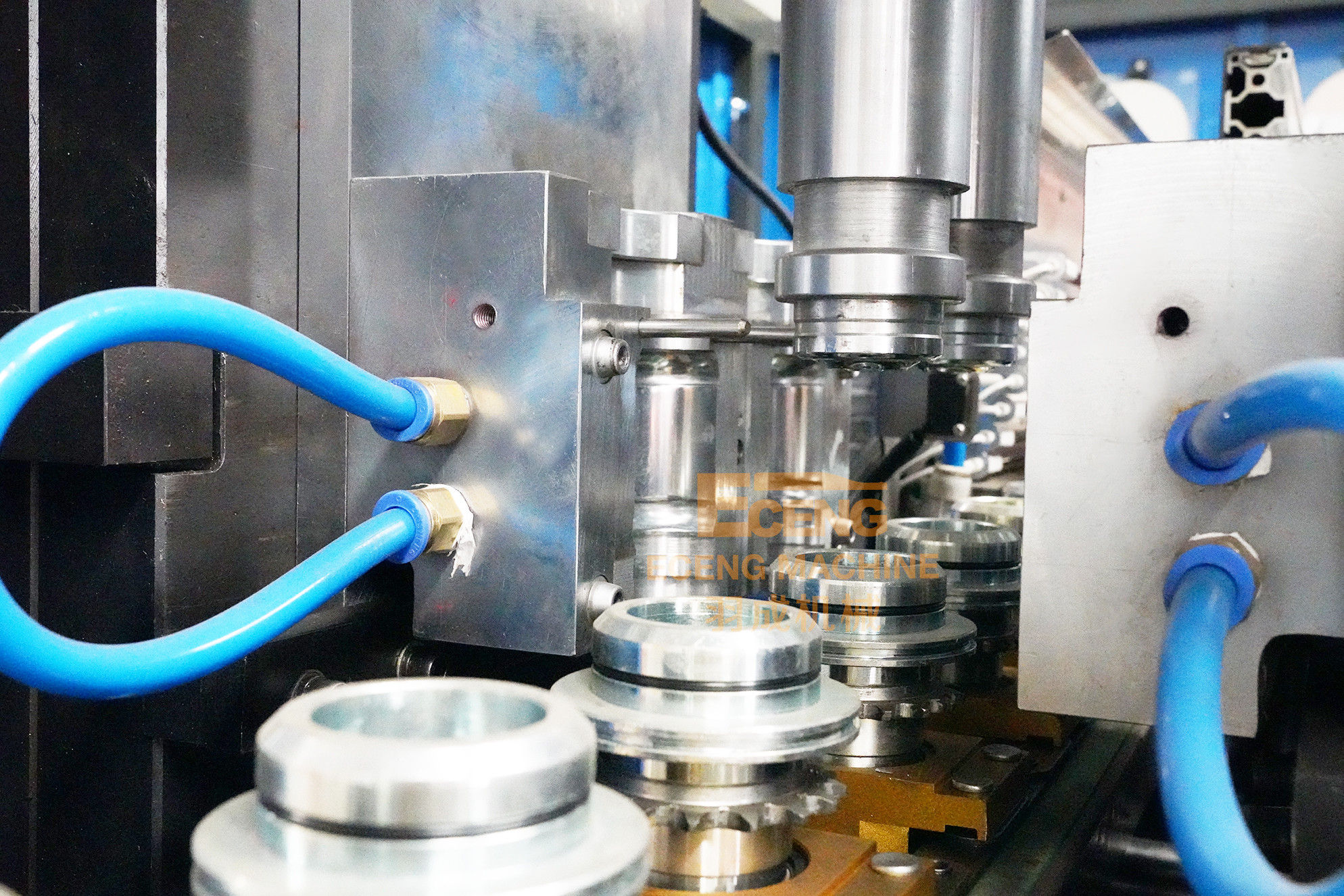

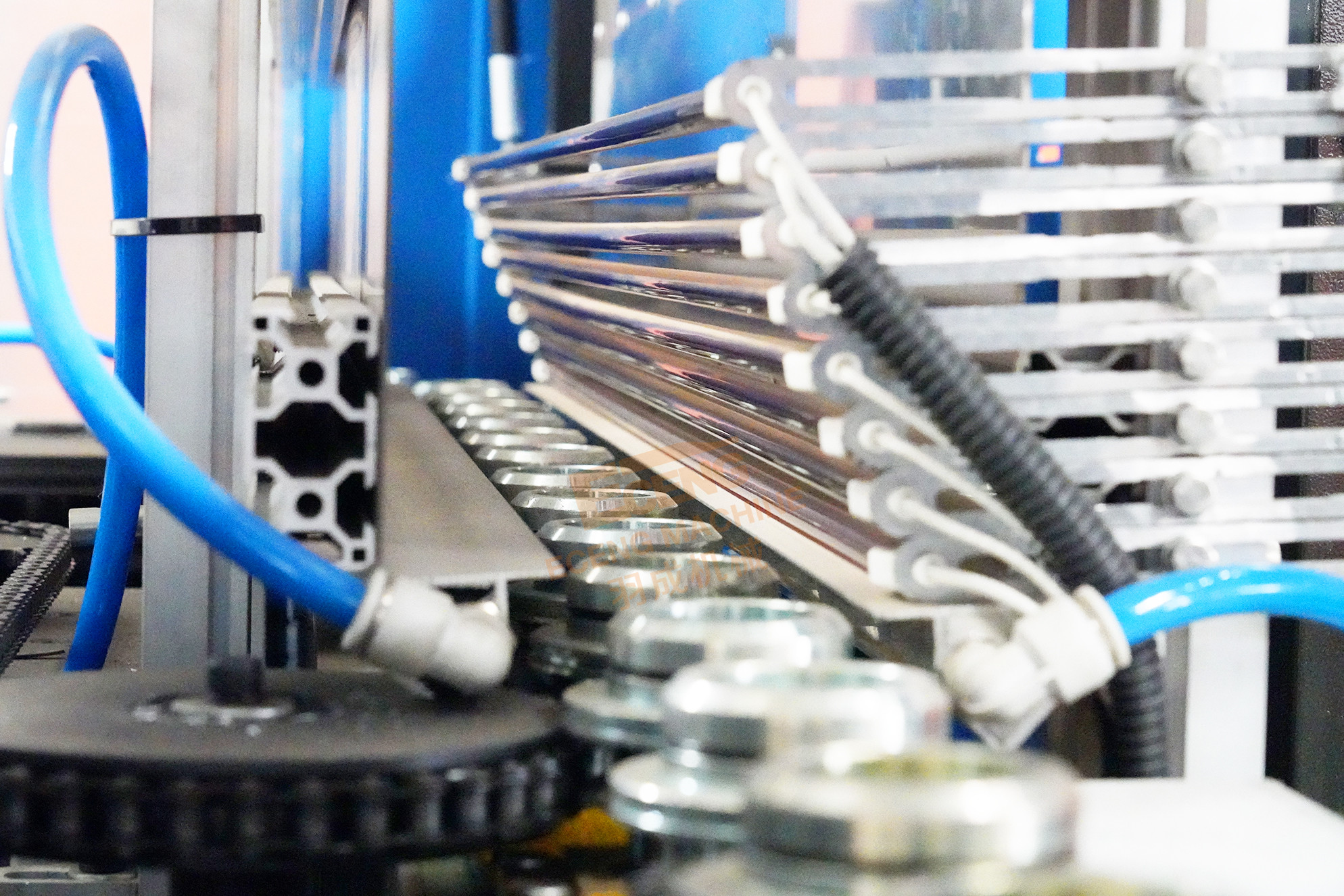

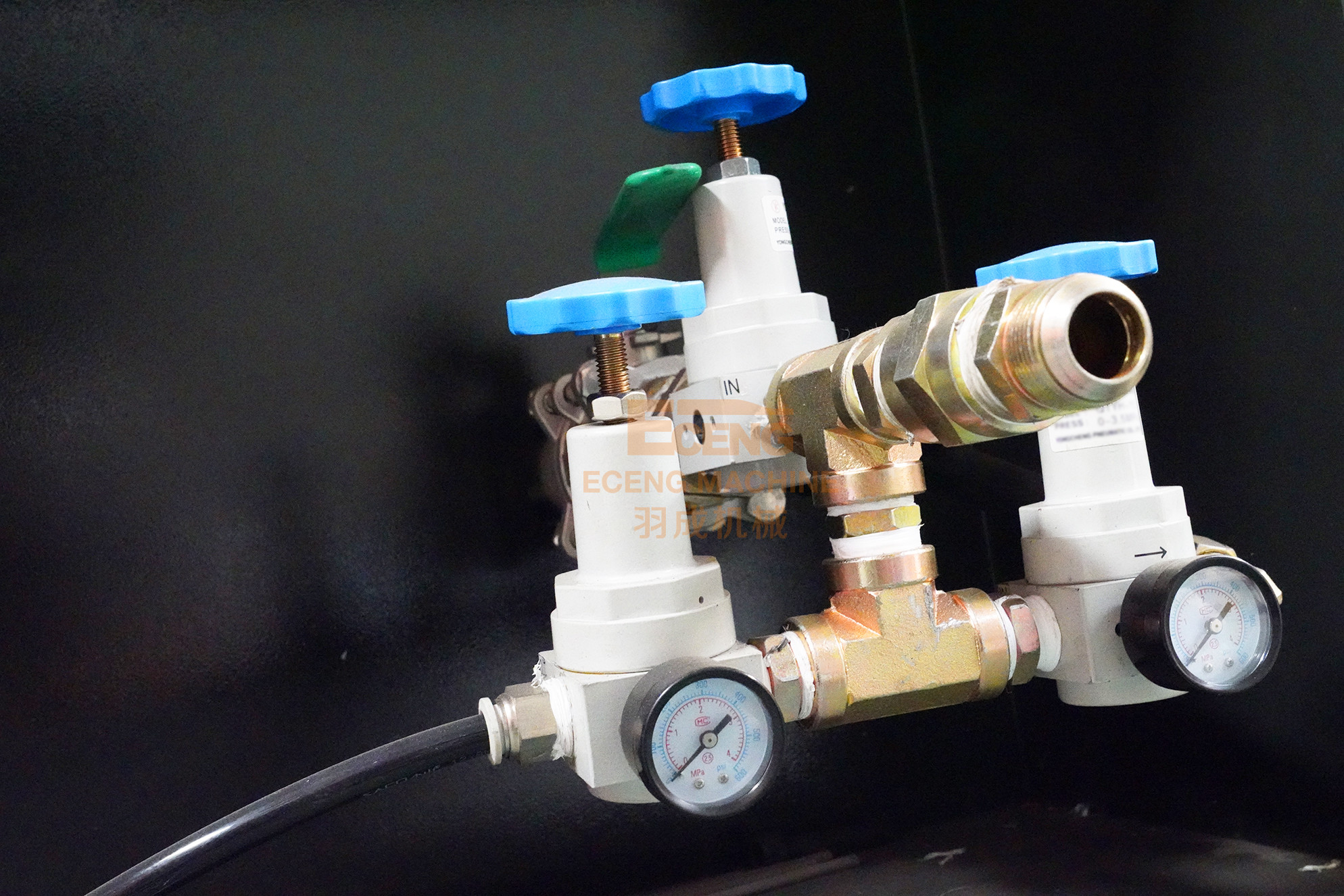

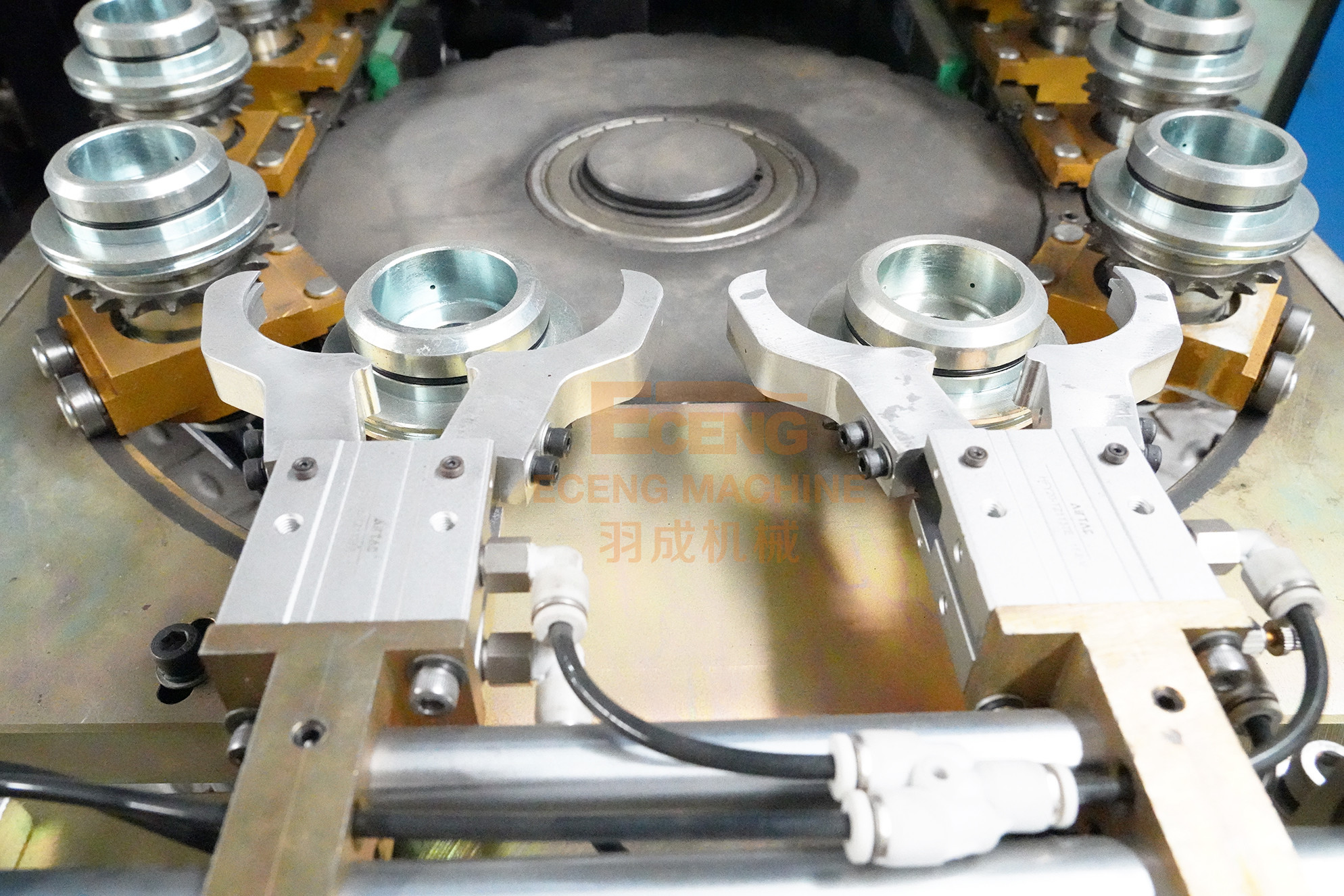

Detailed Images
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 6
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 8
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 10
H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 12
H2 Manual Hand Feeding Pet Bottle Blowing Machine 2 Cavity 2200BPH Output 14
